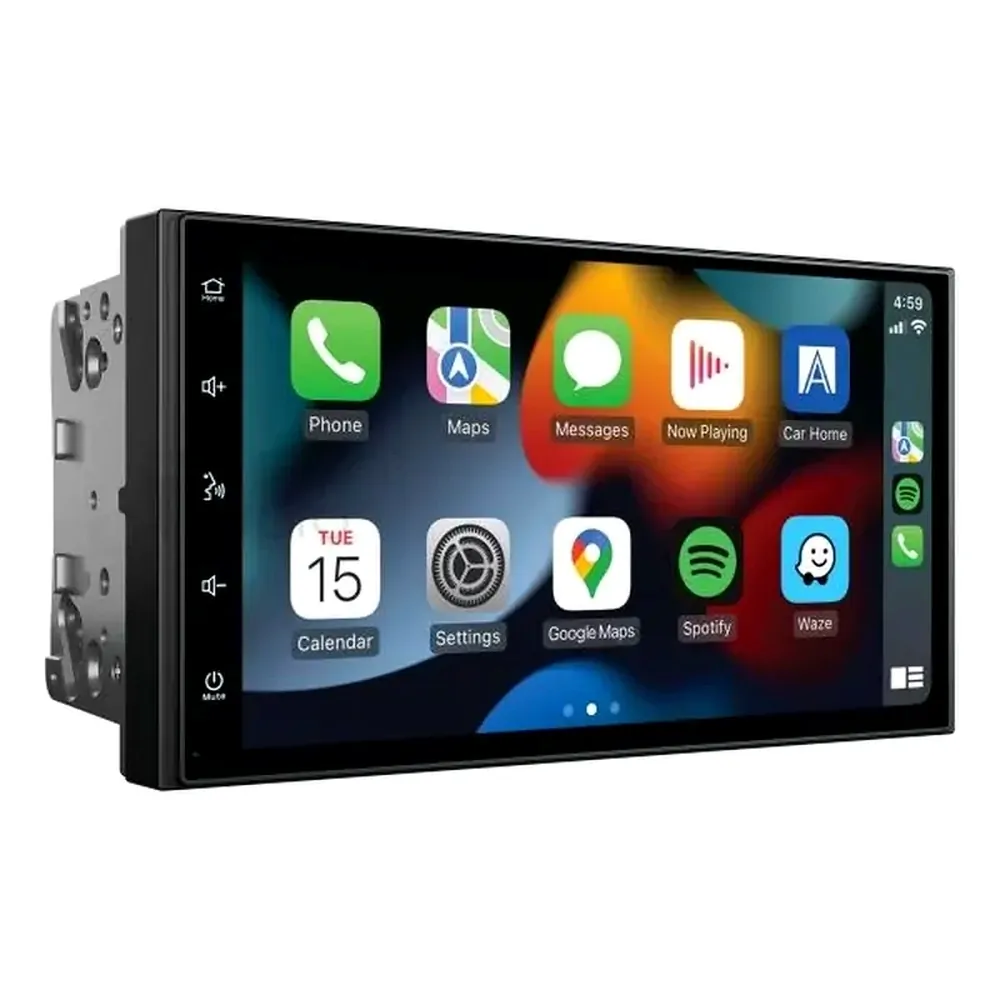

Aerpro AM7X 7" Wireless Apple CarPlay Android Auto Bluetooth Headunit

SKU:AM7X

$499.99

Calculate Shipping

The Aerpro AM7X is a cutting-edge 7" Multimedia Receiver designed to elevate your in-car entertainment experience. This sleek unit boasts a vibrant 7" capacitive touch display, ensuring a user-friendly interface for seamless control. Compatible with both Apple CarPlay and Android Auto, this receiver offers wireless and wired connectivity, providing versatility for your preferred device.

Stay connected with the built-in Bluetooth feature that supports A2DP, AVRCP, HFP, and PBAP, facilitating hands-free calling and audio streaming. The AM/FM Tuner with RDS and presets (18FM/12AM) ensures you never miss a beat, while dual rear USB inputs enable connection of your smartphone or USB media device.

The dual camera inputs with individual triggers are 720P AHD compatible, allowing for high definition cameras to be installed on the vehicle to provide crystal clear vision. Connect a reverse camera and an extra rear, side, towing or front camera for convenient parking and enhanced safety (cameras are sold separately).

Equipped with a 4V/6CH RCA preout, 8-band graphic EQ, and 8 EQ presets, the AM7X delivers unparalleled audio customisation. Manage your subwoofer effortlessly with the subwoofer level control and enjoy a powerful 45W x 4 max built-in amplifier.

Designed with convenience in mind, the shallow 2-DIN chassis mounting design and steering wheel control readiness make installation and operation a breeze. Elevate your driving experience with the Aerpro AM7X – where innovation meets entertainment.

Features:

  • 7" Capacitive touch display
  • Works with Apple CarPlay (wireless and wired)
  • Supports Android Auto (wireless and wired)
  • Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
  • AM / FM Tuner with RDS & presets (18FM/12AM)
  • Dual rear USB inputs (USB1: CP/AA, USB2: USB Media)
  • Dual camera inputs (720P AHD compatible)
  • Rear A/V input (RCA)
  • 4V / 6CH RCA Preout
  • MP3 / AAC / FLAC / MPEG 1,2,4 Media formats
  • 8 Band graphic EQ
  • 8 EQ Presets
  • Subwoofer level control
  • 45W x 4 Max built-in amplifier
  • Shallow 2-DIN chassis mounting design
  • Steering wheel control ready (3 Wire Learning SWC)
  • External microphone included

Features

  • LCD Display:
    • Size: 7"
    • Resolution: 1024x600
    • Touch Screen: Capacitive (G+G)
  • System Specifications:
    • OS System / CPU: Linux 3.4.5 / SPHE8368U
    • RAM / Flash Memory: 128MB / 256MB
  • DIN Size: 2 DIN Short Body
  • Power Output
    • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
    • MAX Power (4 Ohm): 4CH x 45W
  • Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
  • Device Ports
    • USB (Rear) Playback Formats: CP/AA & Media
    • USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
    • USB MAX Capability: FAT32_32GB
  • Aux Inputs / Outputs:
    • Rear A/V Input (RCA Type - 3pcs): Yes
    • Reverse Camera Input: Yes (720P AHD Compatible)
    • Second Camera Input: Yes (720P AHD Compatible)
  • Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
  • Bluetooth:
    • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
    • Bluetooth Version: V4.2+EDR
    • Microphone: Built-in & External Microphone
    • ID3 Tag/Information (Artist, Album, Song): Yes
    • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
  • Tuner:
    • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
    • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
    • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
    • RDS: Yes
    • FM Antenna Connector Impedance: 50 Ohm
    • FM Tuner Connector: Motorola
  • RCA Preamp Outputs:
    • RCA Preamp Output: 2-Pair (Front / Rear)
    • Subwoofer RCA Output: Yes
    • Subwoofer Level Control: Yes
    • Preamp Voltage (1.2,2,4,5,6): 4V p-p
  • Tone Control:
    • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
    • Loudness: Yes
    • LPF - Frequencies (Sub): Yes
    • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
  • Other Features:
    • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
    • OSD Language: English
    • LED Colour (Buttons / Keys): White
  • Accessories:
    • Power Harness: Yes with ISO
    • AV-In Cable (RCA with Audio L/R, Video In): Yes
    • Reverse Camera Input: Yes
    • 4.2CH Audio Out Cable: Yes
    • External Microphone: Included

More Information

More Information
DIN Size 2 DIN
Short Chassis Yes
Apple CarPlay Yes (via Cable/Wireless)
Android Auto Yes (via Cable/Wireless)
Screen Size 7 Inch
Screen Resolution 1024x600
LCD Type Capacitive
DAB+ Digital Radio No
iDatalink Ready No
Bluetooth Yes (Calls & Music)
Active Phone Connection Single
Smartphone Mirror No
Built-in Navigation No
CD/DVD No
Illumination Colour White
Camera Input Front and Rear
Additional Camera Input No
USB Connection Rear (x2)
USB Charging 1.5 x 2A
RMS Power 25W x 4
RCA Preouts 6ch (F+R+S)
RCA Preout Voltage 4V
Equaliser Type 8-band
Crossover Type LP (Sub only)
Digital Time Correction No
Steering Wheel Control Ready Yes
SKU AM7X
Barcode # 9317114944771
Brand AERPRO
