Aerpro AMTO38 10" Multimedia Receiver fits Toyota Kluger 2014-19 360 Camera Models

SKU:AMTO38

RRP $1,574.99
$1,464.00
SAVE $110.99 (7%)

Calculate Shipping

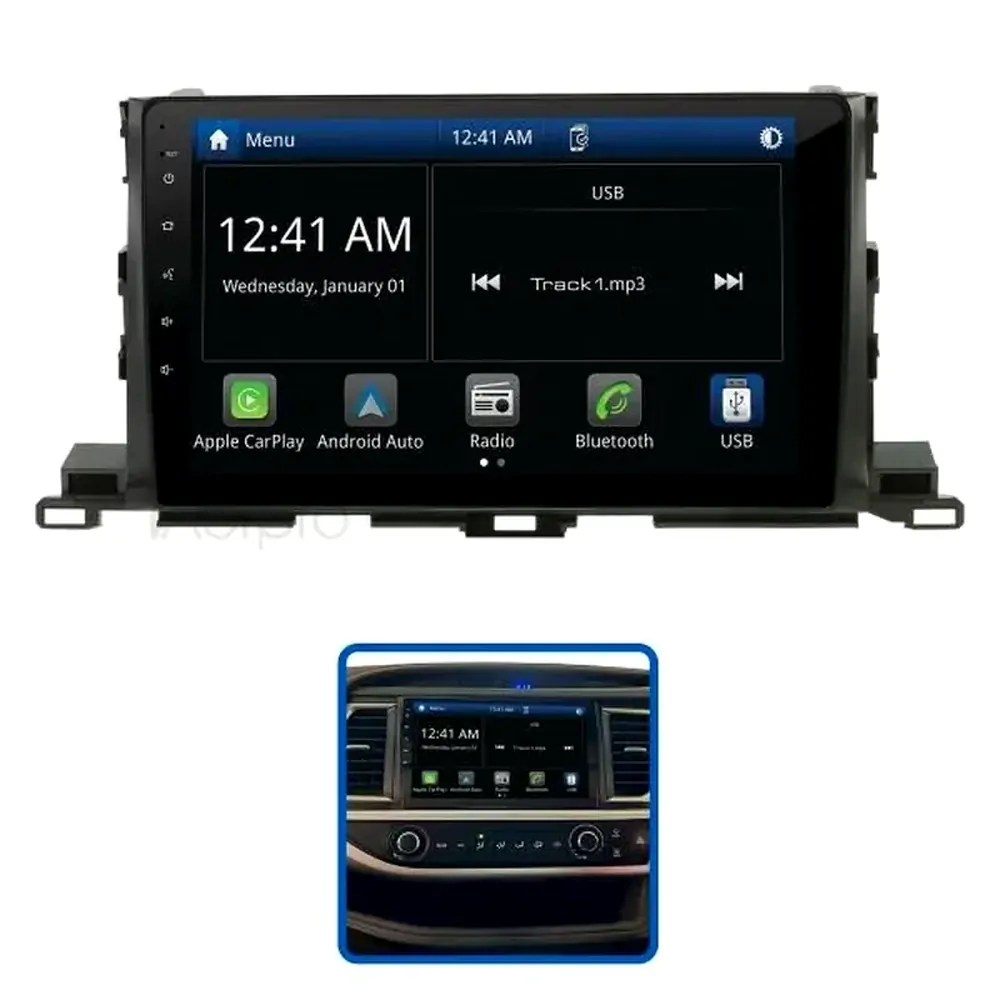

The Aerpro AMTO38 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Toyota Kluger (2014-2019) vehicles with 360 reverse camera. Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner. Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMTO38 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, USB input, AUX input, 360 factory reverse camera and factory amplifier.

Important Information:

  • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  • The facia kit included in this kit is designed for left hand drive (LHD) vehicles. The kit will fit without modification however it is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly.
  • Reverse Camera Retention uses the reverse camera input of the head unit.
  • USB Input Retention uses the USB input on the rear of the head unit.
  • AUX Input Retention uses the RCA AUX input on the rear of the head unit.
  • This head unit is sold as a kit which includes:
    • AM10X Multimedia Receiver
    • Matte Black Facia Kit
    • Steering Wheel Control Interface Harness
    • SWC Patch Lead
    • Antenna Adaptor
    • 360 Camera Retention Adaptor
    • USB Retention Adaptor
    • For amplified vehicles, does not support fade

Specs:

AMTO38 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

  • Kit Inclusions:
    • AM10X Multimedia Receiver
    • Matte Black Facia Kit
    • Steering Wheel Control Interface Harness
    • SWC Patch Lead
    • Antenna Adaptor
    • Camera Retention Adaptor
    • USB Retention Adaptor
  • Vehicle Feature Retention:
    • Steering Wheel Controls: Yes (including phone button)
    • Factory 360 Reverse Camera: Yes
    • AUX Input: Yes (if equipped)
    • USB Input: Yes (if equipped)
    • Parking Tones: N/A
    • Factory Amplifier: Yes
    • Vehicle Menu: N/A
    • Other: N/A

AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:

  • LCD Display:
    • Size: 10"
    • Resolution: 1024x600
    • Touch Screen: Capacitive (G+G)
  • System Specifications:
    • OS System / CPU: Linux 3.4.5 / SPHE8368U
    • RAM / Flash Memory: 128MB / 256MB
  • DIN Size: 2 DIN Short Body
  • Power Output
    • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
    • MAX Power (4 Ohm): 4CH x 40W
  • Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
  • Device Ports
    • USB (Rear) Playback Formats: CPAA & Media
    • USB (Rear) Power - Voltage/Amps: 5V/1.5A
    • USB MAX Capability: FAT32_32GB
  • Aux Inputs / Outputs:
    • Rear A/V Input (RCA Type - 3pcs): Yes
    • Composite Video Outputs: Yes
    • Reverse Camera Input: Yes (720P AHD Compatible)
  • Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
  • Bluetooth:
    • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
    • Bluetooth Version: V4.2+EDR
    • Microphone: Built-in & External Microphone
    • ID3 Tag/Information (Artist, Album, Song): Yes
    • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
  • Tuner:
    • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
    • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
    • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
    • RDS: Yes
    • FM Antenna Connector Impedance: 50 Ohm
    • FM Tuner Connector: Motorola
  • RCA Preamp Outputs:
    • RCA Preamp Output: 2-Pair (Front / Rear)
    • Subwoofer RCA Output: Yes
    • Subwoofer Level Control: Yes
    • Preamp Voltage (1.2,2,4,5,6): 4V p-p
  • Tone Control:
    • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
    • Loudness: Yes
    • LPF - Frequencies (Sub): Yes
    • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
  • Other Features:
    • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
    • OSD Language: English
    • LED Colour (Buttons / Keys): White
  • Accessories:
    • Power Harness: Yes with ISO/3.5mm jack
    • AV-In Cable (RCA with Audio L/R, Video In): Yes
    • Reverse Camera Input (with 12V power supply to the camera): Yes
    • 4.1CH Audio Out Cable: Yes
    • External Microphone: Included

Features

The facia kit included in this kit is designed for left hand drive (LHD) vehicles. The kit will fit without modification however it is recommended to remove the clip at the bottom behind the factory silver trim to prevent the factory panel from bowing slightly.

More Information

More Information
DIN Size Special
Short Chassis No
Apple CarPlay Yes (via Cable/Wireless)
Android Auto Yes (via Cable/Wireless)
Screen Size 10 Inch
Screen Resolution 1024x600
LCD Type Capacitive
DAB+ Digital Radio Yes
iDatalink Ready No
Bluetooth Yes (Calls & Music)
Active Phone Connection Single
Smartphone Mirror Yes (Wireless)
Built-in Navigation No
CD/DVD No
Illumination Colour White
Camera Input Rear
Additional Camera Input No
USB Connection Rear (x2)
USB Charging 1.5A
RMS Power 25W x 4
RCA Preouts 6ch (F+R+S)
RCA Preout Voltage 4V
Equaliser Type 15-band
Crossover Type 3-way
Digital Time Correction Yes
Steering Wheel Control Ready Yes
SKU AMTO38
Brand AERPRO
