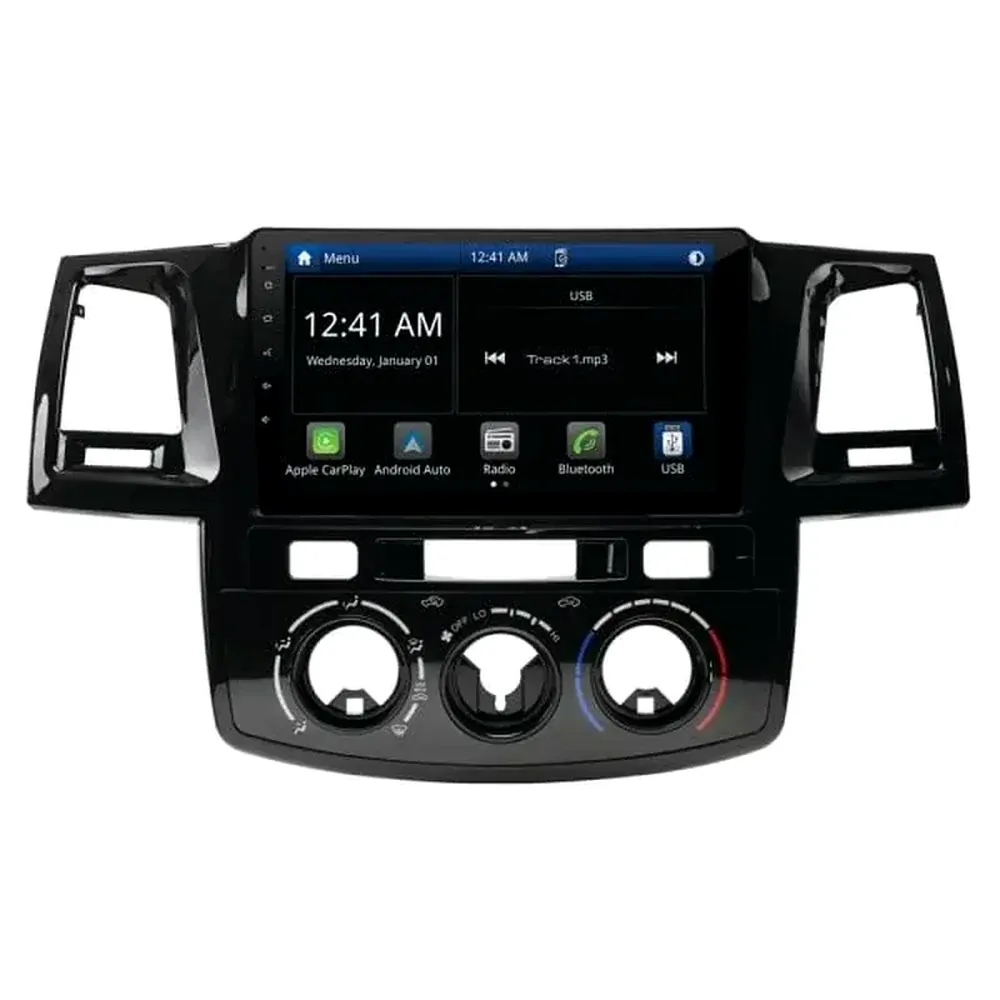

Aerpro AMTO9 9" Wireless Apple CarPlay Android Auto Head Unit fits Toyota Hilux 2005-2011 with SWC

The Aerpro AMTO9 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Toyota Hilux (2005-2011) non-amplified vehicles with factory steering wheel controls. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input as well as an AM/FM radio tuner. Sound quality is superb with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMTO9 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and the factory reverse camera (if equipped).

Hema Maps Ready

Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the 'Contact Us' page to ask one of our experts to confirm your parts.
• Suits vehicles with factory steering wheel controls only.
• Not suitable for factory amplified vehicles.
• Reverse Camera Retention uses the reverse camera input of the head unit.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
• This head unit is sold as a kit which includes:
  • Multimedia Receiver
  • Gloss Black Facia Kit
  • Steering Wheel Control Interface Harness
  • Camera Retention Adaptor
  • Stickers for manual HVAC

Video:
Head Unit Feature Video

AMTO9 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

• Kit Inclusions:
  • Multimedia Receiver
  • Gloss Black Facia Kit
  • Steering Wheel Control Interface Harness
  • Camera Retention Adaptor
  • Stickers for manual HVAC
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes
  • Factory Reverse Camera: Yes (if equipped, model dependant)
  • AUX Input: N/A
  • USB Input: N/A
  • Parking Tones: N/A
  • Factory Amplifier: No
  • Vehicle Menu: N/A
  • Other: N/A

MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • MAX Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports
  • USB (Rear) Playback Formats: CPAA & Media
  • USB (Rear) Power - Voltage/Amps: 5V/1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-in & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO/3.5mm jack
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input (with 12V power supply to the camera): Yes
  • 4.1CH Audio Out Cable: Yes
  • External Microphone: Included

IMPORTANT INFORMATION:

• Head Unit Upgrade Kits can vary between vehicle models, please use the 'Contact Us' page to ask one of our experts to confirm your parts.
• Suits vehicles with factory steering wheel controls only.
• Not suitable for factory amplified vehicles.
• Reverse Camera Retention uses the reverse camera input of the head unit.
• This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
