Aerpro APVTY15C Vehicle Specific Reverse Camera fits Toyota Hilux 2020-on

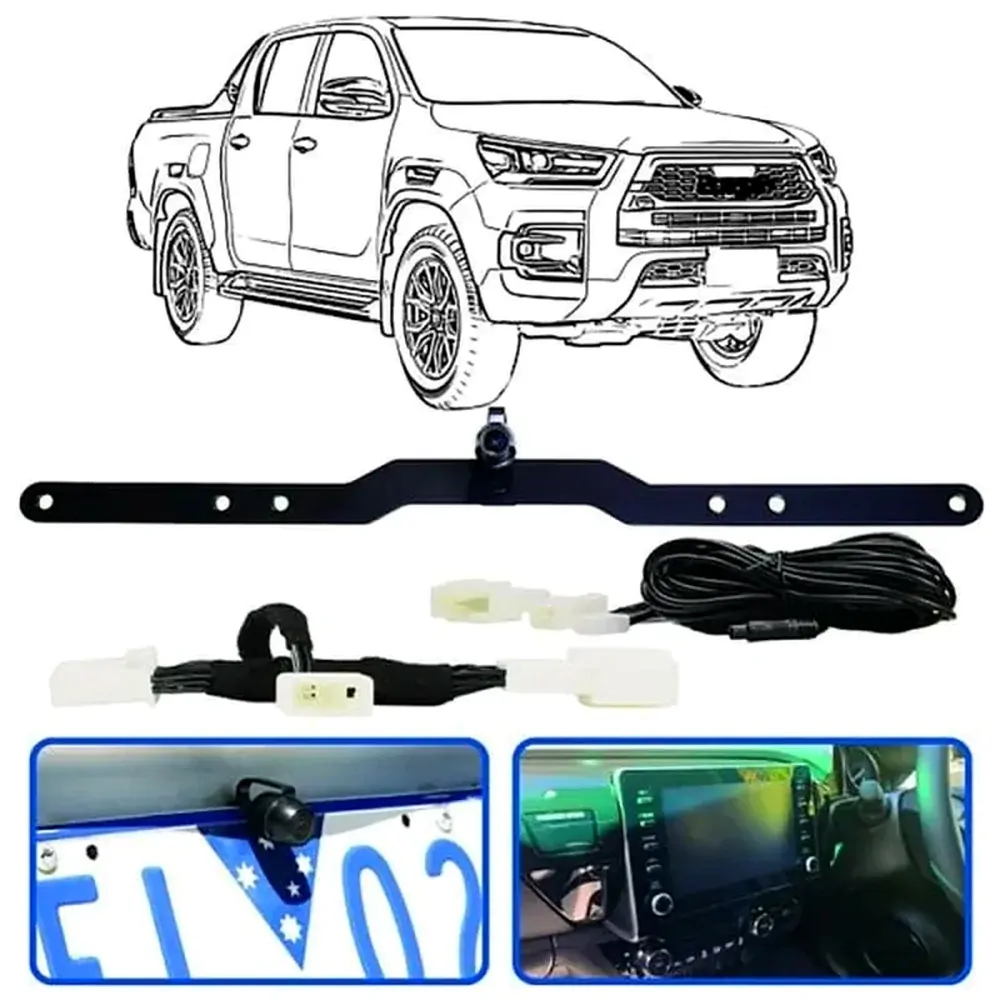

The Aerpro APVTY15C Vehicle Specific Reverse Camera Kit connects directly to the OEM factory display in Toyota Hilux (2020-on) models with a 26 pin OEM camera connection. Simple to install, the kit comes supplied with a plug and play t-harness that connects in line with the factory wiring harness (OEM plug/socket is located behind passenger kick panel trim). The included IP67 rated stealth registration plate mount reverse camera fits discreetly to the rear numberplate, making it suitable for tray or tub style ute backs. Optional parking guidelines assist with reverse parking and the 90 degree lens angle significantly reduces blindspots. The Aerpro APVTY15C Vehicle Specific Reverse Camera for Toyota Hilux is the perfect safety addition for your vehicle.

Important Information:

• T-Harness connection, access OEM plug/socket behind passenger kick panel trim.

Features:

• Suitable for Toyota Hilux (2020-on) models with 26 pin OEM connection
• Stealth registration plate mount reverse camera for discreet installation
• Vehicle specific harness connects in line with the factory wiring harness (behind passenger kick panel trim)
• Simple plug and play design, perfect for DIY installation
• 90 Degree horizontal lens angle minimises blindspots
• CMOS Image sensor for clear picture quality
• Equipped with optional parking guidelines (loop setting on installation)
• Standard / Mirror image switchable (loop setting on installation)
• PAL/NTSC switchable (loop setting on installation
• IP67 Waterproof / dustproof camera

Specifications:

• Vehicle Connection: 26 Pin (T-Harness)
• Camera Mount: Stealth Registration Plate Mount
• Lens Angle: 90 Degrees (Horizontal)
• Image Censor: CMOS
• Cable Length: 6 Metres
• Camera IP Rating: IP67
• Camera Settings (Loop System):
  • BLUE: Default setting PAL, cut the loop for NTSC
  • GREEN: Default setting Parking Guidelines, cut the loop to remove Parking Guidelines
  • WHITE: Default setting Mirror Image, cut the loop for Forward Facing Image

Vehicles known to work with this product:

• Toyota Hilux 2020-
