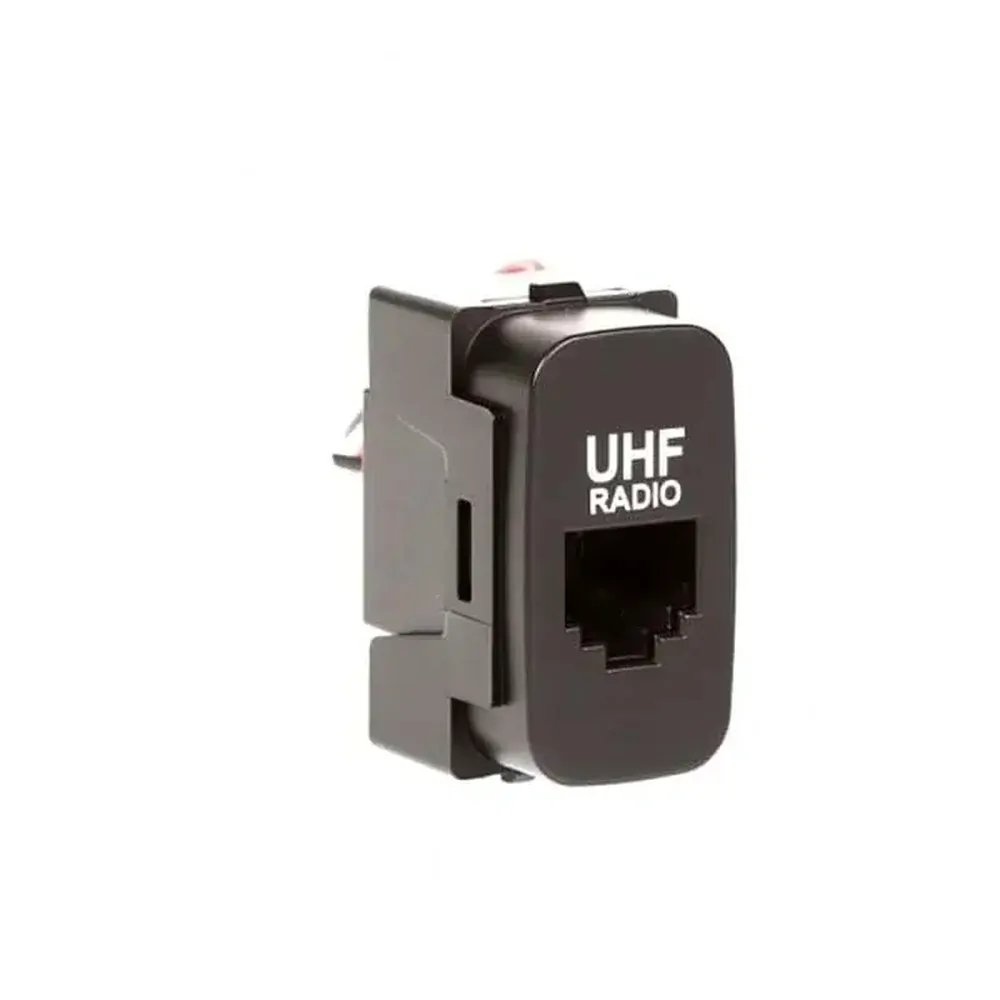

Aerpro ARJ45MT1 UHF Microphone Pass Through RJ45 fits Mitsubishi

Aerpro ARJ45MT1 RJ45 Pass-Through Adaptor has been designed specifically to suit various Mitsubishi vehicles. It replaces the spare factory switch blanking plates in the vehicle dashboard that measure 19.5mm wide x 36.5mm high (face measurement) / 21mm wide x 38mm high (base measurement), providing a professional and seamless integration solution for your vehicle when installing a hideaway UHF radio with remote microphone. The connection type is RJ45 pass-through, the cable supplied with the hideaway UHF radio plugs into the rear of the adaptor, while the plug on the end of the remote microphone will plug into the face of the adaptor. The UHF Radio text illuminates blue making it easy to find day and night and the clip-in design combined with the simple 2 wire connection for illumination, makes it quick and easy to install.

Features:

• Suitable for Mitsubishi vehicles with 19.5mm wide x 36.5mm high (face) / 21mm wide x 38mm high (base) switch blanking plates
• Replaces factory switch blanking plates in the dashboard
• Vehicle specific OEM style design for discreet seamless integration
• RJ45 Pass-through connector, suitable for UHF radios that have an RJ45 microphone connection (most major brands)
• Cable supplied with the UHF radio plugs into the rear of the connector
• Cable from the UHF radio microphone plugs into the front of the connector
• UHF radio text illuminates blue making it easy to find day and night
• Simple clip-in design makes it easy to install with no modifications required
• Easy two wire installation: connect the red wire to the vehicle's 12v dash light circuit and the black wire to the negative circuit

Specification:

• PANEL DIMENSIONS:
  • BODY: 21MM (W) X 38MM (H)
  • FACE: 19.5MM (W) X 36.5MM (H)
• CONNECTION TYPE: RJ45 PASS-THROUGH
• MOUNTING TYPE: CLIP-IN
• WIRING INSTALLATION:
  • 12V+ DASH LIGHT CIRCUIT: RED
  • EARTH: BLACK

Vehicles known to work with this product:

• Mitsubishi Pajero 2000-2006 NM, NP
• Mitsubishi Pajero 2006-2014 NS, NT, NW
• Mitsubishi Challenger 2009 - 2013 PB
• Mitsubishi Challenger 2013-2015 PC
• Mitsubishi Triton 2007-2009 ML [GL, GLX]
• Mitsubishi Triton 2007-2009 ML [GLS, GLX-R, VR]
• Mitsubishi Triton 2009 - 2014 MN [GL-R, GLX]
• Mitsubishi Triton 2009 - 2014 MN [GL]
• Mitsubishi Triton 2009-2012 MN [GLX-R]
• Mitsubishi Triton 2012-2014 MN [GLX-R]
• Mitsubishi ASX 2010-2012 XA
• Mitsubishi Lancer 2007-2013 CJ
• Mitsubishi Outlander 2003-2006 ZE, ZF
• Mitsubishi Outlander 2007-2012 ZG, ZH
• Mitsubishi Pajero 2012-2019 NW, NX
