Aerpro ARJ45SZ1 CB Radio Pass Through Adapter RJ45

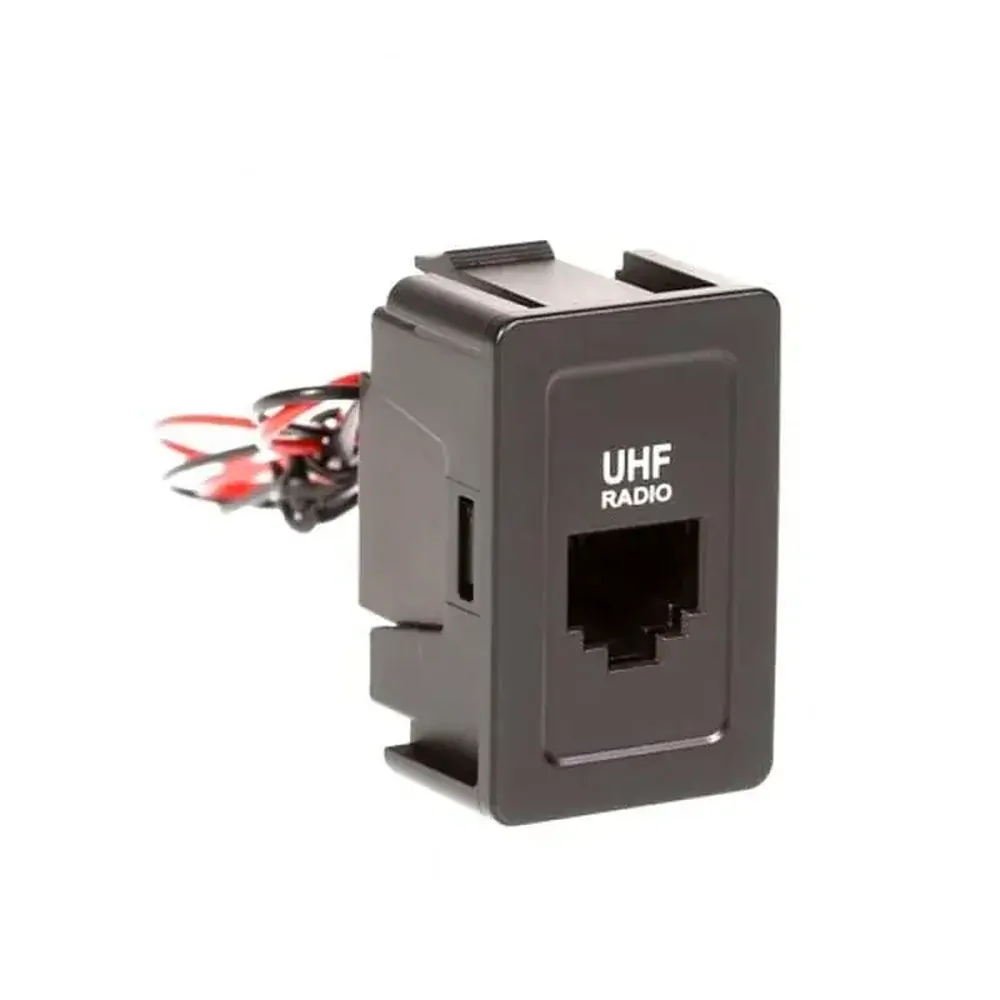

Aerpro ARJ45SZ1 RJ45 Pass-Through Adaptor has been designed specifically to suit various Suzuki vehicles. It replaces the spare factory switch blanking plates in the vehicle dashboard that measure 26mm wide x 41mm high, providing a professional and seamless integration solution for your vehicle when installing a hideaway UHF radio with remote microphone. The connection type is RJ45 pass-through, the cable supplied with the hideaway UHF radio plugs into the rear of the adaptor, while the plug on the end of the remote microphone will plug into the face of the adaptor. The UHF Radio text illuminates blue making it easy to find day and night and the clip-in design combined with the simple 2 wire connection for illumination, makes it quick and easy to install.

Features:

• Suitable for Suzuki vehicles with 26mm wide x 41mm high switch blanking plates
• Replaces factory switch blanking plates in the dashboard
• Vehicle specific OEM style design for discreet seamless integration
• RJ45 Pass-through connector, suitable for UHF radios that have an RJ45 microphone connection (most major brands)
• Cable supplied with the UHF radio plugs into the rear of the connector
• Cable from the UHF radio microphone plugs into the front of the connector
• UHF radio text illuminates blue making it easy to find day and night
• Simple clip-in design makes it easy to install with no modifications required
• Easy two wire installation: connect the red wire to the vehicle's 12v dash light circuit and the black wire to the negative circuit

Specification:

• PANEL DIMENSIONS:
  • BODY: 26MM (W) X 41MM (H)
  • FACE: 26MM (W) X 41MM (H)
• CONNECTION TYPE: RJ45 PASS-THROUGH
• MOUNTING TYPE: CLIP-IN
• WIRING INSTALLATION:
  • 12V+ DASH LIGHT CIRCUIT: RED
  • EARTH: BLACK
• NOTES: N/A

Vehicles known to work with this product:

• Suzuki Grand Vitara 2005-2013
• Suzuki Grand Vitara 2013-
• Suzuki Kizashi 2010-2014
• Suzuki Kizashi 2015-
• Suzuki S-Cross 2013-
• Suzuki Splash 2008-2014 (New Zealand)
• Suzuki Swift 2005-2010
• Suzuki Swift 2011-2017
• Suzuki SX4 2007-2013
• Suzuki Vitara 2015
