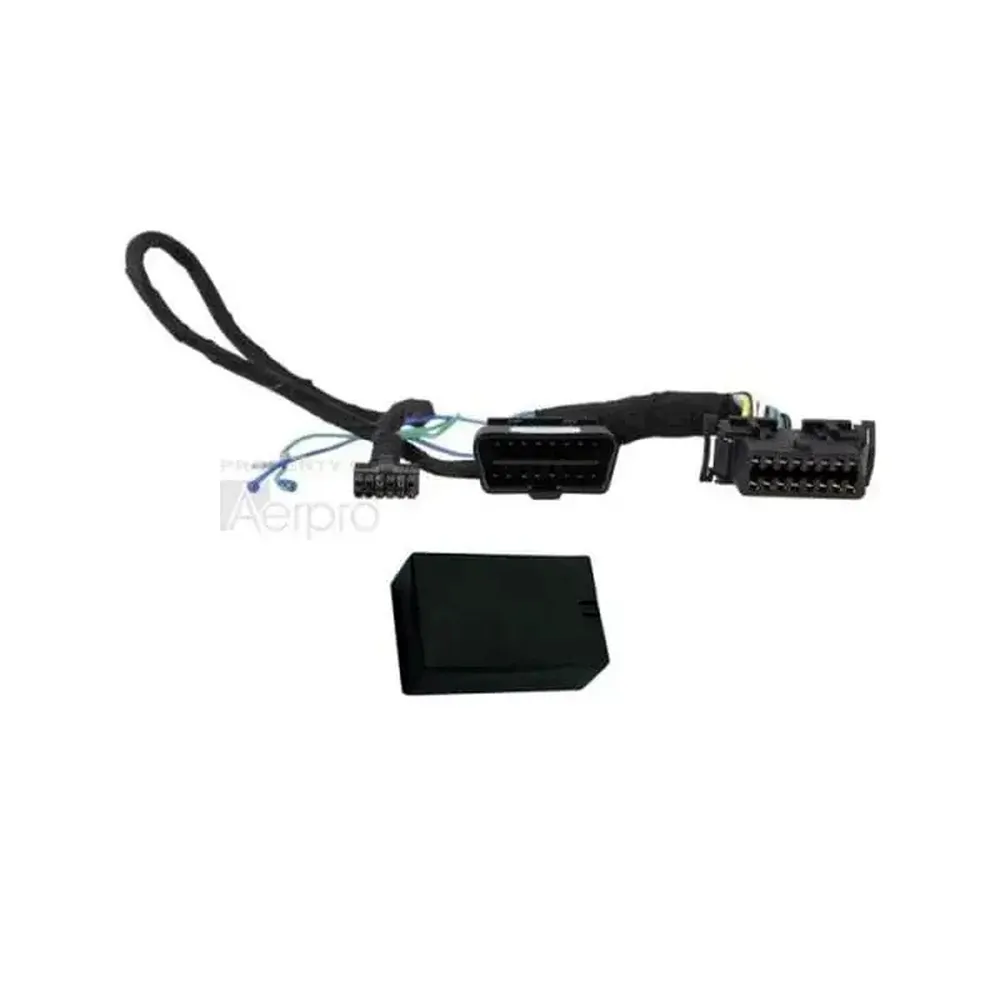

Aerpro CANHBLR1 High Beam CANBus Interface fits Land Rover Discovery 3-4 and Range Rover Sport

The CAN-Connect CANHBLR1 High Beam Interface is a versatile CAN-Bus interface with multiple outputs that can supply power to external components when used in conjunction with a vehicle's lighting system. Designed specifically to suit Landrover Discovery 3 (2005-2009), Discovery 4 (2009-2016) and Range Rover Sport (2005-2009) vehicles, it includes a vehicle specific plug and play harness for simple installation. The interface can be used to add additional lighting or control any other accessory using the vehicle's high beam controls by decoding data from the vehicle's CAN-Bus in order to activate the connected accessory. It offers three output options: a constant power option that operates when the factory high beams are active, an optional light source that doesn't require the vehicle lights to be on and a follow-me-home mode that can be activated by a series of high beam flashes, providing a timed light source for up to 5 minutes.

Features:

• Provides a controlled power source for external components when used in conjunction with the vehicle's lighting system
• Can be used to add additional light sources and any other accessory that you wish to control via the vehicle's high beam controls
• Data is decoded from the vehicle's CAN-Bus and used to switch power to the connected accessory
• 3 Output options: constant, variable and follow me home
• Vehicle specific plug and play harness for simple installation

Specifications:

• Interface Type: High Beam CAN-Bus Interface
• Connector: OBD Connector
• High Beam Outputs:
  • Output 1: Constant Power
  • Output 2: Variable Power
  • Output 1 & 2: Follow Me Home Functionality

Vehicles known to work with this product:

• Landrover Discovery 3 2005-2009
• Landrover Discovery 4 2009-2012
• Landrover Discovery 4 2013-2016
• Landrover Range Rover 2005-2009 Sport
