Alpine GRY-ADV-C80 OPTIM™8 Advanced Audio System for GR Yaris

OPTIM™8 Advanced Audio System for GR Yaris

Introducing our high-performance audio upgrade kit designed specifically for the Toyota GR Yaris.

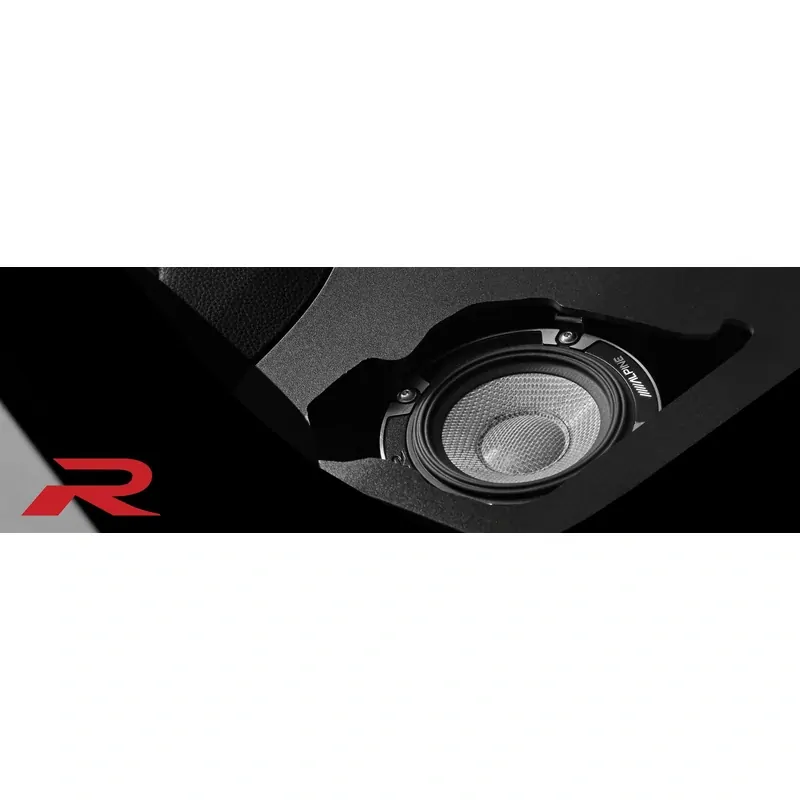

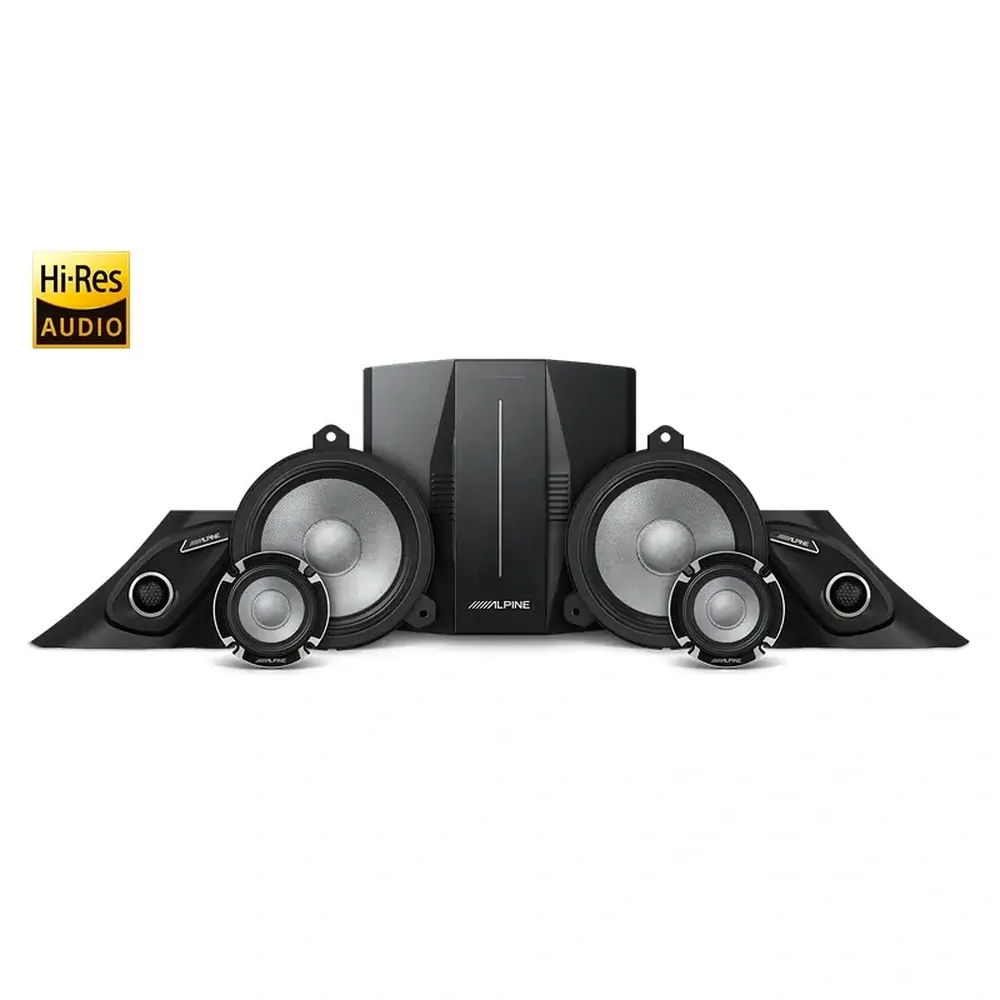

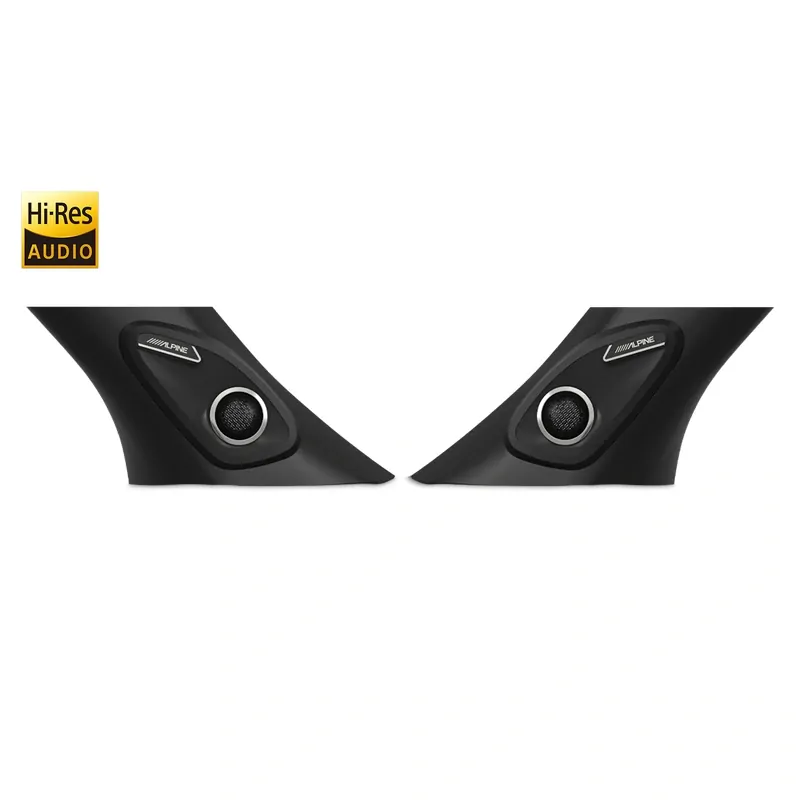

Our advanced audio system integrates seamlessly into the GR Yaris, delivering stunning audio clarity and enhancing your driving experience. The 3-way R2-Series Professional speaker setup, featuring woofers, mids, and tweeters, utilises the OEM A-pillar tweeter housing, complemented by a premium chrome badge and tweeter ring. The woofers and mids are perfectly integrated within their factory speaker locations, ensuring a clean and professional installation.

Paired with an OPTIM8 or PXE-X800 DSP-Amplifier (optional), this system delivers exceptional precision and user customisation options. This speaker and amplifier kit showcases Alpine’s dedication to engineering excellence, elevating the audio experience for GR Yaris enthusiasts.

GRY20-R2653

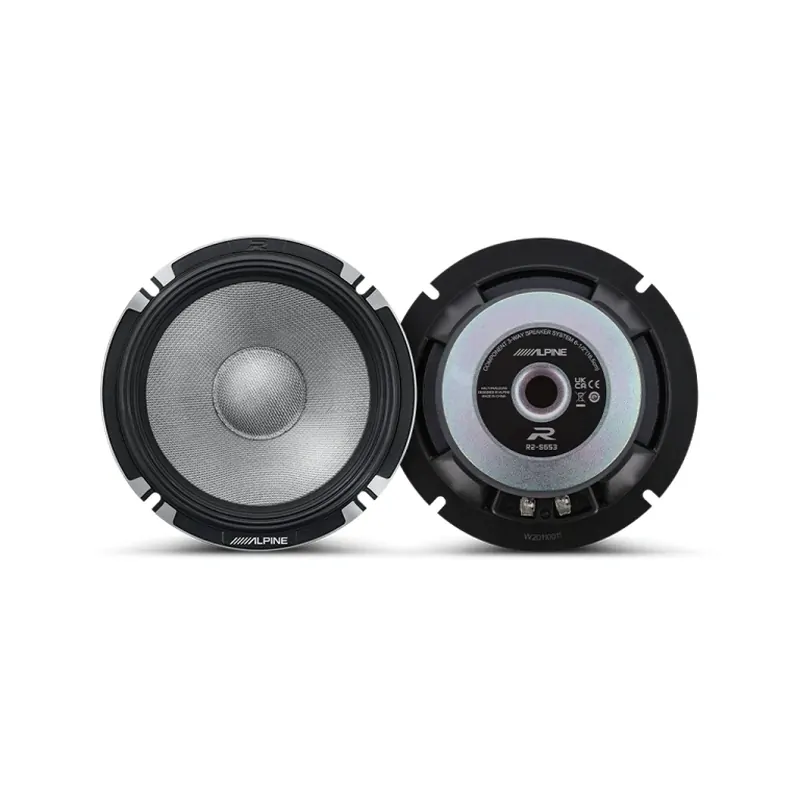

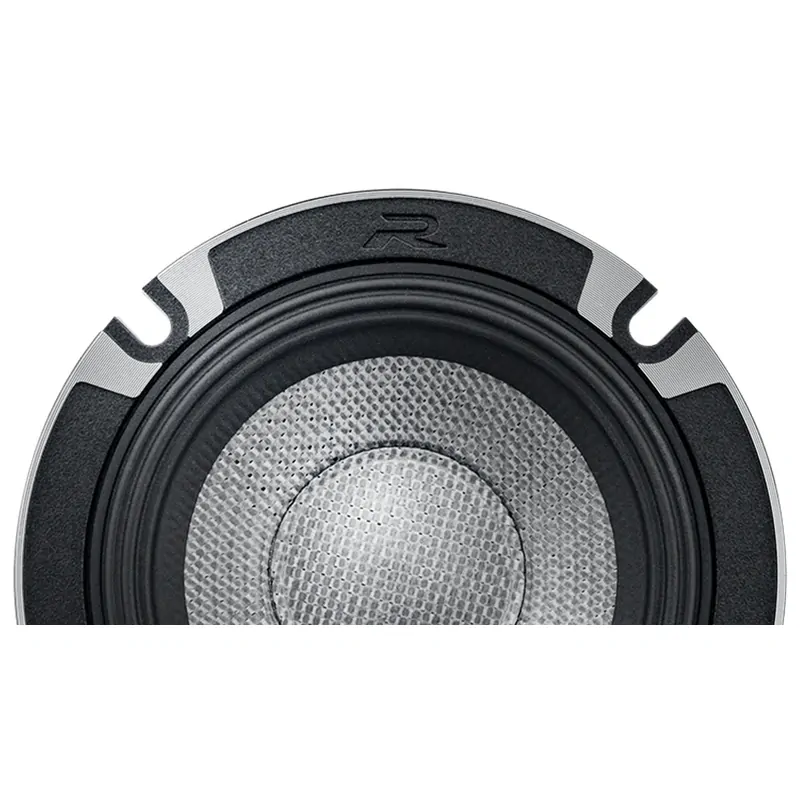

• 16.5cm Glass Fibre Cone Door Woofers (2pcs)

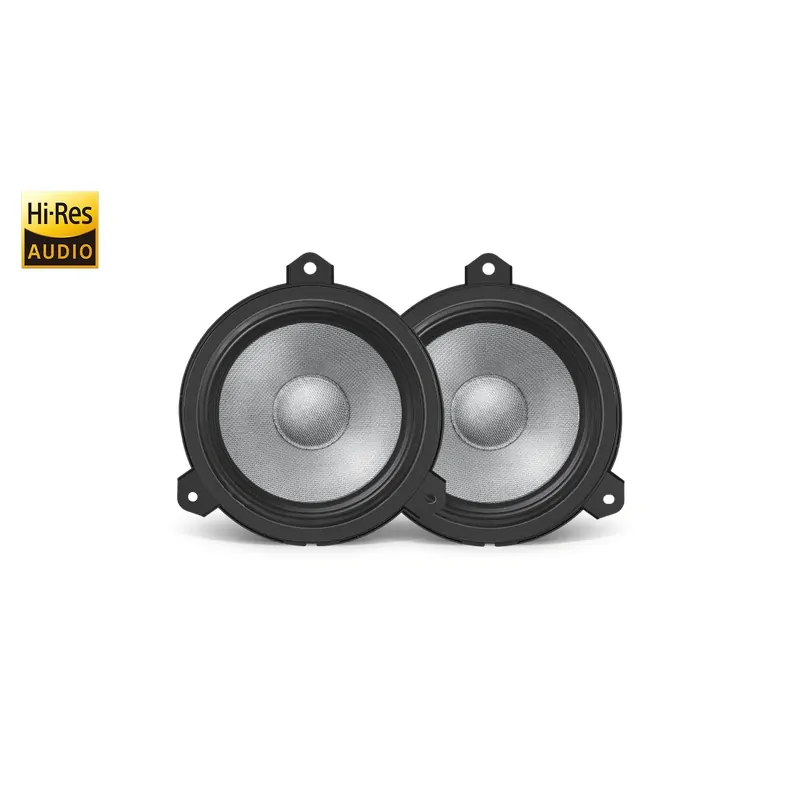

• 9.6cm Glass Fibre Cone Mid-Range Speakers (2pcs)

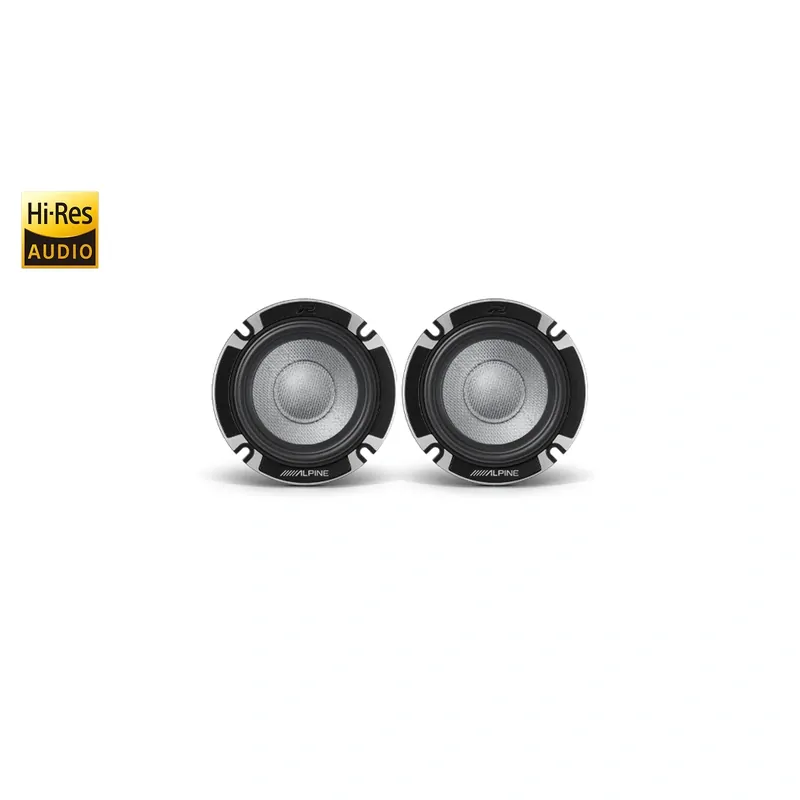

• 4.3cm Magnesium Hard-Dome Tweeters (2pcs)
• Custom Direct-Fit Speaker Spacers (2pcs)
• Premium Aluminium Alpine Badge (2pcs)
• Premium Chrome Tweeter Ring (2pcs)

C80-GRY20

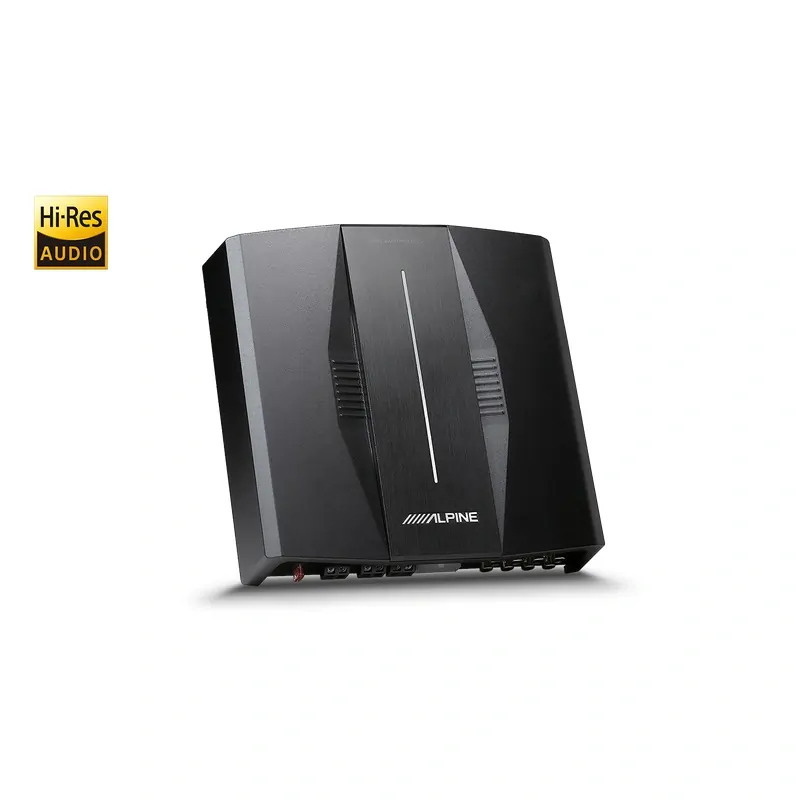

• OPTIM™8 Hi-Res Sound Processor Amplifier
• Alpine Engraved Powder Coated Solid Steel Mounting Bracket
• Direct-Fit Connection Harness

 Specifications

• GRY20-R2653

  • Maximum Peak Power: 300 Watts
  • Maximum RMS Power: 100 Watts
  • Nominal Impedance: 4 Ohm
  • Frequency Response: 65Hz-40kHz
  • Sensitivity: 88dB SPL (1W @ 1m)
  • Woofer Mounting Depth: 6.3cm
  • Mid-Range Mounting Depth: 3.6cm
  • Woofer Cutout Diameter: 13.5cm
  • Mid-Range Cutout Diameter: 7.3cm

  C80-GRY20

  Output

  • Output Channels: 8 Channels

  Power Ratings

  • Power Output (@4Ω 14.4V 10% THD)
    • CH1-6: 50W, CH7-8: 150W
  • Power Output (@2Ω 14.4V 10% THD)
    • CH1-6: 50W, CH7-8: 300W
  • RCA Output (@10kΩ 14.4V 0.1% THD)
    • CH1-8: 4Vrms

  THD+N

  • High level: 2Vrms into 4Ω: ≤0.1%
  • RCA: 2Vrms into 10kΩ: ≤0.06%

  S/N Ratio

  • High level: 40k-AES17+A-weighted: ≥80dB
  • RCA: 40k-AES17+A-weighted: ≥95dB

  Frequency Response

  • Frequency Response: 20Hz-40kHz (+/-3dB)

  Input Voltage

  • High level: 26Vpp
  • RCA: 11Vpp

  Output Voltage

  • High level: CH1-6: 40Vpp, CH7-8: 70Vpp
  • RCA: 4Vrms

  Input Impedance

  • High level: >50kΩ
  • RCA: >50kΩ

  System Sampling Rate

  • 192kHz/32bit

  Operating Voltage

  • 9~16V

  Operating Temperature

  • -20°C~+60°C

  Back Up Current (12.6V)

  • ≤3mA

  REM Start Input

  • High level (H1-/H1+), ACC optional

  REM Start Output

  • 12V (0.2A)

  Dimensions & Weight

  • (WxHxD): 220.5 x 54 x 225mm
  • Weight: 2.4kg
