Alpine GRY-ADV-X800 PXE-X800 Advanced Audio System for GR Yaris

PXE-X800 Advanced Audio System for GR Yaris

Introducing our high-performance audio upgrade kit designed specifically for the Toyota GR Yaris.

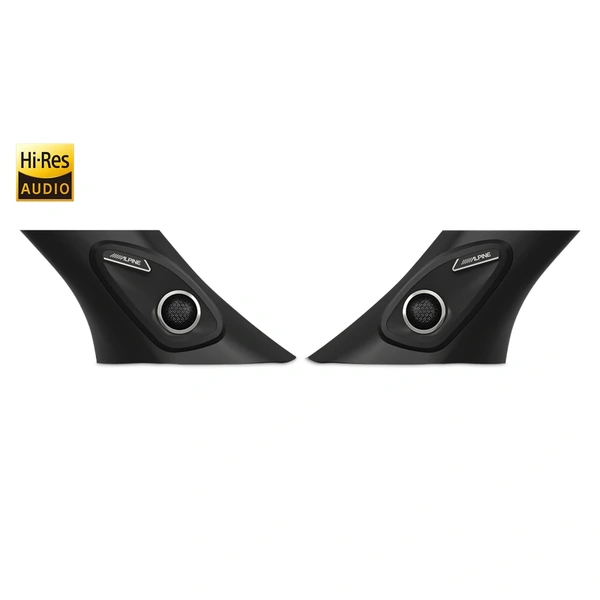

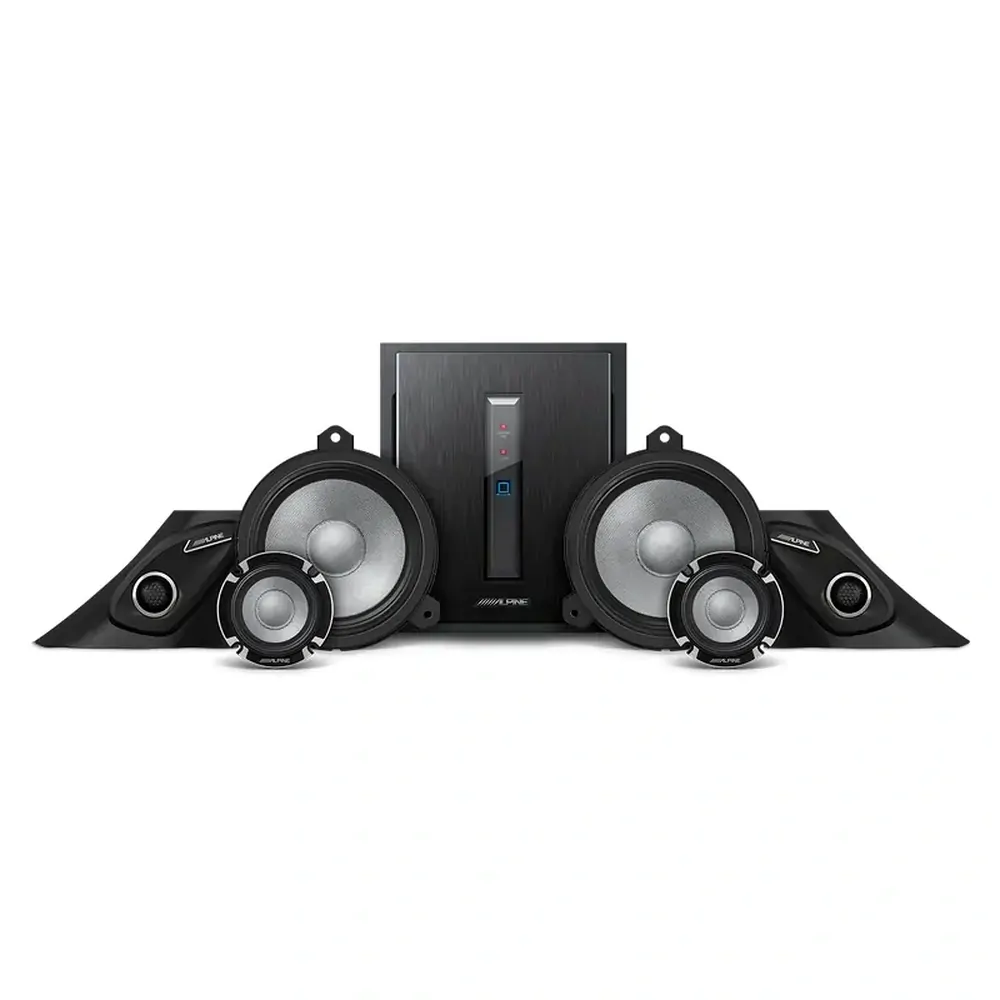

Our advanced audio system integrates seamlessly into the GR Yaris, delivering stunning audio clarity and enhancing your driving experience. The 3-way R2-Series Professional speaker setup, featuring woofers, mids, and tweeters, utilises the OEM A-pillar tweeter housing, complemented by a premium chrome badge and tweeter ring. The woofers and mids are perfectly integrated within their factory speaker locations, ensuring a clean and professional installation.

Paired with an OPTIM8 or PXE-X800 DSP-Amplifier (optional), this system delivers exceptional precision and user customisation options. This speaker and amplifier kit showcases Alpine’s dedication to engineering excellence, elevating the audio experience for GR Yaris enthusiasts.


Specifications

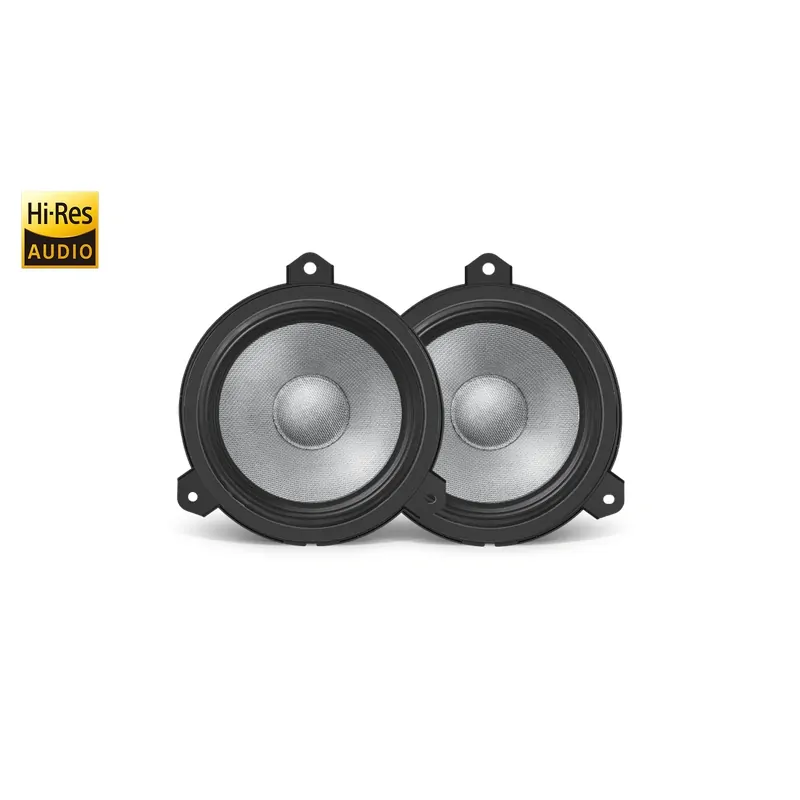

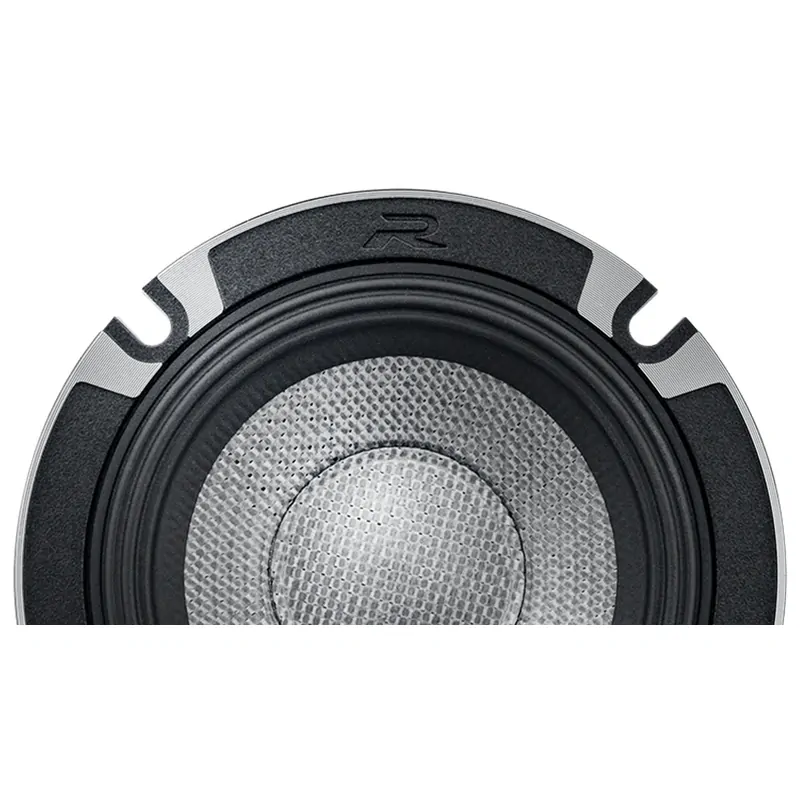

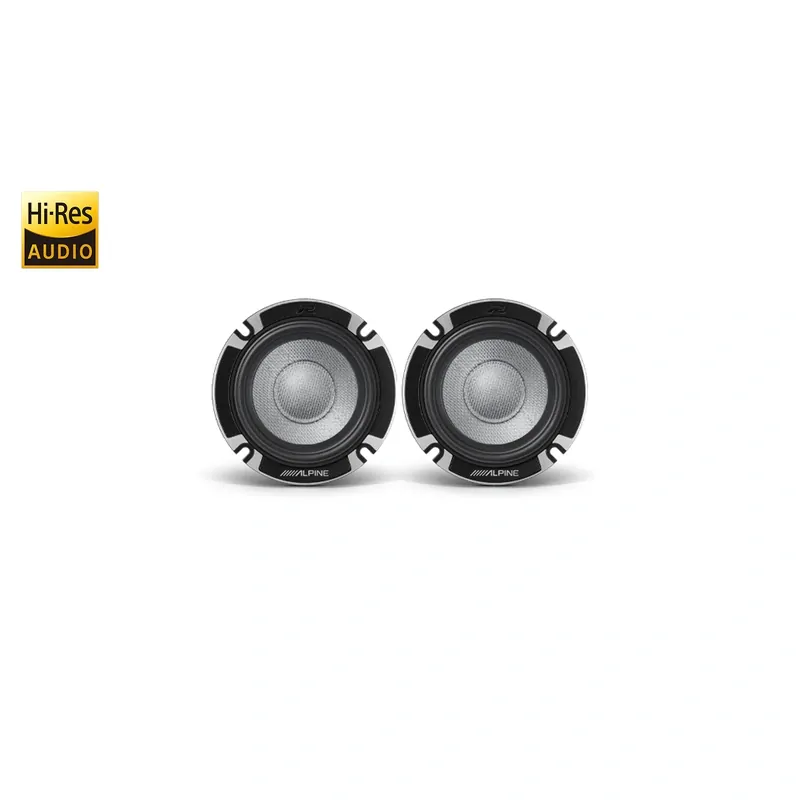

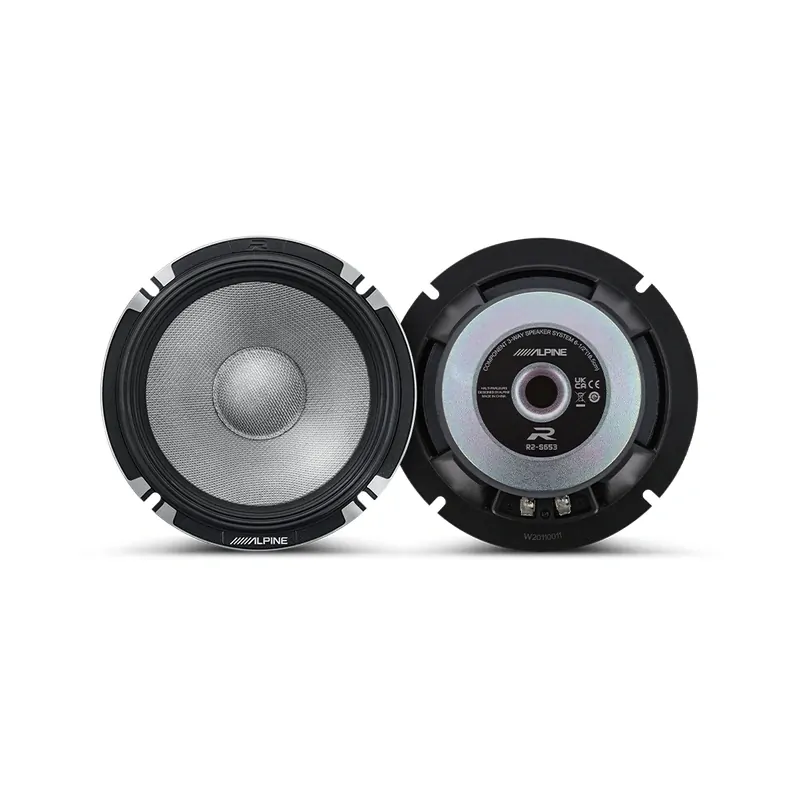

GRY20-R2653

• Maximum Peak Power: 300 Watts
• Maximum RMS Power: 100 Watts
• Nominal Impedance: 4 Ohm
• Frequency Response: 65Hz-40kHz
• Sensitivity: 88dB SPL (1W @ 1m)
• Woofer Mounting Depth: 6.3cm
• Mid-Range Mounting Depth: 3.6cm
• Woofer Cutout Diameter: 13.5cm
• Mid-Range Cutout Diameter: 7.3cm

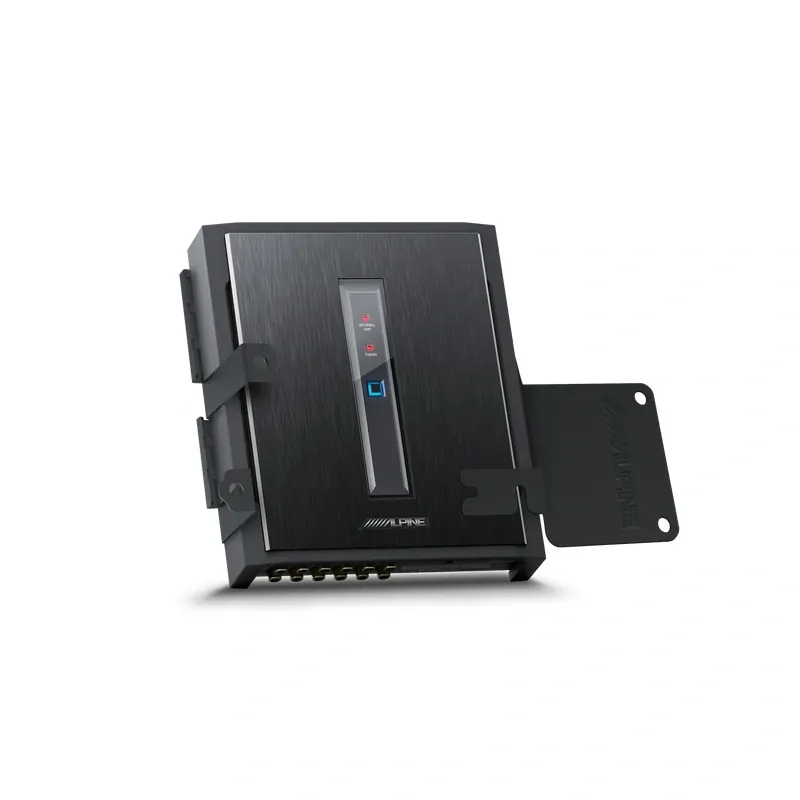

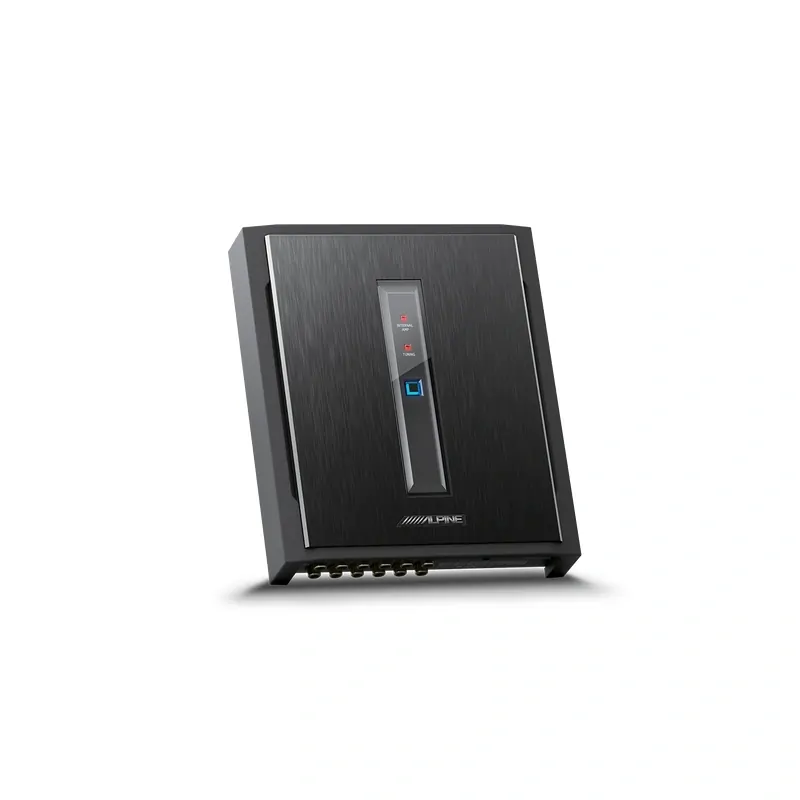

X800-GRY20

• Frequency response: 20Hz – 20KHz
• Dynamic range: ≥100dB
•  SNR (RCA): ≥110dB
• Background noise: High level: 93.3uVrms; RCA：8uVrms
• Channel resolution: ≥80dB
• THD: ≤0.05%
• Input voltage: High level: 30Vpp; RCA：5Vpp
• Output voltage: High level CH1~CH4: 40 Vpp, high level CH5~CH8: 28 Vpp; RCA: 8 Vpp
• Rated power: CH1~CH4：50W，CH5~CH8：25W(4Ω, 14.4V, 1kHz, 10%THD)
• Maximum power: CH 1 ~ CH4：100W，CH5~ CH8：50W(4Ω, 1 4.4V, 1kHz, 10%THD)
• Input / output sensitivity (RCA): 1:1.23 (no power amplification)
• System sampling rate: 48kHz/24bit
• Input impedance: High level: 51Ω; RCA：20kΩ
• Output impedance: 51Ω
• Operating voltage: 9~16V
• Quiescent current: ≤3mA (in off state)
• Stand-by power consumption: ≤0.1W
• REM startup input: High level (H1-/H1+), ACC selectable
• REM startup output: 12V(0.2A)
• Uptime: 10s
• Operating ambient temperature: -20~60℃
• Storage temperature: -40~85℃
