Alpine GRY-PRO-11 Professional Audio-Visual System with 11″ Halo Display for GR Yaris

PXE-X800 Professional Audio-Visual System with 11″ Halo Display for GR Yaris

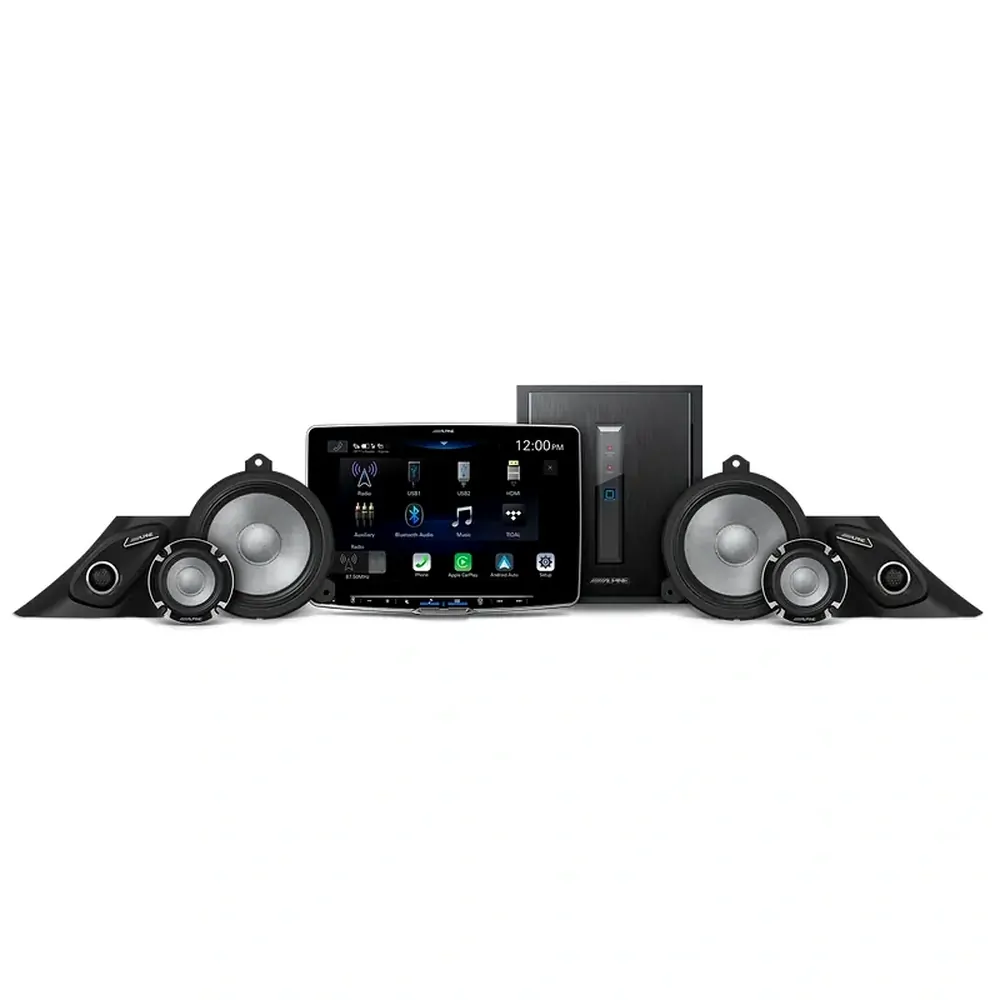

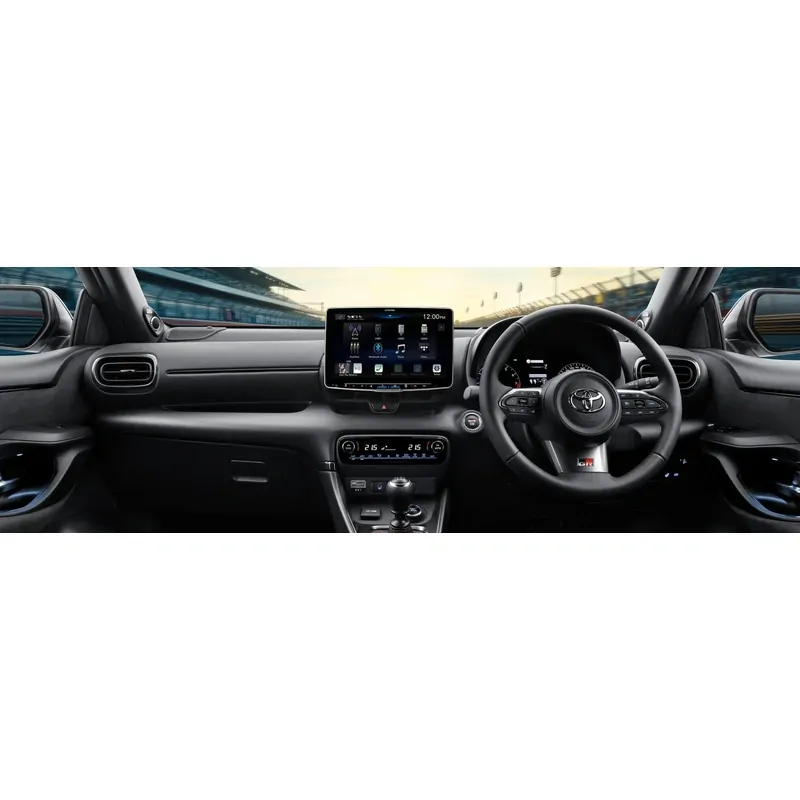

Alpine is proud to be the first to develop a complete audio-visual system designed specifically to suit the Toyota GR Yaris.

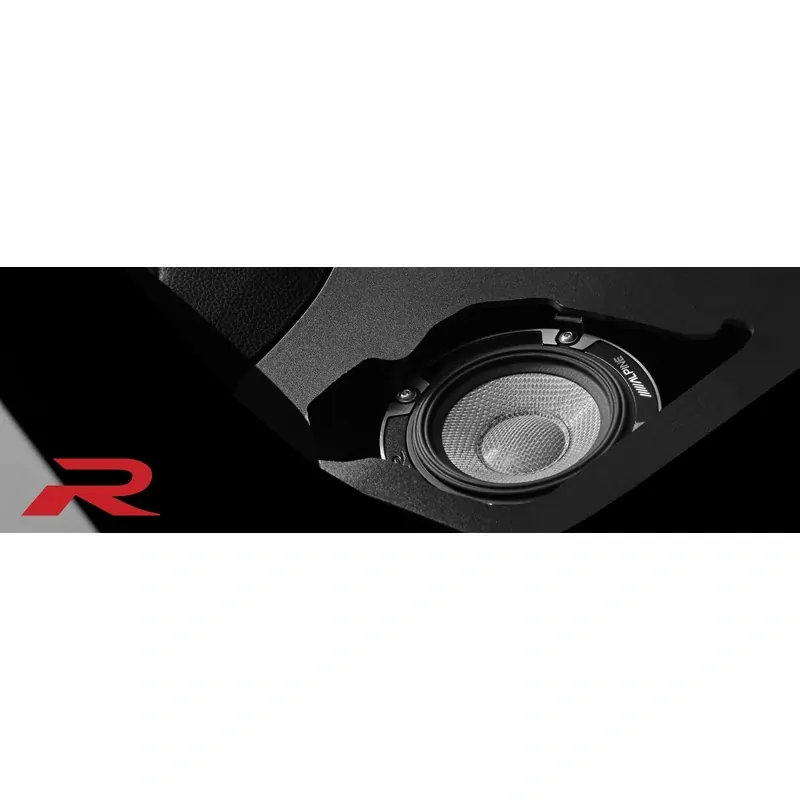

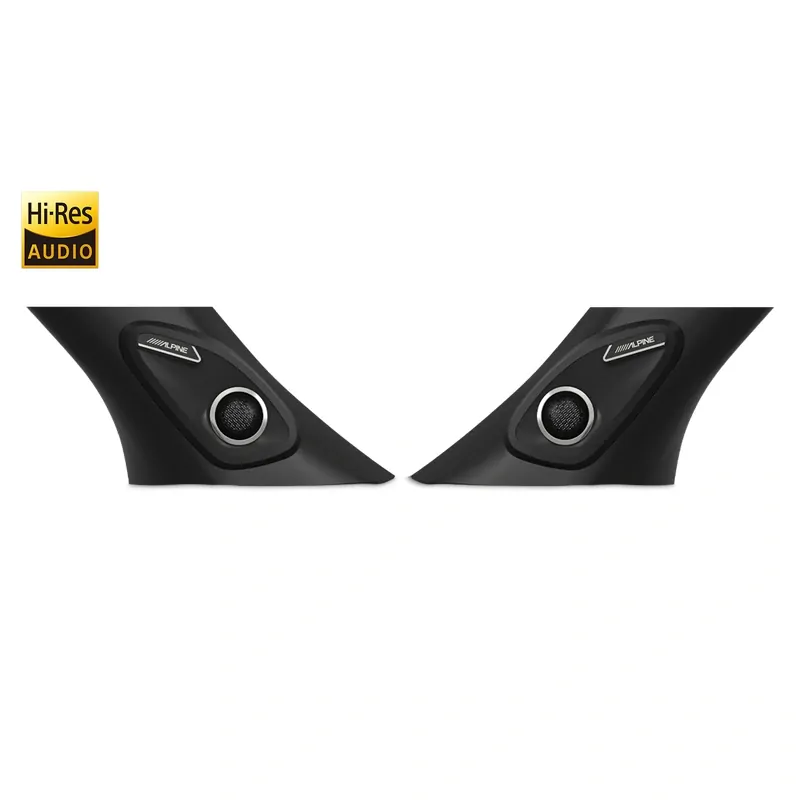

Our innovative audio system fits seamlessly within the GR Yaris, enhancing its performance with unparalleled audio clarity. The 3-way R2-Series Professional speaker setup, featuring woofers, mids, and tweeters utilises the OEM A-pillar tweeter housing with the addition of a premium chrome badge and tweeter ring. As for the woofers and mids, they are replaced within their factory speaker locations for the perfect integration & installation.

Coupled with our OPTIM8 or PXE-X800 DSP-Amplifier (optional), the system is driven with outstanding precision and authority, also providing ultimate user customisation options. This all-in-one system is truly a testament to Alpine’s engineering excellence, tailored for the ultimate driving experience in the GR Yaris.

Specifications:

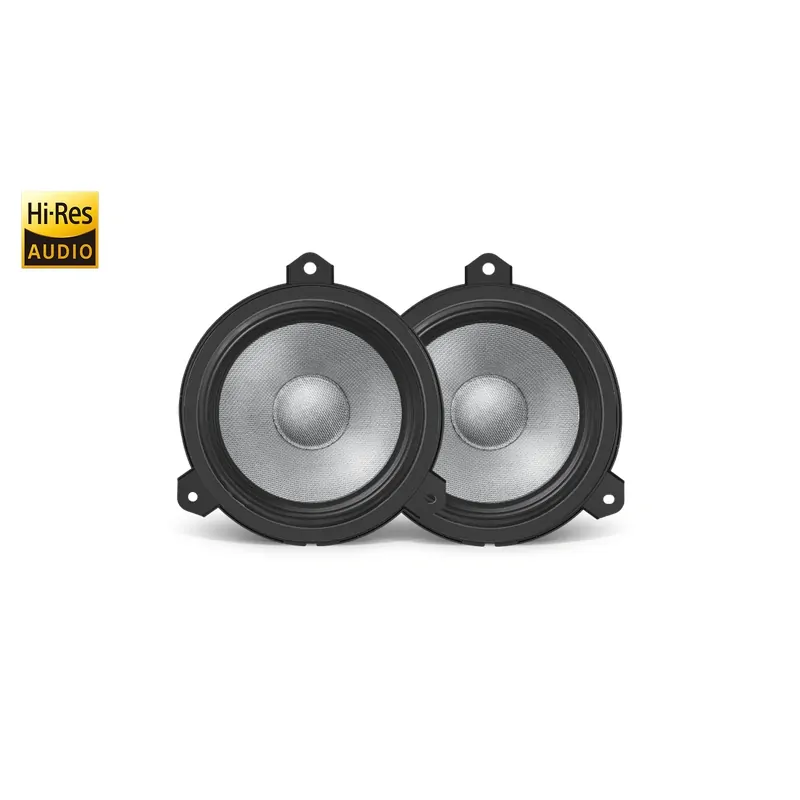

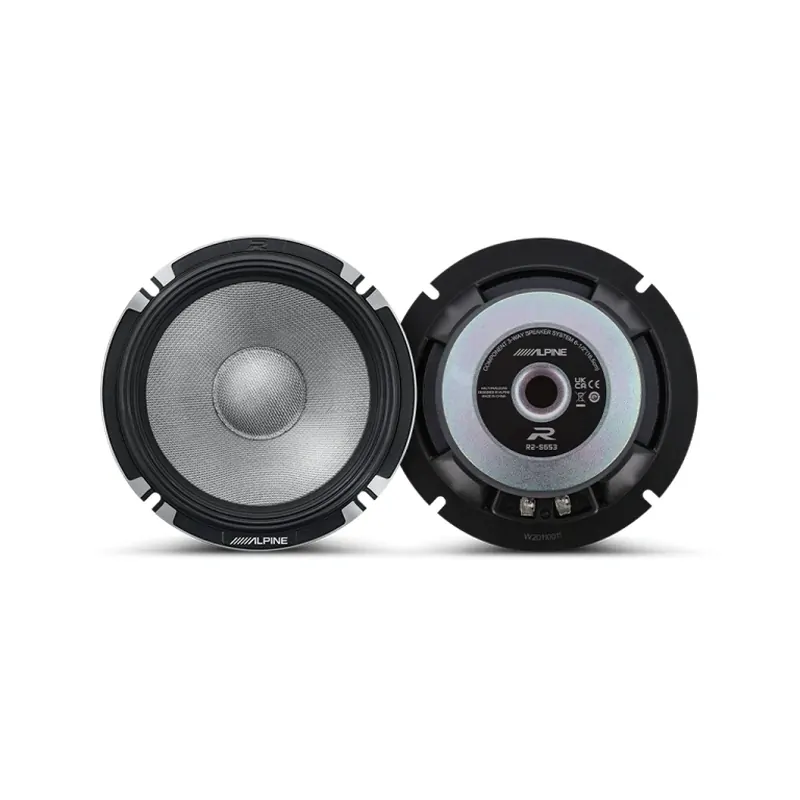

GRY20-R2653

• Maximum Peak Power: 300 Watts
• Maximum RMS Power: 100 Watts
• Nominal Impedance: 4 Ohm
• Frequency Response: 65Hz-40kHz
• Sensitivity: 88dB SPL (1W @ 1m)
• Woofer Mounting Depth: 6.3cm

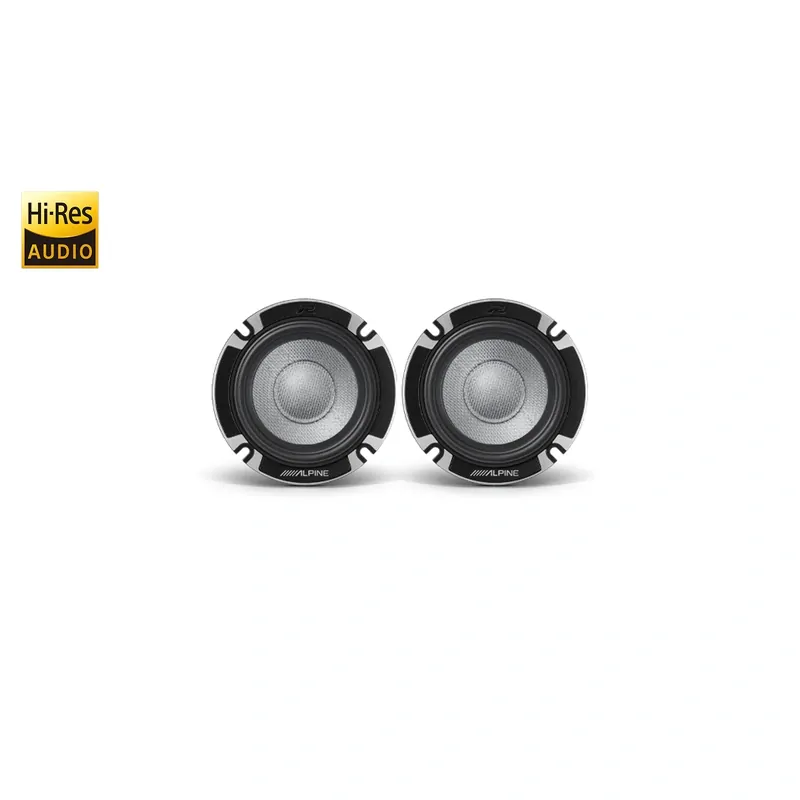

• Mid-Range Mounting Depth: 3.6cm
• Woofer Cutout Diameter: 13.5cm
• Mid-Range Cutout Diameter: 7.3cm

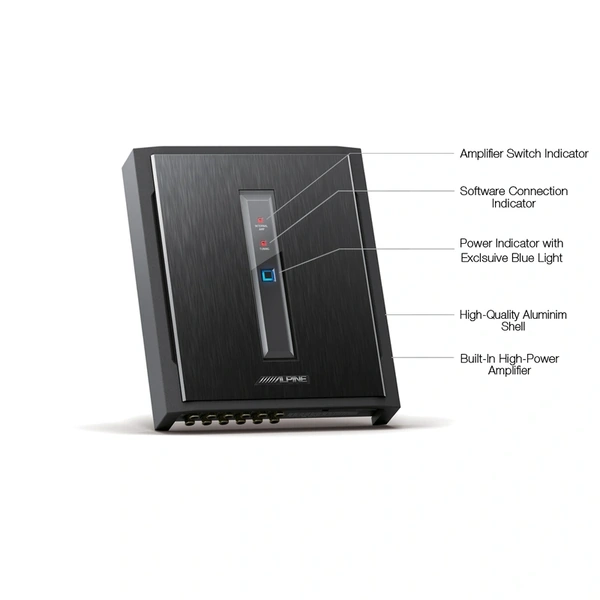

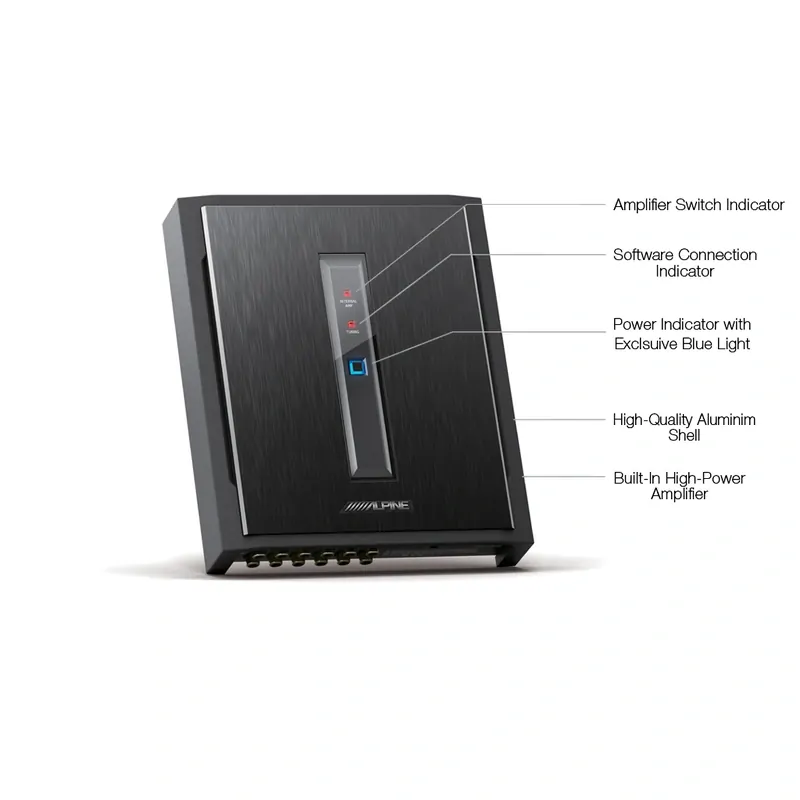

X800-GRY20

• Frequency response: 20Hz – 20KHz
• Dynamic range: ≥100dB
•  SNR (RCA): ≥110dB
• Background noise: High level: 93.3uVrms; RCA：8uVrms
• Channel resolution: ≥80dB
• THD: ≤0.05%
• Input voltage: High level: 30Vpp; RCA：5Vpp
• Output voltage: High level CH1~CH4: 40 Vpp, high level CH5~CH8: 28 Vpp; RCA: 8 Vpp
• Rated power: CH1~CH4：50W，CH5~CH8：25W(4Ω, 14.4V, 1kHz, 10%THD)
• Maximum power: CH 1 ~ CH4：100W，CH5~ CH8：50W(4Ω, 1 4.4V, 1kHz, 10%THD)
• Input / output sensitivity (RCA): 1:1.23 (no power amplification)
• System sampling rate: 48kHz/24bit
• Input impedance: High level: 51Ω; RCA：20kΩ
• Output impedance: 51Ω
• Operating voltage: 9~16V
• Quiescent current: ≤3mA (in off state)
• Stand-by power consumption: ≤0.1W
• REM startup input: High level (H1-/H1+), ACC selectable
• REM startup output: 12V(0.2A)
• Uptime: 10s
• Operating ambient temperature: -20~60℃
• Storage temperature: -40~85℃

YARIS-GRY20-F511A

General

• Power Requirement – 14.4V DC (11-16V allowable)
• Operating Temperature – -20°C to +60°C
• Power Output – 50W x 4
• Maximum Current Consumption – 15A

Audio Output Level

• Preout (Front, Rear): 4V/10k ohms (max.)
• Preout (Subwoofer): 4V/10k ohms (max.)

Weight

• 2.3kg

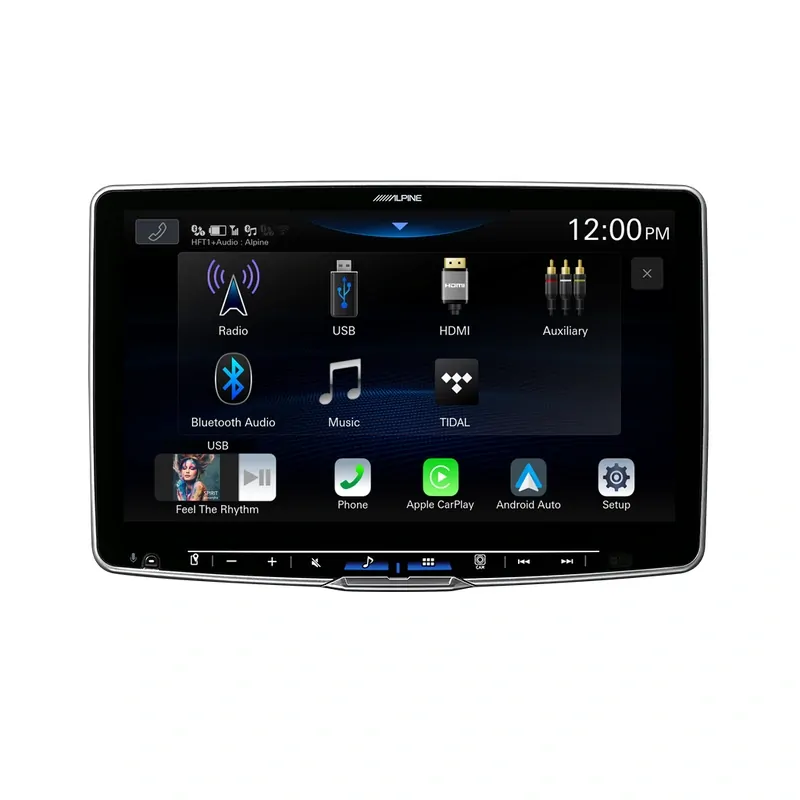

Screen

• Screen Size: 11 inch Laminated WXGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 2,764,800 pixels (1280 x 720 x 3)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

FM Tuner

• Tuning Range –   87.5 -105MHz
• Mono Usable Sensitivity –   8.1 dBf (0.7μV/75 ohms)
• 50dB Quieting Sensitivity –   12dBf (1.1μV/75 ohms)
• Alternate Channel Selectivity –  80dB
• Signal-to-Noise Ratio –  65dB
• Stereo Seperation –  35dB

AM Tuner

• Tuning Range –   531-1701 kHz
• Usable Sensitivity –  25.1μV/28 dBf

DAB Tuner

• Tuning Range –   174 – 240 MHz
• Usable Sensitivity –   -100dBm
• Signal-to-Noise Ratio – 90dB

USB (1)

• USB Requirements: USB 2.0
• Max. Power Consumption: 2,400 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32, exFAT
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• FLAC Decoding
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 – 40k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.005%
• DynamicRange(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 95 dB
• Channel Separation (at 1kHz): 90 dB

USB (2)

• USB Class: Charge Only
• Max. Power Consumption: 1,500 mA (CDP Support)

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V4.2 (2,402 – 2,480 MHz)
• Output Power: +4 dBm/2.51 mW Ave. (Power Class 2)
• HFP: HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)

HDMI Section

• Input Format: 720p/480p/VGA
• Output Format: 720p/480p

GPS

• Reception Frequency 1575.42 +/- 1.023 MHz
• Reception Sensitivity (Search) -136dB max.

Wi-Fi

Frequency Ranges:

• IEEE 802.11 b/g/n (2.4 GHz)
• IEEE 802.11 a/n/ac (5 GHz)

Channels:

• 1 -13 ch (2.4 GHz)
• 149 – 165 ch (5GHz)

Security Protocols:

• WPA3/WPA2-PSK (TKIP, AES)

Dimensions

• Din Size: 1DIN chassis and 11” Capacitive Touch Screen
• Chassis Size (W x H x D): 178 x 50 x 149.6mm
• Display Size (W x H x D): 268.9 x 178 x 54.7mm
