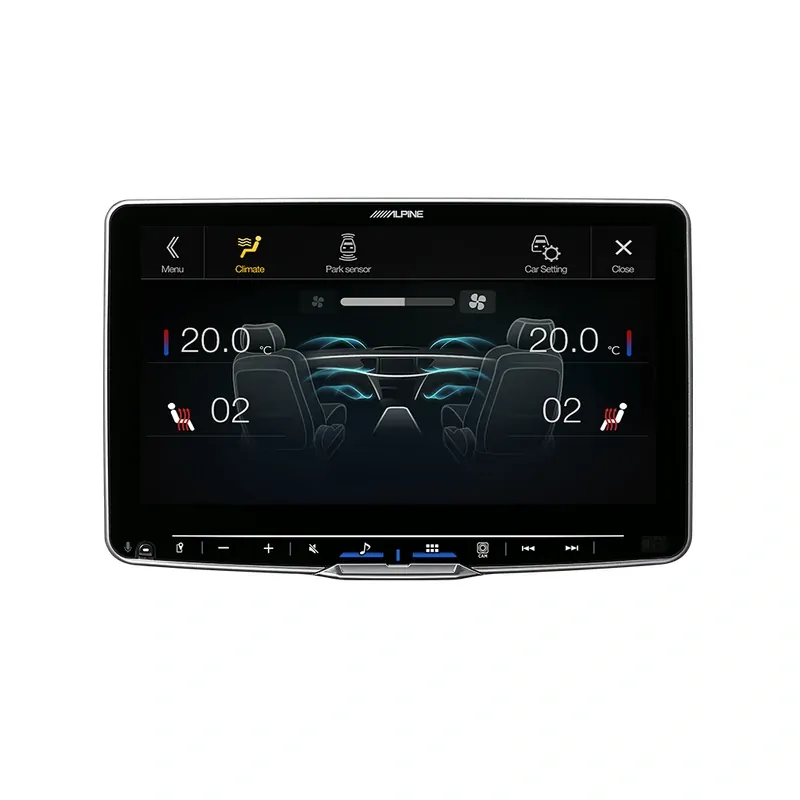

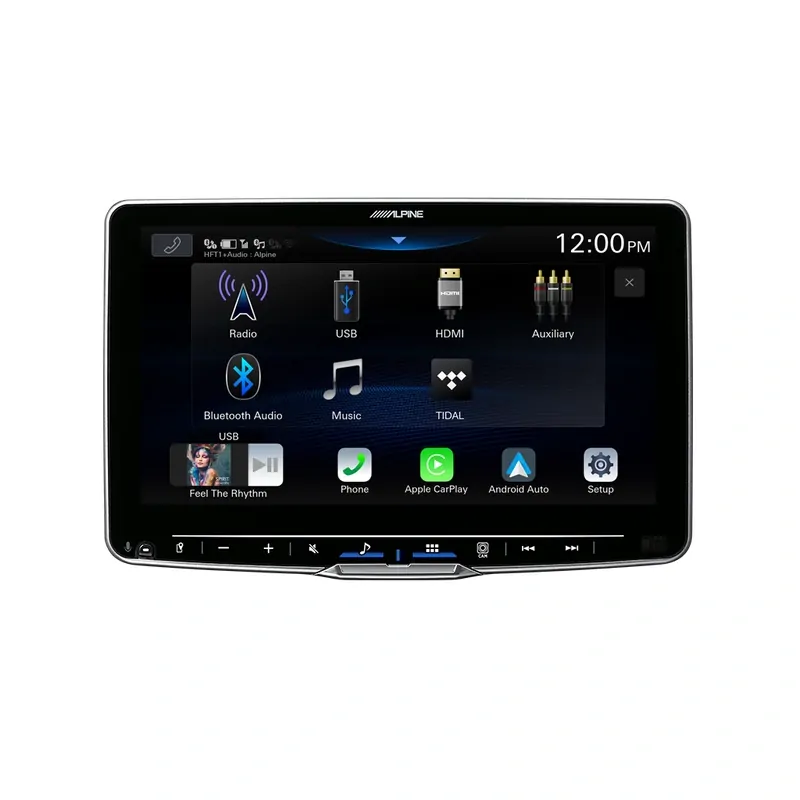

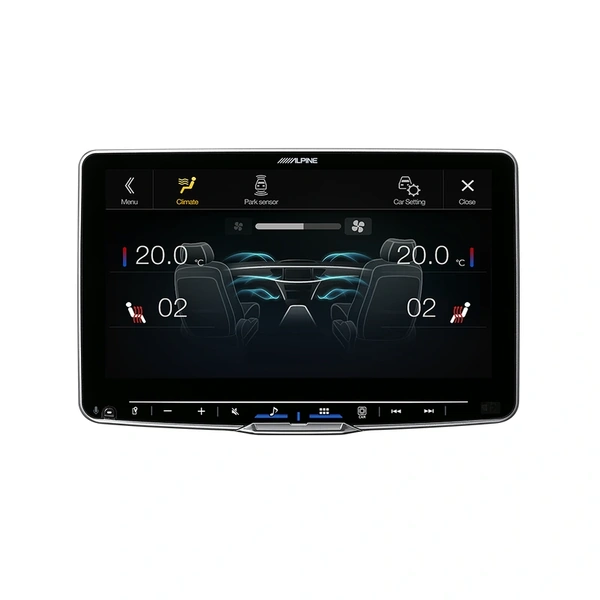

Halo9 9” High-Res Audio Receiver with Wireless Apple CarPlay / Wireless Android Auto / HDMI / USB / Dual Camera / Bluetooth / Hi-Res Audio Wireless / LDAC / DAB+ Suitable for GR-Yaris

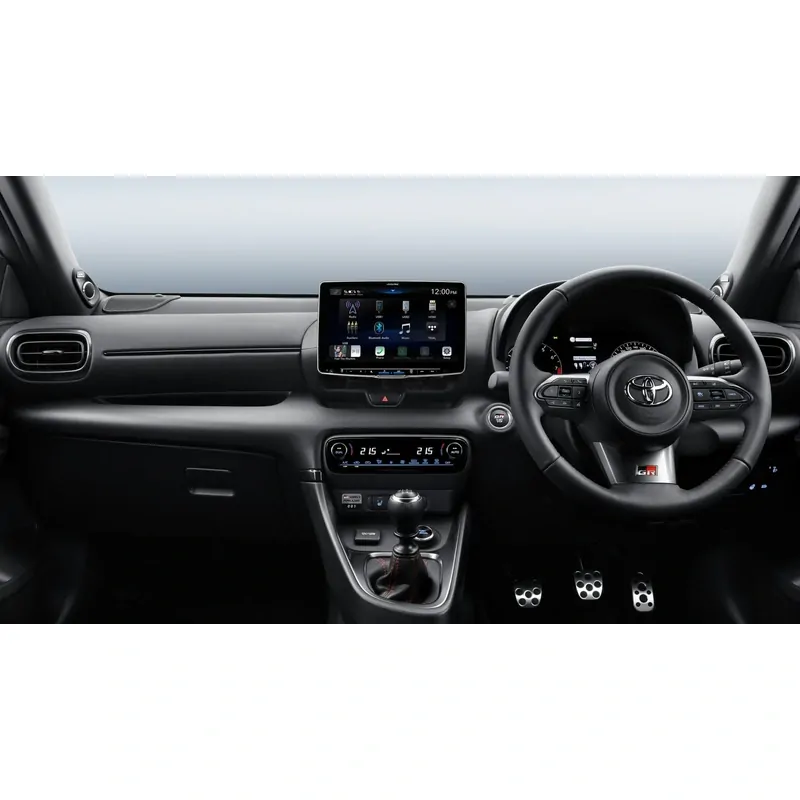

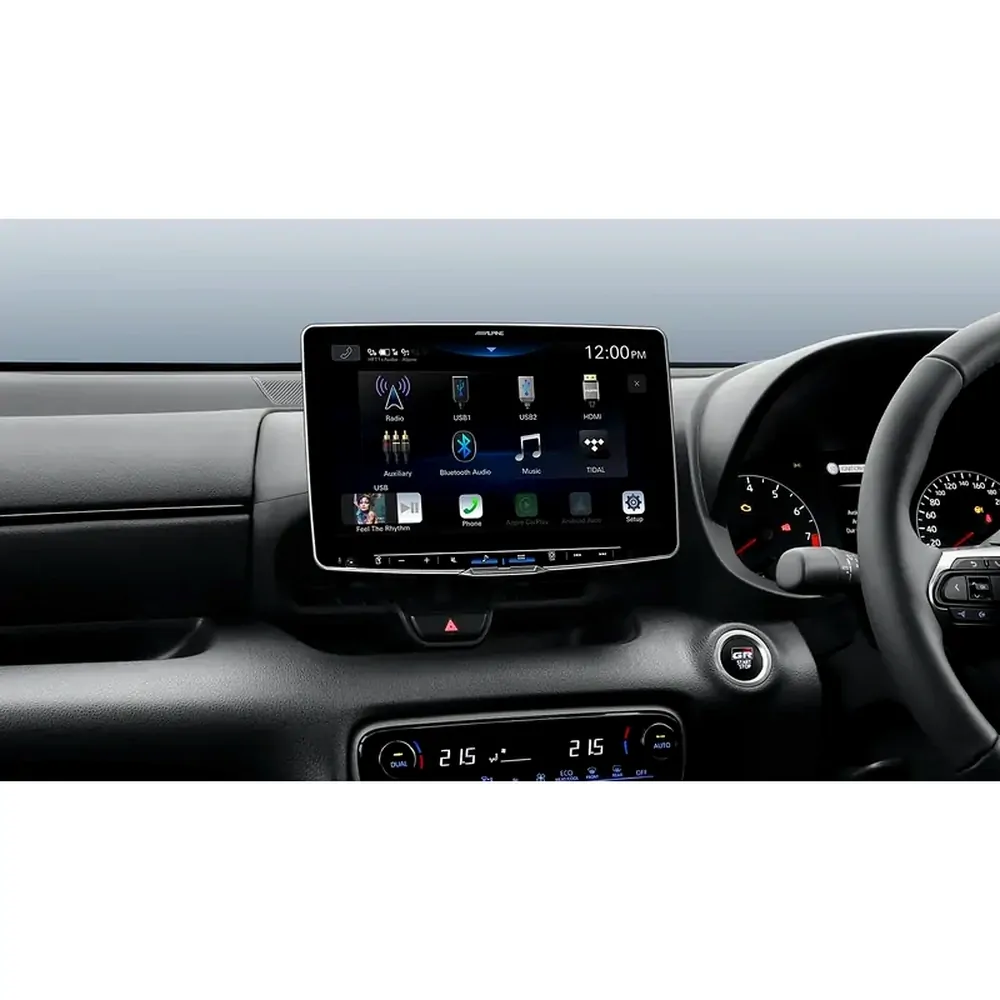

Your driving experience will reach a new level with Alpine’s groundbreaking 9’’ infotainment system, seamlessly integrated into your GR-Yaris dashboard. The iLX-F509A merges exceptional functionality with a sleek, high-end aesthetic, showcasing a breathtaking ultra-high-definition WXGA display that delivers vibrant colours and crystal-clear visuals with its 2.7 million pixel resolution.

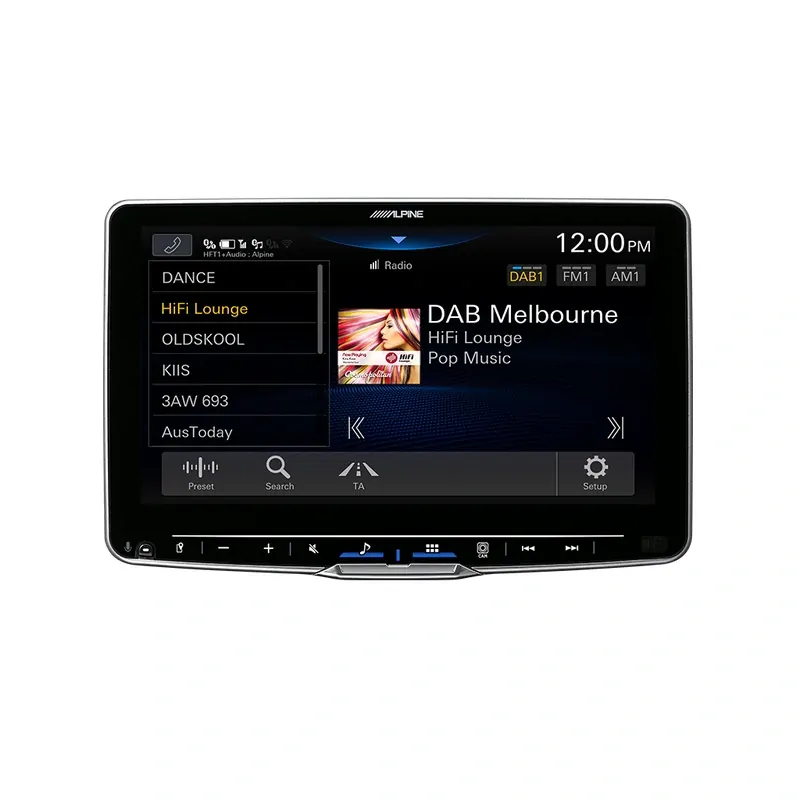

Immerse yourself in unparalleled visual brilliance with the WXGA 9’’ high-resolution screen, offering the deepest blacks, richest hues, and lifelike picture quality from any angle.

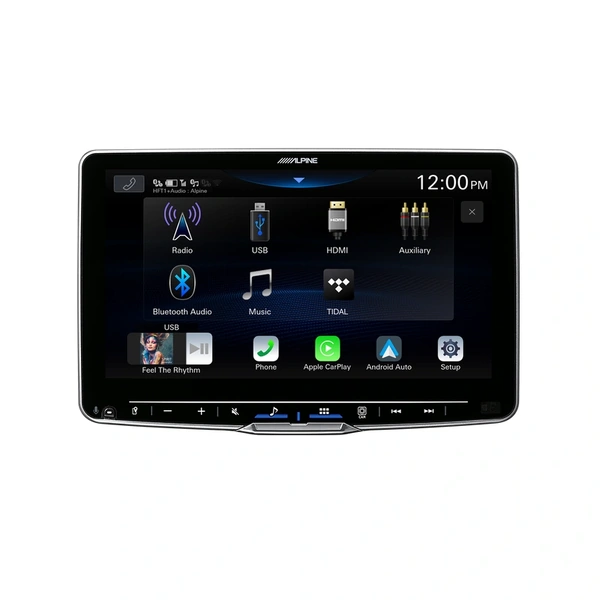

Enhance your journey with Apple CarPlay and Android Auto, providing effortless access to a world of smartphone features and entertainment right on your dashboard. Navigate with ease, make calls, send and receive messages, and stream high-resolution music—all controlled through the intuitive display or via voice commands.
Experience pristine audio fidelity with Hi-Res Audio and LDAC wireless technology. Play high-resolution audio files from USB or stream music through your smartphone, enjoying music with the clarity and authenticity envisioned by the artist. Amplify your sound with the world’s first built-in Class-D amplifier, delivering powerful, dynamic audio across all music genres and live performances, making every note resonate through any speaker.
The Alpine iLX-F509A sets a new standard for GR-Yaris enthusiasts, offering extraordinary audio performance, a stunning centrepiece design, and cutting-edge technology.
Radio / DAB Tuner
- Preset Stations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
- Memory: Auto Memory
- Seek Mode: Local, DX, Pre-Set, Service
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service)
- DAB Service Following
- RDS Fallback (where available)
- Auto Ensemble/Service Memory
- Service Search Function
- PTY Search Function
- Alphabet Search Function
BLUETOOTH®
- Built-in BLUETOOTH® Module V4.2
- HFP (Hands-Free Profile) Compatible
- A2DP (Advanced Audio Distribution Profile) Compatible
- AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Phone Book Synchronisation
- Speed Dial: 4 Preset Memory (per phone)
- Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
- Redial Function
- Speech Volume Level Adjustment: (Outgoing and Incoming)
- 24 Menu Languages
- Microphone Included
Works with iPhone®
- Compatible with iPhones featuring a lightning connector
- Various search functions and Album Artwork Display
- Battery Charging
Connectivity
- Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)
- Works with Android Auto wirelessly (requires Android Auto enabled handset) **Not all handsets supported and may require wired connection.

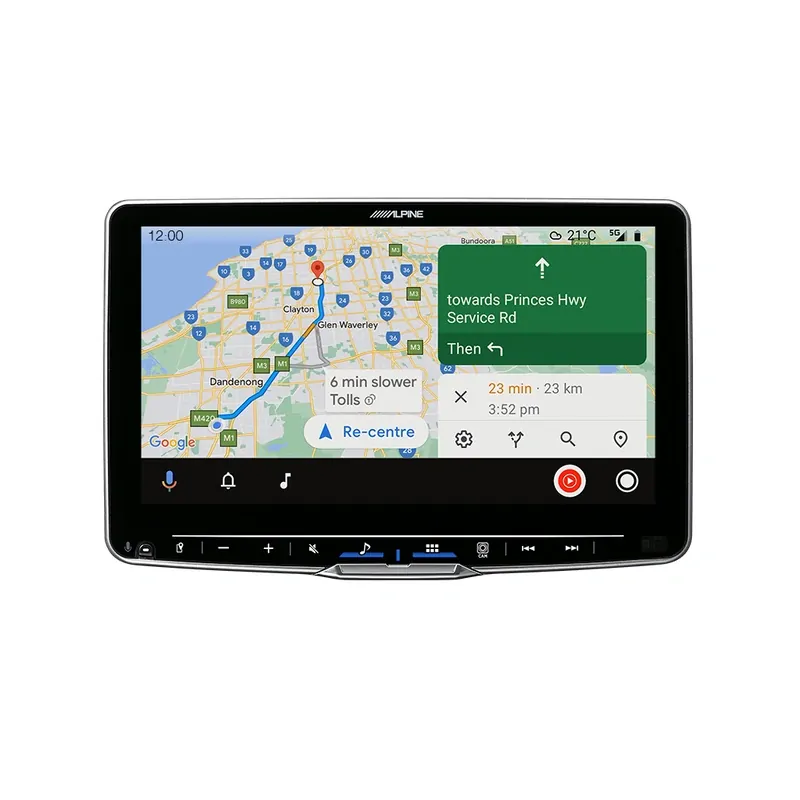

Navigation Function
- Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
- Includes GPS / Glonass enabled navigation antenna

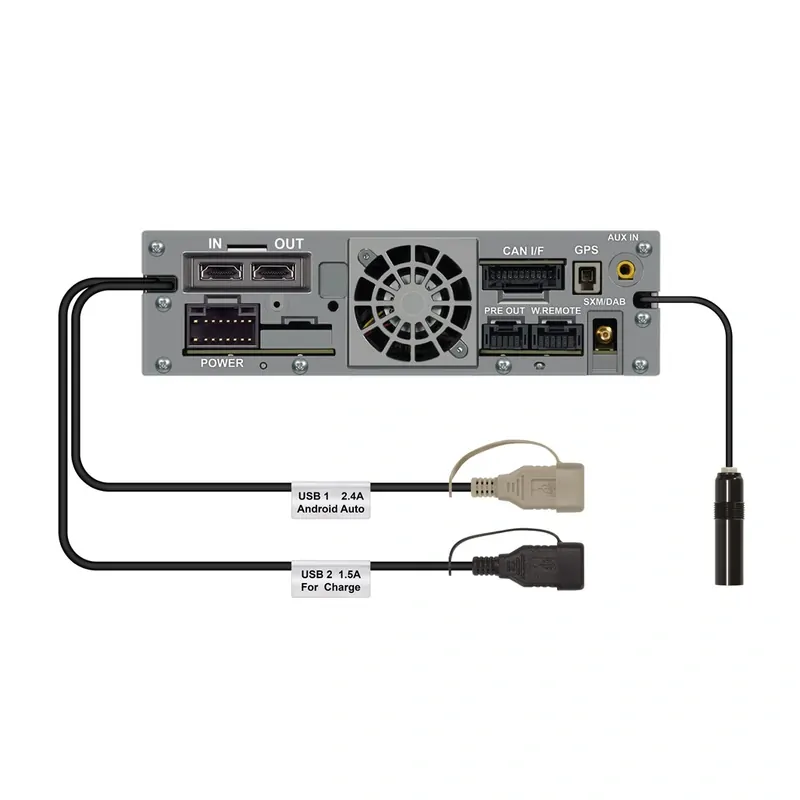

USB Media Connection
- 2x USB cable included
- USB port 1: data port / USB port 2: charging port
- Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
- Video Playback: MP4, MOV, FLV, MKV compatible
- Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
- Various search functions included
Sound Tuning
- Bass Engine SQ and Bass Engine PRO sound tuning
- Subwoofer Level Adjustment
- 4 V PreOut
- 10 Equalizer PreSets
- 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
- 6-Channel Digital Time Correction
- 2-way Digital Crossover
- Independent Source Volume Level Setting
General
- 4x 50 Watts Class-D High Power Amplifier
- 9-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)

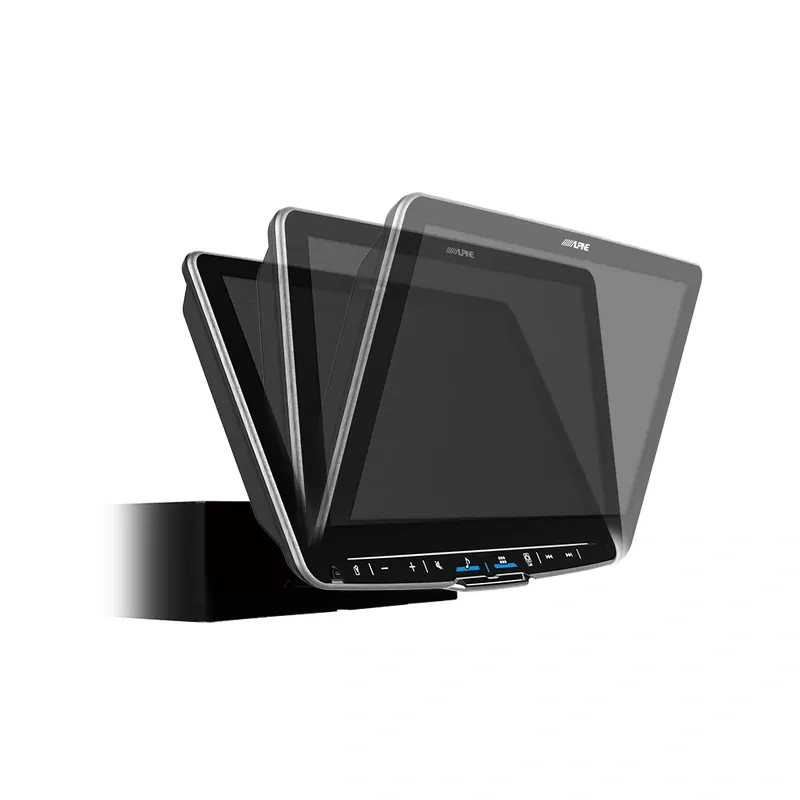

- Display angle adjustable after installation
- 3 PreOuts (4 V, Front / Rear / Subwoofer)
- 1 A/V AUX Input (3.5 mm micro jack)

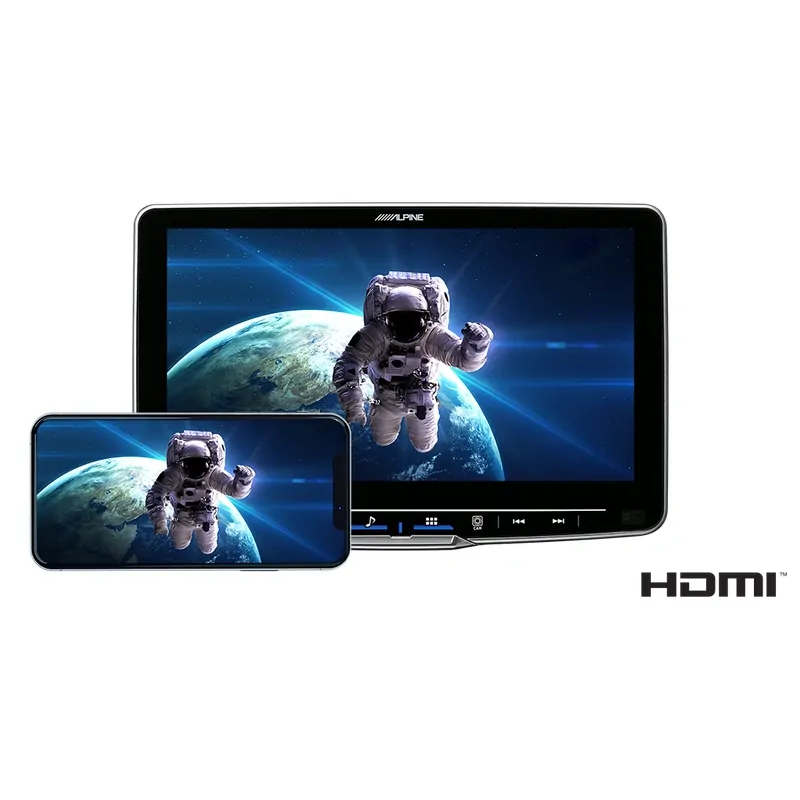

- 1 HDMI input / 1 HDMI output
- 2 USB Ports (1x USB data port / 1x USB charging)

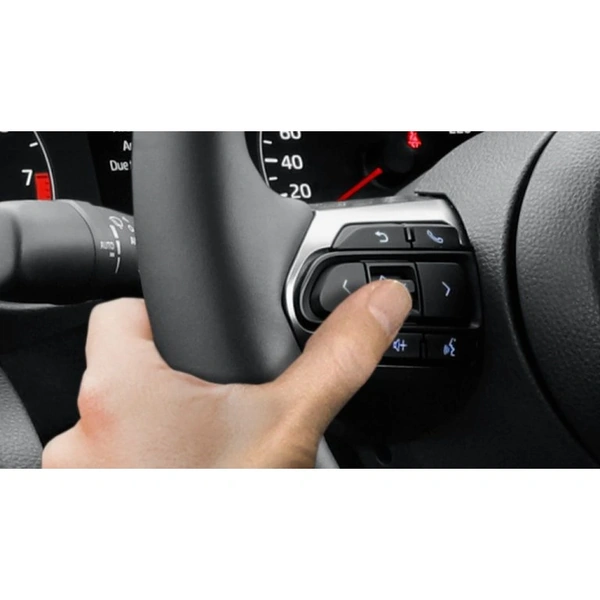

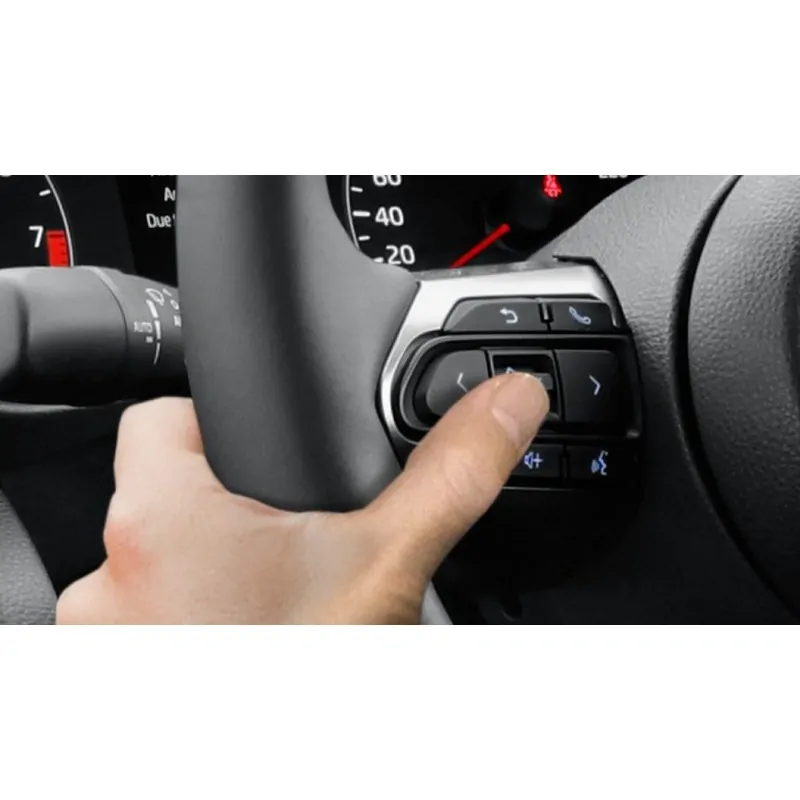

- Steering Wheel Remote Control Ready
- Vehicle Display Interface Ready (UART connection)
- Remote Control Ready

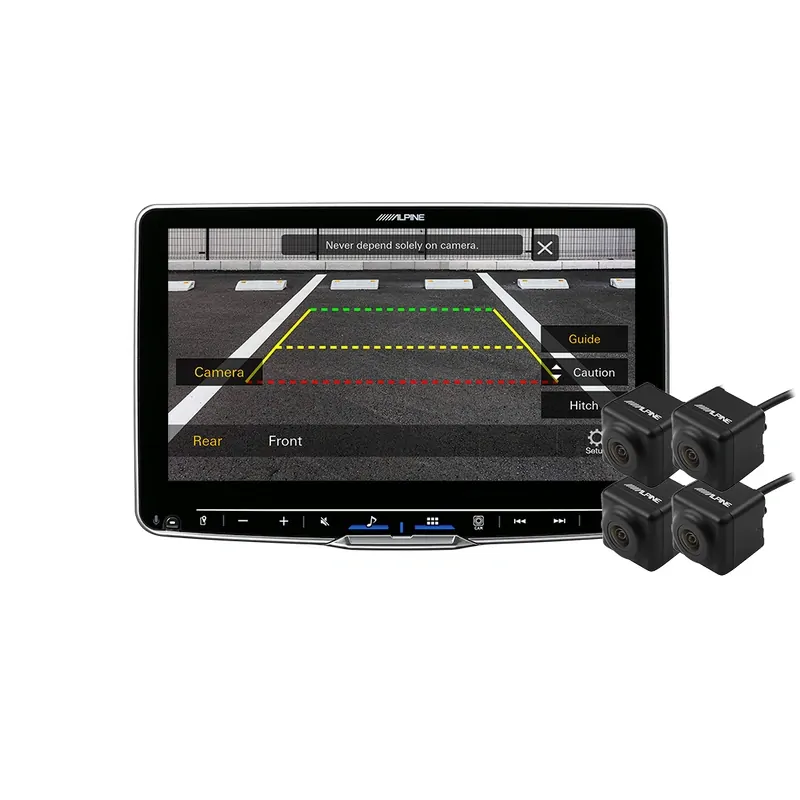

- 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
- Camera Distance Guides (adjustable)
- Live Contrast Adjustment
- Menu Language: 24 Languages
- Auto Dimmer
- Anti-theft security code
- Engine Start-Stop unaffected
- 3-Year Warranty when installed by Authorised Alpine Dealer
General
- Power Requirement – 14.4V DC (11-16V allowable)
- Operating Temperature – -20°C to +60°C
- Power Output – 50W x 4
- Maximum Current Consumption – 15A
Audio Output Level
- Preout (Front, Rear): 4V/10k ohms (max.)
- Preout (Subwoofer): 4V/10k ohms (max.)
Weight
- 2.3kg
Screen
- Screen Size: 9 inch Laminated WXGA
- LCD Type: Transparent Type TN LCD
- Operation System: TFT Active Matrix
- Number of Picture Elements: 2,764,800 pixels (1280 x 720 x 3)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
FM Tuner
- Tuning Range – 87.5 -105MHz
- Mono Usable Sensitivity – 8.1 dBf (0.7μV/75 ohms)
- 50dB Quieting Sensitivity – 12dBf (1.1μV/75 ohms)
- Alternate Channel Selectivity – 80dB
- Signal-to-Noise Ratio – 65dB
- Stereo Seperation – 35dB
AM Tuner
- Tuning Range – 531-1701 kHz
- Usable Sensitivity – 25.1μV/28 dBf
DAB Tuner
- Tuning Range – 174 – 240 MHz
- Usable Sensitivity – -100dBm
- Signal-to-Noise Ratio – 90dB
USB (1)
- USB Requirements: USB 2.0
- Max. Power Consumption: 2,400 mA (CDP Support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT 16/32, exFAT
- MP3 Decoding: MPEG-1/2 AUDIO Layer-3
- WMA Decoding: Windows Media™ Audio
- AAC Decoding: ACC-LC format ′′.m4a′′ file
- FLAC Decoding
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 – 40k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
- Total Harmonic Distortion (at 1kHz): 0.005%
- DynamicRange(at 1kHz): 95 dB
- Signal-to-Noise Ratio: 95 dB
- Channel Separation (at 1kHz): 90 dB
USB (2)
- USB Class: Charge Only
- Max. Power Consumption: 1,500 mA (CDP Support)
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V4.2 (2,402 – 2,480 MHz)
- Output Power: +4 dBm/2.51 mW Ave. (Power Class 2)
- HFP: HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP: A2DP (Advanced Audio Distribution Profile)
- AVRCP: AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
HDMI Section
- Input Format: 720p/480p/VGA
- Output Format: 720p/480p
GPS
- Reception Frequency 1575.42 +/- 1.023 MHz
- Reception Sensitivity (Search) -136dB max.
Wi-Fi
Frequency Ranges
- IEEE 802.11 b/g/n (2.4 GHz)
- IEEE 802.11 a/n/ac (5 GHz)
Channels
- 1 -13 ch (2.4 GHz)
- 149 – 165 ch (5GHz)
Security Protocols
- WPA3/WPA2-PSK (TKIP, AES)
Dimensions
- Din Size: 1DIN chassis and 9” Capacitive Touch Screen
- Chassis Size (W x H x D) mm: 178 x 50 x 149.6mm
- Display Size (W x H x D) mm: 232.5 x 151.1 x 54.7
SKU | YARIS-GR20-F509A |
Brand | ALPINE |
