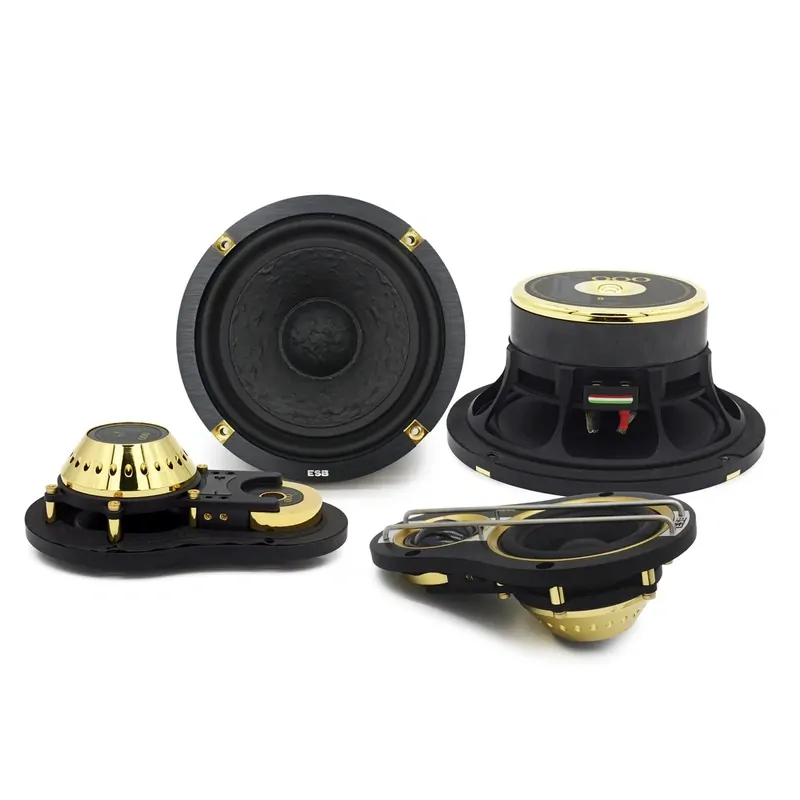

ESB Audio 8.6K3U 3-WAY Speaker System 8000 Series With UMA UNIT

SKU:ESB8.6K3U

$3,499.00


Calculate Shipping

8000 series 1" and 3" UMA panel and 6.5" Midbass


8.003UMA

2-Way Mid-High Unit

28 mm aluminum VC (tweeter)

Torcon soft dome (tweeter)

High-grade neodymium magnet

Ferrofluid cooling and damping

NPPV exponential cone (mid)

Conex progressive spider (mid)

Motor metal parts CNC machined

Under-dome dB Cloth damping material

Nominal Impedance: 4 Ohm

Nominal Power Handling: 120 Watt

Transient Power: 240 Watt

Freq. Response: 95 Hz ~ 25 KHz

Sensitivity: 91 dB 1W/1m


8.165

6.5"/165 mm Mid-Woofer

Non-pressed paper cone

32.4 mm voice coil diameter

Large Y35 ferrite magnet

NPPV exponential cone

VC aluminum support

TWS Rubber surround

Conex progressive spider

Motor metal part CNC machined

Computer optimized design

Nominal Impedance: 4 Ohm

Nominal Power: 160 Watt

Transient Power: 320 Watt

Freq. Response: 45 Hz ~ 4 KHz

Sensitivity: 89 dB 1W/1m

  • 8.6K3CX (optional)

    3-Way Passive Crossover

    Multi-amp or single amp connect.

    Gold plated spacers and screws

    99.9% pure copper coils

    Anti-inductive resistors

    Very high quality bi-metallized caps

    4 tweeter attenuation levels:

    0; -2; -4; -6 dB

    4 midrange attenuation levels:

    0; -3; -6; -9 dB

    3 midrange high pass frequencies

    2 different cutting slopes for the tweeter and midrange

    4 levels of adjustment for the woofer / midrange transition zone

SKU ESB8.6K3U
Brand ESB AUDIO
