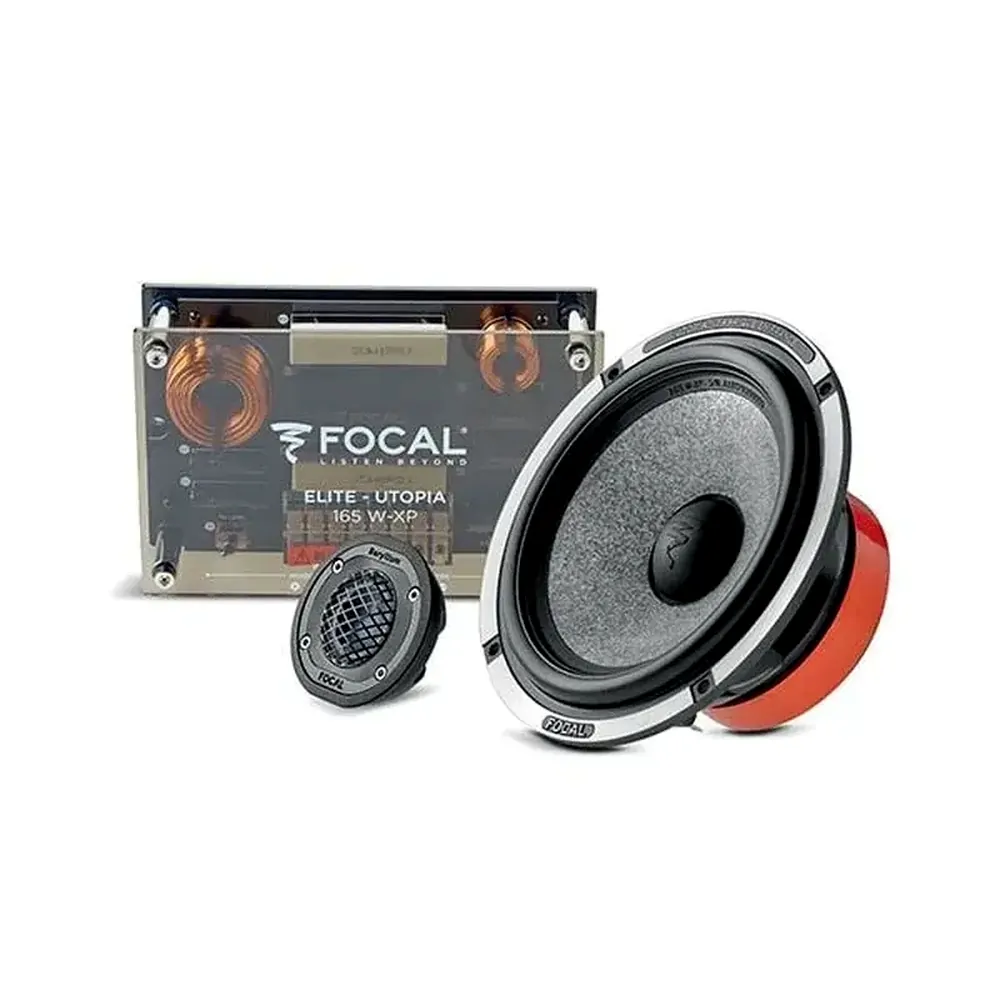

The next in line after Focal's passive 2-way kit 165W-RC, a leading product heralded for its performance for several years now, the 165W-XP integrates Focal's exclusives technologies: TMD® surround, progressive spider, ventilated motor, new Beryllium tweeter, bi-amplification crossover. We also gave it a new design, steeped in Focal's DNA and geared towards performance. The result: an uncompromising kit that opens the door to the world of Utopia.
THE BEST OF FOCAL TECHNOLOGIES
'W' sandwich cone
The 'W' sandwich cone perfectly optimises the frequency response curve by fully mastering the three key parameters of lightness, rigidity and damping. When listening through the 'W' sandwich cone, the sound is completely transparent with extremely little distortion.
TMD® surround
Originally developed for the Sopra line of high-fidelity loudspeakers, Focal's TMD® (Tuned Mass Damper) surround has a unique profile, designed to better control the effects of resonance and to drastically reduce the distortion associated with deformations of the cone. The speaker driver takes advantage of this patented technology by spreading better defined and very realistic midranges.
Progressive spider
The progressive spider used on all Focal's Utopia drivers is built around a progressive section that reproduces all the impact of the bass whilst optimising the linearity, precision and dynamics of the sound.
Bi-amplification crossover
All the components on Focal's crossover have been specially selected and optimised to better control the effects of thermal dissipation. These components, essential for managing different channels and the soundstage, have improved reliability. As for the bi-amplification, this enables the woofer and tweeter to be driven separately in terms of power, resulting in optimum performance.
MADE IN FRANCE
Utopia is entirely designed, developed and manufactured in France, in Focal's workshops in Saint-Etienne. A unique and internationally recognized expertise for nearly forty years.
Features
Tweeter
- Nominal power: 15W
- Maximum power: 150W
- Sensitivity: (2.83V/1m) 94dB
- Nom. impedance: 4Ω
- Dome: Pure Beryllium
- Surround: Poron
- DC resistance: 4Ω
- VC diameter: 20mm
- Former: Kapton
- Layers: 2
- Wire: Alu
- Net weight: 150g
Woofer
- Nominal power: 100W
- Maximum power: 200W
- Sensitivity: (2.83V/1m) 93dB
- Nom. impedance: 2Ω
- Cone: 'W'
- Surround: Butyl
- DC resistance: 1.8Ω
- VC diameter: 32mm
- Former: Kapton
- Layers: 2
- Wire: CCAW
- Net weight: 1,400g
More Information
Pair or Single | Pair |
---|---|
Speaker Type | Split Component |
Speaker Setup | 2-Way |
Woofer Diameter (mm) | 165mm |
Woofer Diameter (Inch) | 6.5 Inch |
Mounting Diameter | 142mm |
Woofer Mounting Depth | 74mm |
Tweeter Diameter (mm) | 25mm |
Tweeter Diameter (Inch) | 1 Inch |
RMS Power | 100W |
Impedance | 4 Ohm |
Grilles Included | Not included |
Sensitivity (dB) | 93dB |
Frequency Response | 60Hz - 40kHz |
SKU | 165W-XP |
Brand | FOCAL |
