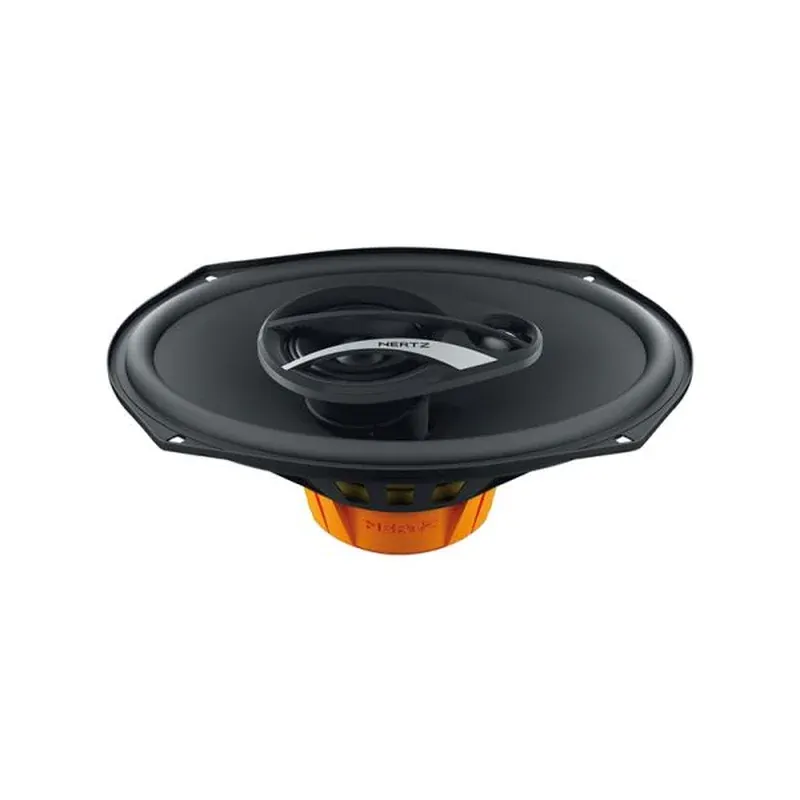

Hertz DCX690.3 Dieci 180W 6x9 Inch 3-Way Coaxial Speakers

Contact us for more information

SKU:DCX690.3


An authentic 3-way coax capable of reproducing a wide frequency spectrum. The DCX 690.3 car audio coaxials uses an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange and a PEI dome tweeter. The result is linearity, wide dispersion and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels.

Data table

Power Handling - Peak W180
Power Handling - Continuous W90
Impedance ?4
Frequency response Hz45 / 21k
Sensitivity dB SPL93
Voice coil mm (in.) 25 (1.0
Woofer size mm (in.)(6.0 x 9.0)
Tweeter size mm (in.)60 (2.5)
Woofer magnetHigh density flux ferrite
Tweeter magnetHigh density flux ferrite
Woofer coneWater-repellent pressed paper
Tweeter domeWater-repellent pressed paper

More Information

More Information
Pair or Single Pair
Speaker Type Co-axial
Speaker Setup 3-Way
Woofer Diameter (mm) 162 x 237mm
Woofer Diameter (Inch) 6x9 Inch
Mounting Diameter 153 x 224mm
Woofer Mounting Depth 77mm
Tweeter Diameter (mm) 5mm
Tweeter Diameter (Inch) 0.6 Inch
Mid Diameter (Inch) 2.5 Inch
Mid Diameter (mm) 60mm
RMS Power 90W
Impedance 4 Ohm
Grilles Included Included
Sensitivity (dB) 93dB
Frequency Response 45Hz - 21kHz
SKU DCX690.3
Barcode # 8018823104197
Brand HERTZ
