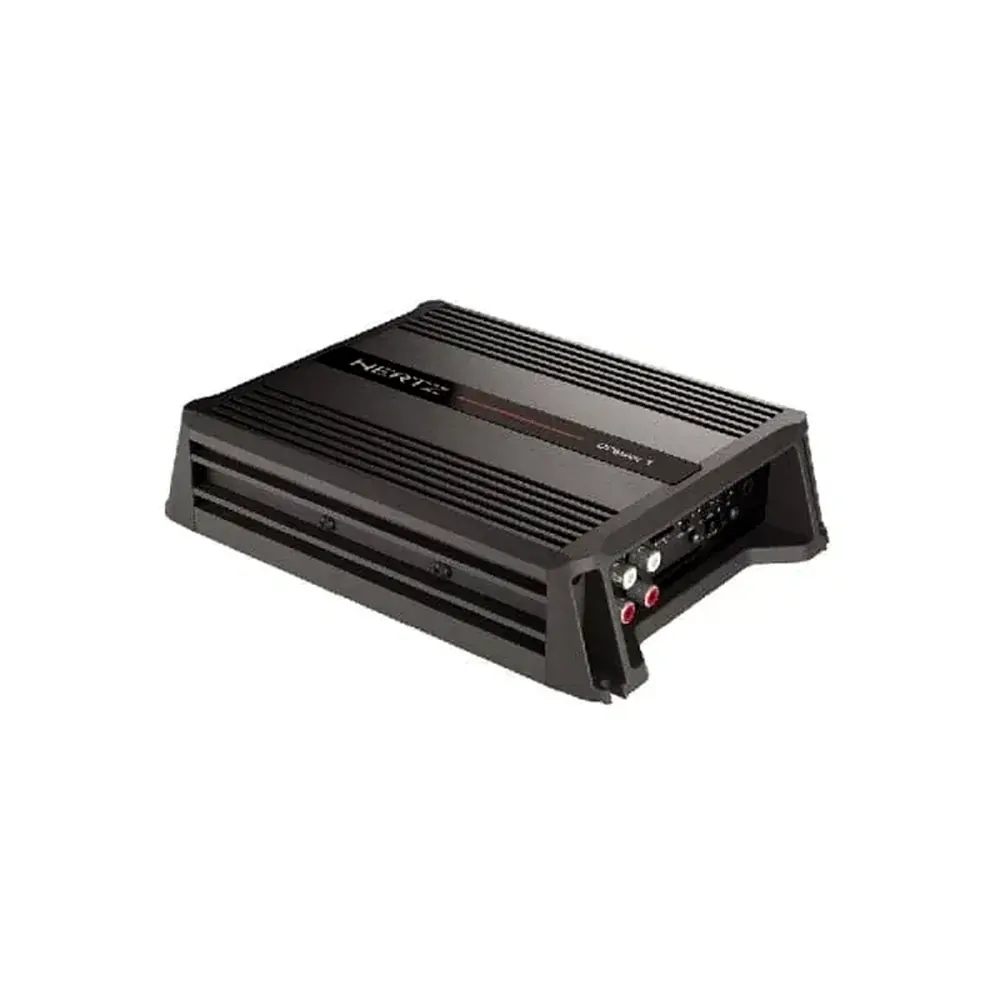

Hertz DPower1 600W Mono D Class Amplifier

Contact us for more information

SKU:DPOWER1


Excellent for OEM systems upgrade, the Hertz DPower1 mono car audio amplifiers is an ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area. The efficient D Class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration. The bass boost function enhances 45 Hz up to 12 dB to increase subwoofer punch. The double SPEAKER & RCA INPUTS allows the DPower1 to connect to any type of source, be it OEM or aftermarket. For an excellent integration with OEM systems DPower1 is equipped with a smart automated turn on and off circuit according to the factory radio.

Data table

Channel mode1
Output Power (RMS)
@ 14.4 VDC
1 Ch 180 W x 1 (4?)
1 Ch 300 W x 1 (2?)

Filters
Bypass
Hi-Pass
Lo-Pass
Band-Pass
Subsonic

Yes
Not available
50 / 220 Hz @ 12 dB/Oct.
Not available
Not available
Distortion - THD
(100Hz @ 4?)
0.1 %
S/N Ratio
(A weighted @ 1V)
105 dB
Damping factor
(100Hz @ 4?)
100
Size W x D x H
mm (in.)
222,2 x 160 x 50,5 / 8,75 x 6,3 x 1,99

More Information

More Information
Channels 1/MONO
RMS Power @ 4 Ohm 150W x 1
RMS Power @ 2 Ohm 250W x 1
RMS Power @ 1 Ohm N/A
Crossover Channel 1/2 LP 50-220Hz @ 12dB/oct
Subsonic Filter No
Bass Boost 0-12dB @ 45Hz
Speaker Level Input Yes
Auto Turn-On Yes
Remote Sub Controller Optional (HRC BM)
Dimensions 222 x 160 x 50mm
SKU DPOWER1
Barcode # 8018823122115
Brand HERTZ
