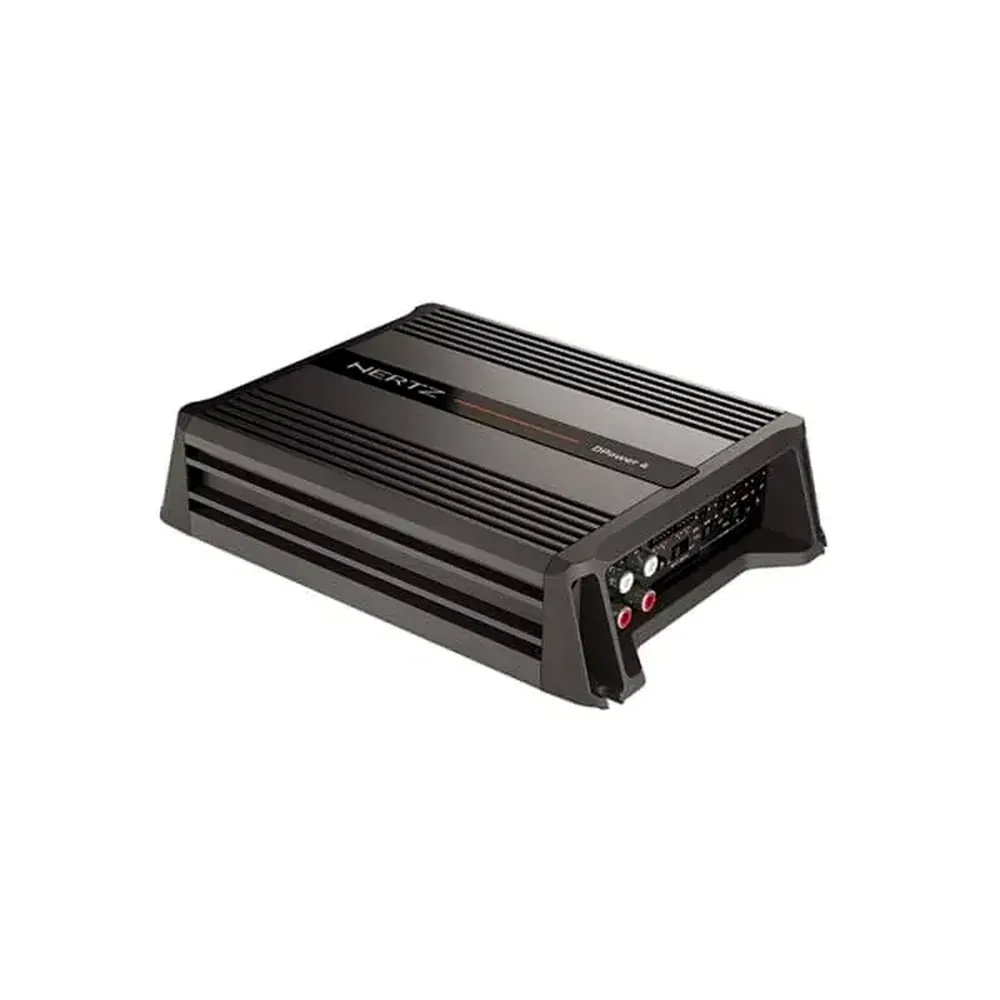

Hertz DPower4 600W 4CH D Class Amplifier

Contact us for more information

SKU:DPOWER4


Excellent for OEM systems upgrade, the Hertz DPower4 four channels car audio amplifiers is ultra-compact to ensure effortless installations in the increasingly narrow spaces of modern vehicles or in the factory amp area. The efficient D Class circuit delivers 600 W of maximum power within a compact chassis, an essential requirement for in-car integration. The versatile crossover filter of the DPower 4 enables the user to create a front-rear or front + subwoofer system by connecting two channels in bridge mode.

Data table

Channel mode4 - 3 - 2
Output Power (RMS)
@ 14.4 VDC
4 Ch 60 W x 4 (4?)
4 Ch 75 W x 4 (2?)
2 Ch 150 W x 2 (4?)
3 Ch 60 W x 2 + 150 W x 1 (4?)
3 Ch 75 W x 2 + 150 W x 1 (2?)
Filters
Bypass
Hi-Pass
Lo-Pass
Band-Pass
Subsonic

Yes
40 / 220 Hz @ 12 dB/Oct.
40 / 220 Hz @ 12 dB/Oct.
Not available
Not available
Distortion - THD
(100Hz @ 4?)
0.2 %
S/N Ratio
(A weighted @ 1V)
95 dB
Damping factor
(100Hz @ 4?)
60
Size W x D x H
mm (in.)
222,2 x 160 x 50,5 / 8,75 x 6,3 x 1,99

More Information

More Information
Channels 4 Channel
RMS Power @ 4 Ohm 45W x 4 or 130W x 2
RMS Power @ 2 Ohm 65W x 4
RMS Power @ 1 Ohm N/A
Crossover Channel 1/2 HP 40-220Hz @ 12dB/oct
Crossover Channel 3/4 HP/LP 40-220Hz @ 12dB/oct
Subsonic Filter No
Bass Boost No
Speaker Level Input Yes
Auto Turn-On Yes
Remote Sub Controller No
Dimensions 222 x 160 x 50mm
SKU DPOWER4
Brand HERTZ
