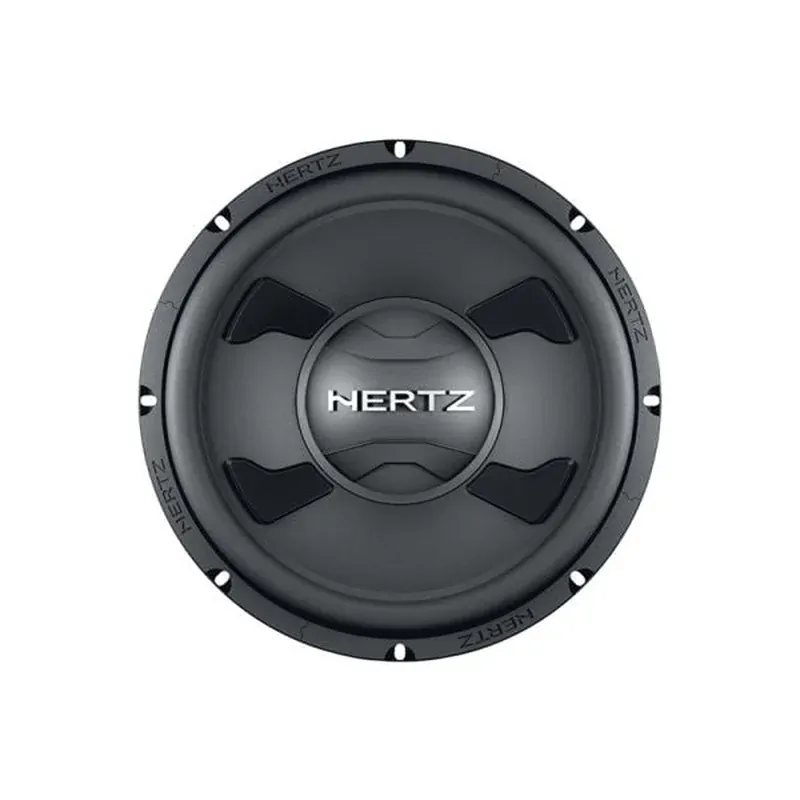

Hertz DS30.3 Dieci 1000W 12 Inch Subwoofer

Contact us for more information

SKU:DS30.3


"The DS 30.3 car audio subwoofers box offer high efficiency and exceptional power handling. Equipped with a polypropylene membrane and butyl rubber surround, they provide high excursion with minimal distortion. An efficient cooling system ensures optimal heat dissipation, increasing their reliability.
The Dieci subwoofers are designed for use in compact sealed or reflex enclosures; thanks to an exclusive, carefully thought-out design, they can be used in any installation."

Data table

Size mm (in.)300 (12)
Power Handling - Peak W1000
Power Handling - Continuous W250
Impedance ?4
Frequency response Hz28 / 300
Sensitivity dB SPL91
Voice coil mm (in.) 38 (1.5)
MagnetHigh density flux ferrite
Cone/DomePolypropylene with Mica injection
Xmax mm9
X-mech mm (in.)16 (0.63)
Re ?3,3
Fs Hz32
Vas l70
Qts0,62
Qes0,71
Qms5,14
Spl dB91

More Information

More Information
Woofer Diameter (mm) 300mm
Woofer Diameter (Inch) 12 Inch
Mounting Diameter 279mm
Shallow Mount No
Woofer Mounting Depth 120mm
RMS Power 250W
Voice Coil Single Voice Coil
Impedance 4 Ohm
Sensitivity (dB) 91dB
Frequency Response 28Hz - 300Hz
Sealed Box Volume 0.74 cu/ft (21-litres)
SKU DS30.3
Barcode # 8018823108171
Brand HERTZ
