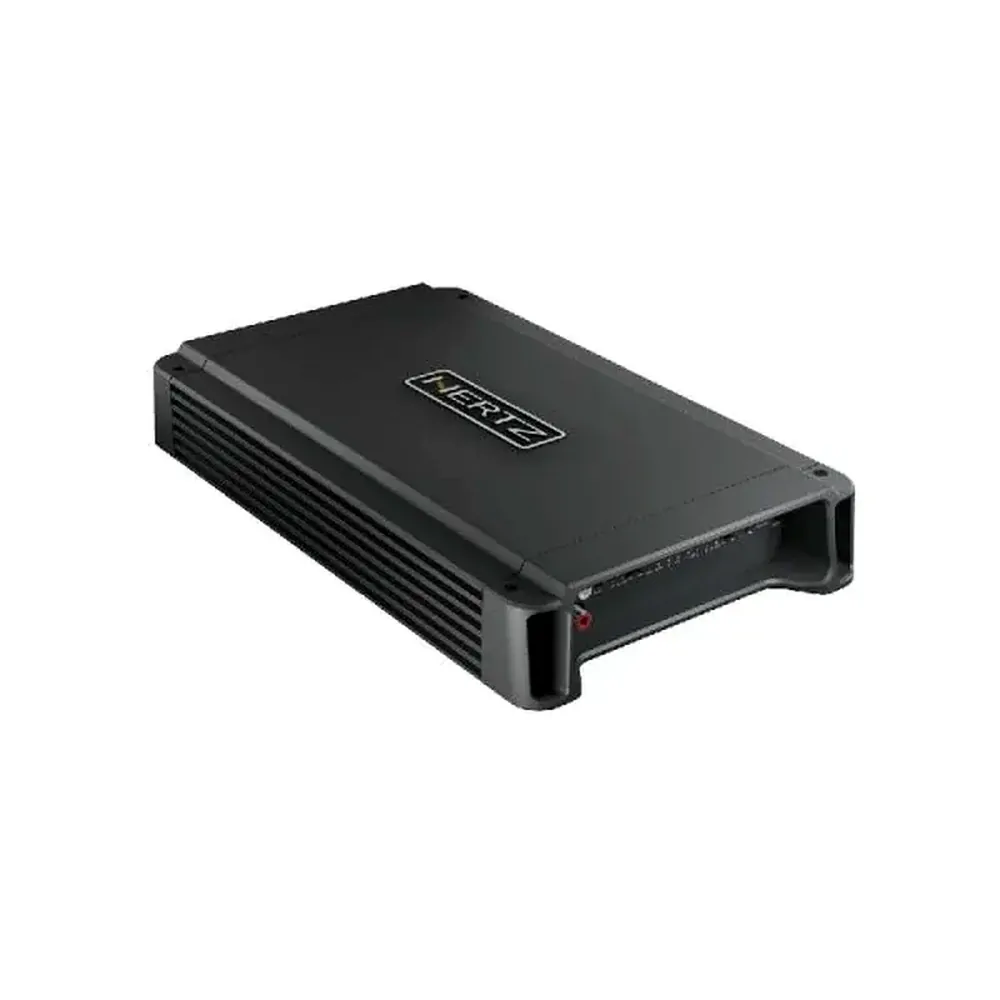

Hertz HCP1DK Compact Power 2480W Mono High Power D-Class Mono Amplifier

Contact us for more information

SKU:HCP1DK


"HCP 1DK is a mono car audio amplifier with an incredibly minimized size heat sink. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

HCP 1DK has been designed to work in multiple configurations. More specifically, it features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer.
Besides, using the HRC accessory (Hertz Remote Control), the subwoofer volume can be remote controlled with extreme preciseness."

Data table

Channel mode1
Output Power (RMS)
@ 14.4 VDC
1 Ch: 740 W x 1 (4?)
1 Ch: 1240 W x 1 (2?)
Filters
Bypass
Hi-Pass
Lo-Pass
Band-Pass
Subsonic

-
50 / 250 Hz @ 12 dB/Oct.
50 / 250 Hz @ 24 dB/Oct.
-
25 Hz @ 24 dB/Oct.
Distortion - THD
(100Hz @ 4?)
0,25 %
S/N Ratio
(A weighted @ 1V)
> 100 dB
Damping factor
(100Hz @ 4?)
> 100
Size W x D x H
mm (in.)
315 x 190 x 50 (12.40 x 7.48 x 1.97)

More Information

More Information
Channels 1/MONO
RMS Power @ 4 Ohm 600W x 1
RMS Power @ 2 Ohm 1100W x 1
RMS Power @ 1 Ohm N/A
Crossover Channel 1/2 LP 50-250Hz @ 24db/oct
Crossover Channel 3/4 HP 25Hz @24dB/oct
Subsonic Filter 25Hz @ 24dB/oct.
Bass Boost 0-6dB @ 50Hz
Speaker Level Input Yes
Auto Turn-On Yes
Remote Sub Controller Optional (HRC)
Dimensions 315 x 190 x 50mm
SKU HCP1DK
Barcode # 8018823114950
Brand HERTZ
