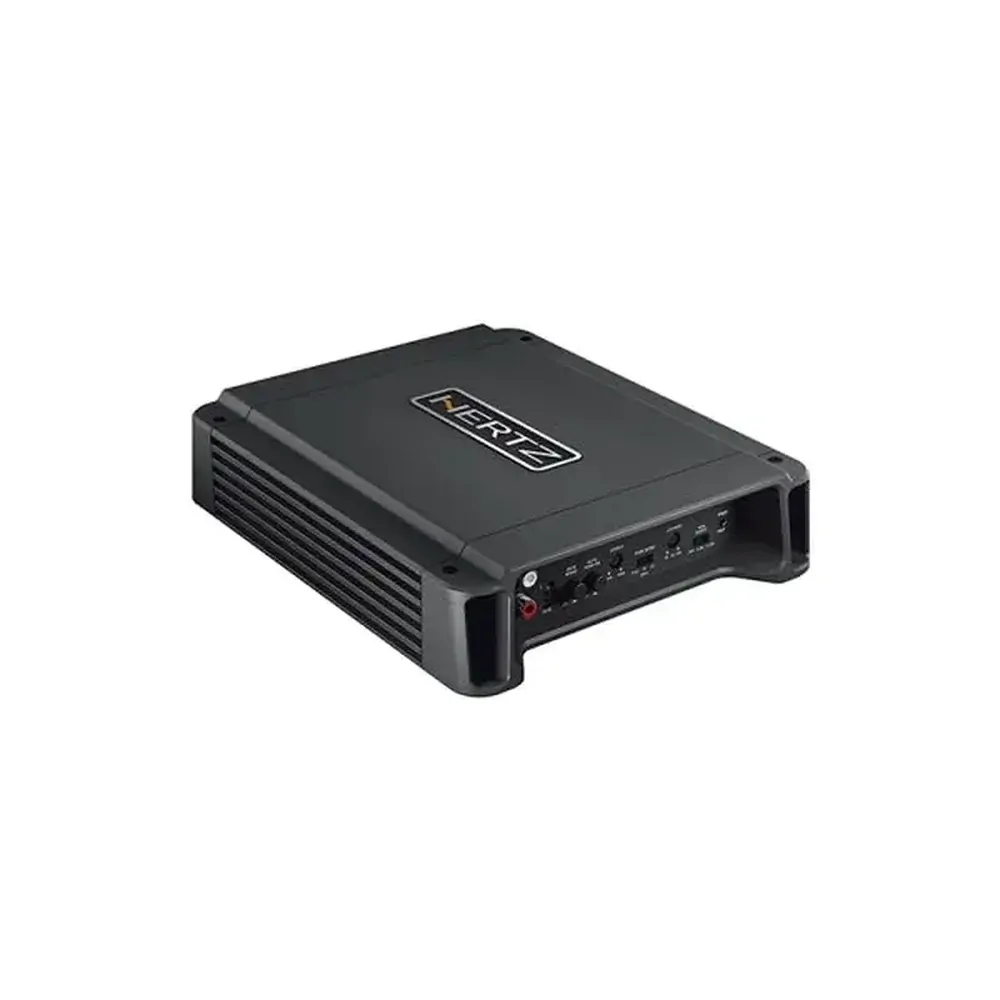

Hertz HCP2 Compact Power 400W 2CH AB Class Stereo Amplifier

Contact us for more information

SKU:HCP2


"HCP 2 is a stereo, 400W car audio amplifier, designed to expand or modify with maximum easiness the factory system: featuring pre-amplified (Pre-In) inputs as well as high-level (Speaker-In) inputs, for connection with any head units.

All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

With HCP 2 high power systems can be realized: settable both in mono, to drive the subwoofer, and together with another amplifier, for more complex systems; it also features a Bass Boost filters (0 ÷ 12 dB) to enhance low frequencies."

Data table

Channel mode2 - 1
Output Power (RMS)
@ 14.4 VDC
2 Ch: 65 W x 2 (4?)
2 Ch: 100 W x 2 (2?)
1 Ch: 200 W x 1 (4?)
Filters
Bypass
Hi-Pass
Lo-Pass
Band-Pass


Yes
80 Hz @ 12 dB/Oct.
50
-

Distortion - THD
(100Hz @ 4?)
0.01%
S/N Ratio
(A weighted @ 1V)
103 dB
Damping factor
(100Hz @ 4?)
200
Size W x D x H
mm (in.)
215 x 190 x 50 (8.46 x 7.48 x 1.97)

More Information

More Information
Channels 2 Channel
RMS Power @ 4 Ohm 55W x 2 or 170W x 1
RMS Power @ 2 Ohm 85W x 2
RMS Power @ 1 Ohm N/A
Crossover Channel 1/2 HP 80 @ 12dB/oct or 50-500Hz @ 12 db/oct
Subsonic Filter No
Bass Boost 6/12 db @ 50Hz
Speaker Level Input Yes
Auto Turn-On Yes
Remote Sub Controller Optional (HRC)
Dimensions 215 x 190 x 50mm
SKU HCP2
Brand HERTZ
