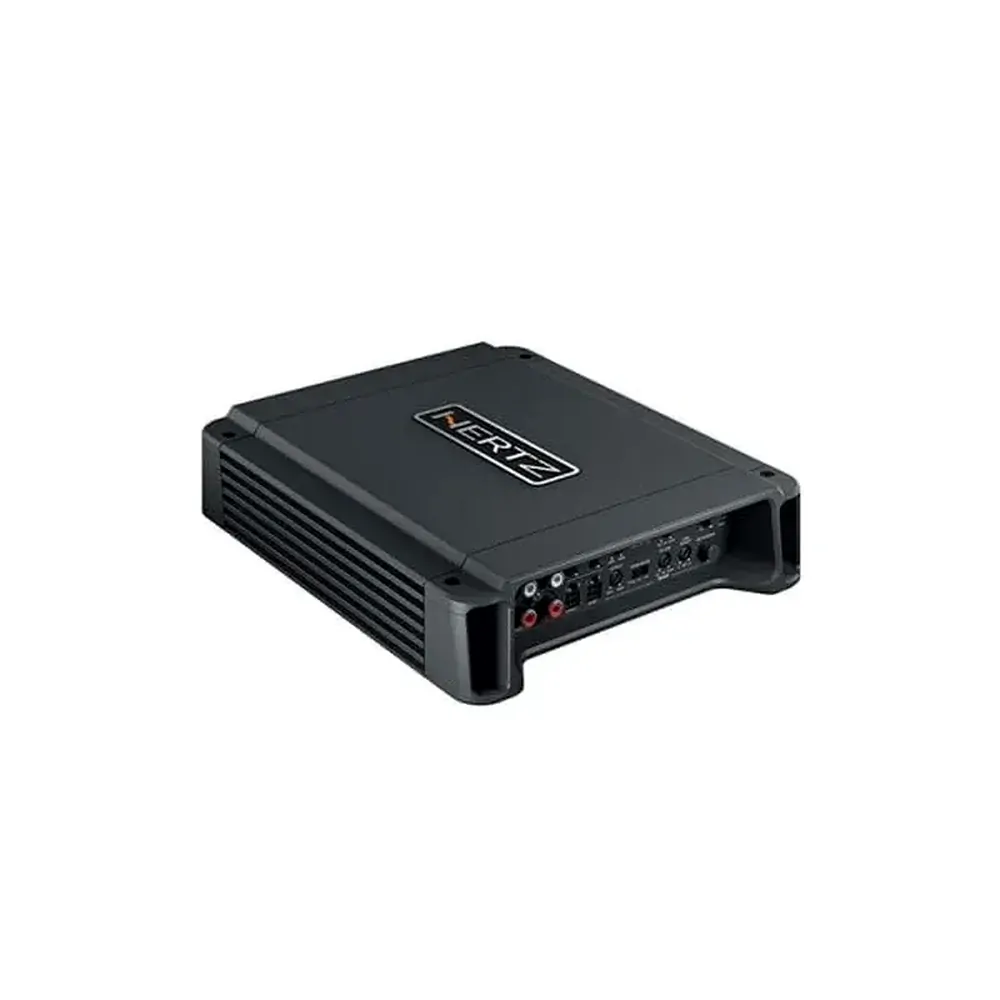

Hertz HCP4D Compact Power 1160W 4CH D-Class Four Channel Amplifier

Contact us for more information

SKU:HCP4D


"HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier."

Data table

Channel mode4 - 3 - 2
Output Power (RMS)
@ 14.4 VDC
4 Ch: 85 W x 4 (4 ?)
4 Ch: 145 W x 4 (2 ?)
3 Ch: 85 W x 2 (4 ?) + 290 W x 1 (4 ?)
3 Ch: 145 W x 2 (2 ?) + 290 W x 1 (4 ?)
2 Ch: 290 W x 2 (4 ?)
Filters
Bypass
Hi-Pass
Lo-Pass
Band-Pass


Yes
A/B: 50 / 3.2k Hz @ 12 dB/Oct.
A/B: 50 / 3.2k Hz @ 12 dB/Oct.
-

Distortion - THD
(100Hz @ 4?)
0.02%
S/N Ratio
(A weighted @ 1V)
100 dB
Damping factor
(100Hz @ 4?)
200
Size W x D x H
mm (in.)
215 x 190 x 50 (8.46 x 7.48 x 1.97)

More Information

More Information
Dimensions 215 x 190 x 50mm
SKU HCP4D
Barcode # 8018823110587
Brand HERTZ
