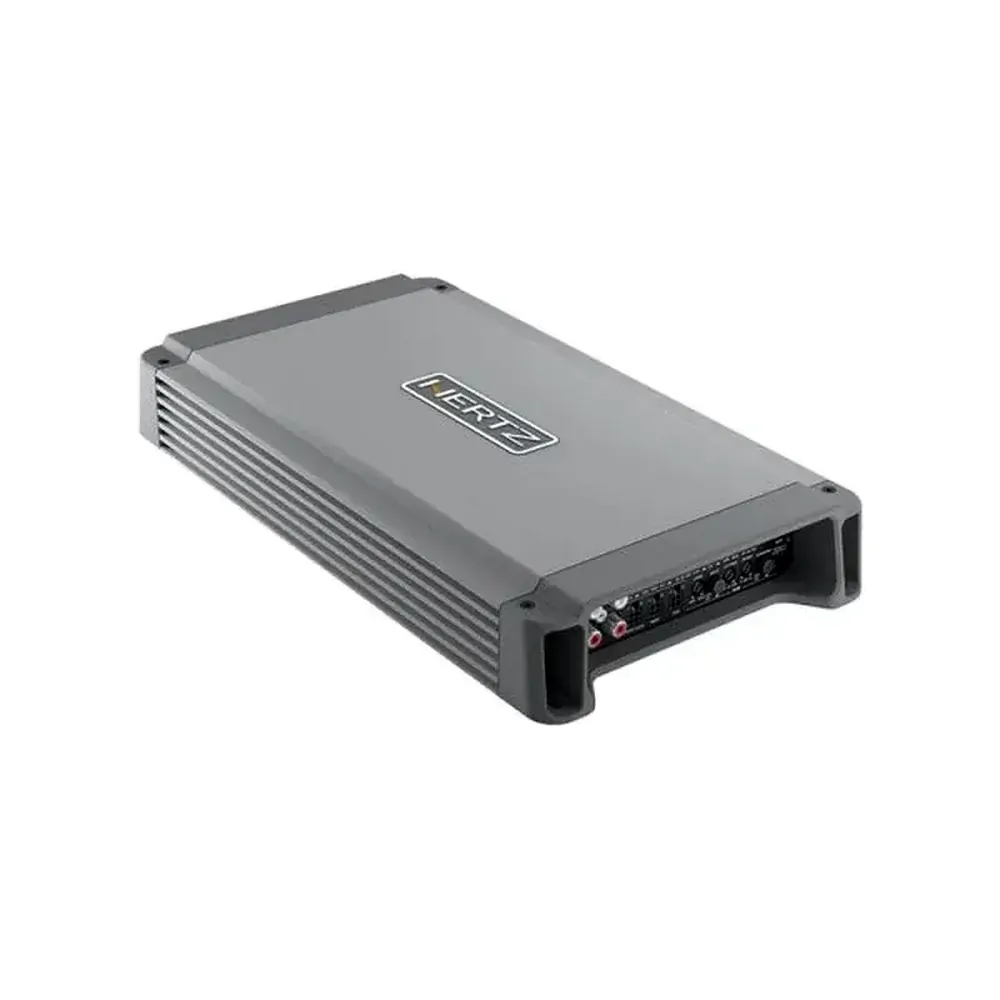

Hertz HCP5MD24V Marine 1500W 5CH Marine 24V Amplifier

Contact us for more information

SKU:HCP5MD24


HCP 5 MD 24V marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power. The HCP M heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier.

Data table

Channel mode5 - 3
Output Power (RMS)
@ 14.4 VDC
5 Ch: 65 W x 4 + 200 W x 1 (4 ?)
5 Ch: 105 W x 4 + 330 W x 1 (2 ?)
3 Ch: 210 W x 2 (4 ?) + 200 W x 1 (4 ?)
3 Ch: 210 W x 2 (4 ?) + 330 W x 1 (2 ?)
Filters
Bypass
Hi-Pass
Lo-Pass
Band-Pass
Subsonic

Front CH; Rear CH
FRONT/REAR Ch: 50 / 5k Hz @ 12 dB/Oct.
SUB Ch: 50 / 500 Hz @ 24 dB/Oct.
REAR Ch: 50 / 500 Hz (Hi) @ 12 dB/Oct. - 50 / 5 kHz (Lo) @ 12 dB/Oct.
on/off: 25 Hz @ 24 dB/Oct.
Distortion - THD
(100Hz @ 4?)
0.02 %
S/N Ratio
(A weighted @ 1V)
100 dB
Damping factor
(100Hz @ 4?)
100
Size W x D x H
mm (in.)
345 x 190 x 50 / 13.58 x 7.48 x 1.97

More Information

More Information
Dimensions 355 x 190 x 50mm
SKU HCP5MD24
Barcode # 8018823129565
Brand HERTZ
