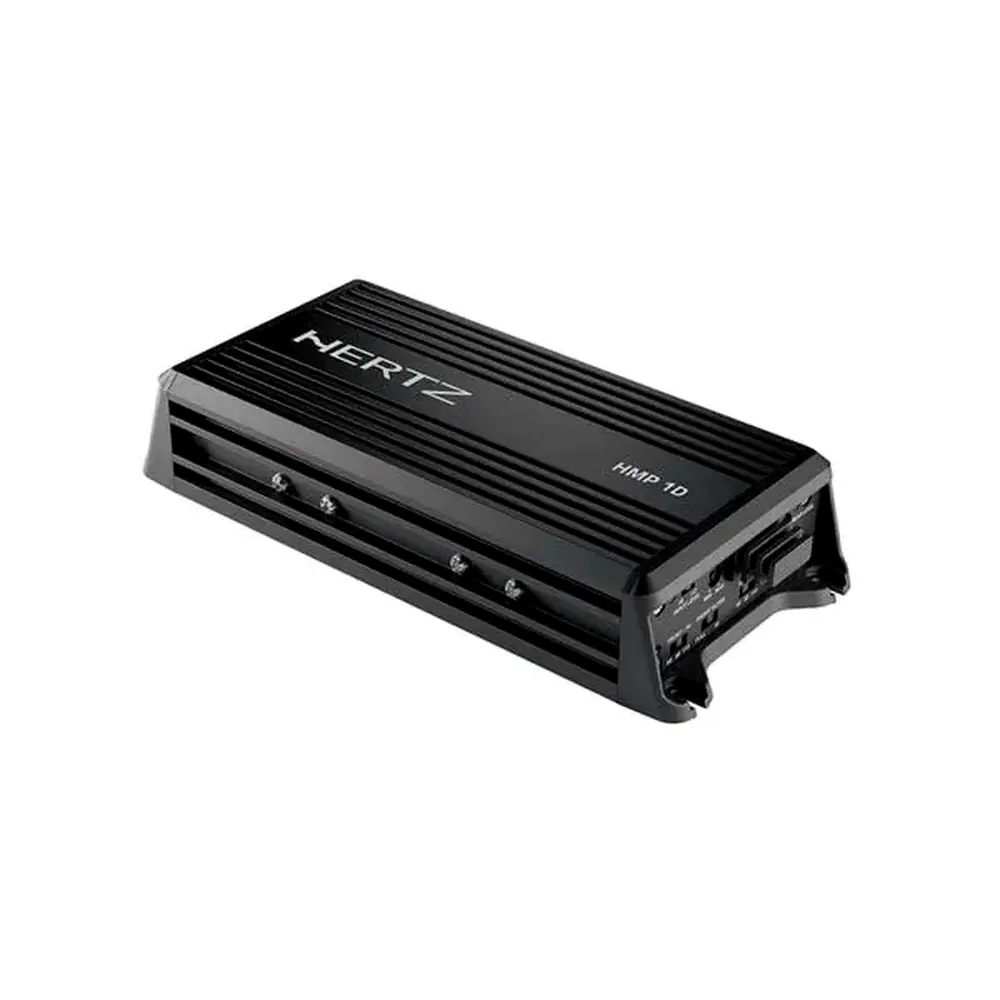

Hertz HMP1D Power Sports 600W Mono Marine / Powersports Amplifier

Contact us for more information

SKU:HMP1D


Thanks to the ultra-compact cast-aluminium chassis (IP64 rated), the HMP 1D amplifiers is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results. The level of HMP 1 D amplifiers can be remote controlled with the included HRC BM (Hertz Remote Control Bass Management). Connected to the Remote Control plug, this provides extremely precise volume level from the comfort of your seat.

Data table

Channel mode1
Output Power (RMS)
@ 14.4 VDC
180 W x 1 (4 ?)
300 W x 1 (2 ?)
Filters
Bypass
Hi-Pass
Lo-Pass
Band-Pass
Subsonic

Yes
-
65-85-115 Hz @ 12 dB/Oct.
-
Off-22-32 Hz @ 12 dB/Oct.
Distortion - THD
(100Hz @ 4?)
0.1 %
S/N Ratio
(A weighted @ 1V)
105 dB
Damping factor
(100Hz @ 4?)
300
Size W x D x H
mm (in.)
223 x 100,5 x 43,6 / 8.77 x 3.95 x 1.71

More Information

More Information
Channels 1/MONO
RMS Power @ 4 Ohm 150W x 1
RMS Power @ 2 Ohm 250W x 1
RMS Power @ 1 Ohm N/A
Crossover Channel 1/2 LP 65/85/115Hz @ 12dB/oct
Subsonic Filter 22/32Hz @12dB/oct.
Bass Boost 0/6/9dB @ 50Hz
Speaker Level Input Yes (via RCA)
Auto Turn-On Yes
Remote Sub Controller Optional (HRC BM)
Dimensions 223 x 100 x 44mm
SKU HMP1D
Barcode # 8018823122139
Brand HERTZ
