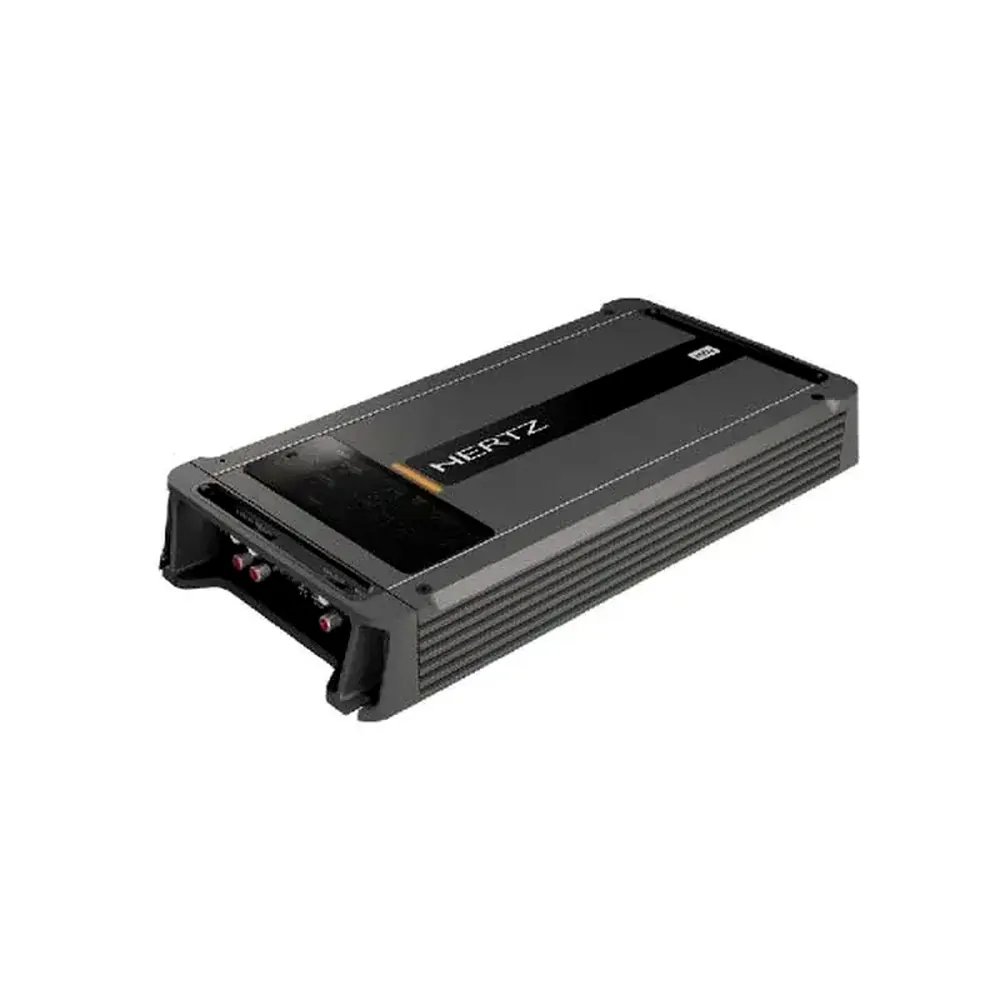

Hertz MLPower5 Mille Power 950W 5CH D-Class Amplifier

Contact us for more information

SKU:MLPOWER5


The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.

Data table

Channel mode5 - 3
Output Power (RMS)
@ 14.4 VDC
5 Ch 70 W x 4 + 380 W x 1 (4?)
5 Ch 100 W x 4 + 550 W x 1 (2?)
3 Ch 200 W x 2 (4?) + 380 W x 1 (4?)
3 Ch 200 W x 2 (4?) + 550 W x 1 (2?)

Filters

Hi-Pass
Lo-Pass
Band-Pass



A Ch: 40 / 150 Hz @ 12 dB/Oct. - B Ch: 80 / 3.3k Hz @ 12 dB/Oct.
C Ch: 40 / 500 Hz @ 24 dB/Oct.
A Ch: 40 / 150 Hz @ 12 dB/Oct. - 80 / 3.3k Hz (LO) @ 12 dB/Oct.

Distortion - THD
(100Hz @ 4?)
0.08 %
S/N Ratio
(A weighted @ 1V)
100 dB A & B Ch - 106 dB C Ch
Damping factor
(100Hz @ 4?)
50 A & B Ch - 90 C Ch
Size W x D x H
mm (in.)
170 x 349 x 46.70 - (6.69' x 13.74' x 1.84')

More Information

More Information
Dimensions 349 x 170 x 47mm
SKU MLPOWER5
Barcode # 8018823122085
Brand HERTZ
