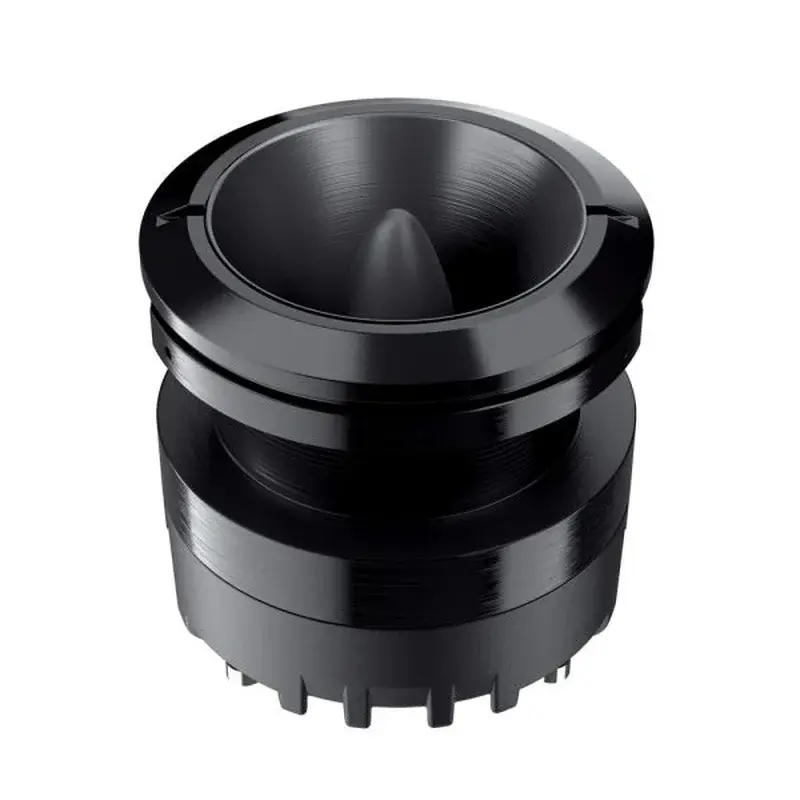

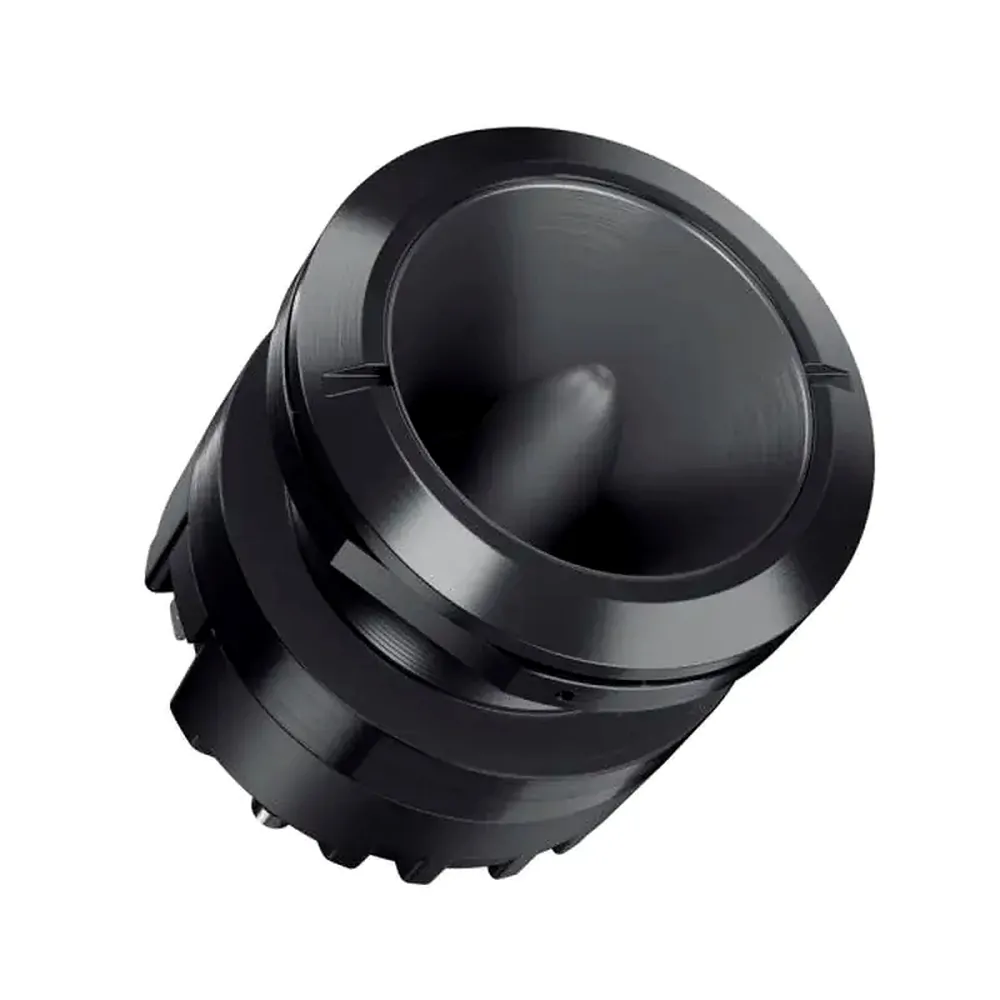

Hertz ST35ANEO Bullet Tweeters

Contact us for more information

SKU:ST35ANEO


NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. The “Active” version, ST 35A Neo provides tweeter only.

  1. Powerful Neodymium magnet providing high performance with compact size.
  2. FEM (Finite Element Method) optimized phase-plug and loading horn.
  3. CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.
  4. Extra-light aluminium membrane to maximize SPL with high current, screw terminals.
  5. Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time.
  6. Aluminium back cover for superior heat dissipation.
  7. Impressive low frequency extension and efficiency.
Size mm (in.)46 (1.8)
Power Handling - Peak W120 Hi-pass filtered @ 5 kHz - 12 dB Oct.
Impedance Ω4
Frequency response Hz2k ÷ 20k
Sensitivity dB SPL109
Voice coil Ø mm (in.)35 (1.4)
MagnetNeodymium
Cone/DomeAluminium

More Information

More Information
Pair or Single Pair
Speaker Type Raw driver (pair)
Speaker Setup Tweeter
Woofer Diameter (mm) 46mm
Woofer Diameter (Inch) 1.8 Inch
Mounting Diameter 69mm
Woofer Mounting Depth 33.3mm
Tweeter Diameter (mm) 46mm
Tweeter Diameter (Inch) 1.8 Inch
RMS Power 60W
Impedance 4 Ohm
Grilles Included Not included
Sensitivity (dB) 109dB
Frequency Response 2kHz - 20kHz
SKU ST35ANEO
Barcode # 8018823135450
Brand HERTZ
