JL Audio C1 Series Silk Edition 6.5" 2-Way Component Speakers C1-650se

SKU:C1-650SE

$349.00


Calculate Shipping

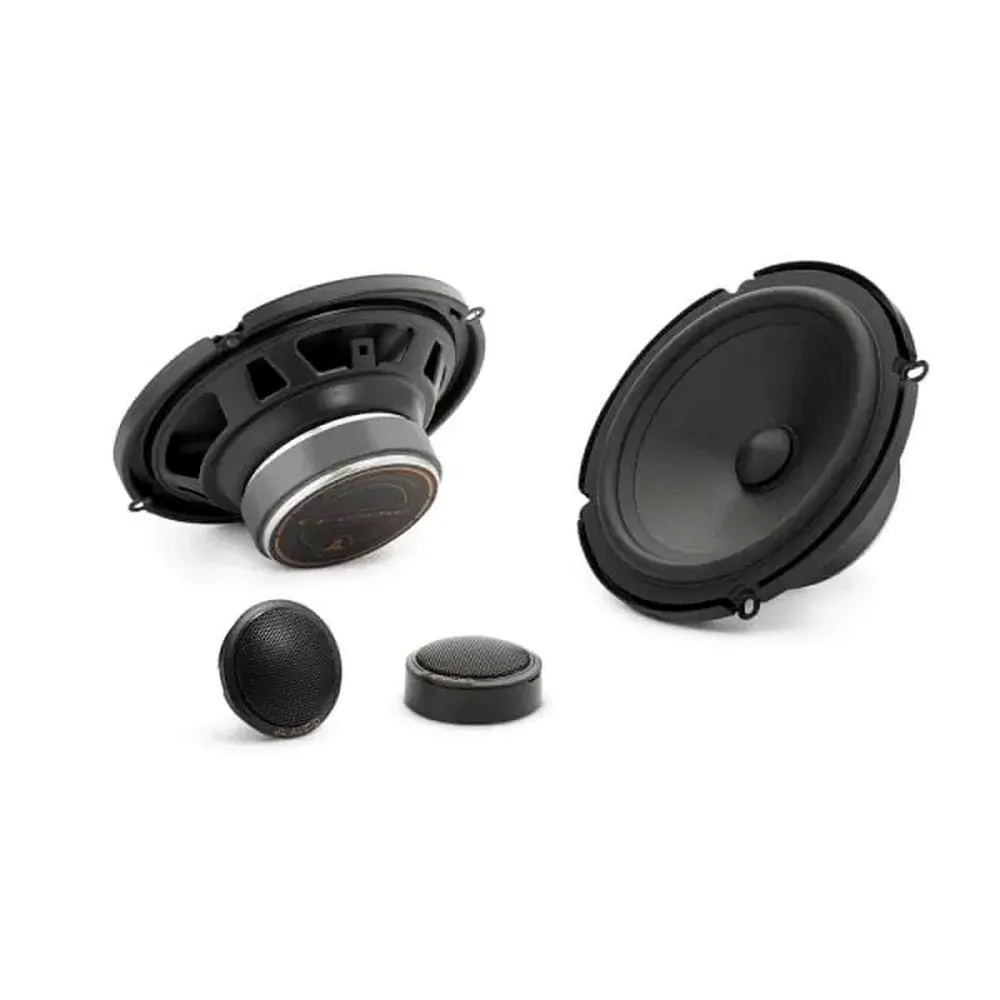

2-Way Component System: 6.5-inch (165 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter

The C1-650se component system is engineered to deliver remarkable fidelity and outstanding value in a format that easily fits in factory locations.

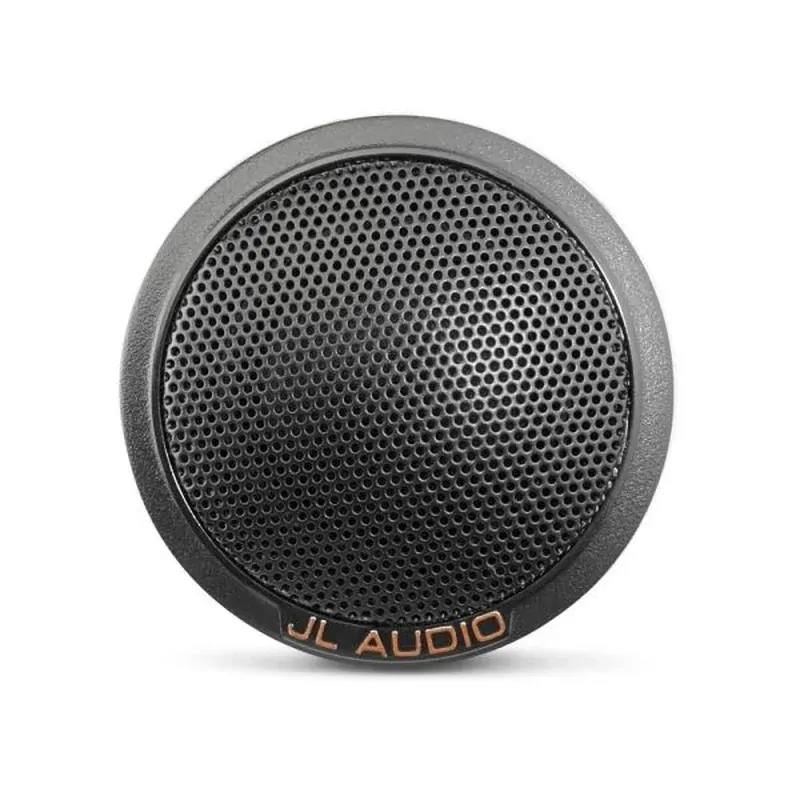

Outfitted with pure, silk dome tweeters, the C1-650se component system stands above others in its category with silky smooth, high-frequency clarity and definition. The 1-inch tweeter’sedge-driven design delivers excellent off-axis response and treble extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. Outboard, 3rd order, high-passin-line filters, with Advanced Tweeter Protection Circuitry, are also included to guard against high-distortion damage and improve power handling. For maximum installation versatility, surface and flush tweeter mounts are also included.

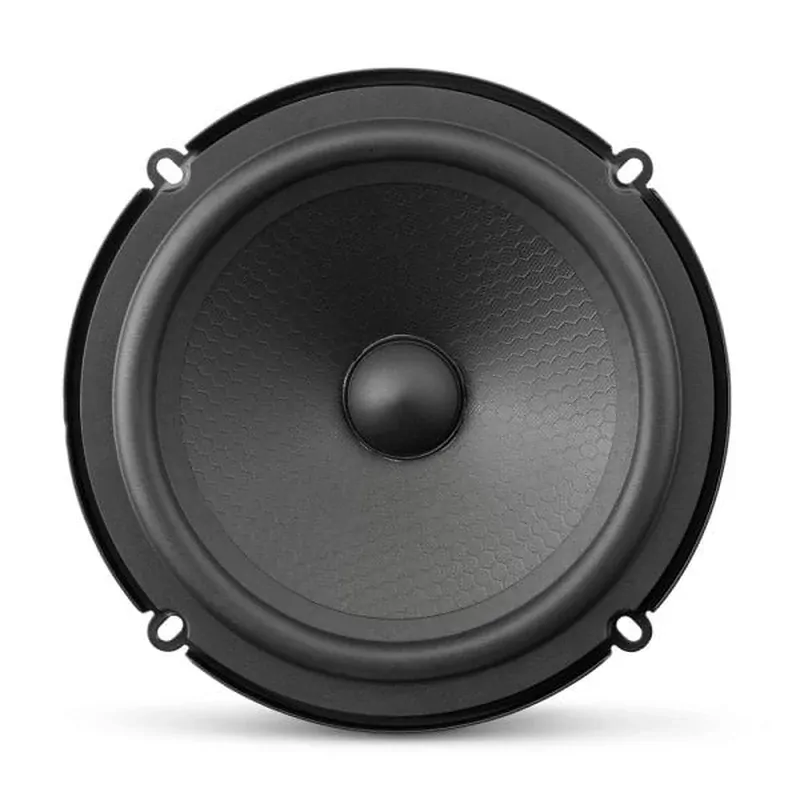

C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly while maintaining a smooth, dynamic, low-distortion sound. At the core of the C1-650 woofer is a proprietary, stamped, steel 6.5-inch (165 mm) frame and DMA-optimized motor system. A mineral-filled, injection-molded, polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to each spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.

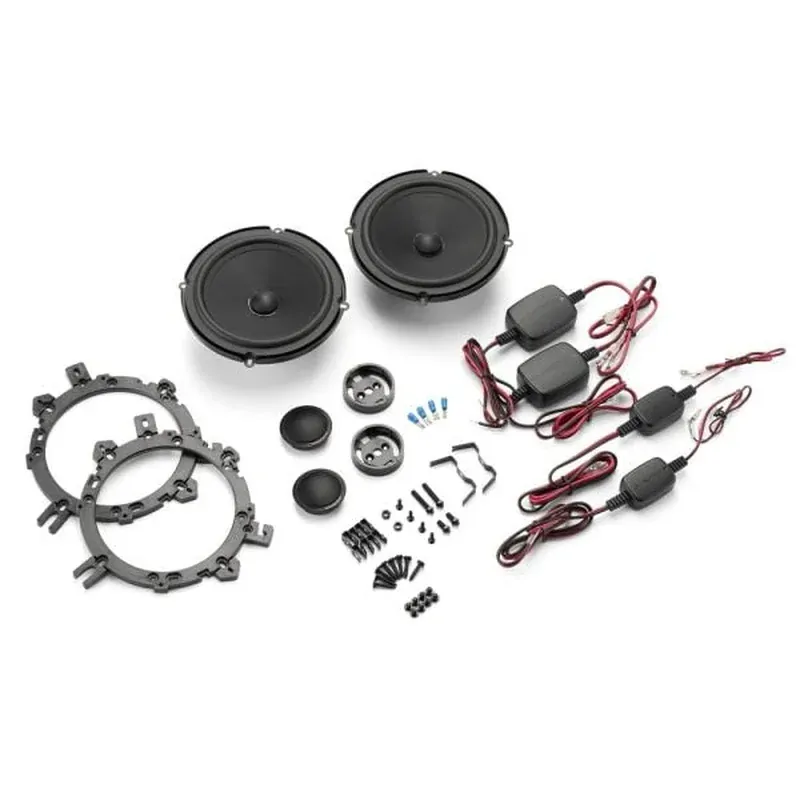

To maximize fit, multi-application adaptor rings are included for the woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well.

When it comes to value, C1-650se is a real deal!

Sold as a pair. Grilles not available.

Features

  • Continuous Power Handling (RMS): 50 W
  • Recommended Amplifier Power (RMS): 10 - 75 W / Ch.
  • System Efficiency: 91.0 dB @ 1 W / 1 m
  • System Nominal Impedance: 4 Ω
  • System Frequency Response: 48 Hz - 21 KHz ± 3 dB
  • Frame Outer Diameter* (A): 6.25 in / 159 mm
  • Grille Tray Outer Diameter (B): 6.84 in / 174 mm
  • Motor Outer Diameter (C): 3.15 in / 80 mm
  • Frontal Coaxial Tweeter Protrusion (D): N/A
  • Frontal Grille Protrusion** (E): N/A
  • Mounting Hole Diameter (F): 5.02 in / 128 mm
  • Mounting Depth (G): 2.07 in / 53 mm
  • Flush Mount Fixture Diameter (A1): 1.97 in / 50 mm
  • Surface Mount Fixture Diameter (A2): 2.01 in / 51 mm
  • Flush Mount Mounting Hole Diameter (B): 1.75 in / 45 mm
  • Flush Mount Mounting Depth (C): 0.40 in / 10 mm
  • Flush Mount Tweeter Frontal Protrusion (D1): 0.32 in / 8 mm
  • Surface Mount Tweeter Frontal Protrusion (D2): 0.87 in / 22 mm
More Information
Pair or Single Pair
Speaker Type Split Component
Speaker Setup 2-Way
Woofer Diameter (mm) 165mm
Woofer Diameter (Inch) 6.5 Inch
Mounting Diameter 128mm
Woofer Mounting Depth 53mm
Tweeter Diameter (mm) 25mm
Tweeter Diameter (Inch) 1 Inch
RMS Power 50W
Impedance 4 Ohm
Grilles Included Not included
Sensitivity (dB) 91dB
Frequency Response 48Hz - 21kHz
SKU C1-650SE
Brand JL AUDIO
