JL Audio C2 Series 4" Coaxial Speakers C2-400x

SKU:C2-400X

$279.00


Calculate Shipping

Coaxial Speaker System: 4-inch (100 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.

The C2-400x system features 4-inch (100 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

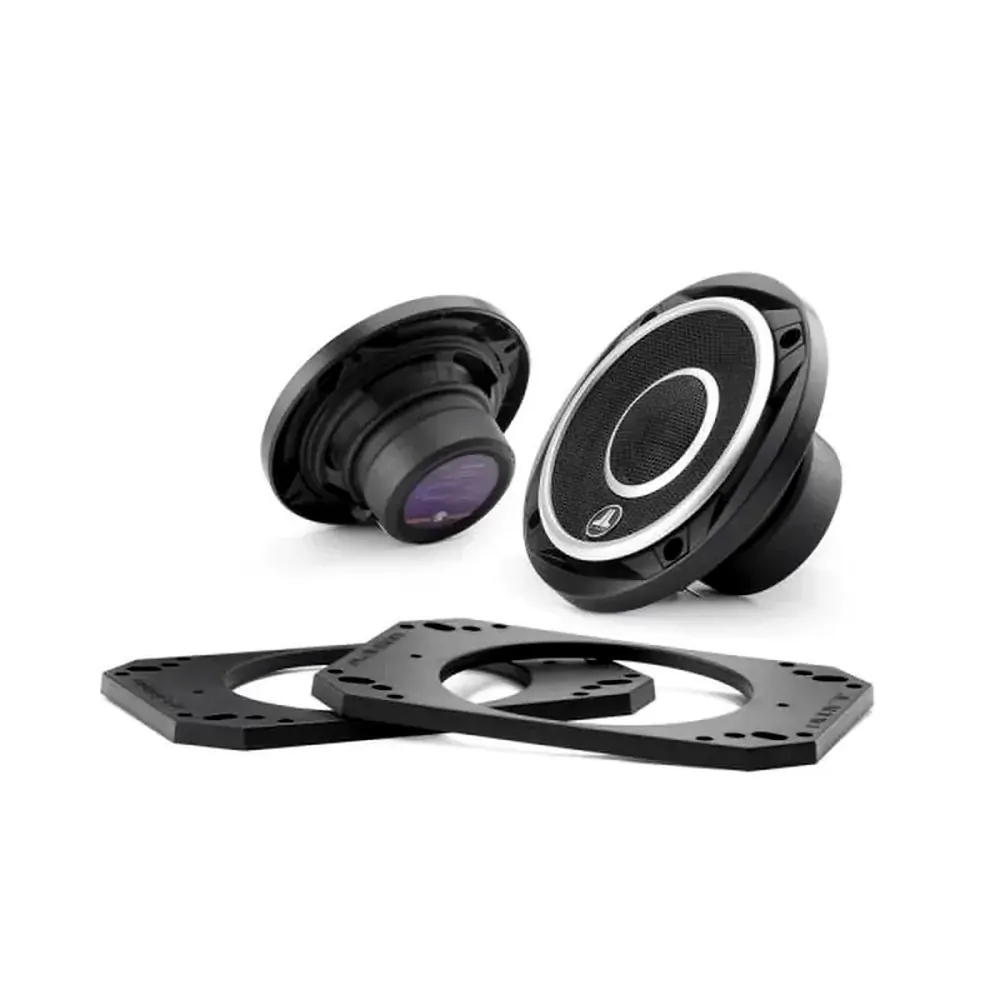

Breakaway mounting tabs on the woofer frame allow the C2-400x to be installed in four-hole or two-hole configurations. Injection-Molded adaptor plates are also included to allow mounting of the C2-400x speakers into a 4 x 6 (100 x 150 mm) speaker location.

Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

Speaker grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Dynamic

Sold as a pair.

Features

  • Continuous Power Handling (RMS): 35 W
  • Recommended Amplifier Power (RMS): 10 - 50 W / Ch.
  • System Efficiency: 84.5 dB @ 1 W / 1 m
  • System Nominal Impedance: 4 Ω
  • System Frequency Response: 71 Hz - 22 KHz ± 3 dB
  • Frame Outer Diameter* (A): 4.02 in / 102 mm
  • Grille Tray Outer Diameter (B): 5.20 in / 132 mm
  • Motor Outer Diameter (C): 2.36 in / 60 mm
  • Frontal Coaxial Tweeter Protrusion** (D): 0.56 in / 14 mm
  • Frontal Grille Protrusion*** (E): 0.66 in / 17 mm
  • Mounting Hole Diameter (F): 3.81 in / 97 mm
  • Mounting Depth (G): 1.81 in / 46 mm
More Information
Pair or Single Pair
Speaker Type Co-axial
Speaker Setup 2-Way
Woofer Diameter (mm) 102mm
Woofer Diameter (Inch) 4 Inch
Mounting Diameter 96.8mm
Woofer Mounting Depth 46mm
Tweeter Diameter (mm) 19mm
Tweeter Diameter (Inch) 0.75 Inch
RMS Power 35W
Impedance 4 Ohm
Grilles Included Included
Sensitivity (dB) 84.5dB
Frequency Response 71Hz - 22kHz
SKU C2-400X
Brand JL AUDIO
