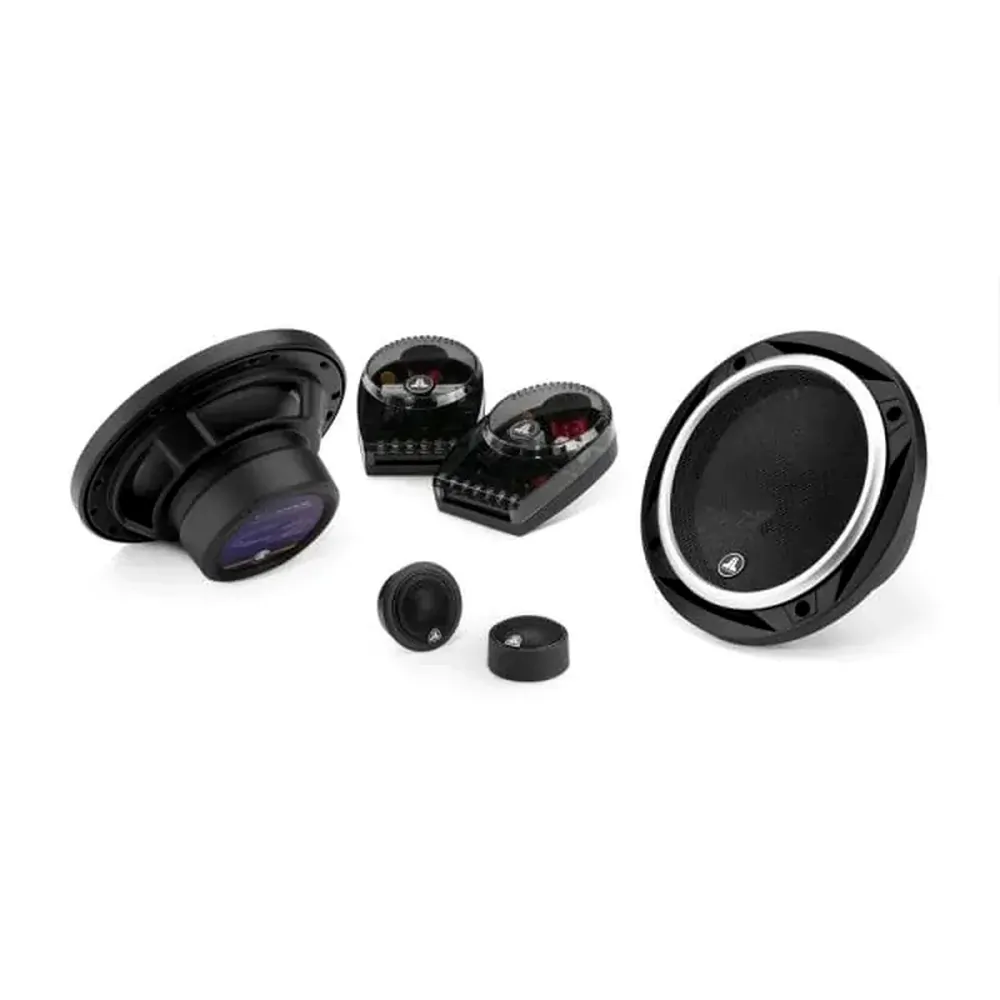

2-Way Component System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.
The C2-650 system features 6.5-inch (165 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.

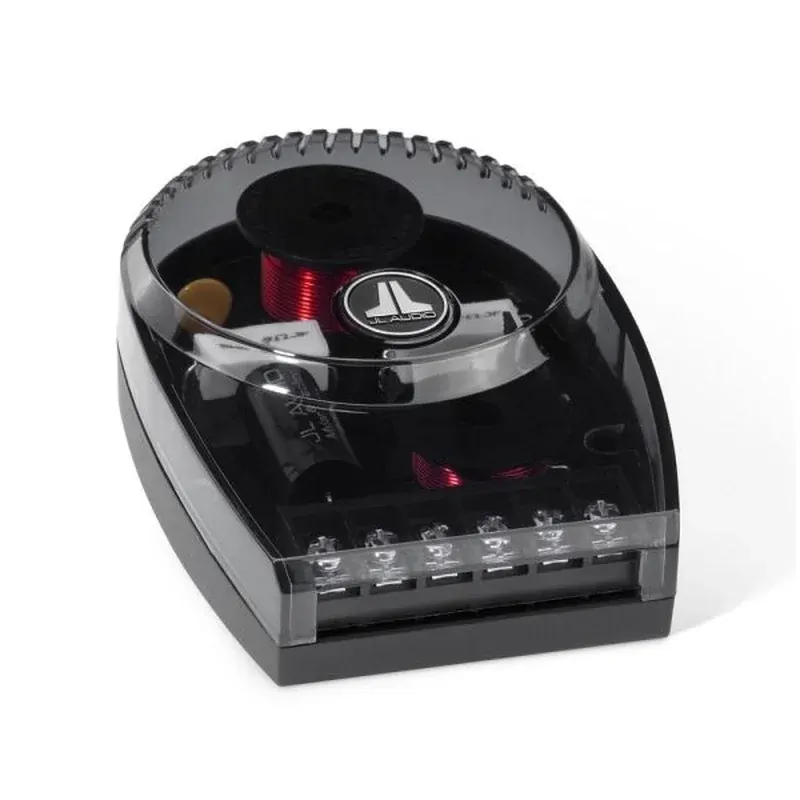

C2 crossover networks are compact and built with premium component parts, including Mylar capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.

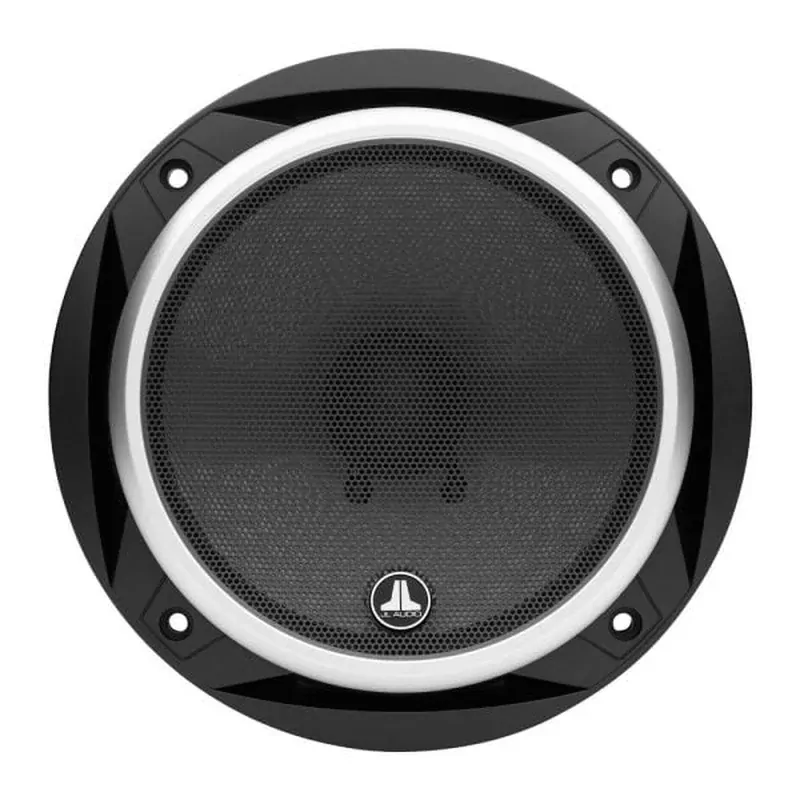

Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
Features
- Continuous Power Handling (RMS): 60 W
- Recommended Amplifier Power (RMS): 15 - 100 W / Ch.
- System Efficiency: 91.0 dB @ 1 W / 1 m
- System Nominal Impedance: 4 Ω
- System Frequency Response: 59 Hz - 22 KHz ± 3 dB
- Frame Outer Diameter* (A): 6.5 in / 165 mm
- Grille Tray Outer Diameter (B): 6.84 in / 174 mm
- Motor Outer Diameter (C): 3.15 in / 80 mm
- Frontal Coaxial Tweeter Protrusion (D): N/A
- Frontal Grille Protrusion** (E): 0.85 in / 22 mm
- Mounting Hole Diameter (F): 5.56 in / 141 mm
- Mounting Depth (G): 2.44 in / 62 mm
- Flush Mount Fixture Diameter (A1): 1.87 in / 48 mm
- Surface Mount Fixture Diameter (A2): 1.69 in / 43 mm
- Flush Mount Mounting Hole Diameter (B): 1.625 in / 41 mm
- Flush Mount Mounting Depth (C): 0.76 in / 19 mm
- Flush Mount Tweeter Frontal Protrusion (D1): 0.29 in / 7 mm
- Surface Mount Tweeter Frontal Protrusion (D2): 0.92 in / 23 mm
- Width (W): 3.36 in / 85 mm
- Height (H): 1.44 in / 37 mm
- Depth (D): 4.72 in / 120 mm
Pair or Single | Pair |
---|---|
Speaker Type | Split Component |
Speaker Setup | 2-Way |
Woofer Diameter (mm) | 165mm |
Woofer Diameter (Inch) | 6.5 Inch |
Mounting Diameter | 141mm |
Woofer Mounting Depth | 62mm |
Tweeter Diameter (mm) | 19mm |
Tweeter Diameter (Inch) | 0.75 Inch |
RMS Power | 60W |
Impedance | 4 Ohm |
Grilles Included | Included |
Sensitivity (dB) | 91dB |
Frequency Response | 59Hz - 22kHz |
SKU | C2-650 |
Brand | JL AUDIO |
