JL Audio C3 Series 6.5" Component/Coaxial Speakers C3-650

SKU:C3-650

$799.00


Calculate Shipping

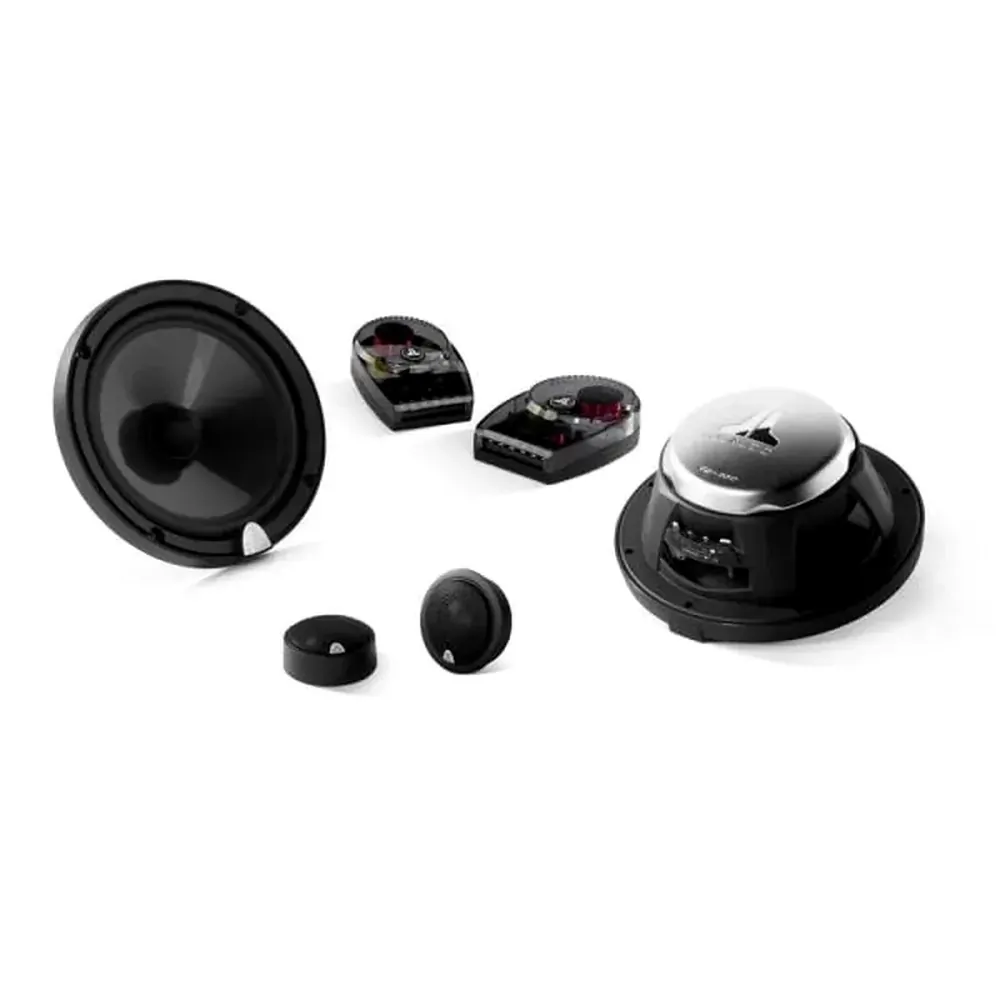

2-Way Convertible Component / Coaxial System: 6.5-inch (165 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

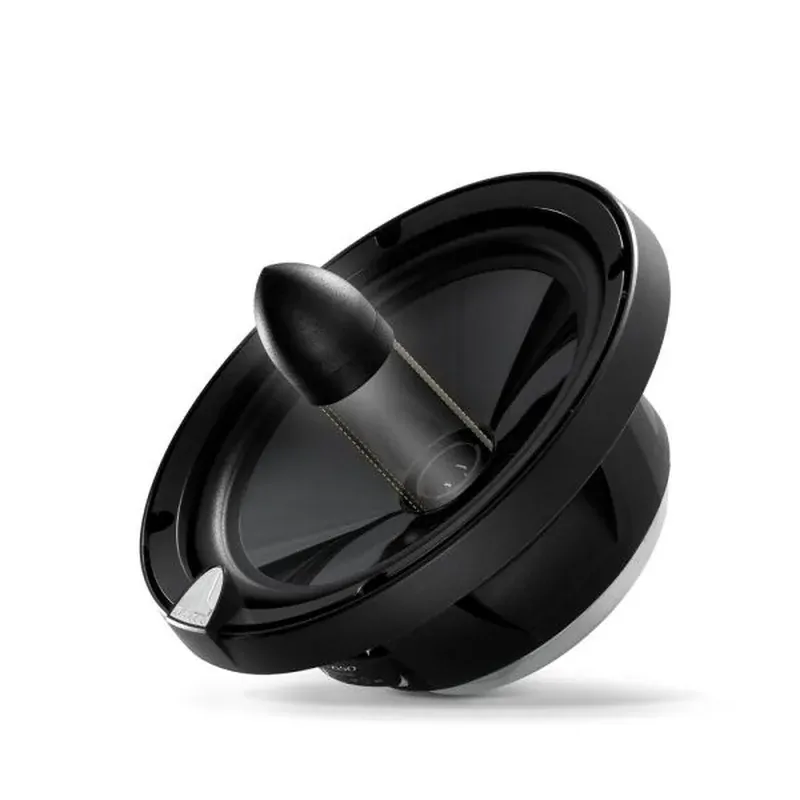

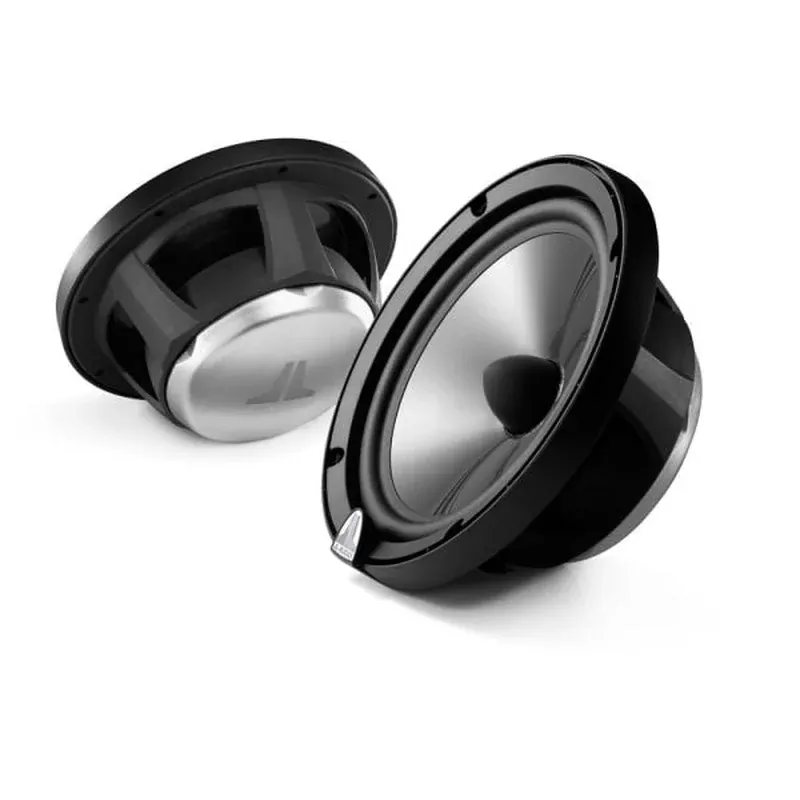

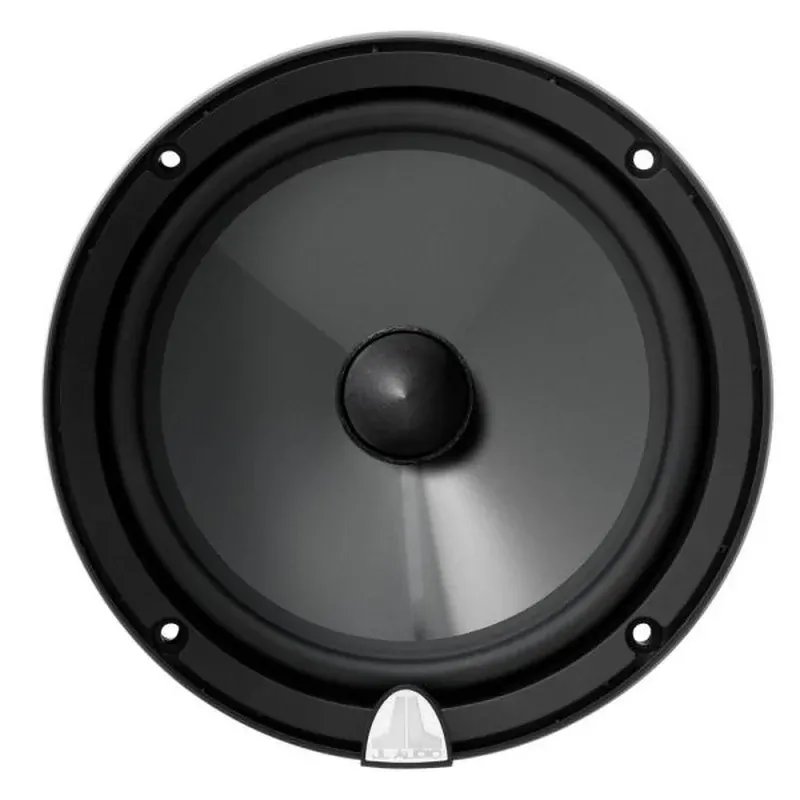

The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

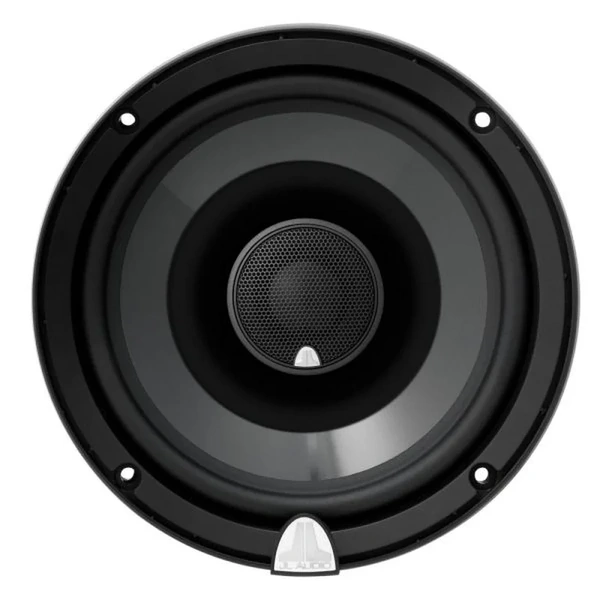

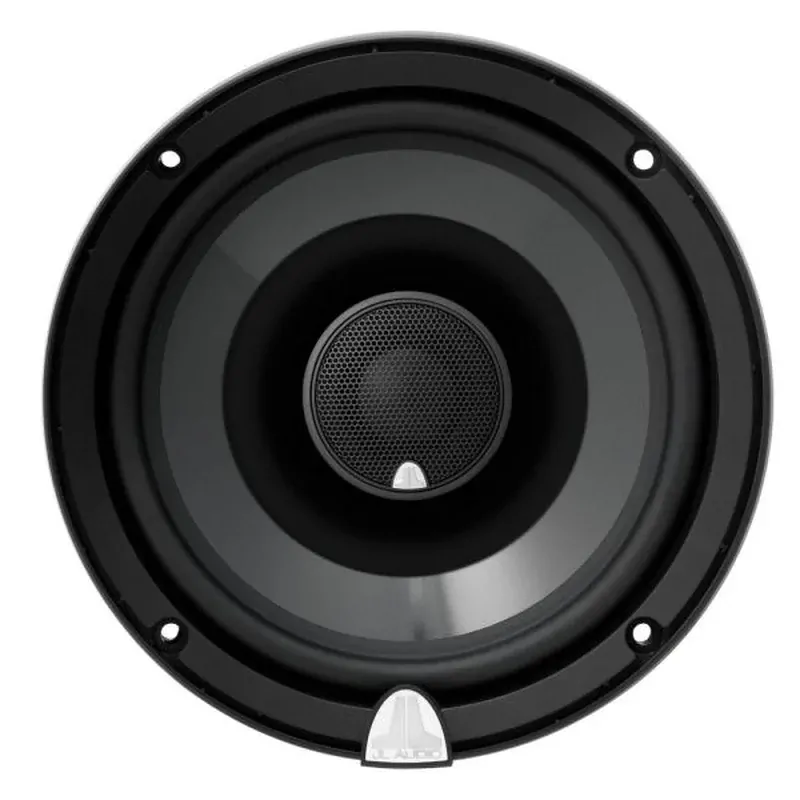

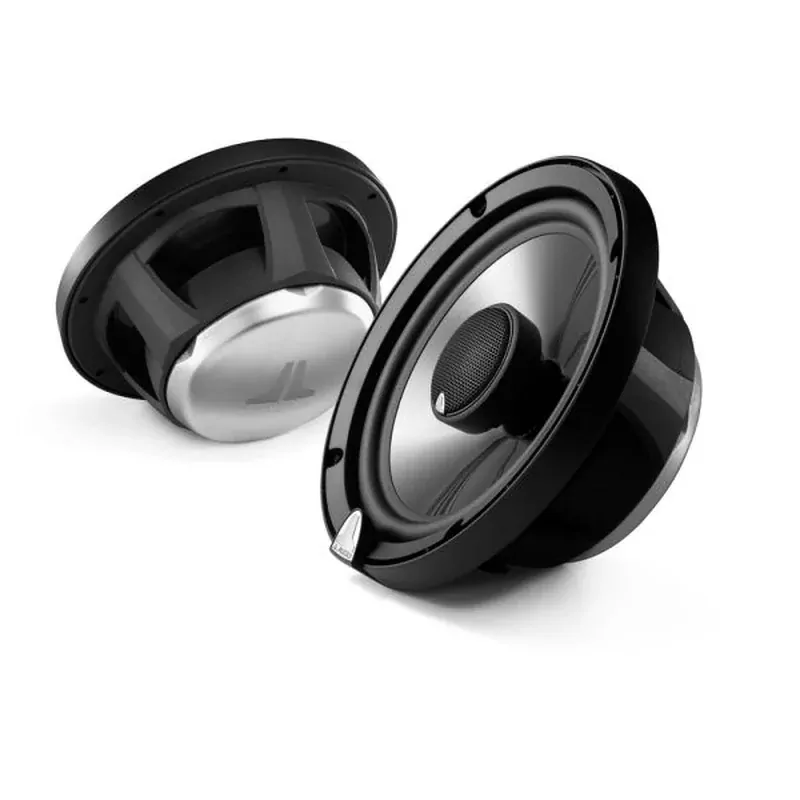

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

C3 crossover networks are compact and built with premium component parts, including Mylar capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Powerful

Sold as a pair.

Features

  • Continuous Power Handling (RMS): 75 W
  • Recommended Amplifier Power (RMS): 25 - 150 W / Ch.
  • System Efficiency: 90.0 dB @ 1 W / 1 m
  • System Nominal Impedance: 4 Ω
  • System Frequency Response: 48 Hz - 25 KHz ± 3 dB
  • Frame Outer Diameter (A): 6.50 in / 165 mm
  • Grille Tray Outer Diameter (B): 6.74 in / 171 mm
  • Motor Outer Diameter (C): 4.08 in / 104 mm
  • Frontal Coaxial Tweeter Protrusion* (D): 0.75 in / 19 mm
  • Frontal Grille Protrusion** (E): 1.03 in / 26 mm
  • Mounting Hole Diameter (F): 5.56 in / 141 mm
  • Mounting Depth (G): 2.55 in / 65 mm
  • Flush Mount Fixture Diameter (A1): 2.12 in / 54 mm
  • Surface Mount Fixture Diameter (A2): 1.93 in / 49 mm
  • Flush Mount Mounting Hole Diameter (B): 1.875 in / 48 mm
  • Flush Mount Fixture Mounting Depth (C): 0.71 in / 18 mm
  • Flush Mount Tweeter Frontal Protrusion (D1): 0.32 in / 8 mm
  • Surface Mount Tweeter Frontal Protrusion (D2): 0.95 in / 24 mm
  • Width (W): 3.36 in / 85 mm
  • Height (H): 1.44 in / 37 mm
  • Depth (D): 4.72 in / 120 mm
More Information
Pair or Single Pair
Speaker Type Split Component
Speaker Setup 2-Way
Woofer Diameter (mm) 165mm
Woofer Diameter (Inch) 6.5 Inch
Mounting Diameter 141mm
Woofer Mounting Depth 65mm
Tweeter Diameter (mm) 25mm
Tweeter Diameter (Inch) 1 Inch
RMS Power 75W
Impedance 4 Ohm
Grilles Included Included
Sensitivity (dB) 90dB
Frequency Response 48Hz - 25kHz
SKU C3-650
Brand JL AUDIO
