JL Audio C6 Series 1" Tweeters C6-100ct

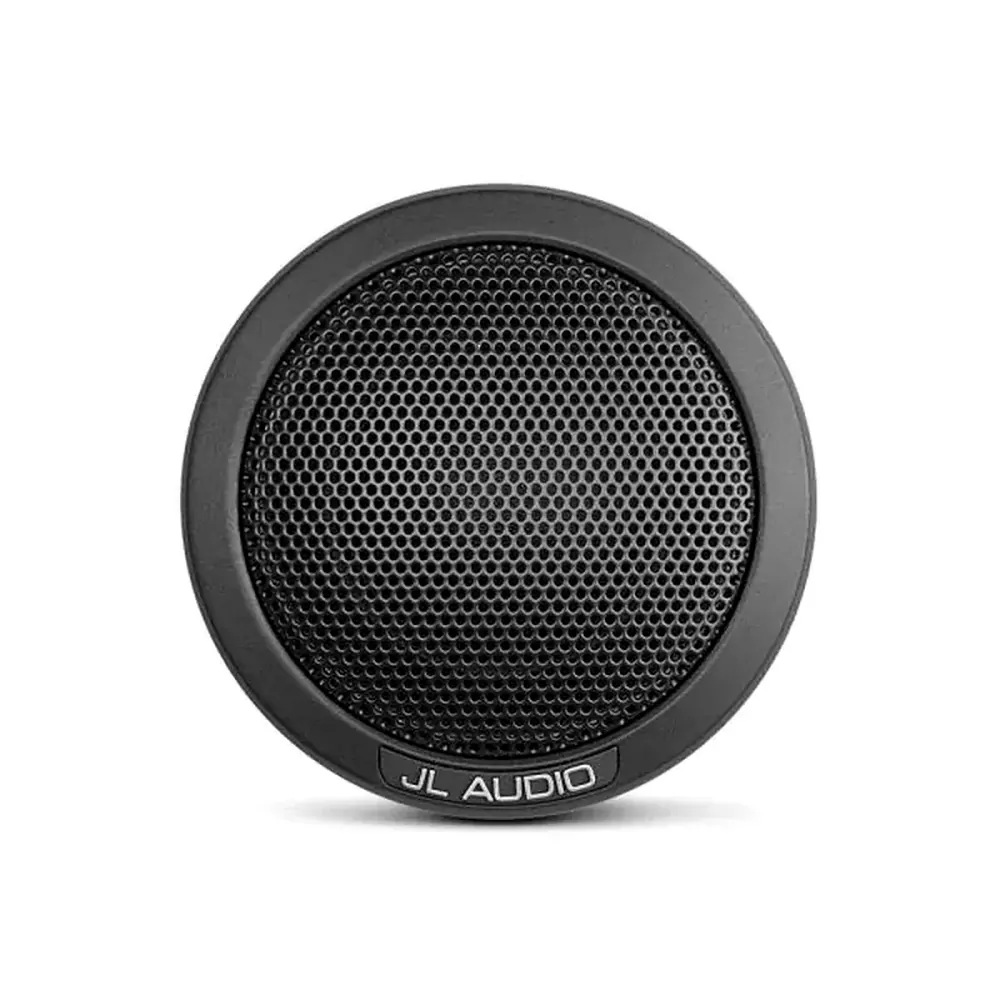

1" (25 mm) Silk Dome Component Tweeter

Born from shared technologies used in our flagship C7 speakers, the C6-100ct component tweeter benefits from vast speaker design experience and advanced modeling systems of JL Audio.

Ideal for active systems, the C6-100ct component tweeter features an edge-driven, pure silk dome diaphragm for smooth, high-frequency performance with remarkable off-axis response and damping. A neodymium motor and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications.

Passive crossover networks are not included with C6 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning digital signal processor (DSP), such as the JL Audio TwK DSP or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C6 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.

C6-100ct Component Tweeter Features:

• Edge-driven pure-silk dome design delivers smooth high-frequency performance, with excellent off-axis response and damping
• Neodymium motor delivers high magnetic flux from a compact motor design
• Ferrofluid cooling and damping improves reliability and response smoothness

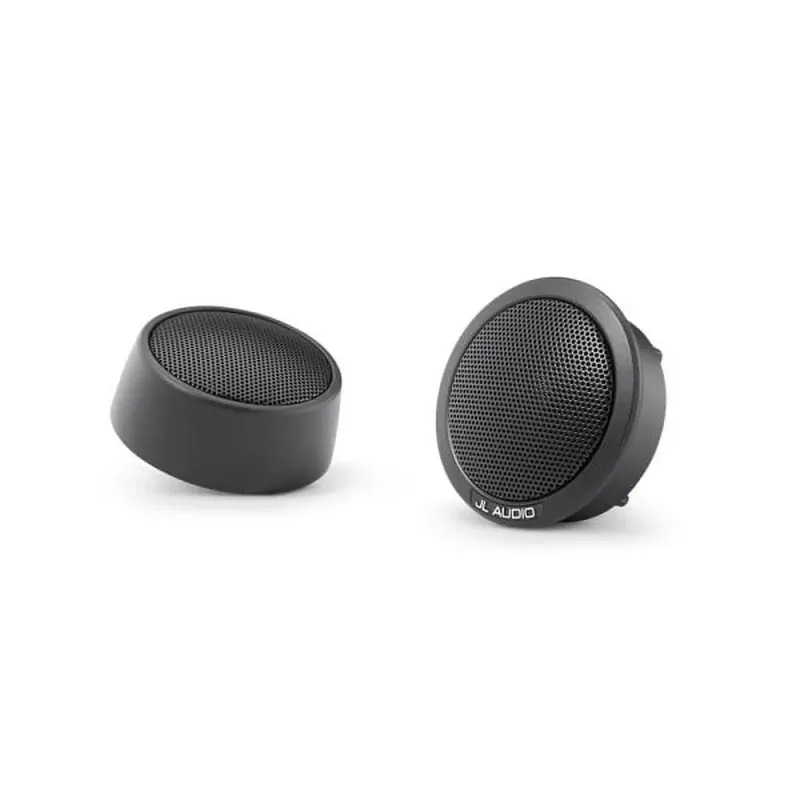

• Includes surface- and flush-mount fixtures

Design Bandwidth:

• With 48 dB/octave filters: 3-21 kHz
• With 24 dB/octave filters: 4-21 kHz
• With 12 dB/octave filters: 5-21 kHz

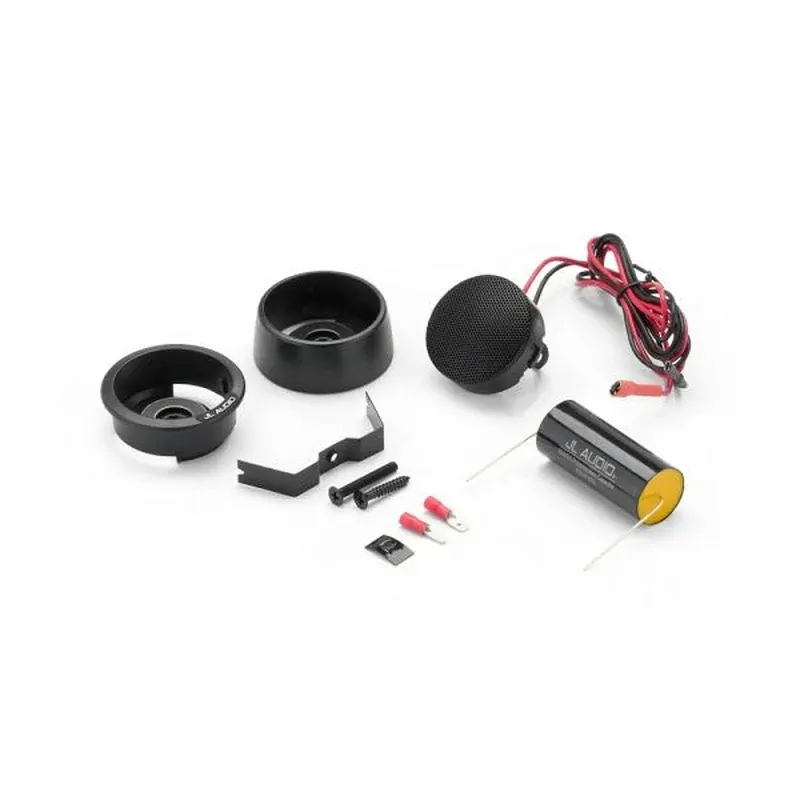

Component tweeters are sold individually and include surface- and flush-mount fixtures and hardware. One 15 μF tweeter protection capacitor is also included.
