JL Audio HD Series 5-Channel Class-D Amplifier 900W HD900/5

SKU:HD9005

$2,299.00

Calculate Shipping

5-Channel Class D System Amplifier, 100 W x 4 + 500 W x 1

Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal.

While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power!

Using our Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500 W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

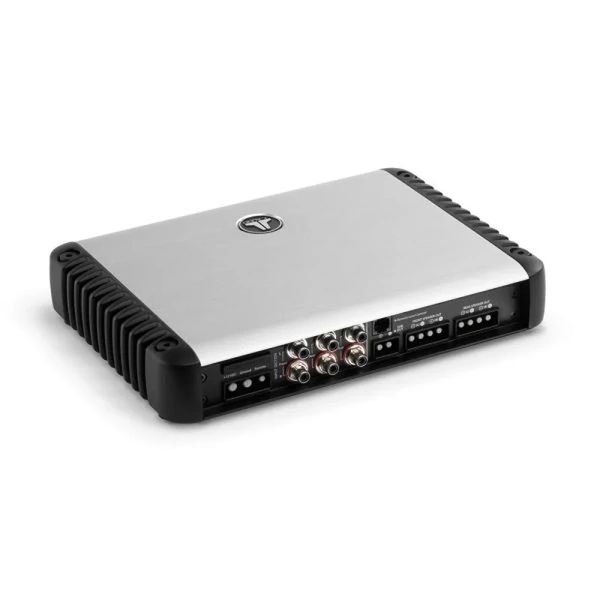

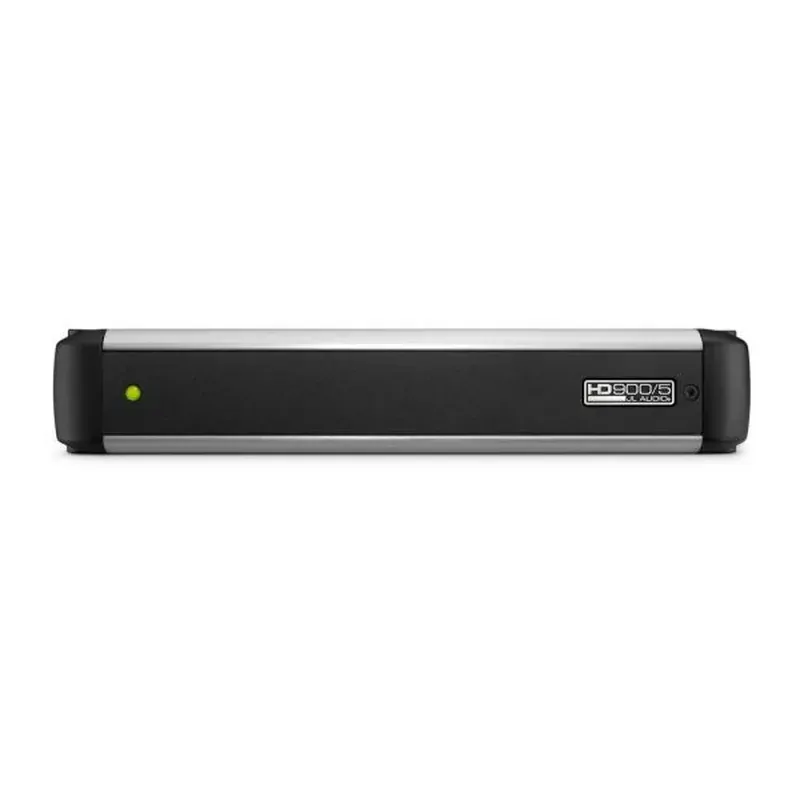

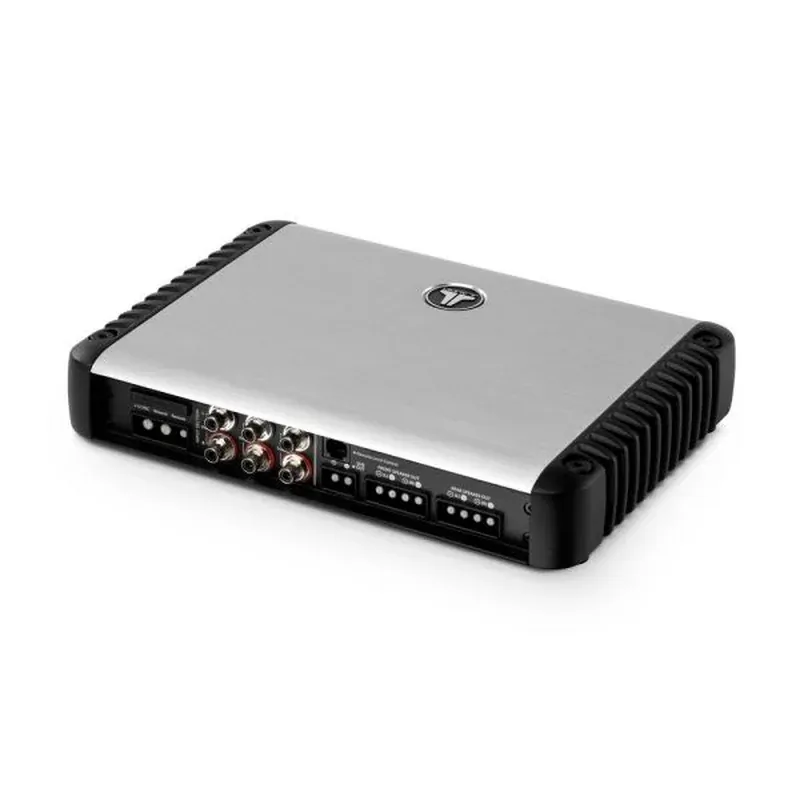

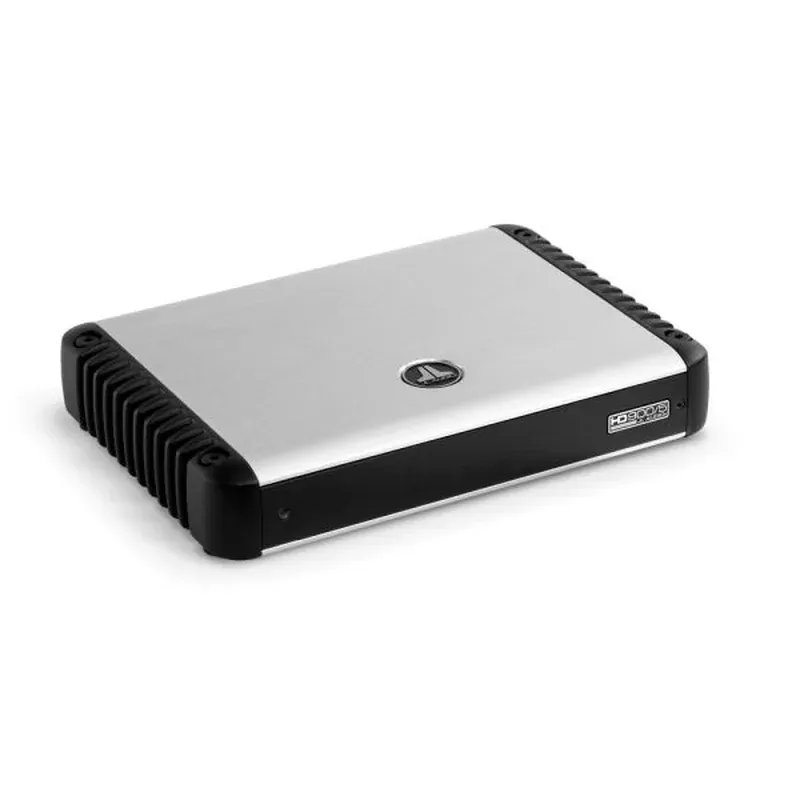

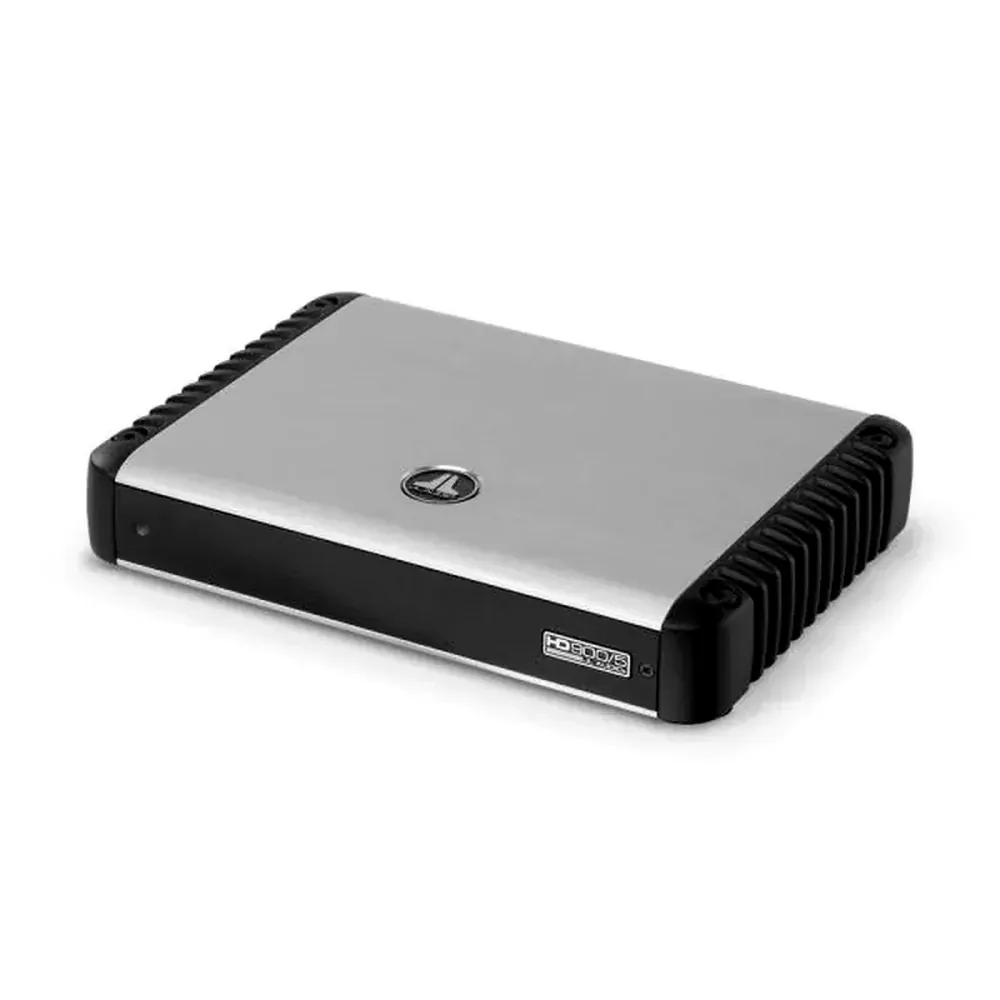

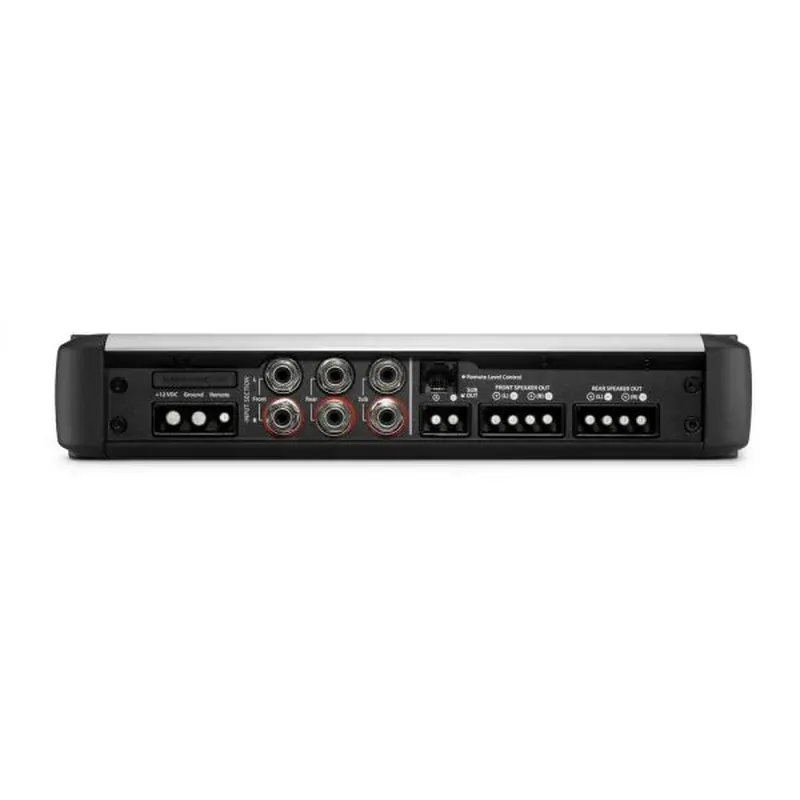

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

Features

  • Rated Continuous (RMS) Power @ 14.4 V Main Channels @ 4 Ω: 100 W RMS x 4
  • Rated Continuous (RMS) Power @ 14.4 V Main Channels @ 3 Ω: 75 W RMS x 4
  • Rated Continuous (RMS) Power @ 14.4 V Main Channels @ 2 Ω: 75 W RMS x 4
  • Rated Continuous (RMS) Power @ 14.4 V Main Channels @ 1.5 Ω: 75 W RMS x 4
  • Rated Continuous (RMS) Power @ 14.4 V Main Channels - Bridged @ 8 Ω: 200 W RMS x 2
  • Rated Continuous (RMS) Power @ 14.4 V Main Channels - Bridged @ 4 Ω: 150 W RMS x 2
  • Rated Continuous (RMS) Power @ 14.4 V Subwoofer Channel @ 4 Ω: 500 W RMS x 1
  • Rated Continuous (RMS) Power @ 14.4 V Subwoofer Channel @ 3 Ω: 500 W RMS x 1
  • Rated Continuous (RMS) Power @ 14.4 V Subwoofer Channel @ 2 Ω: 500 W RMS x 1
  • Rated Continuous (RMS) Power @ 14.4 V Subwoofer Channel @ 1.5 Ω: 500 W RMS x 1
  • Rated Continuous (RMS) Power @ 12.5 V Main Channels @ 4 Ω: 100 W RMS x 4
  • Rated Continuous (RMS) Power @ 12.5 V Main Channels @ 3 Ω: 75 W RMS x 4
  • Rated Continuous (RMS) Power @ 12.5 V Main Channels @ 2 Ω: 75 W RMS x 4
  • Rated Continuous (RMS) Power @ 12.5 V Main Channels @ 1.5 Ω: 75 W RMS x 4
  • Rated Continuous (RMS) Power @ 12.5 V Main Channels - Bridged @ 8 Ω: 200 W RMS x 2
  • Rated Continuous (RMS) Power @ 12.5 V Main Channels - Bridged @ 4 Ω: 150 W RMS x 2
  • Rated Continuous (RMS) Power @ 12.5 V Subwoofer Channel @ 4 Ω: 500 W RMS x 1
  • Rated Continuous (RMS) Power @ 12.5 V Subwoofer Channel @ 3 Ω: 500 W RMS x 1
  • Rated Continuous (RMS) Power @ 12.5 V Subwoofer Channel @ 2 Ω: 500 W RMS x 1
  • Rated Continuous (RMS) Power @ 12.5 V Subwoofer Channel @ 1.5 Ω: 500 W RMS x 1
  • Frequency Response (Main Channels): 12 Hz - 28 kHz (+0, -1dB)
  • Frequency Response (Subwoofer Channel): 12 Hz - 10 kHz (+0, -1dB)
  • S/N Ratio, referred to highest rated power (Main Channels): >108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W (Main Channels): >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω: >400 / 50 Hz
  • Damping Factor @ 2 Ω: >200 / 50 Hz
  • THD+N @ Rated Power (Main Channels): <0.03% @ 4 Ω
  • THD+N @ Rated Power (Subwoofer Channel): <0.05% @ 4 Ω
  • Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min.Copper Power / Ground Wire Gauge: Accepts up to 4 AWG wire
  • Fuse Rating: 60 A (AFS, AGU or MaxiFuse™)
  • Filter Mode(s): Channels 1 & 2 (front): High-Pass only
  • Filter Slope(s): Channels 1 & 2 (front): 12/24 dB/octave
  • Filter Frequency Range: Channels 1 & 2 (front): 50 Hz - 500 Hz
  • Filter Mode(s): Channels 3 & 4 (rear): High-Pass only
  • Filter Slope(s): Channels 3 & 4 (rear): 12/24 dB/octave
  • Filter Frequency Range: Channels 3 & 4: 50 Hz - 500 Hz
  • Filter Mode(s): Subwoofer Channel: Low-Pass only
  • Filter Slope(s): Subwoofer Channel: 12/24 dB/octave
  • Filter Frequency Range: Subwoofer Channel: 50 Hz - 500 Hz
  • Detented, Calibrated Filter Freq. Potentiometers: Yes
  • Filter Defeat Function: Yes
  • Infrasonic Filter: Subwoofer Channel: 30 Hz, Defeatable
  • Remote Level Control: Optional (HD-RLC)
  • Remote Level Modes: Sub Ch. only
  • Channel Input Mode Switch: Yes (2/4/6 ch.)
  • Pass-Through Preamp Output: None
  • Source Channel Selection for PreOuts: N/A
  • Height (H): 1.93 in / 49 mm
  • Width (W): 10.74 in / 273 mm
  • Depth (D): 7.85 in / 199 mm
  • Net Weight: 6.85 lb / 3.11 kg
More Information
Channels 5 Channel
RMS Power @ 4 Ohm 100W x 4 or 200W x 2 + 500W x 1
RMS Power @ 2 Ohm 75W x 4 + 500W x 1
RMS Power @ 1 Ohm N/A
Crossover Channel 1/2 HP 50-500Hz @ 12 or 24dB/oct
Crossover Channel 3/4 HP 50-500Hz @ 12 or 24dB/oct
Crossover Channel 5/6 LP 50-500Hz @ 12 or 24dB/oct
Subsonic Filter 30Hz
Bass Boost No
Speaker Level Input Yes (via RCA)
Auto Turn-On No
Remote Sub Controller Optonal (HD-RLC)
Dimensions 49 x 273 x 199mm
SKU HD9005
Brand JL AUDIO
