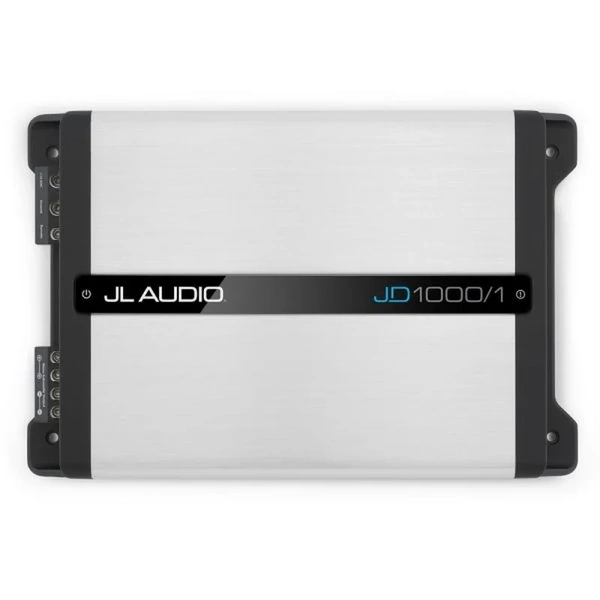

JL Audio JD Series Monoblock Class-D Subwoofer Amplifier 100W JD1000/1
SKU:JD10001
Monoblock Class D Subwoofer Amplifier, 1000 W x 1 @ 2 Ω / 600 W x 1 @ 4 Ω - 14.4V
Designed to produce a serious 1000 watts into 2 ohms (14.4V, 1% THD), the JD1000/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.

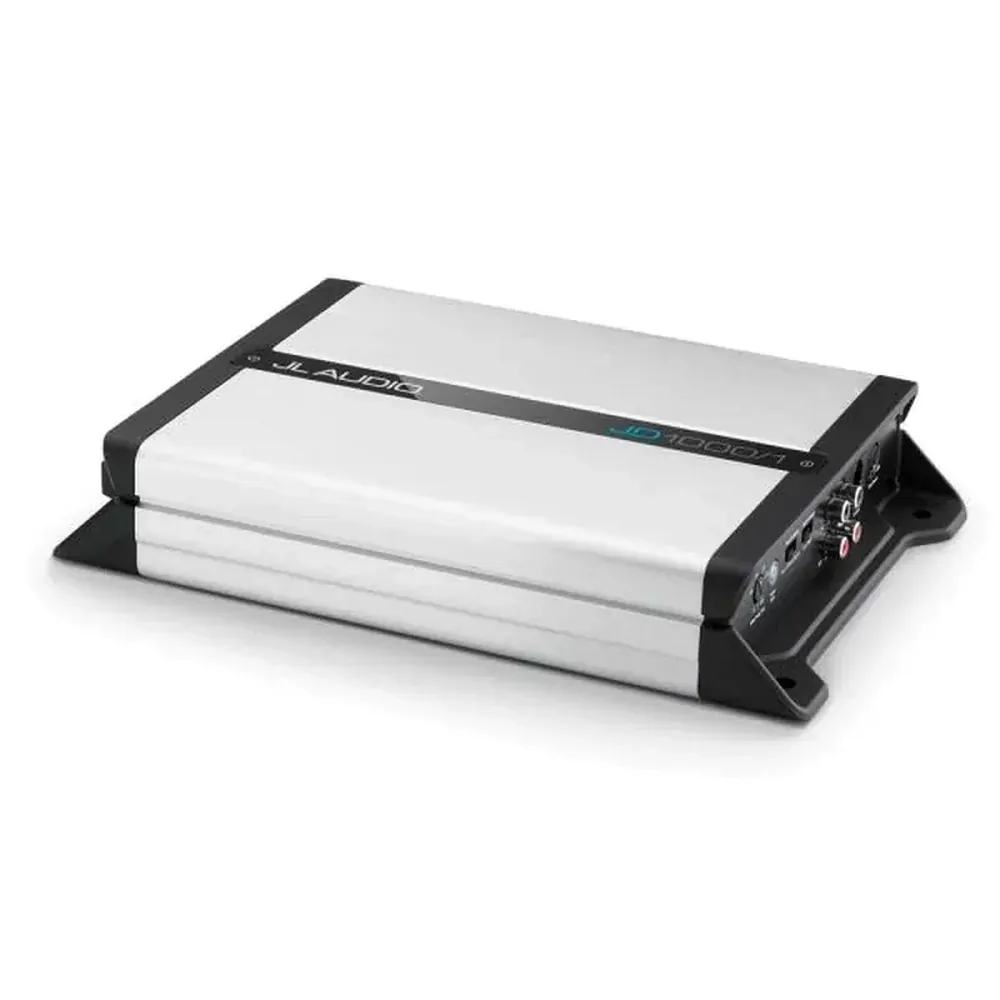

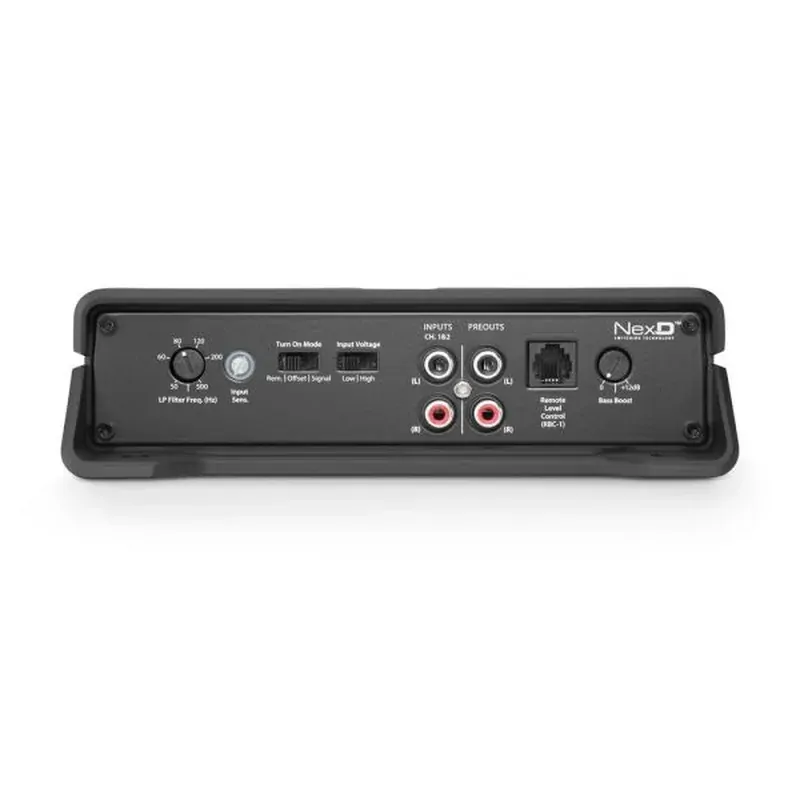

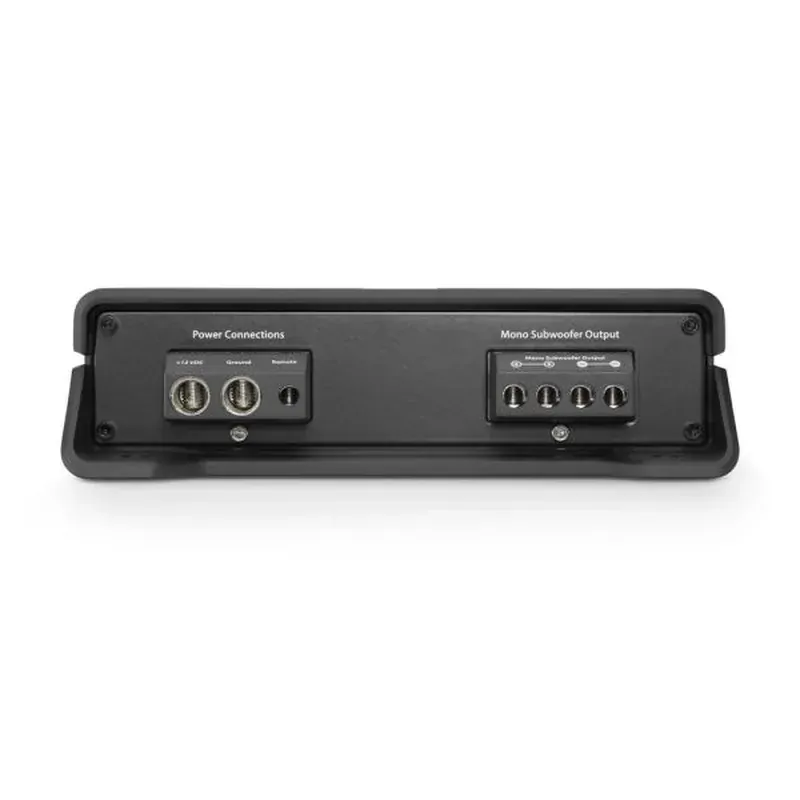

The JD1000/1s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.
The JD1000/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifiers input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the drivers seat.
Features
- Rated Continuous (RMS) Power @ 14.4 V @ 4 Ω: 600 W RMS x 1
- Rated Continuous (RMS) Power @ 14.4 V @ 3 Ω: 800 W RMS x 1
- Rated Continuous (RMS) Power @ 14.4 V @ 2 Ω: 1000 W RMS x 1
- Rated Continuous (RMS) Power @ 14.4 V @ 1.5 Ω: N/A
- Rated Continuous (RMS) Power @ 12.5 V @ 4 Ω: 500 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V @ 3 Ω: 650 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V @ 2 Ω: 800 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V @ 1.5 Ω: N/A
- Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W: >50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω: >1000 / 50 Hz
- Damping Factor @ 2 Ω: >500 / 50 Hz
- THD+N @ Rated Power: <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Min.Copper Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)
- Filter Mode(s): Low-Pass only
- Filter Slope(s): 12 dB/octave
- Filter Frequency Range: 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometer: No
- Filter Defeat Function: No
- Infrasonic Filter: No
- Bass Boost EQ: Yes
- Output Polarity Switch: No
- Remote Subwoofer Level Control: Optional (RBC-1)
- Remote Bass EQ Boost Control: No
- Pass-Through Preamp Output: Buffered
- Height (H): 2.10 in / 53 mm
- Width (W): 11.40 in / 290 mm
- Depth (D): 7.50 in / 190 mm
| Channels | 1/MONO |
|---|---|
| RMS Power @ 4 Ohm | 600W x 1 |
| RMS Power @ 2 Ohm | 1000W x 1 |
| RMS Power @ 1 Ohm | N/A |
| Crossover Channel 1/2 | LP 50-500Hz @ 12dB/oct |
| Subsonic Filter | No |
| Bass Boost | 0-12dB @ 45Hz |
| Speaker Level Input | Yes (via RCA) |
| Auto Turn-On | Yes |
| Remote Sub Controller | Optional (RBC) |
| Dimensions | 53 x 290 x 190mm |
| SKU | JD10001 |
| Brand | JL AUDIO |
