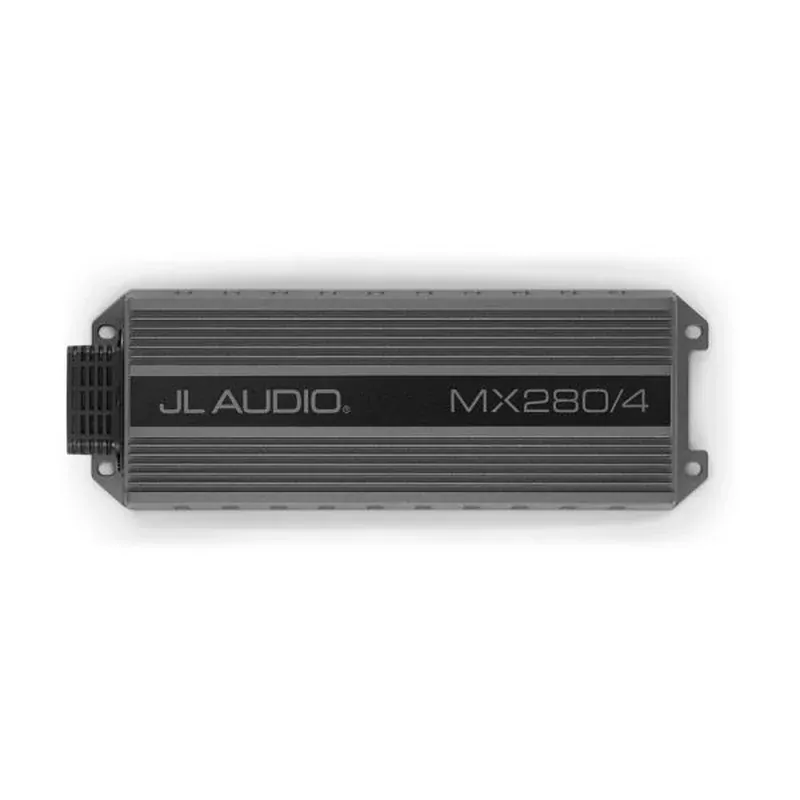

JL Audio MX Series 4-Channel Class-D Amplifier 280W MX280/4
SKU:MX2804
4-Channel Class D Full-Range Amplifier, 70 W x 4 @ 2 Ω / 50 W x 4 @ 4 Ω - 14.4V

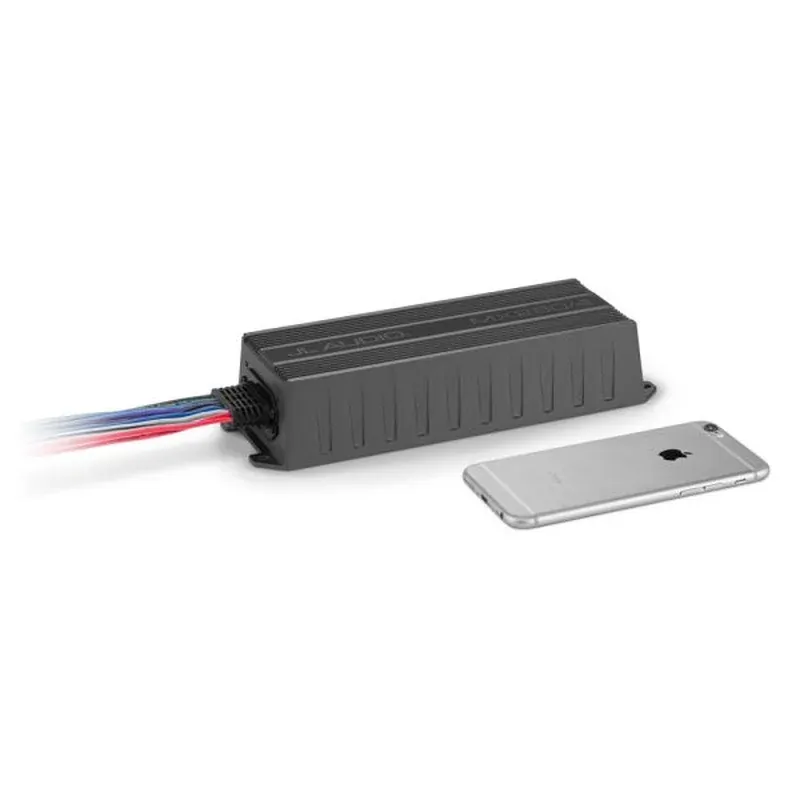

Engineered specifically for powersports applications, the 4-channel MX280/4 amplifier employs our high-speed NexD switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATVs or other utility vehicles.
Generating a solid 50W x 4 into 4 ohms (14.4V, 1% THD), the MX280/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 140W x 2 into 4 ohms.

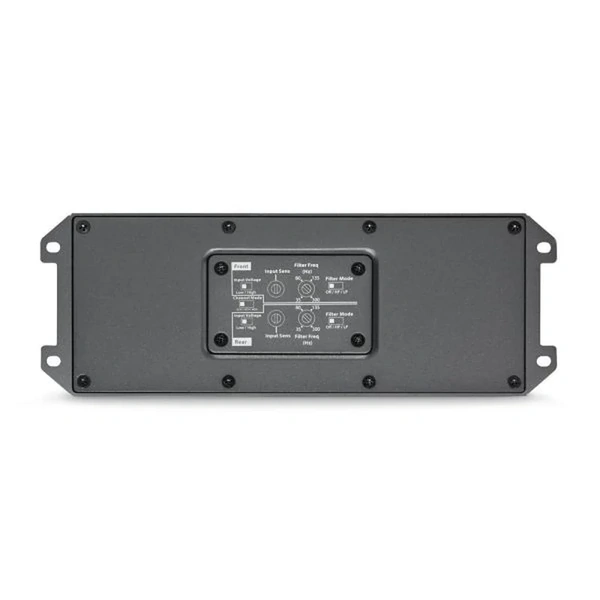

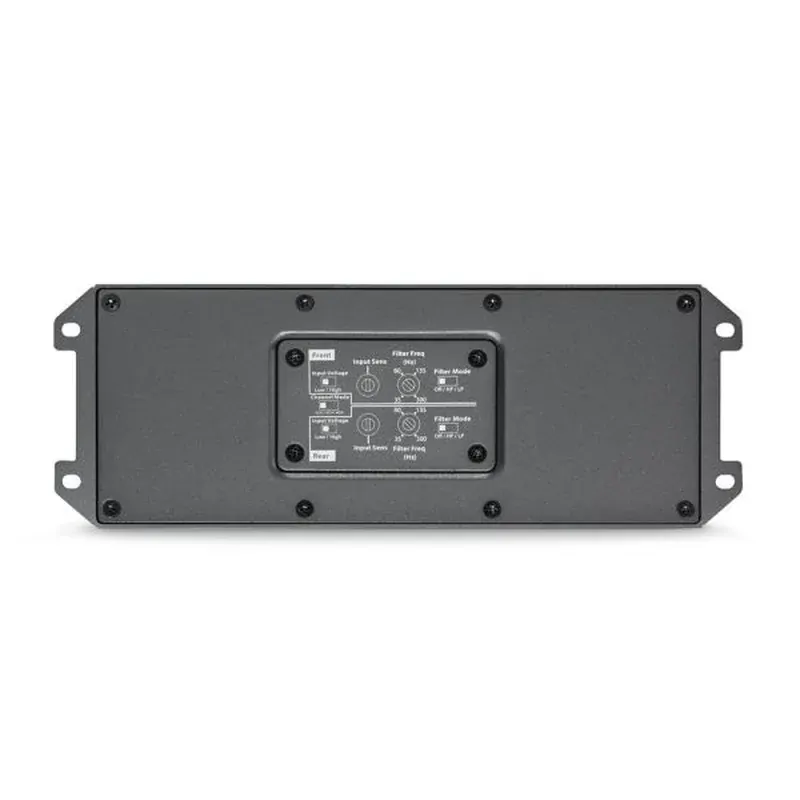

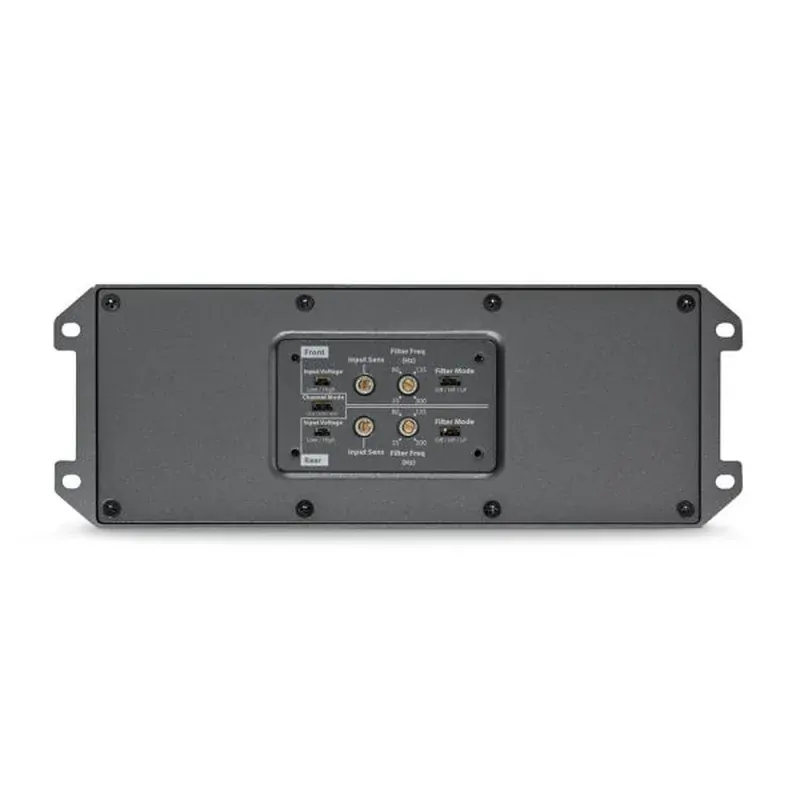

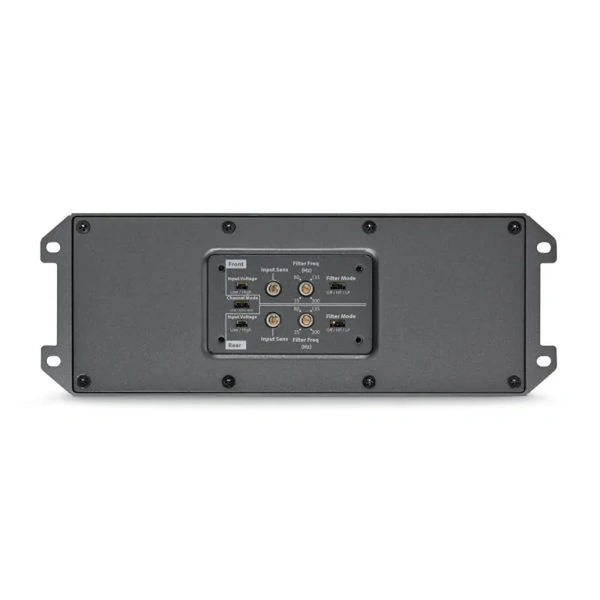

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Features
- Rated Continuous (RMS) Power @ 14.4 V @ 4 Ω: 50 W RMS x 4
- Rated Continuous (RMS) Power @ 14.4 V @ 2 Ω: 70 W RMS x 4
- Rated Continuous (RMS) Power @ 14.4 V Bridged @ 4Ω: 140 W RMS x 2
- Rated Continuous (RMS) Power @ 12.5 V @ 4 Ω: 36 W RMS x 4
- Rated Continuous (RMS) Power @ 12.5 V @ 2 Ω: 52 W RMS x 4
- Rated Continuous (RMS) Power @ 12.5 V Bridged @ 4Ω: 100 W RMS x 2
- Frequency Response: 20 Hz - 20 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >89.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W: >68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω: >60 / 50 Hz
- Damping Factor @ 2 Ω: >30 / 50 Hz
- THD+N @ Rated Power: <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs: Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
- Min.Copper Power / Ground Wire Gauge: 8 AWG wire
- Fuse Rating: 35 A (AFS, AGU or MaxiFuse™)
- Filter Mode(s): Low-Pass or High-Pass
- Filter Slope(s): 12 dB/octave
- Filter Frequency Range: 35 Hz - 300 Hz
- Detented, Calibrated Filter Freq. Potentiometers: Yes
- Filter Defeat Function: Yes
- Remote Level Control: No
- Remote Level Modes: N/A
- Channel Input Mode Switch: Yes (2/3/4 ch.)
- Pass-Through Preamp Output: None
- Source Channel Selection for PreOuts: N/A
- Height (H): 1.77 in / 45 mm
- Width (W): 8.66 in / 220 mm
- Depth (D): 3.09 in / 78.5 mm
- Net Weight: 3.18 lb / 1.44 kg
| Channels | 4 Channel |
|---|---|
| RMS Power @ 4 Ohm | 50W x 4 or 140W x 2 + 320W x 1 |
| RMS Power @ 2 Ohm | 70W x 4 |
| RMS Power @ 1 Ohm | N/A |
| Crossover Channel 1/2 | HP/LP 35-300Hz @ 12dB/oct |
| Crossover Channel 3/4 | HP/LP35-300Hz @ 12dB/oct |
| Subsonic Filter | No |
| Bass Boost | No |
| Speaker Level Input | Yes |
| Auto Turn-On | No |
| Remote Sub Controller | No |
| Dimensions | 45 x 220 x 78.5mm |
| SKU | MX2804 |
| Brand | JL AUDIO |
