JL Audio MX Series 4-Channel Class-D Amplifier 500W MX500/4

SKU:MX5004

$699.00

Calculate Shipping

4-Channel Class D Full-Range Amplifier, 125 W x 4 @ 2 Ω / 70 W x 4 @ 4 Ω - 14.4V

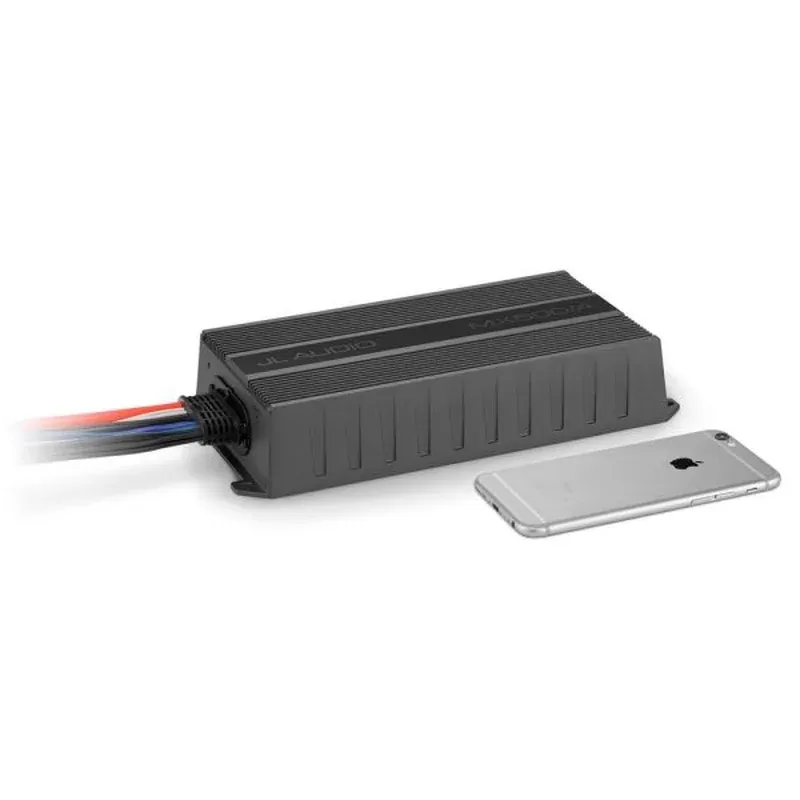

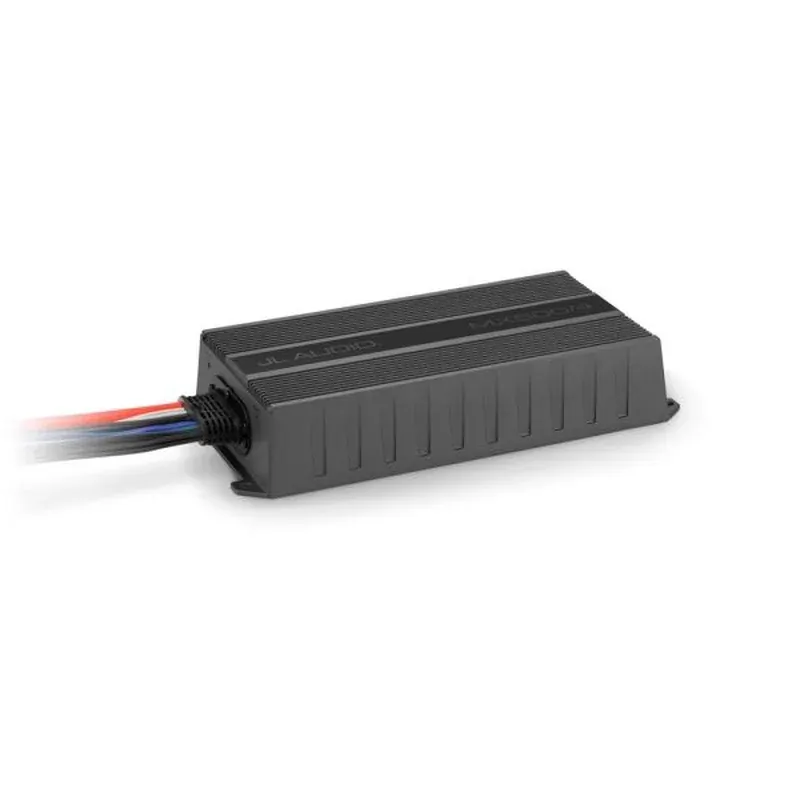

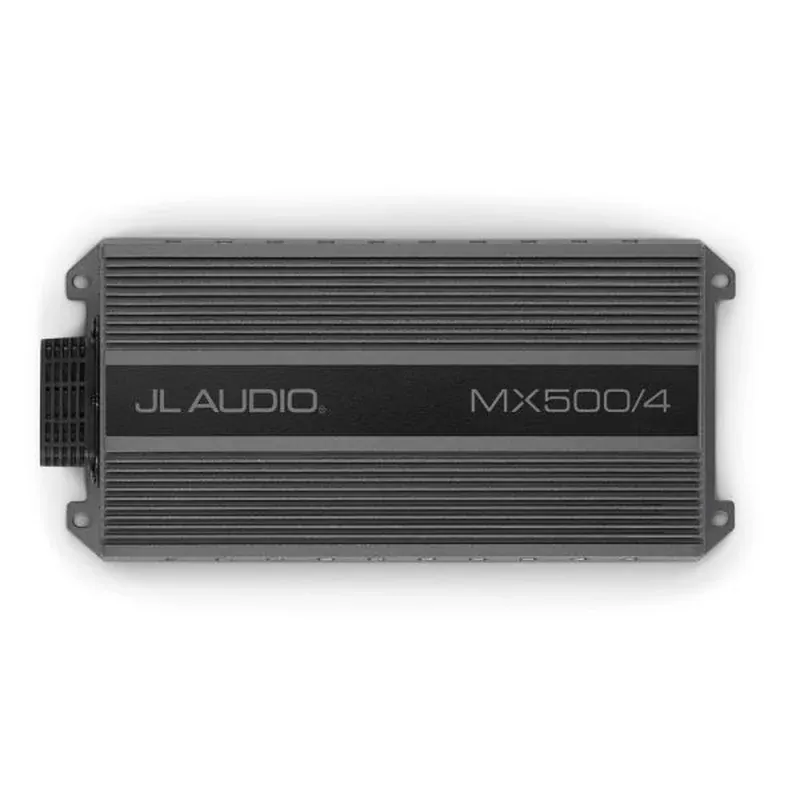

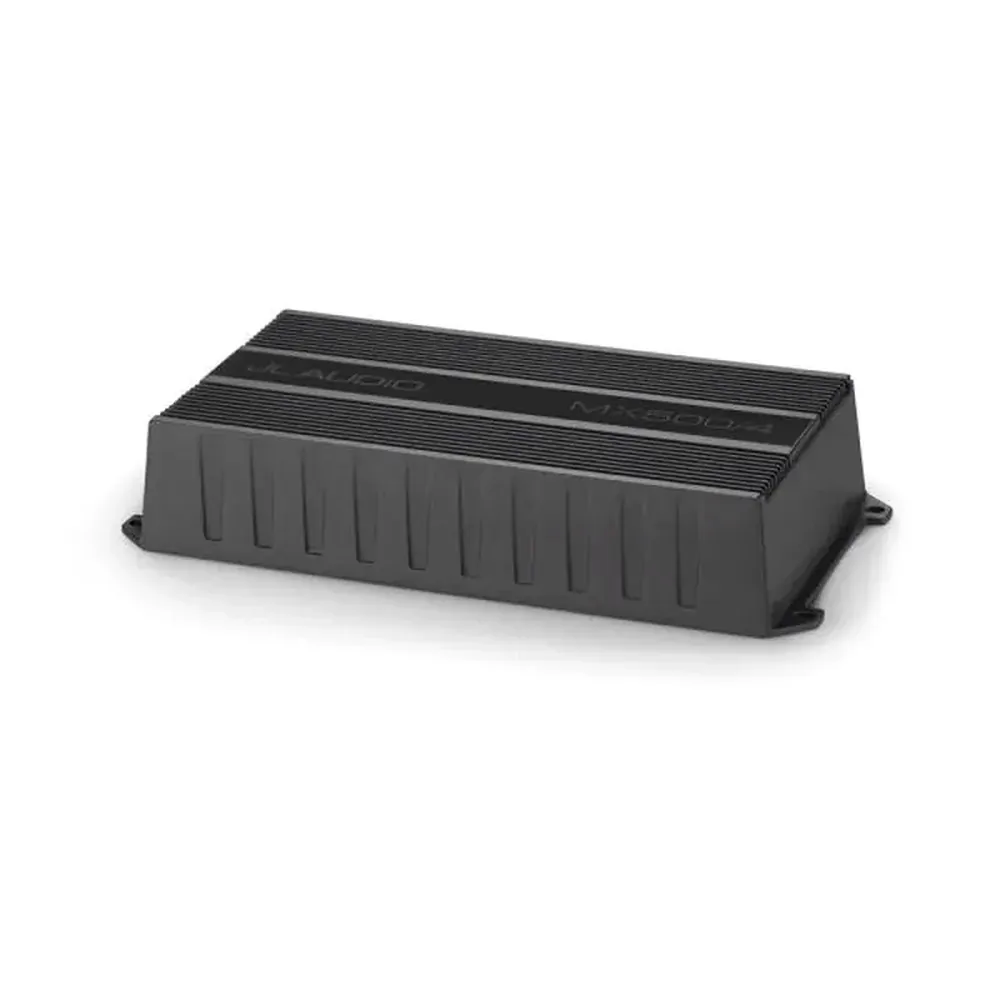

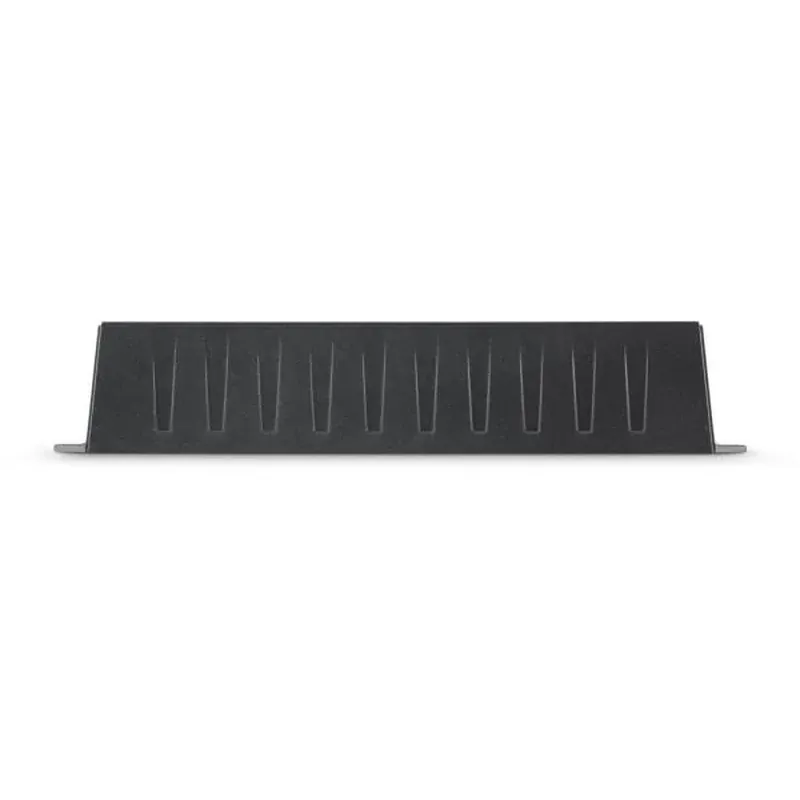

Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATVs or other utility vehicles.

Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.

Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.

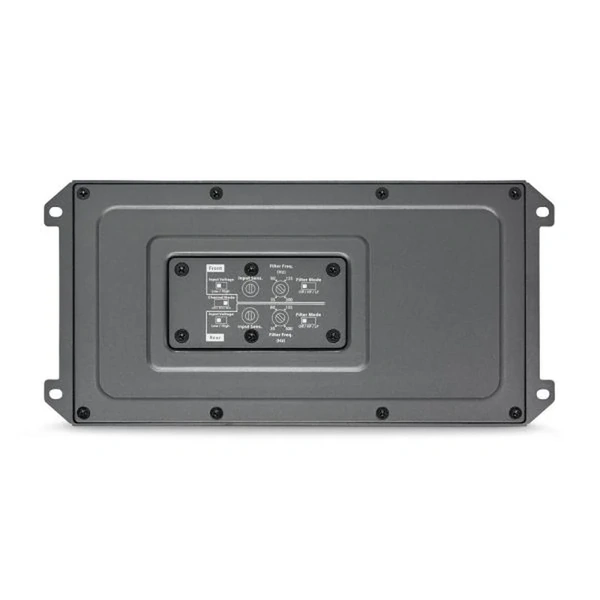

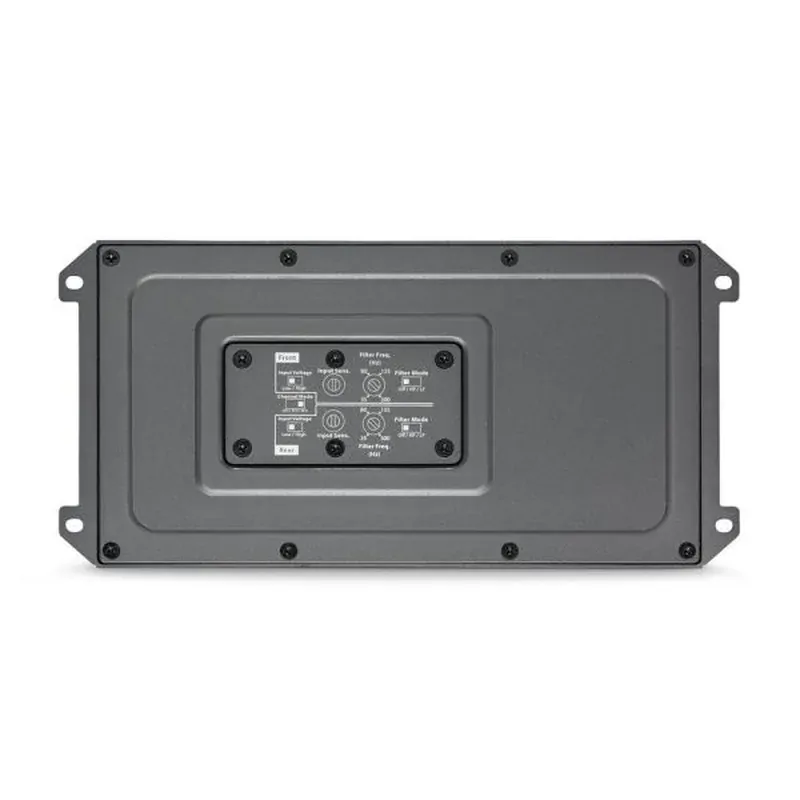

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Features

  • Rated Continuous (RMS) Power @ 14.4 V @ 4 Ω: 70 W RMS x 4
  • Rated Continuous (RMS) Power @ 14.4 V @ 2 Ω: 125 W RMS x 4
  • Rated Continuous (RMS) Power @ 14.4 V Bridged @ 4Ω: 250 W RMS x 2
  • Rated Continuous (RMS) Power @ 12.5 V @ 4 Ω: 55 W RMS x 4
  • Rated Continuous (RMS) Power @ 12.5 V @ 2 Ω: 90 W RMS x 4
  • Rated Continuous (RMS) Power @ 12.5 V Bridged @ 4Ω: 180 W RMS x 2
  • Frequency Response: 20 Hz - 20 kHz (+0, -1dB)
  • S/N Ratio, referred to highest rated power: >88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W: >70.5 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 Ω: >92 / 50 Hz
  • Damping Factor @ 2 Ω: >43 / 50 Hz
  • THD+N @ Rated Power: <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
  • Min.Copper Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
  • Filter Mode(s): Low-Pass or High-Pass
  • Filter Slope(s): 12 dB/octave
  • Filter Frequency Range: 35 Hz - 300 Hz
  • Detented, Calibrated Filter Freq. Potentiometers: Yes
  • Filter Defeat Function: Yes
  • Remote Level Control: No
  • Remote Level Modes: N/A
  • Channel Input Mode Switch: Yes (2/3/4 ch.)
  • Pass-Through Preamp Output: None
  • Source Channel Selection for PreOuts: N/A
  • Height (H): 1.77 in / 45 mm
  • Width (W): 9.33 in / 237 mm
  • Depth (D): 4.50 in / 115 mm
More Information
Channels 4 Channel
RMS Power @ 4 Ohm 70W x 4 or 250W x 2
RMS Power @ 2 Ohm 125W x 4
RMS Power @ 1 Ohm N/A
Crossover Channel 1/2 HP/LP 35-300Hz @ 12dB/oct
Crossover Channel 3/4 HP/LP35-300Hz @ 12dB/oct
Subsonic Filter No
Bass Boost No
Speaker Level Input Yes
Auto Turn-On No
Remote Sub Controller No
Dimensions 45 x 237 x 115mm
SKU MX5004
Brand JL AUDIO
