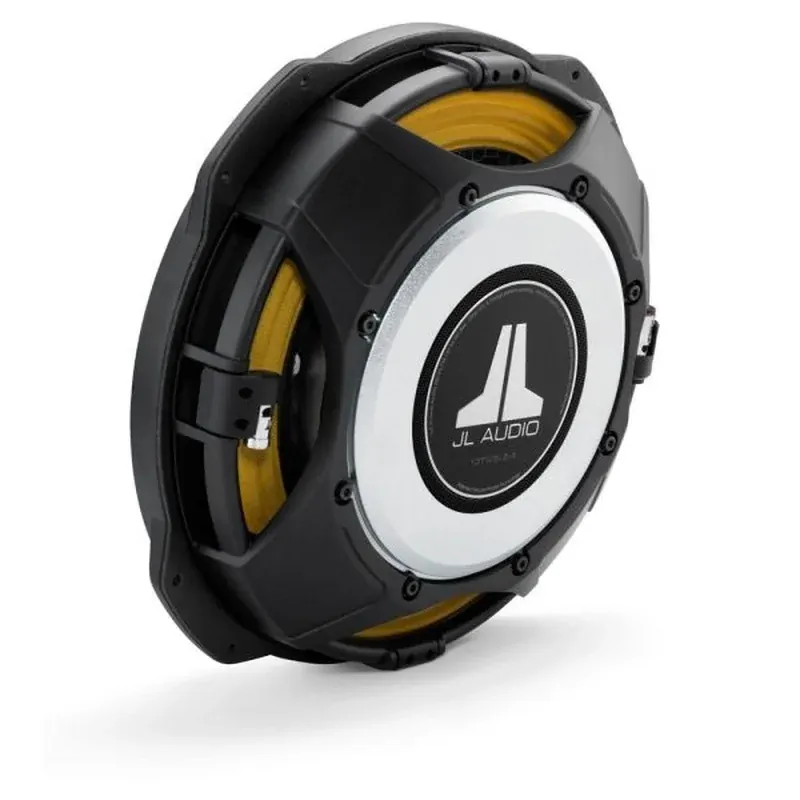

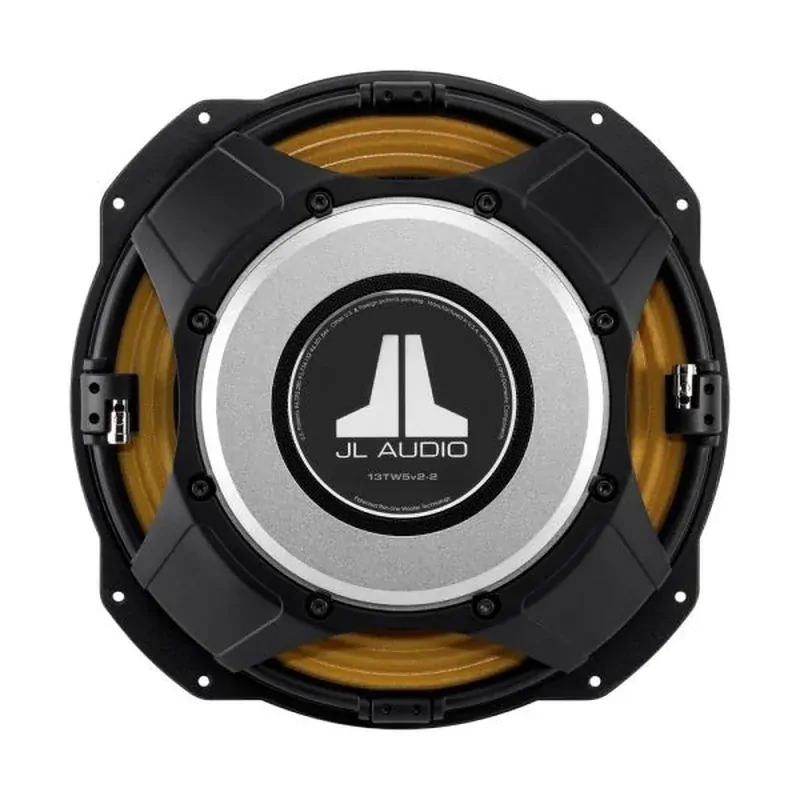

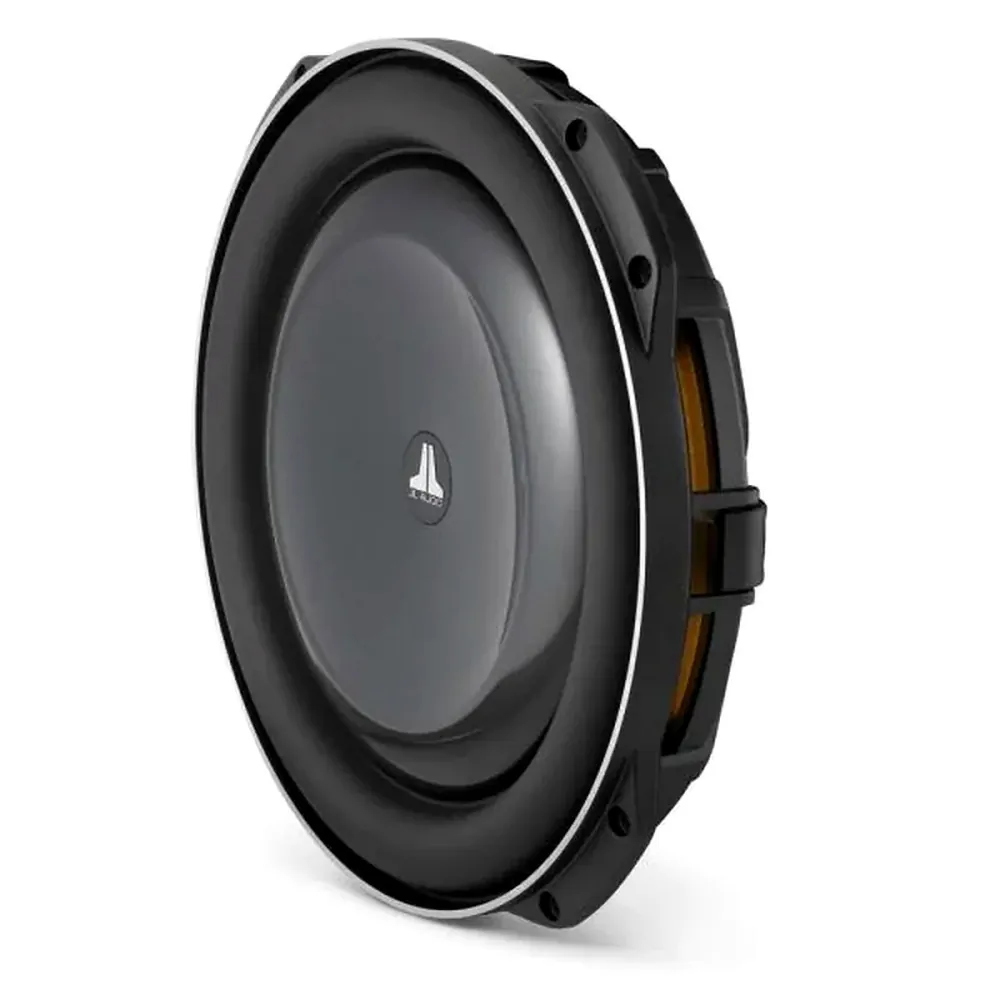

JL Audio TW5v2 Series 13.5" Subwoofer 4-Ohm 13TW5v2-4

The thinnest subwoofer in its class delivers real JL Audio performance in difficult spaces.

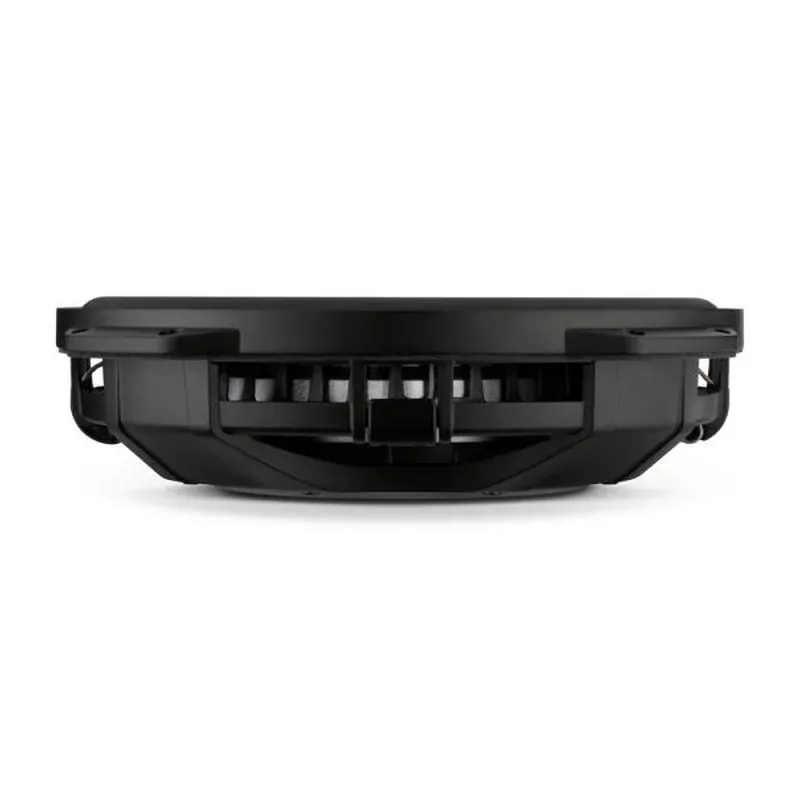

The amazing TW5v2 serves up real, large woofer performance, with only 2.625 inches (67 mm) of mounting depth.

This unique subwoofer driver is yet another example of JL Audio’s commitment to engineering innovation. Our thin-line woofer technology compresses the architecture of the 13TW5v2 using a “concentric tube” structure that supports the oversized voice coil and the suspension attachments. This permits placing a large motor structure much further forward in the speaker than with conventional designs, while maintaining excellent linear excursion capability and mechanical stability.

In keeping with its “tight-spaces” mission, the 13TW5v2 is also optimized for enclosures that are far smaller than what most 12-inch woofers require and only a bit larger than the air space needs of a typical small-box 10-inch woofer. We even designed the mounting system to allow it to fit in the same footprint as a standard 12-inch woofer.

Deep, powerful and accurate bass is now possible in the most challenging installation applications.

TW5v2 13.5-inch Subwoofer (600 W, 4 ?)

We couldnt leave the ultimate thin woofer alone... we had to make it even better.

Our patented thin-line woofer technology compresses the architecture of the 13TW5v2 using a concentric tube structure that supports the 7-inch diameter voice coil and the suspension attachments. This permits placement of the large motor structure much further forward in the speaker than with conventional designs, while allowing excellent linear excursion capability and mechanical stability.

To unleash even more performance from this technology, the v2 improves upon the original 13TW5 with 13% greater linear excursion capability. The cast alloy chassis has also been modified for greater strength and the redesigned motor now features an annular vent. The v2 is also available in single 2 ohm and single 4 ohm voice coil versions to fit a wide range of applications.

In keeping with its tight-spaces mission, the 13TW5v2 is optimized for enclosures that are far smaller than most 12-inch woofers require and only a bit larger than the air space needs of a typical, small-box 10-inch woofer. The mounting system is designed to fit in about the same footprint as a typical 12-inch woofer.

The 13TW5v2 is best used with amplifier power in the 250W - 600W range and is optimized to operate in a 0.80 cu. ft. (22.7 l) sealed enclosure.

Never has such high-quality sub-bass been possible in the most challenging installation applications.
