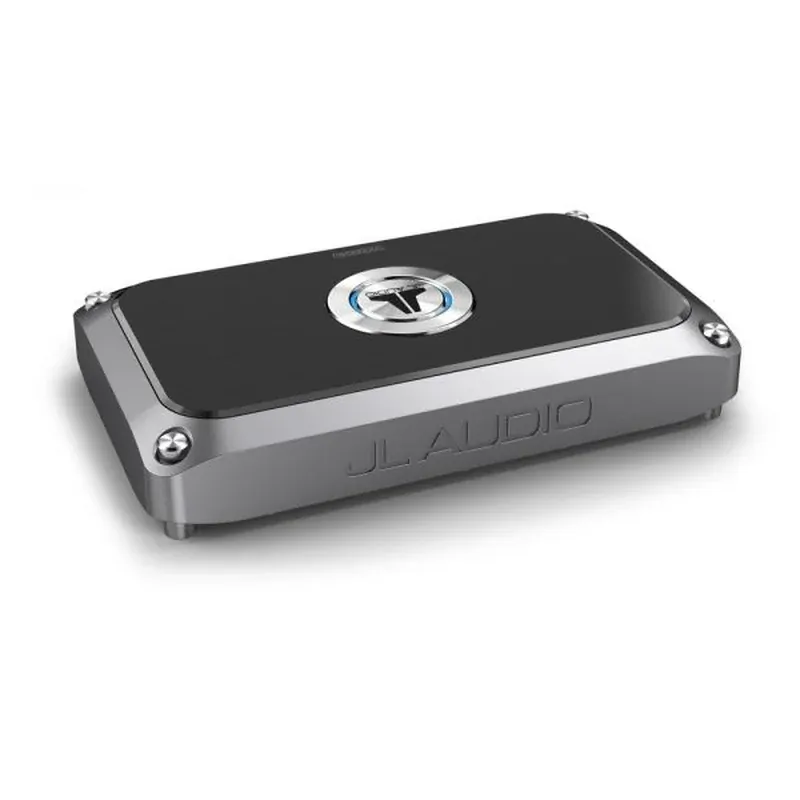

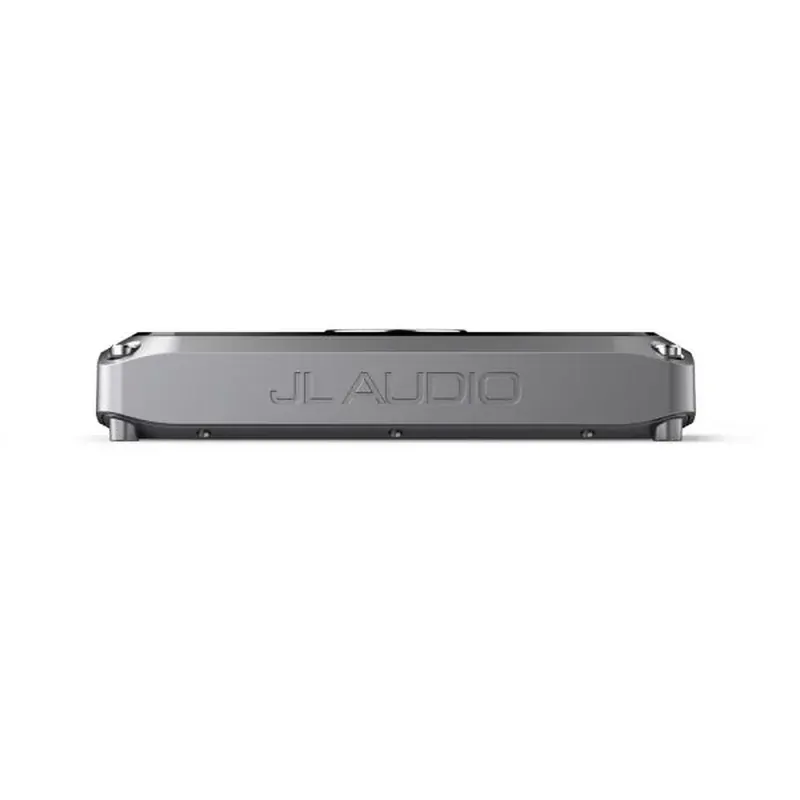

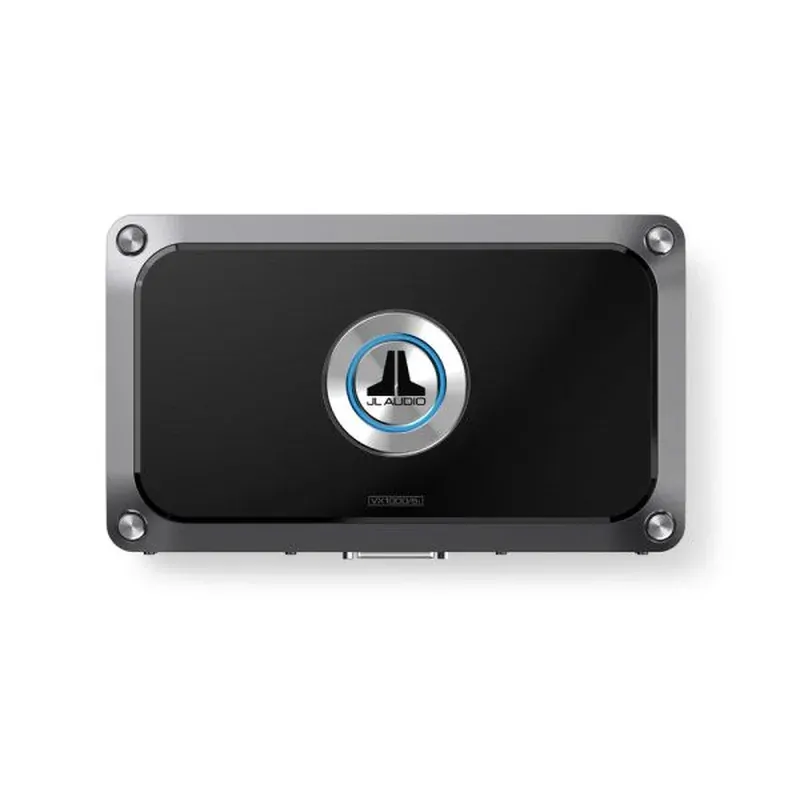

JL Audio VXi Series 5-Channel Class-D Amplifier 1000W with Integrated DSP VX1000/5i

5-Channel Class D System Amplifier with Integrated DSP, 100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2 switching amplifier technology with an integrated, full-featured digital signal processor.

Employing our second generation NexD2 amplifier technology, the VX1000/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel.

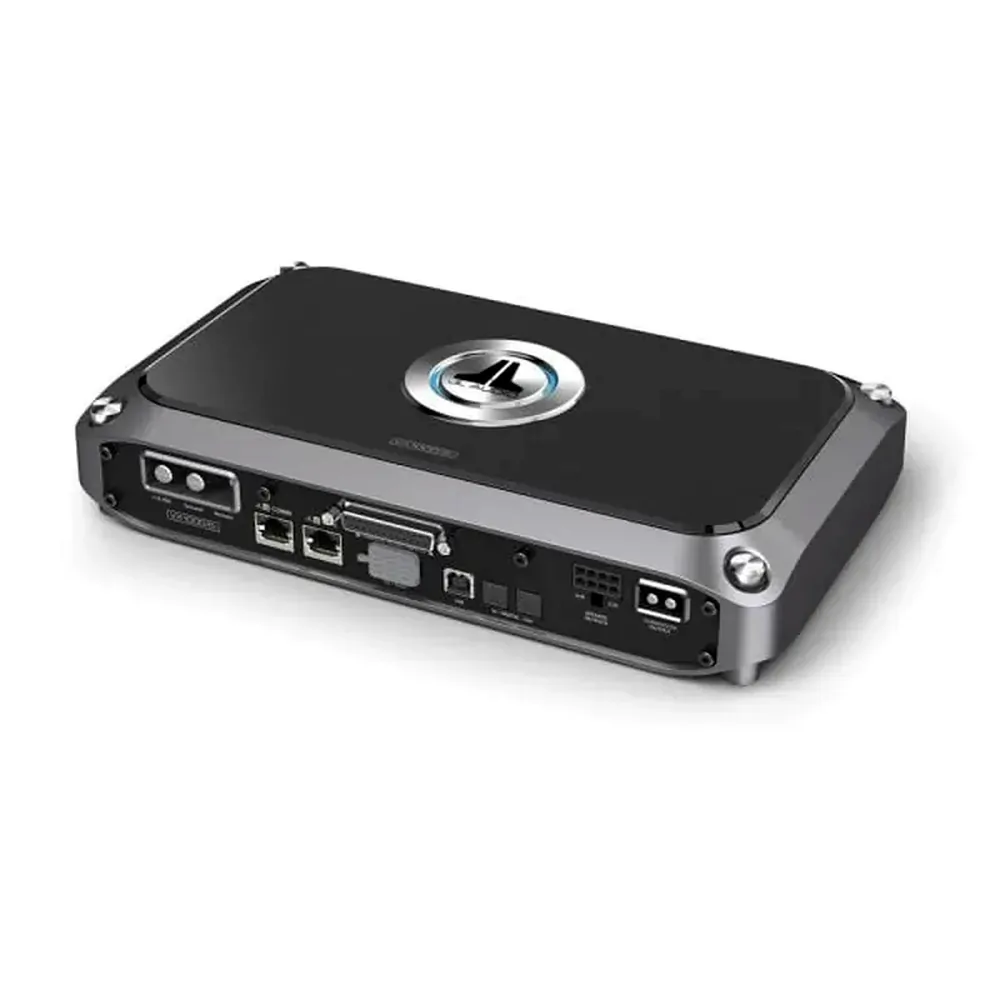

The NexD2 full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2 technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN Software application installed.

Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

Features:

Unprecedented, Onboard DSP Tuning Power!

• Powerful DSP permits optimizing each channel’s timing, frequency response and output levels, for exceptional sound quality.
• TüN Software delivers fast and easy setup, at your fingertips. Make all adjustments with a clear interface. Free TüN software is available for computers and most handheld devices.

2nd-Gen NexD2 Switching Amplifier Technology

• Advanced, high-speed switching technology delivers reference-grade power and efficiency.
• DSP-synchronized power supply and output channels produce world-class sound quality with very low noise and distortion.

Ultra-Versatile Analog and Digital Inputs/Outputs

• Differential-Balanced Analog Inputs accept speaker level signals up to 16V RMS, including those from factory systems. Delivers outstanding noise rejection to prevent alternator whine and other noises.
• Optical Digital (Toslink) Inputs permit direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
• Analog and Digital Pre-Outs (pass-through or fully configurable): RCA Pre-Outs (4V RMS Max) and Optical (Toslink) Output at 24 bit/96 kHz
• Automatic turn-on options via signal-sensing or DC-offset sensing

JLid System Command and Control with Networking Capabilities

• Proprietary JL Audio protocol provides control interface and all communication for VXi amplifiers and optional JLid accessories, including:

DRC-100 / DRC-205 (Digital Remote Controllers): Offers convenient DSP preset selection and level adjustments from the driver’s seat.

VXi-BTC Bluetooth Communicator: Adds wireless connectivity for amplifier configuration from a compatible iOS or Android device.

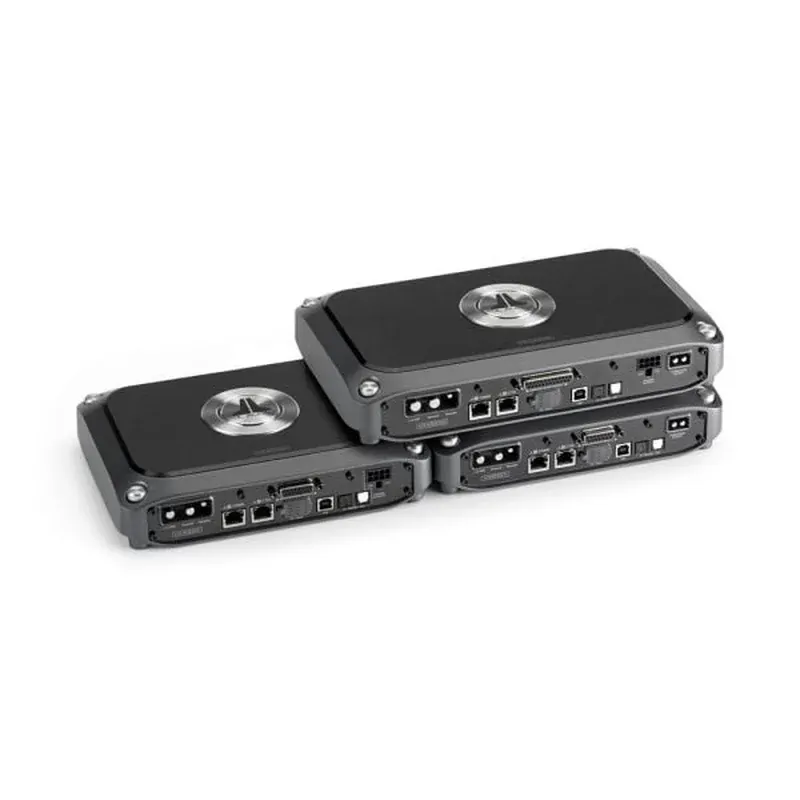

VXi-HUB Optical Network Hub: Provides network connectivity for up to six VXi amplifiers, allowing full-system DRC control and preset selection. Up to two VXi-HUBs can be daisy-chained to control up to ten VXi amplifiers.
