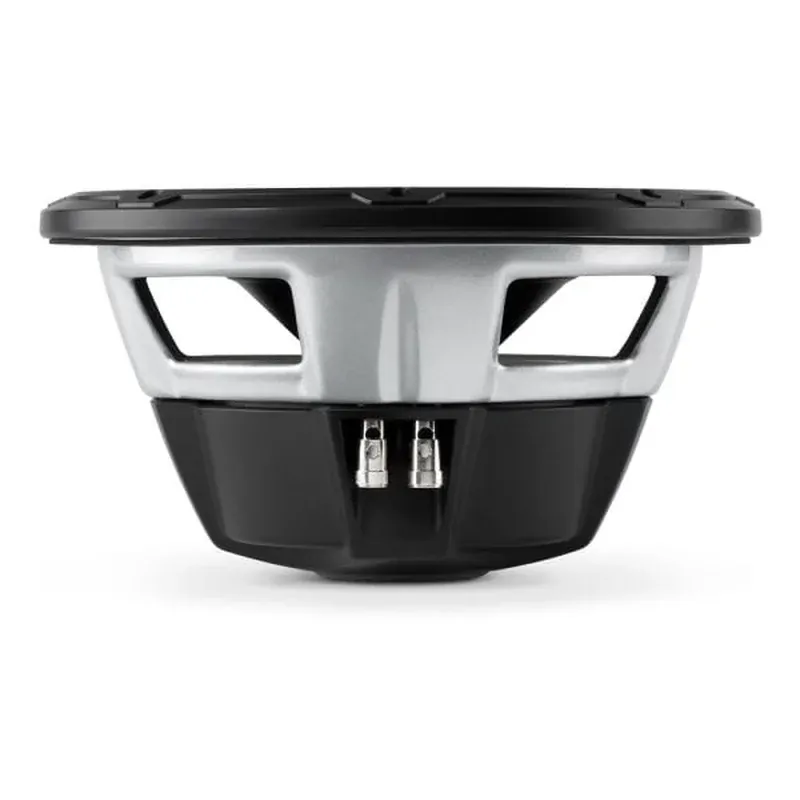

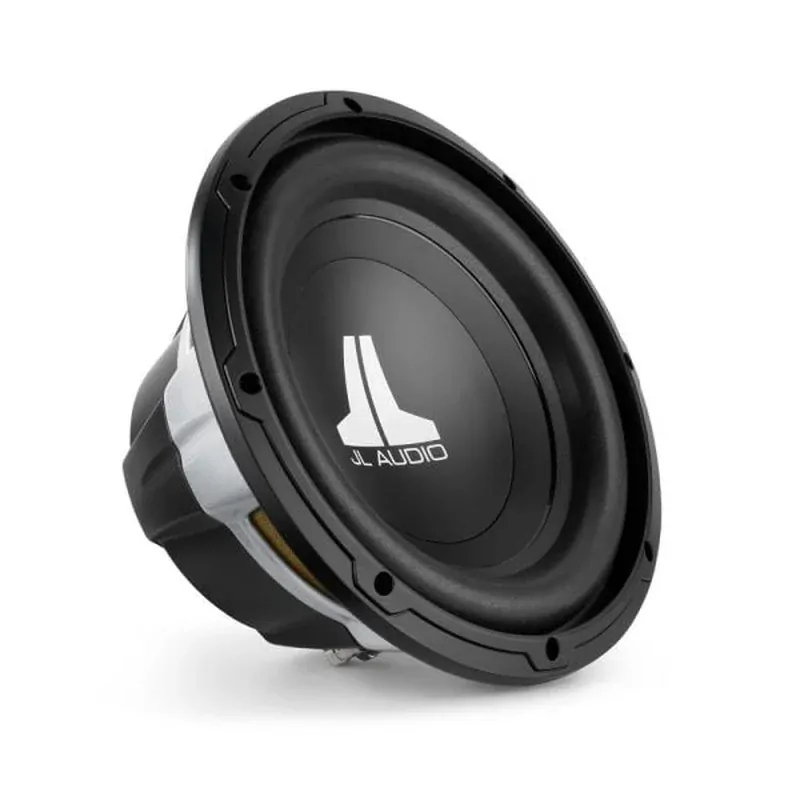

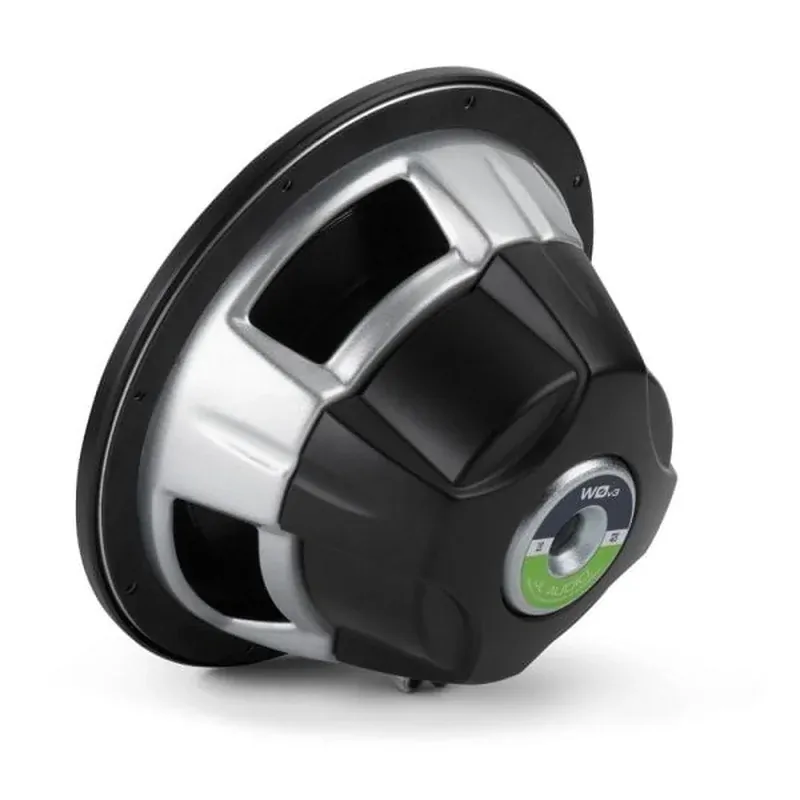

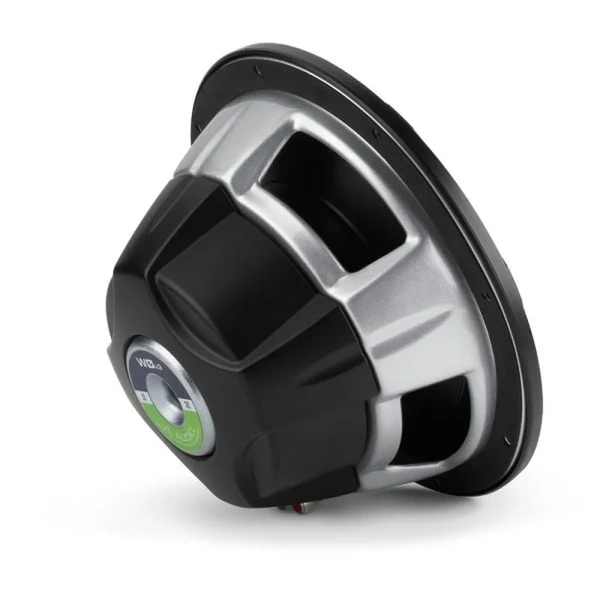

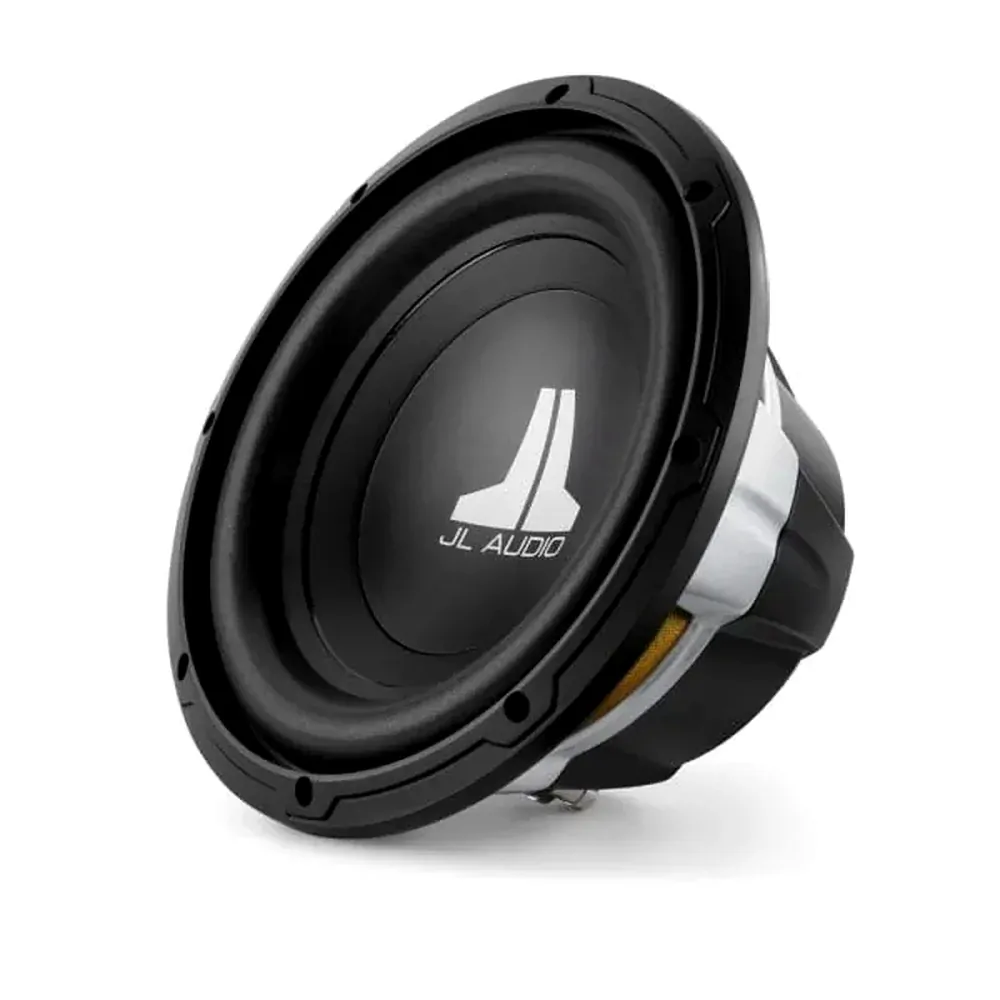

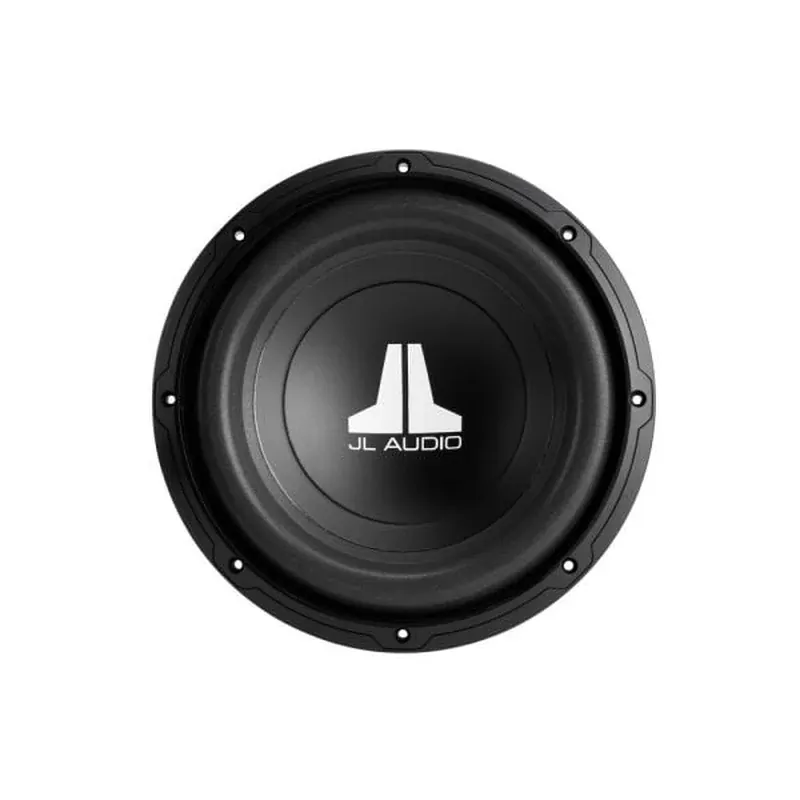

JL Audio W0v3 Series 10" Subwoofer 4-Ohm 10W0v3-4

SKU:10W0V3-4

$199.99


Calculate Shipping

You simply won’t find a better performing woofer in its price class!

The term ”overbuilt” gets thrown around a lot, but in the case of the W0v3’s, it actually applies. With beefy 2.0 or 2.5-inch voice coils and our innovative Elevated-Frame Cooling technology, they’re certainly capable of handling power. Proprietary DMA-Optimized motor systems offer best-in-class excursion capability, with increased output and better sound quality.

In simple terms, when the going gets loud, the W0v3’s are built to perform like no other woofers in their price class, making them the “go to” choice for those seeking high performance from an affordable subwoofer system.

You simply won’t find a better performing woofer in its price class!

W0v3 10-inch Subwoofer (300 W, 4 ?)

The 10W0v3 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability.

The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure.

Features

  • Continuous Power Handling (RMS): 300 W
  • Recommended Amplifier Power (RMS): 75 - 300 W
  • Nominal Impedance (Znom): 4 Ω
  • Nominal Diameter: 10.0 in / 250 mm
  • Overall Diameter (A): 10.52 in / 267 mm
  • Mounting Hole Diameter (B): 9.0625 in / 230 mm
  • Bolt Hole Circle Diameter (C): 9.7 in / 246.5 mm
  • Motor Outer Diameter (D): 5.05 in / 128 mm
  • Mounting Depth (E): 4.90 in / 124 mm
  • Driver Displacement: 0.034 cu ft / 0.96 L
  • Net Weight: 7.50 lb / 3.40 kg
  • Free Air Resonance (Fs): 32.09 Hz
  • Electrical “Q” (Qes): 0.64
  • Mechanical “Q” (Qms): 10.752
  • Total Speaker “Q” (Qts): 0.604
  • Equivalent Compliance (Vas): 1.095 cu ft / 31.01 L
  • One-Way Linear Excursion (Xmax)*: 0.45 in / 11.4 mm
  • Reference Efficiency (no): 0.15%
  • Efficiency (1 W / 1 m)**: 84.07 dB SPL
  • Effective Piston Area (Sd): 48.909 sq in / 0.0316 sq m
  • DC Resistance (Re): 4.280 Ω
More Information
Woofer Diameter (mm) 250mm
Woofer Diameter (Inch) 10 Inch
Mounting Diameter 230mm
Shallow Mount No
Woofer Mounting Depth 124mm
RMS Power 300WRMS
Voice Coil Single Voice Coil
Impedance 4 Ohm
Sensitivity (dB) 84.07dB
Sealed Box Volume 0.65 cu/ft (18.41-litres)
SKU 10W0V3-4
Brand JL AUDIO
