JL Audio W0v3 Series 15" Subwoofer 4-Ohm 15W0v3-4

SKU:15W0V3-4

$299.00


Calculate Shipping

You simply won’t find a better performing woofer in its price class!

The term ”overbuilt” gets thrown around a lot, but in the case of the W0v3’s, it actually applies. With beefy 2.0 or 2.5-inch voice coils and our innovative Elevated-Frame Cooling technology, they’re certainly capable of handling power. Proprietary DMA-Optimized motor systems offer best-in-class excursion capability, with increased output and better sound quality.

In simple terms, when the going gets loud, the W0v3’s are built to perform like no other woofers in their price class, making them the “go to” choice for those seeking high performance from an affordable subwoofer system.

You simply won’t find a better performing woofer in its price class!

W0v3 15-inch Subwoofer (500 W, 4 ?)

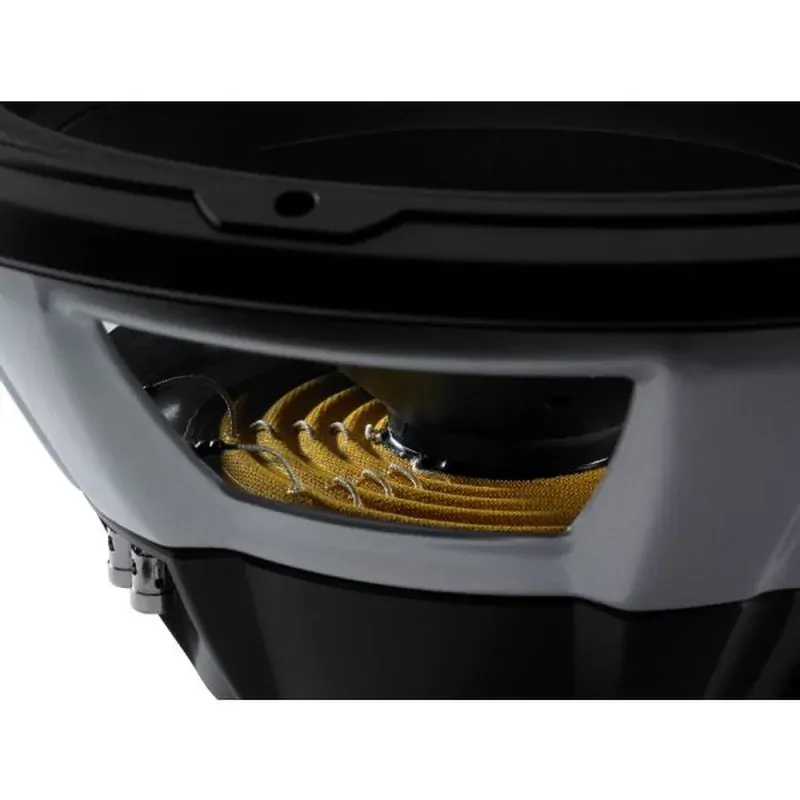

Sometimes, bigger is better... For these situations, the 15W0v3 offers excellent excursion capability, linearity and an overall performance envelope that puts it right at the top of its price class. It features a very beefy 2.5 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability.

The 15W0v3 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a moderately sized 1.875 cu. ft. (53.1 l) sealed enclosure, or a 2.75 cu. ft. (77.88 l) ported enclosure.

Features

  • Continuous Power Handling (RMS): 500 W
  • Recommended Amplifier Power (RMS): 150 - 500 W
  • Nominal Impedance (Znom): 4 Ω
  • Nominal Diameter: 15.0 in / 380 mm
  • Overall Diameter (A): 15.5 in / 394 mm
  • Mounting Hole Diameter (B): 13.75 in / 349 mm
  • Bolt Hole Circle Diameter (C): 14.56 in / 370 mm
  • Motor Outer Diameter (D): 6.3 in / 160 mm
  • Mounting Depth (E): 7.15 in / 182 mm
  • Driver Displacement: 0.109 cu ft / 3.09 L
  • Net Weight: 15.8 lb / 7.2 kg
  • Free Air Resonance (Fs): 24.43 Hz
  • Electrical “Q” (Qes): 0.508
  • Mechanical “Q” (Qms): 9.474
  • Total Speaker “Q” (Qts): 0.482
  • Equivalent Compliance (Vas): 5.106 cu ft / 144.60 L
  • One-Way Linear Excursion (Xmax)*: 0.50 in / 12.7 mm
  • Reference Efficiency (no): 0.18%
  • Efficiency (1 W / 1 m)**: 88.20 dB SPL
  • Effective Piston Area (Sd): 122.317 sq in / 0.0789 sq m
  • DC Resistance (Re): 3.555 Ω
More Information
Woofer Diameter (mm) 380mm
Woofer Diameter (Inch) 15 Inch
Mounting Diameter 349mm
Shallow Mount No
Woofer Mounting Depth 182mm
RMS Power 500WRMS
Voice Coil Single Voice Coil
Impedance 4 Ohm
Sensitivity (dB) 88.2dB
Sealed Box Volume 1.875 cu/ft (53.1-litres)
SKU 15W0V3-4
Brand JL AUDIO
