All-around performance in small enclosures at medium power levels.
W3v3 subwoofers offer phenomenal performance in medium power applications, without requiring a large enclosure.
This latest generation of W3 drivers benefits from a whole suite of advanced technologies originally developed for our flagship W7 subwoofers. A DMA-optimized motor system permits long, linear excursion capabilities, with minimal distortion and increased output, while multiple patented technologies enhance performance and reliability. These advances make these W3’s the best sounding, most reliable yet.
A mineral-filled, polypropylene, upper cone body with a metallic JL Audio logo medallion provides a simple, classy look. A removable (and customizable) mounting flange trim ring receives grille-mesh inserts (sold separately) directly, without the need for additional grille hardware.
All W3v3 subwoofers are built to exacting quality standards in our Miramar, Florida factory with global components and are offered in five sizes, ranging from 6.5-inch to 13.5-inch nominal diameters.

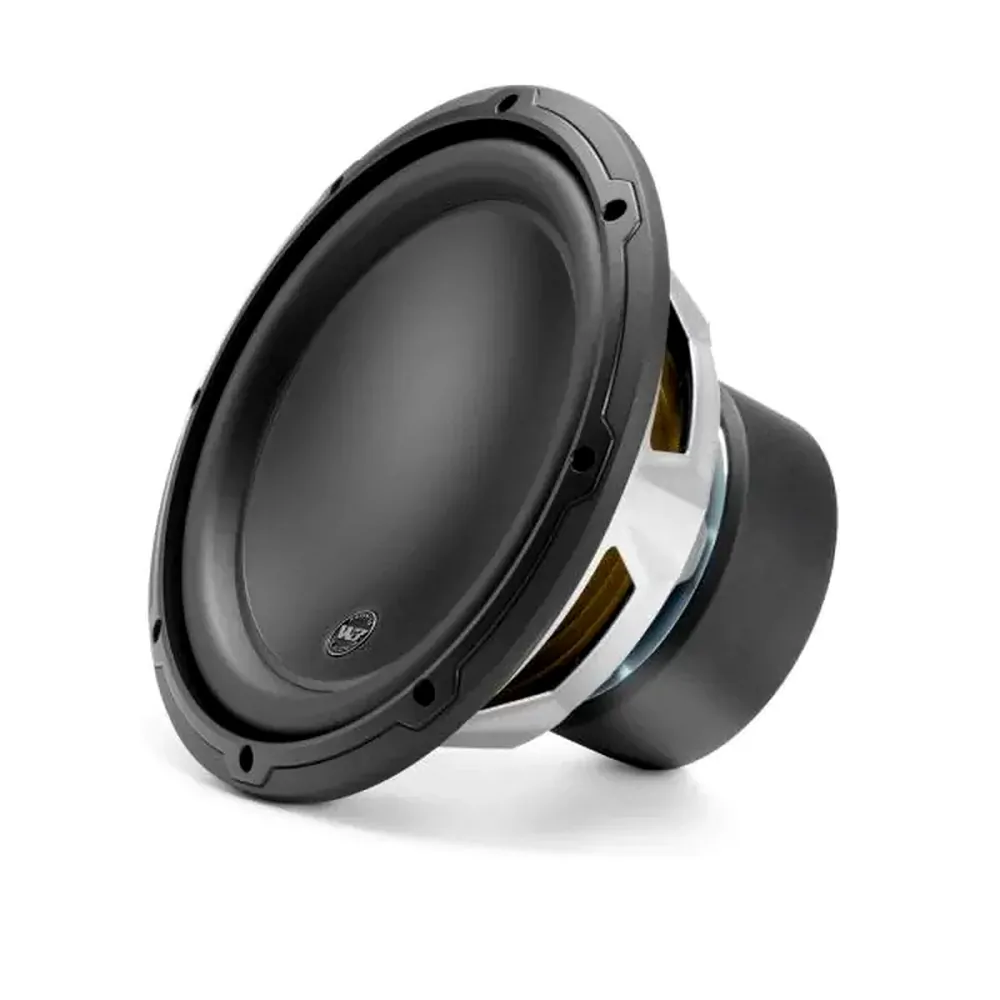

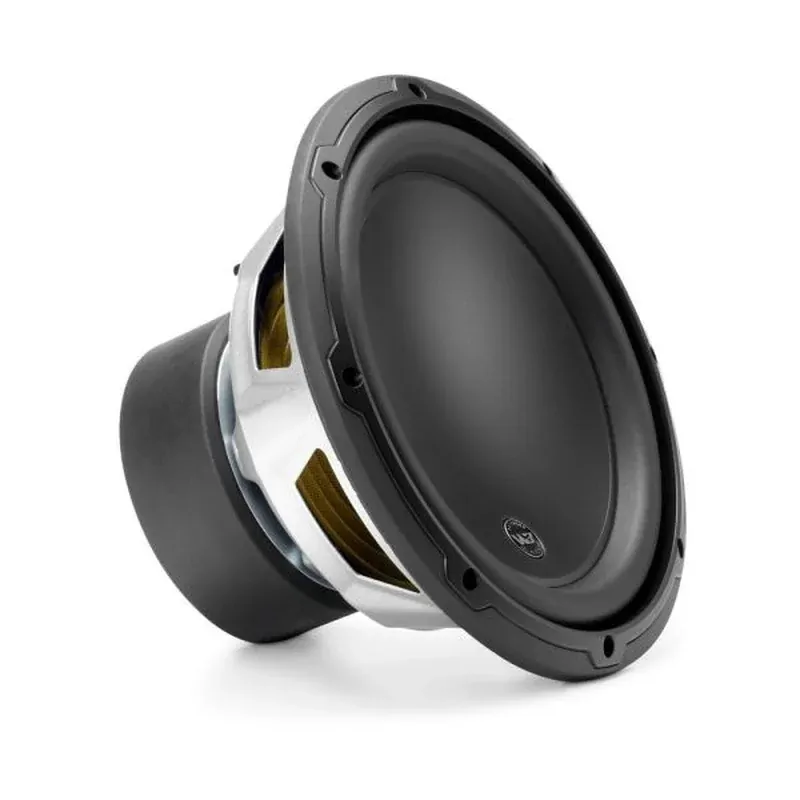

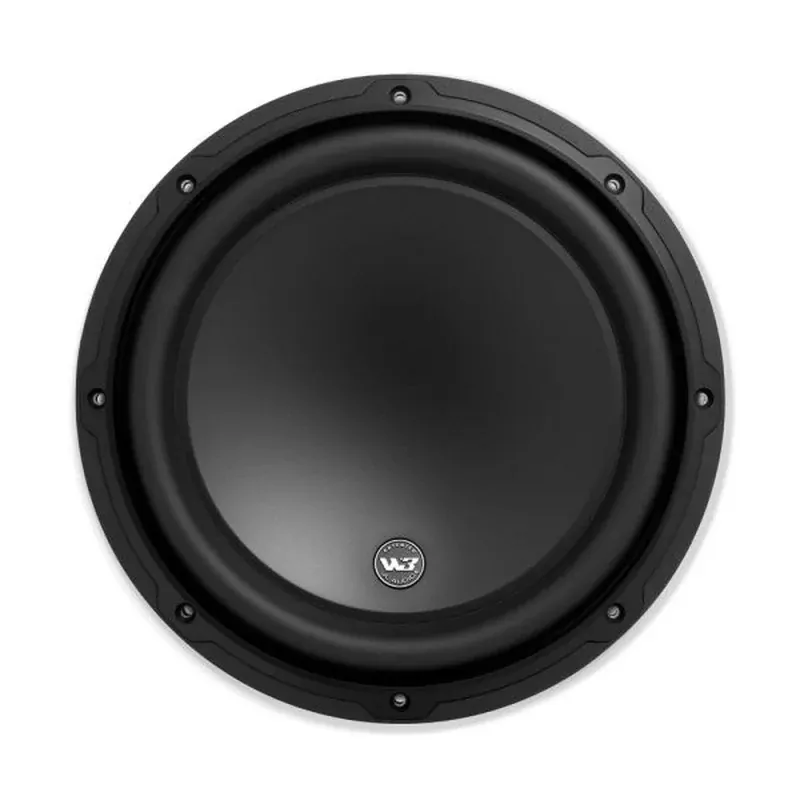

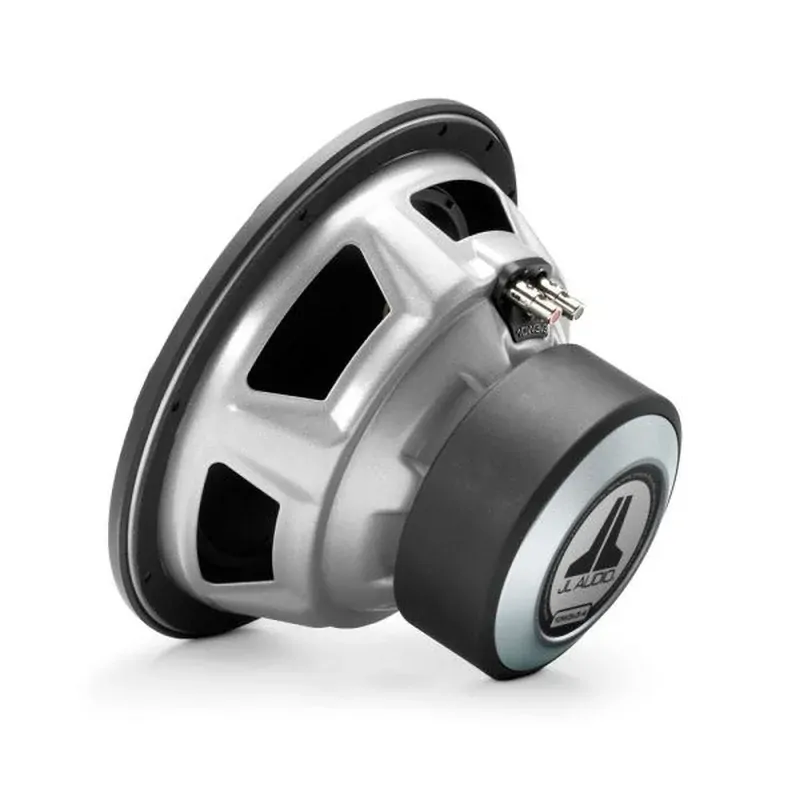

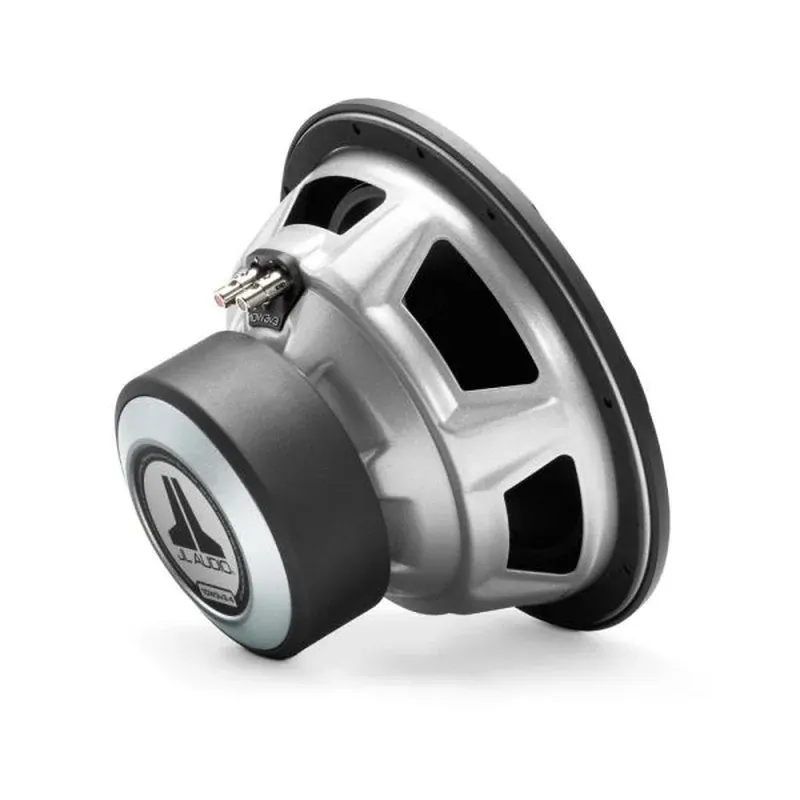

W3v3 10-inch Subwoofer (500 W, 2 ?)
This acclaimed Subwoofer strikes an outstanding balance in power handling, enclosure requirements and excursion to deliver excellent results in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 10W3v3 to enhance linearity and reliability.
The 10W3v3-2 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 0.625 cu. ft. (17.7 l) sealed enclosure, or a 1.25 cu. ft. (35.4 l) ported enclosure.
Features
- Continuous Power Handling (RMS): 500 W
- Recommended Amplifier Power (RMS): 150- 500 W
- Nominal Impedance (Znom): 2 Ω
- Nominal Diameter: 10.0 in / 250 mm
- Overall Diameter (A): 10.5 in / 267 mm
- Mounting Hole Diameter (B): 9.0625 in / 230 mm
- Bolt Hole Circle Diameter (C): 9.7 in / 246.5 mm
- Motor Outer Diameter (D): 5.25 in / 133 mm
- Mounting Depth (E): 5.93 in / 151 mm
- Driver Displacement: 0.049 cu ft / 1.39 L
- Net Weight: 12.25 lb / 5.56 kg
- Free Air Resonance (Fs): 32.97 Hz
- Electrical “Q” (Qes): 0.533
- Mechanical “Q” (Qms): 7.027
- Total Speaker “Q” (Qts): 0.495
- Equivalent Compliance (Vas): 1.136 cu ft / 32.17 L
- One-Way Linear Excursion (Xmax)*: 0.550 in / 14.0 mm
- Reference Efficiency (no): 0.21%
- Efficiency (1 W / 1 m)**: 85.37 dB SPL
- Effective Piston Area (Sd): 53.475 sq in / 0.0345 sq m
- DC Resistance (Re): 1.70 Ω
Woofer Diameter (mm) | 250mm |
---|---|
Woofer Diameter (Inch) | 10 Inch |
Mounting Diameter | 230mm |
Shallow Mount | No |
Woofer Mounting Depth | 151mm |
RMS Power | 500WRMS |
Voice Coil | Single Voice Coil |
Impedance | 2 Ohm |
Sensitivity (dB) | 85.37dB |
Sealed Box Volume | 0.625 cu/ft (17.7-litres) |
SKU | 10W3V3-2 |
Brand | JL AUDIO |
