All-around performance in small enclosures at medium power levels.
W3v3 subwoofers offer phenomenal performance in medium power applications, without requiring a large enclosure.
This latest generation of W3 drivers benefits from a whole suite of advanced technologies originally developed for our flagship W7 subwoofers. A DMA-optimized motor system permits long, linear excursion capabilities, with minimal distortion and increased output, while multiple patented technologies enhance performance and reliability. These advances make these W3’s the best sounding, most reliable yet.
A mineral-filled, polypropylene, upper cone body with a metallic JL Audio logo medallion provides a simple, classy look. A removable (and customizable) mounting flange trim ring receives grille-mesh inserts (sold separately) directly, without the need for additional grille hardware.
All W3v3 subwoofers are built to exacting quality standards in our Miramar, Florida factory with global components and are offered in five sizes, ranging from 6.5-inch to 13.5-inch nominal diameters.

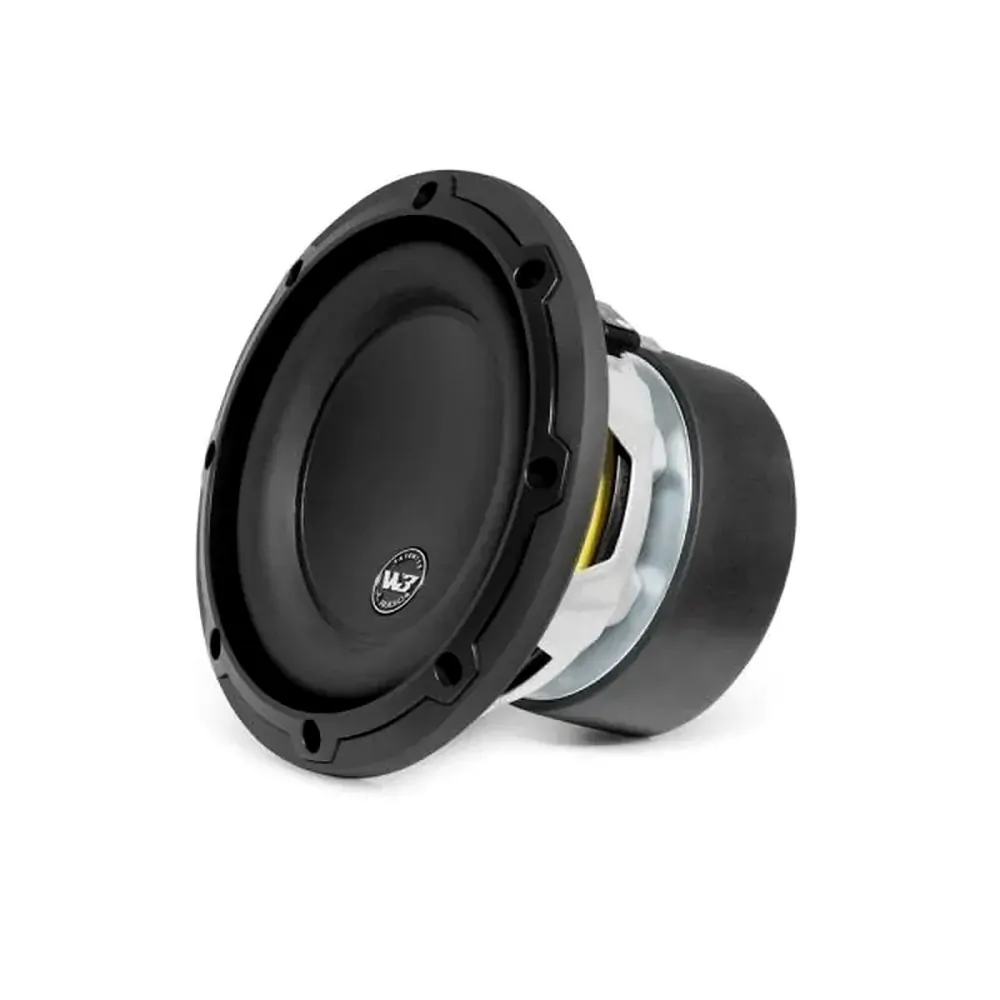

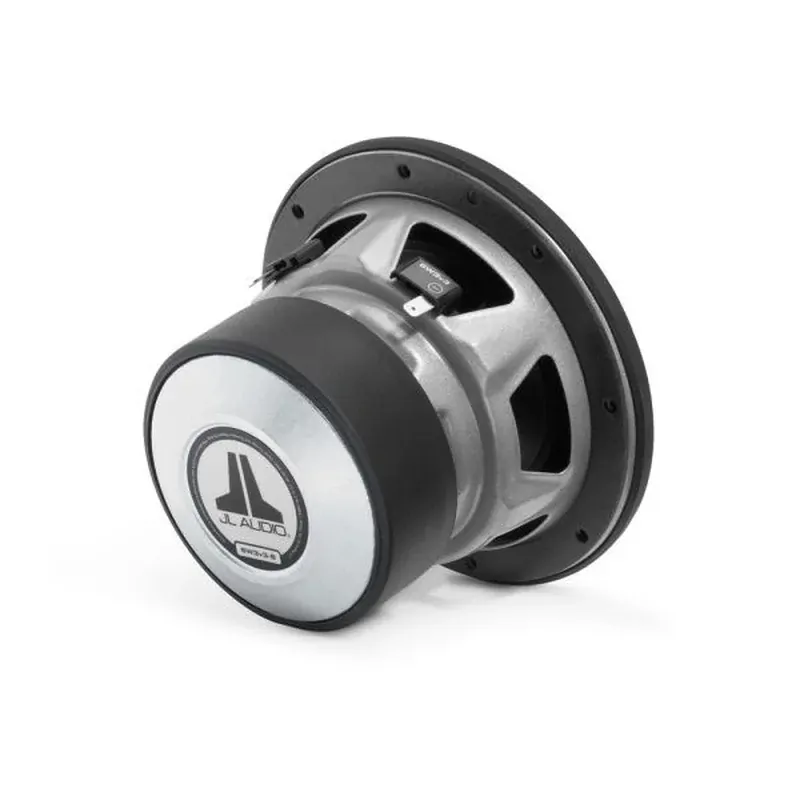

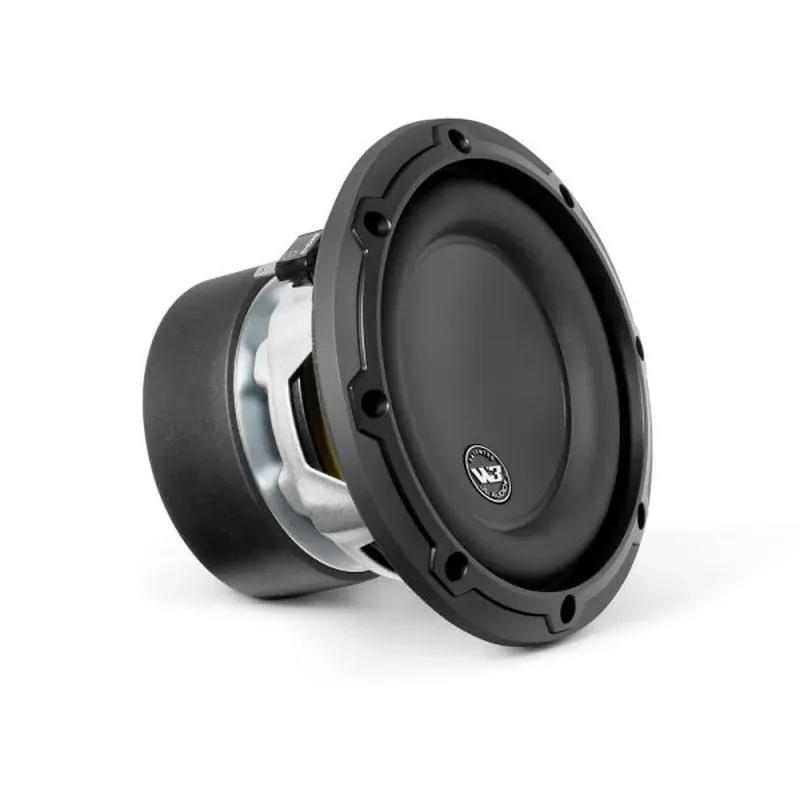

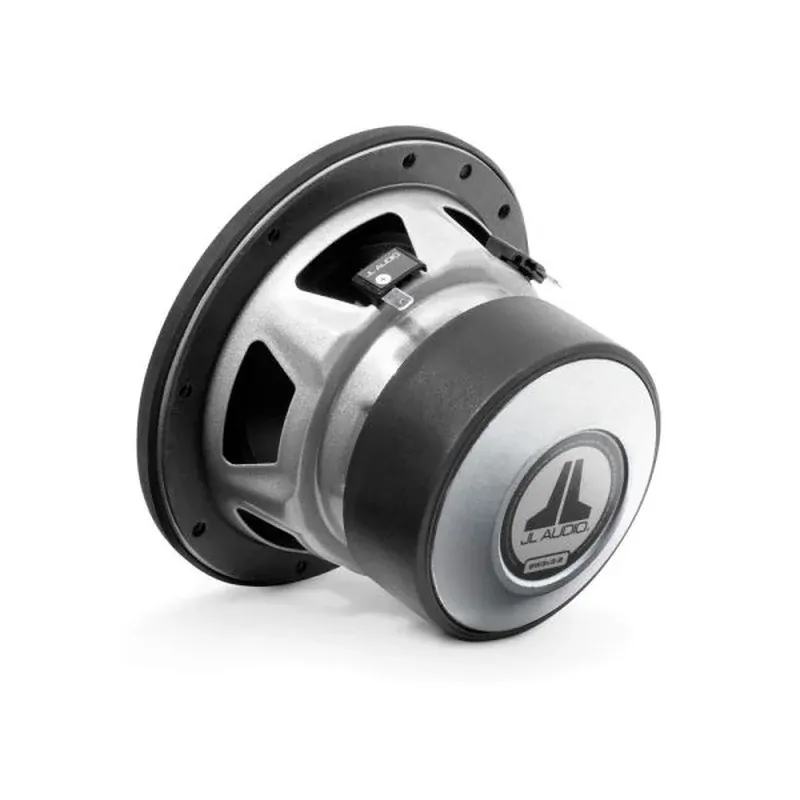

W3v3 6.5-inch Subwoofer (150 W, 4 ?)
If you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.
The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. (7.1 l) ported enclosure.
Features
- Continuous Power Handling (RMS): 150 W
- Recommended Amplifier Power (RMS): 50 - 150 W
- Nominal Impedance (Znom): 4 Ω
- Nominal Diameter: 6.5 in / 165 mm
- Overall Diameter (A): 6.85 in / 174 mm
- Mounting Hole Diameter (B): 5.5 in / 140 mm
- Bolt Hole Circle Diameter (C): 6.125 in / 156 mm
- Motor Outer Diameter (D): 4.25 in / 108 mm
- Mounting Depth (E): 4.25 in / 108 mm
- Driver Displacement: 0.02 cu ft / 0.57 L
- Net Weight: 6.1 lb / 2.8 kg
- Free Air Resonance (Fs): 41.80 Hz
- Electrical “Q” (Qes): 0.533
- Mechanical “Q” (Qms): 11.027
- Total Speaker “Q” (Qts): 0.508
- Equivalent Compliance (Vas): 0.181 cu ft / 5.13 L
- One-Way Linear Excursion (Xmax)*: 0.35 in / 8.89 mm
- Reference Efficiency (no): 0.07%
- Efficiency (1 W / 1 m)**: 80.49 dB SPL
- Effective Piston Area (Sd): 17.36 sq in / 0.0112 sq m
- DC Resistance (Re): 3.476 Ω
Woofer Diameter (mm) | 165mm |
---|---|
Woofer Diameter (Inch) | 6.5 Inch |
Mounting Diameter | 140mm |
Shallow Mount | No |
Woofer Mounting Depth | 108mm |
RMS Power | 150WRMS |
Voice Coil | Single Voice Coil |
Impedance | 4 Ohm |
Sensitivity (dB) | 80.49dB |
Sealed Box Volume | 0.15 cu/ft (4.2-litres) |
SKU | 6W3V3-4 |
Brand | JL AUDIO |
