JL Audio XDM Series 2-Channel Class-D Amplifier 200W XDM200/2
SKU:XDM2002
2-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 2 @ 2 Ω / 75 W x 2 @ 4 Ω - 14.4V
The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD).The technology that makes this much power possible in such a compact chassis is our advanced NexD high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.
Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM200/2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or cockpit.

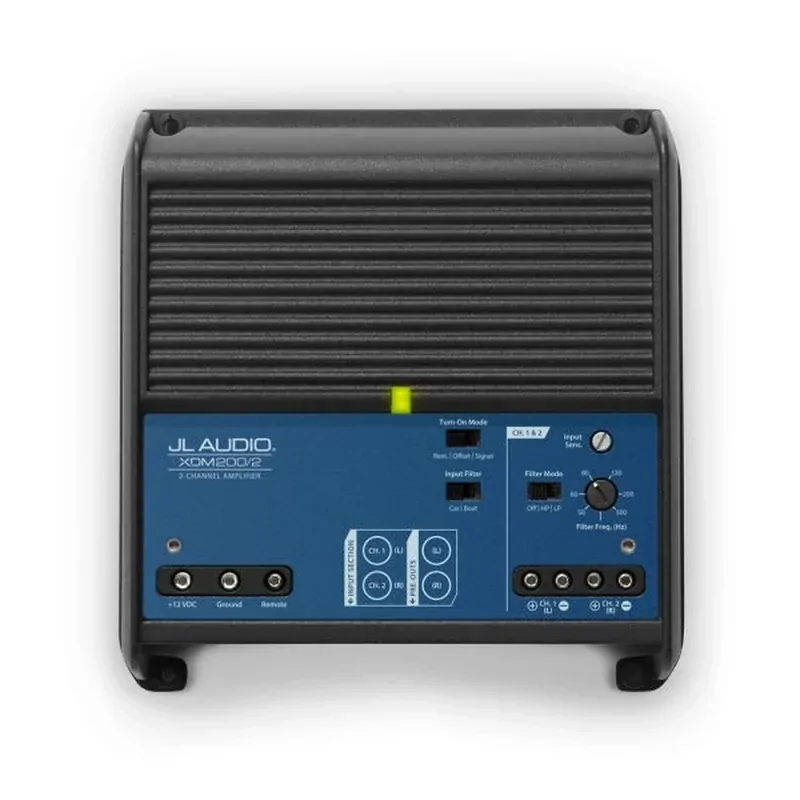

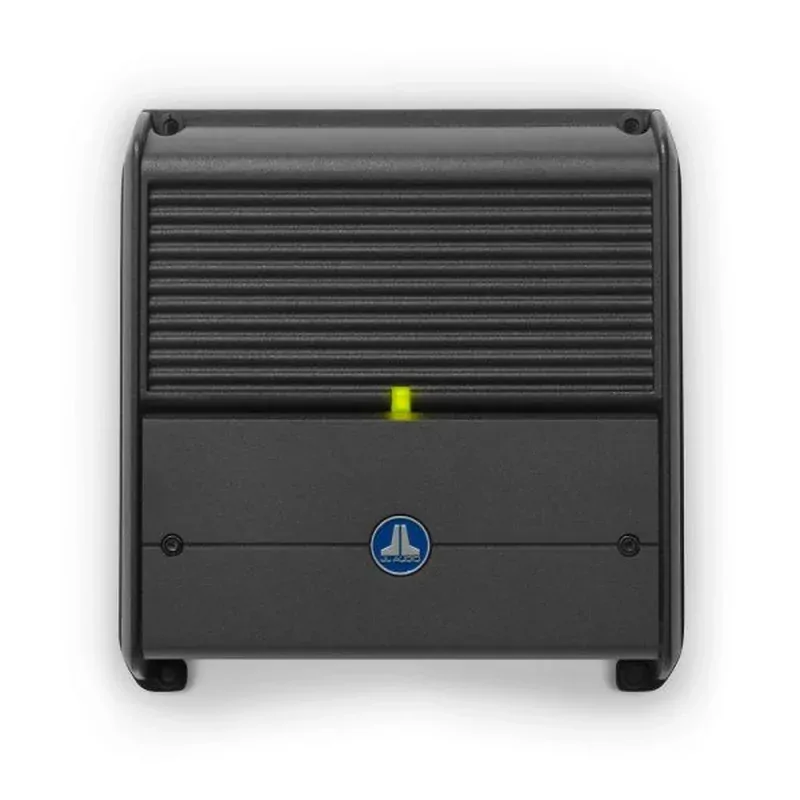

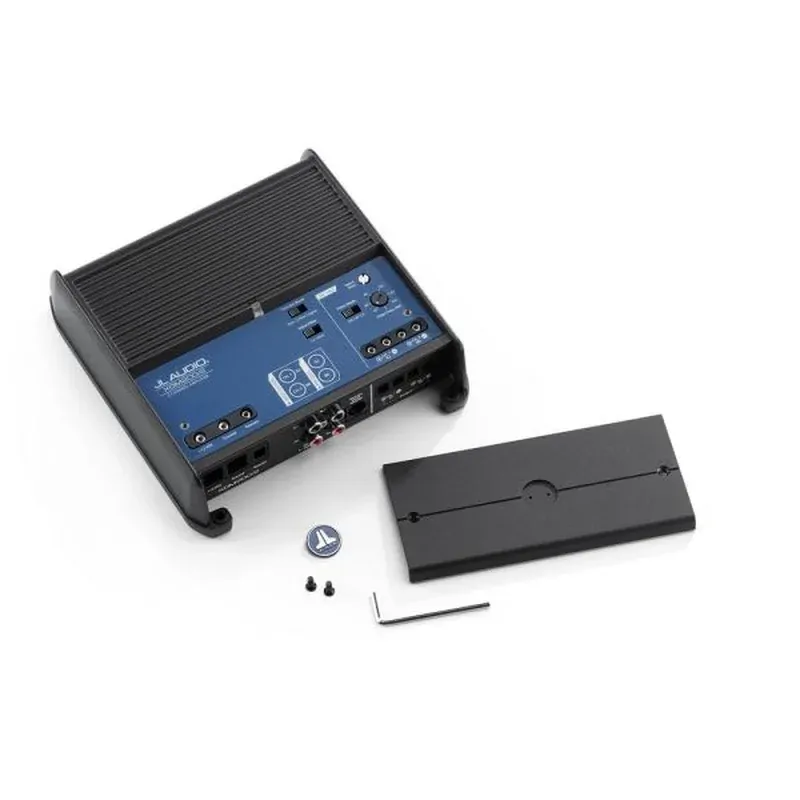

Finished in a sleek, black powder-coat, all controls are protected beneath agasketed, removable top cover for easy access.
Features
- Rated Continuous (RMS) Power @ 14.4 V @ 4 Ω: 75 W RMS x 2
- Rated Continuous (RMS) Power @ 14.4 V @ 2 Ω: 100 W RMS x 2
- Rated Continuous (RMS) Power @ 14.4 V Bridged @ 4Ω: 200 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V @ 4 Ω: 60 W RMS x 2
- Rated Continuous (RMS) Power @ 12.5 V @ 2 Ω: 90 W RMS x 2
- Rated Continuous (RMS) Power @ 12.5 V Bridged @ 4Ω: 180 W RMS x 1
- Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω: >150 / 50 Hz
- Damping Factor @ 2 Ω: >75 / 50 Hz
- THD+N @ Rated Power: <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
- Min.Copper Power / Ground Wire Gauge: 8 AWG wire
- Fuse Rating: 20 A (AFS, AGU or MaxiFuse™)
- Filter Mode(s): Low-Pass or High-Pass
- Filter Slope(s): 12 dB/octave
- Filter Frequency Range: 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometer: Yes
- Filter Defeat Function: Yes
- Remote Level Control: Optional HD-RLC or MHD-RLC (water-resistant)
- Security Cover for Controls: Yes
- Pass-Through Preamp Output: Buffered
- Height (H): 2.05 in / 52 mm
- Width (W): 6.85 in / 174 mm
- Depth (D): 7.09 in / 180 mm
- Net Weight: 3.75 lb / 1.70 kg
| Channels | 2 Channel |
|---|---|
| RMS Power @ 4 Ohm | 75W x 2 or 200W x 1 |
| RMS Power @ 2 Ohm | 100W x 2 |
| RMS Power @ 1 Ohm | N/A |
| Crossover Channel 1/2 | HP/LP 50-500Hz @ 12dB/oct |
| Subsonic Filter | No |
| Bass Boost | No |
| Speaker Level Input | Yes (via RCA) |
| Auto Turn-On | Yes |
| Remote Sub Controller | Optonal (HD-RLC or MHD-RLC) |
| Dimensions | 52 x 174 x 180mm |
| SKU | XDM2002 |
| Brand | JL AUDIO |
