JL Audio XDM Series Monoblock Class-D Subwoofer Amplifier 600W XDM600/1
SKU:XDM6001
Monoblock Class D Car/Marine Subwoofer Amplifier, 600 W x 1 @ 2 Ω / 400 W x 1 @ 4 Ω - 14.4V
This potent monoblock amplifier employs our high-speed NexD switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don't let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD).
Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz.With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately),the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.

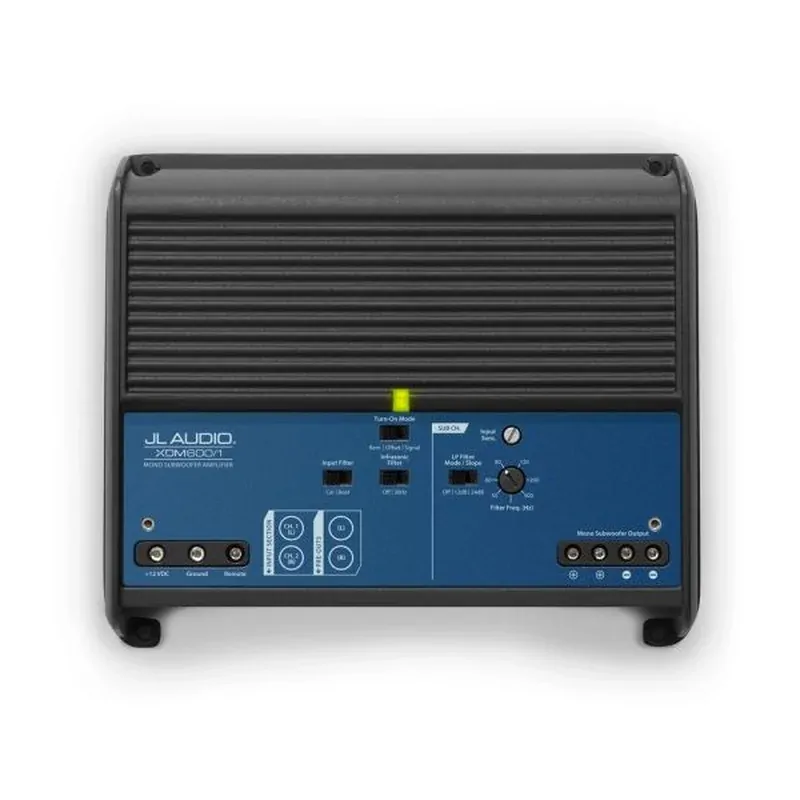

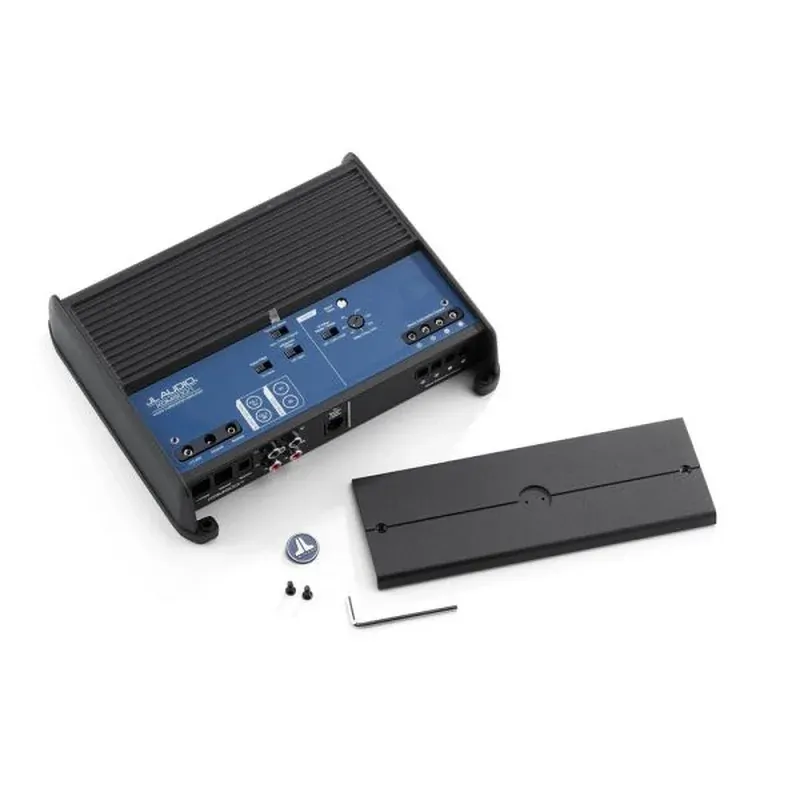

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Features
- Rated Continuous (RMS) Power @ 14.4 V @ 4 Ω: 400 W RMS x 1
- Rated Continuous (RMS) Power @ 14.4 V @ 3 Ω: 500 W RMS x 1
- Rated Continuous (RMS) Power @ 14.4 V @ 2 Ω: 600 W RMS x 1
- Rated Continuous (RMS) Power @ 14.4 V @ 1.5 Ω: N/A
- Rated Continuous (RMS) Power @ 12.5 V @ 4 Ω: 300 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V @ 3 Ω: 400 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V @ 2 Ω: 500 W RMS x 1
- Rated Continuous (RMS) Power @ 12.5 V@ 1.5 Ω: N/A
- Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W: >67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω: >1000 / 50 Hz
- Damping Factor @ 2 Ω: >500 / 50 Hz
- THD+N @ Rated Power: <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
- Min.Copper Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
- Filter Mode(s): Low-Pass only
- Filter Slope(s): 12/24 dB/octave
- Filter Frequency Range: 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometer: Yes
- Filter Defeat Function: Yes
- Infrasonic Filter: 30 Hz, defeatable
- Bass Boost EQ: No
- Output Polarity Switch: No
- Remote Subwoofer Level Control: Optional HD-RLC or MHD-RLC (water-resistant)
- Remote Bass EQ Boost Control: No
- Pass-Through Preamp Output: Buffered
- Height (H): 2.05 in / 52 mm
- Width (W): 8.52 in / 216 mm
- Depth (D): 7.09 in / 180 mm
- Net Weight: 6.3 lb / 2.86 kg
| Channels | 1/MONO |
|---|---|
| RMS Power @ 4 Ohm | 400W x 1 |
| RMS Power @ 2 Ohm | 600W x 1 |
| RMS Power @ 1 Ohm | N/A |
| Crossover Channel 1/2 | LP 50-500Hz @ 12 or 24dB/oct |
| Subsonic Filter | 30Hz |
| Bass Boost | No |
| Speaker Level Input | Yes (via RCA) |
| Auto Turn-On | Yes |
| Remote Sub Controller | Optonal (HD-RLC or MHD-RLC) |
| Dimensions | 52 x 216 x 180mm |
| SKU | XDM6001 |
| Brand | JL AUDIO |
