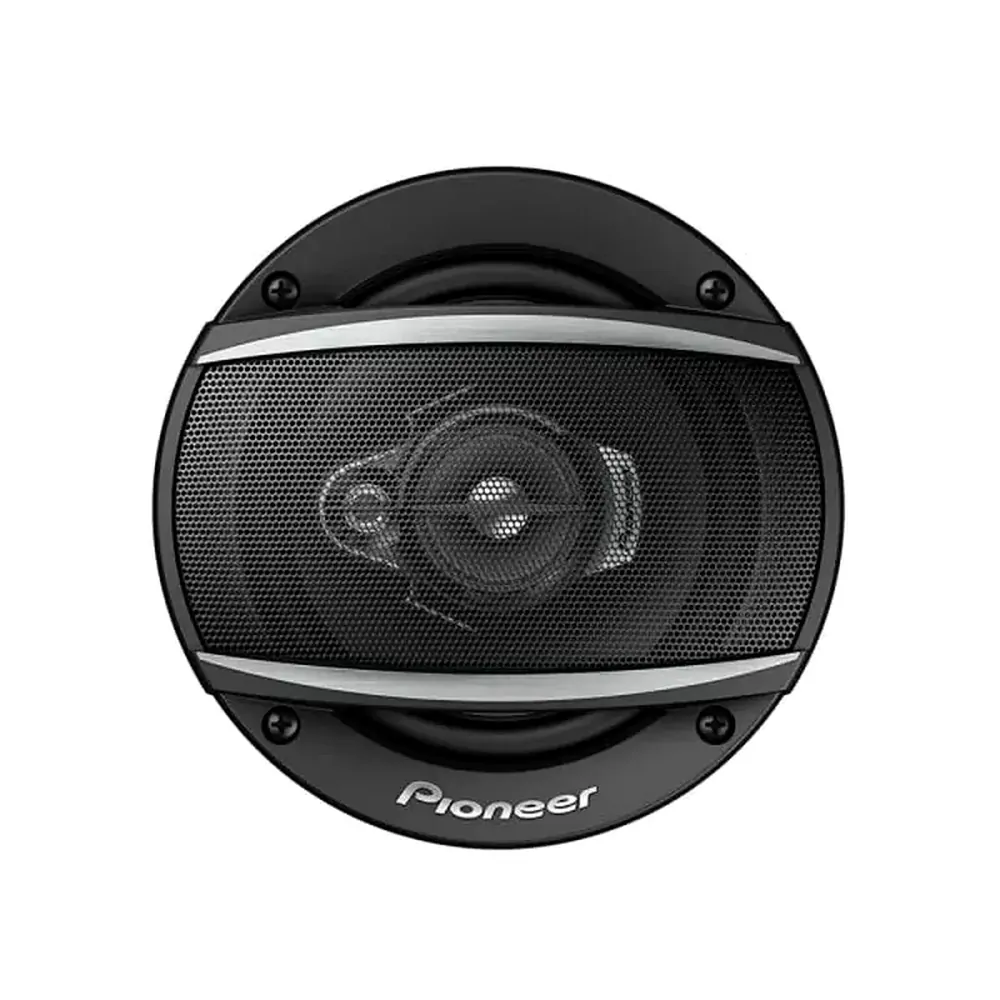

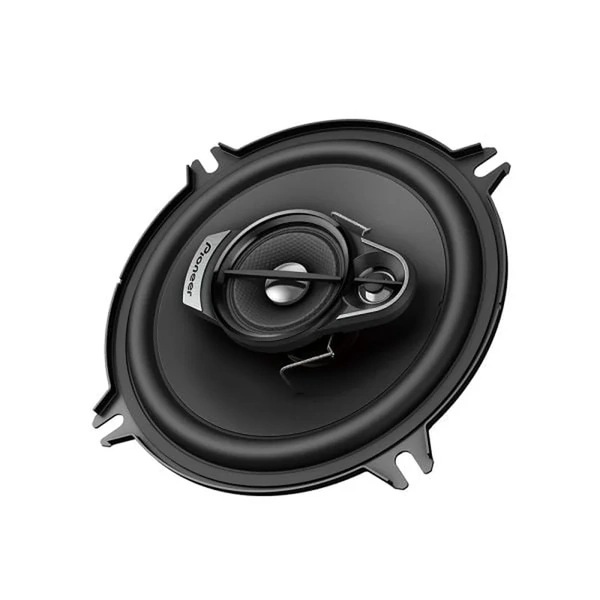

Pioneer TS-A1370F 5" (129mm) 3-way Speakers

SKU:TS-A1370F

$140.00


Calculate Shipping

Pioneer’s next generation of TS-A series speakers offer Carbon & Mica reinforced IMPP cone. This combined with a new magnetic circuit and long symmetrical voice coil make both rich deep bass and low distortion possible.

Newly designed speaker adapters offer a wide range of installation options and help to ensure a well-controlled sound. A design change has been applied which also removes the lead wire connection from the speaker face, giving a new clean look and reduces the risk of shorts and signal noise.

IMPP Cone Construction

Carbon & Mica reinforced IMPP cone for deeper and richer bass response.

Pioneer’s Sound Concept “Open & Smooth”™

The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.

MAIN FEATURES

Size: 5" (129mm) 3-Way
Max Music Power (Nominal): 300W MAX (50W Nom)
Frequency Response: 40Hz - 36kHz (-20dB)
Sensitivity: 87dB (±1.5dB)(1W/1m)
Impedance: 4Ω
Mounting Depth: 52mm
High Res Certified: No
Cut Out Dimensions: 121mm
Surround Material: Elastic Polymer
Woofer Magnet Material: Y-30
Woofer Basket Material: Metal
Woofer Magnet Weight: 220g
Woofer Cone Material: IMPP Composite
Tweeter Type: PIEZOELECTRIC
Tweeter Diaphragm Material: PET (t=75µm)

Features

  • 5” (129mm) 3-way Speaker System
  • 300 Watts Max Power (50 Watts Nom)
  • New Carbon & Mica reinforced IMPP Cone Design
  • Pioneer “Open & Smooth”™ Sound Concept

More Information

More Information
Pair or Single Pair
Speaker Type Co-axial
Speaker Setup 3-Way
Woofer Diameter (mm) 130mm
Woofer Diameter (Inch) 5.25 Inch
Woofer Mounting Depth 52mm
Tweeter Diameter (mm) 11mm
Tweeter Diameter (Inch) 0.43 Inch
RMS Power 50W
Impedance 4 Ohm
Grilles Included Included
Sensitivity (dB) 87dB
Frequency Response 40Hz - 36kHz
SKU TS-A1370F
Brand PIONEER
