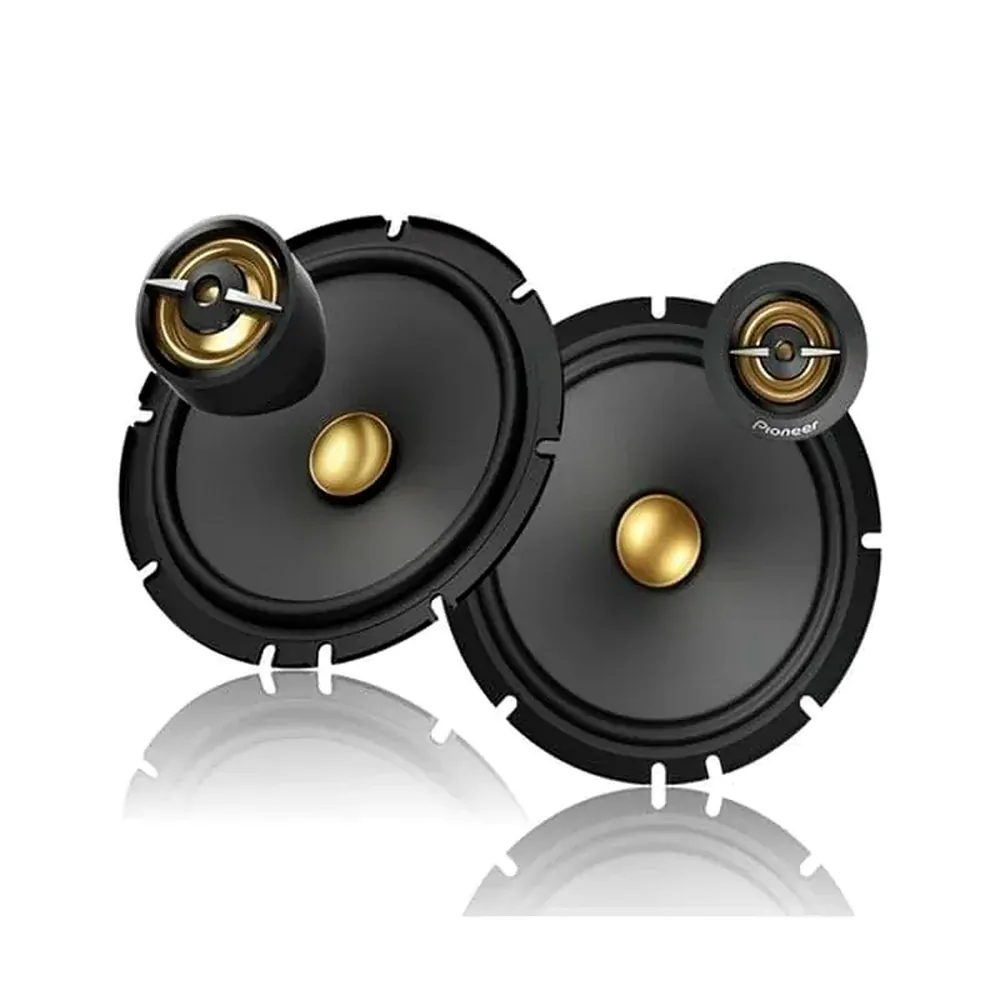

Pioneer’s latest generation of TS-A series speakers support the following features:
- Carbon & Mica reinforced IMPP cone construction for fast and deep bass response.
- A specially designed tweeter diaphragm to provide clear mid-range and highs with low distortion.
Designed to meet Pioneer’s “Open & Smooth” sound concept, these speakers are designed to perform at a wides range of audio frequencies, providing the listener with an “Open” (wide) sound staging and “Smooth” transition. With over 80 years of experience designing and manufacturing loudspeakers, we are confident you will enjoy the experience.

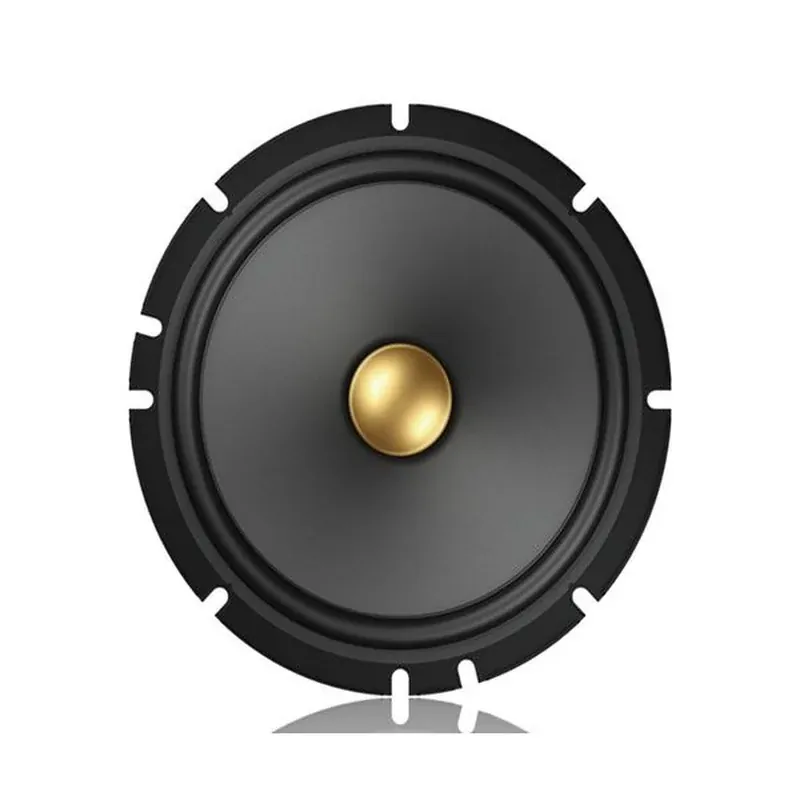

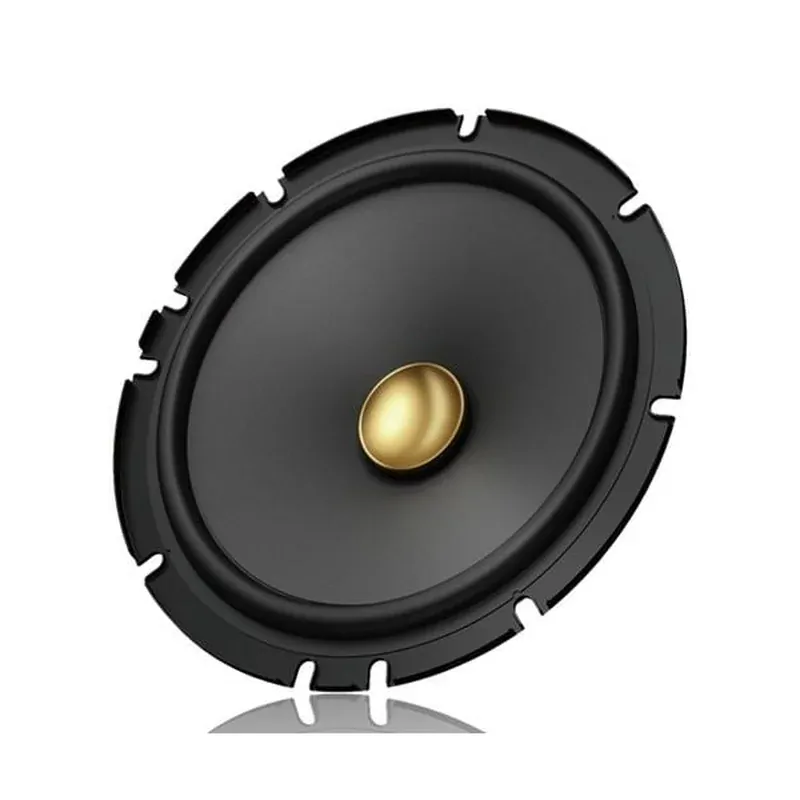

IMPP CONE CONSTRUCTION
Carbon & Mica reinforced IMPP cone for deeper and richer bass response.
PIONEER’S “OPEN & SMOOTH” SOUND CONCEPT
The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.
EASY INSTALLATION
Included with the component system are 6×9″ multi-fit installation adaptors that expand flexibility and improve acoustic performance and also included are tweeter mounts for surface mounting, flush mounting and specially designed multi-fit adaptors for mounting in original equipment (OE) tweeter locations. With the integrated/in-line crossover network, you increase installation flexibility without the need of a large external crossover.
EV OPTIMIZED
The TS-A6901C speakers are the perfect addition for increased sound quality in your electric vehicle! High-efficiency with a sensitivity rating of 92dB, these speakers will not only provide optimal audio quality but are also designed to produce deep bass with minimal input.
Features
GENERAL
- Size 6.5"
- Design 6.5" 2-Way Component System
- Tweeter Design 20mm
- Tweeter Composition PEI
- Woofer Composition Carbon and mica reinforced IMPP
- Woofer Surround Elastic polymer
- Woofer Magnet Composition Neodymium
- Warranty 1 Year
INSTALLATION SPECIFICATION
- Max. Music Power (Nominal) 350W MAX (80W Nom)
- Frequency Response 33Hz - 58kHz (-20dB)
- Sensitivity (1W/1 m) 90dB
- Impedance 4Ω
- Mounting Depth 59mm
- Cut-Out Dimensions 144mm
- Grills Included No
More Information
Pair or Single | Pair |
---|---|
Speaker Type | Split Component |
Speaker Setup | 2-Way |
Woofer Diameter (mm) | 165mm |
Woofer Diameter (Inch) | 6.5 Inch |
Woofer Mounting Depth | 59mm |
Tweeter Diameter (mm) | 20mm |
Tweeter Diameter (Inch) | 0.8 Inch |
RMS Power | 80W |
Impedance | 4 Ohm |
Grilles Included | Included |
Sensitivity (dB) | 90dB |
Frequency Response | 33Hz - 58kHz |
SKU | TS-A1601C |
Brand | PIONEER |
