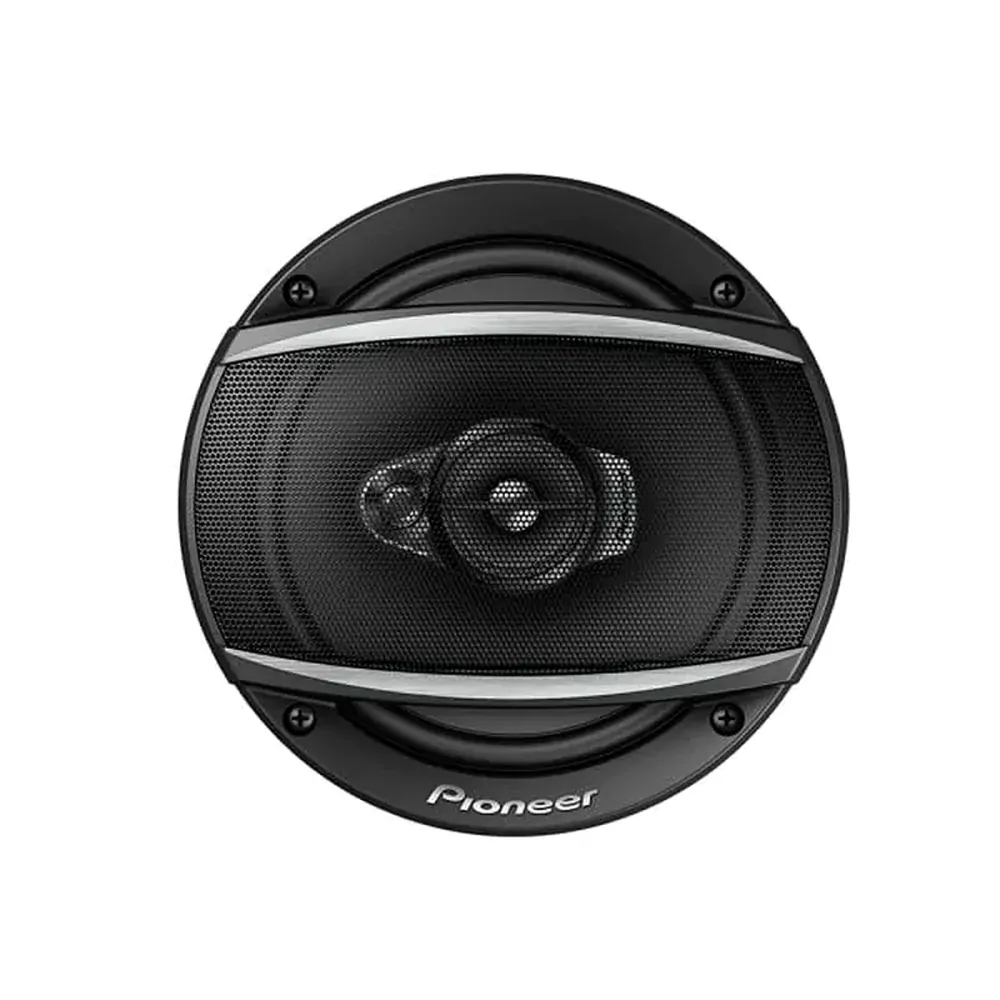

Pioneer TS-A1670F 6.5" 3-way Speakers

SKU:TS-A1670F

$145.00


Calculate Shipping

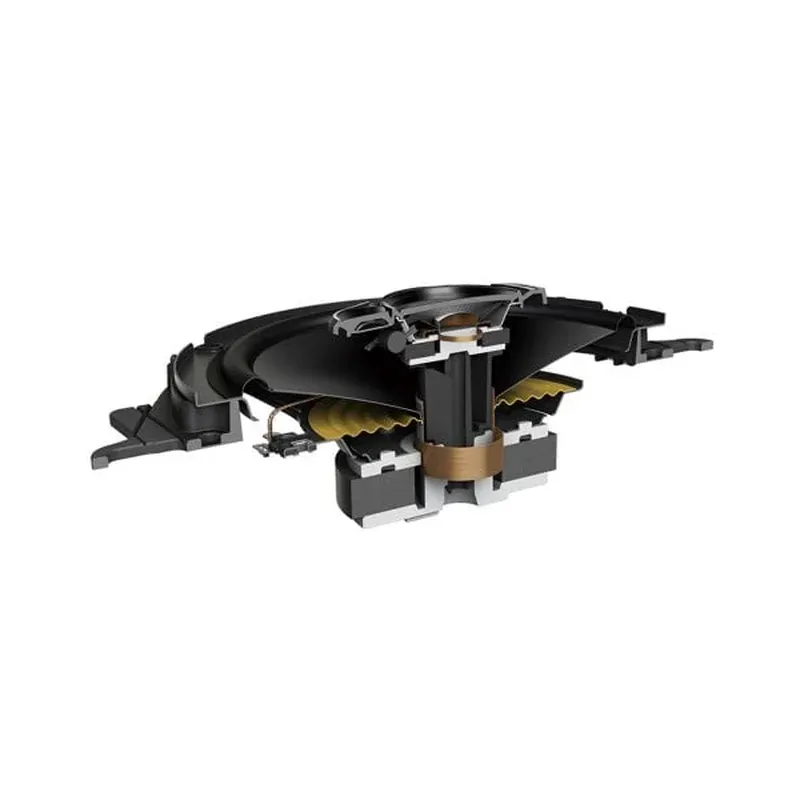

Pioneer’s next generation of TS-A series speakers offer Carbon & Mica reinforced IMPP cone. This combined with a new magnetic circuit and long symmetrical voice coil make both rich deep bass and low distortion possible.

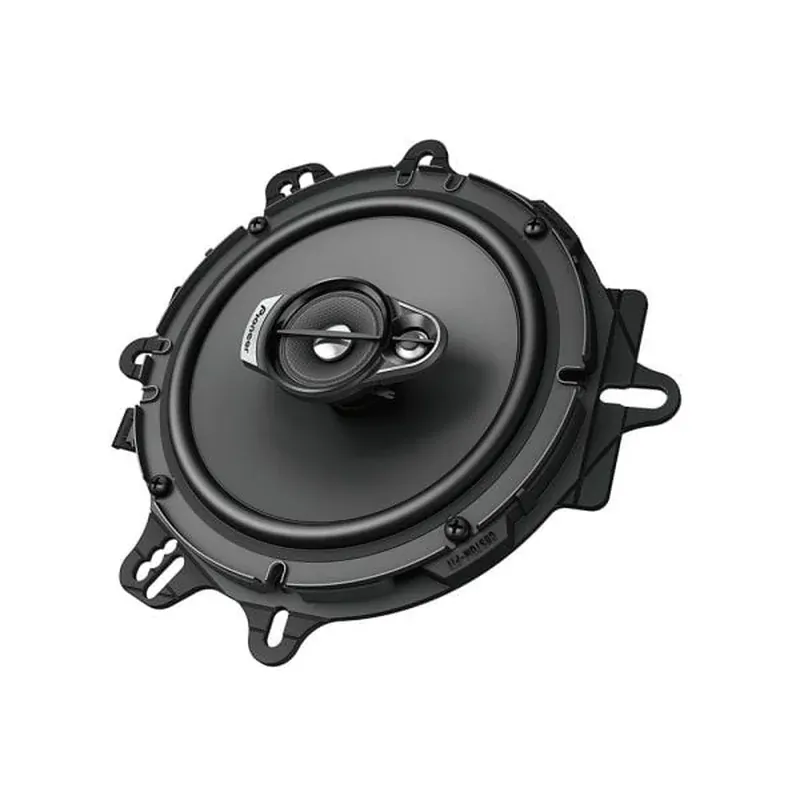

Newly designed speaker adapters offer a wide range of installation options and help to ensure a well-controlled sound. A design change has been applied which also removes the lead wire connection from the speaker face, giving a new clean look and reduces the risk of shorts and signal noise.

IMPP Cone Construction

Carbon & Mica reinforced IMPP cone for deeper and richer bass response.

Pioneer’s Sound Concept “Open & Smooth”™

The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.

MAIN FEATURES

Size: 6.5" (165mm) 3-Way
Max Music Power (Nominal): 320W MAX (70W Nom)
Frequency Response: 37Hz - 24kHz (-20dB)
Sensitivity: 87dB (±1.5dB)(1W/1m)
Impedance: 4Ω
Mounting Depth: 48mm
Mounting Depth with Mount Adapter: 38mm
High Res Certified: No
Cut Out Dimensions: 144mm
Surround Material: Elastic Polymer
Woofer Magnet Material: Y-30
Woofer Basket Material: Metal
Woofer Magnet Weight: 220g
Woofer Cone Material: IMPP Composite
Tweeter Type: PIEZOELECTRIC
Tweeter Diaphragm Material: (t=75µm)

Features

  • 6.5” 3-way Speaker System
  • 320 Watts Max Power (70 Watts Nom)
  • New Carbon & Mica reinforced IMPP Cone Design
  • Pioneer “Open & Smooth”™ Sound Concept
  • Newly designed speaker adapters included

More Information

More Information
Pair or Single Pair
Speaker Type Co-axial
Speaker Setup 3-Way
Woofer Diameter (mm) 165mm
Woofer Diameter (Inch) 6.5 Inch
Woofer Mounting Depth 48mm
Tweeter Diameter (mm) 11mm
Tweeter Diameter (Inch) 0.43 Inch
RMS Power 70W
Impedance 4 Ohm
Grilles Included Included
Sensitivity (dB) 87dB
Frequency Response 37Hz - 24kHz
SKU TS-A1670F
Brand PIONEER
