Pioneer TS-A6880F 6x8" 4-way Speakers

SKU:TS-A6880F

$145.00


Calculate Shipping

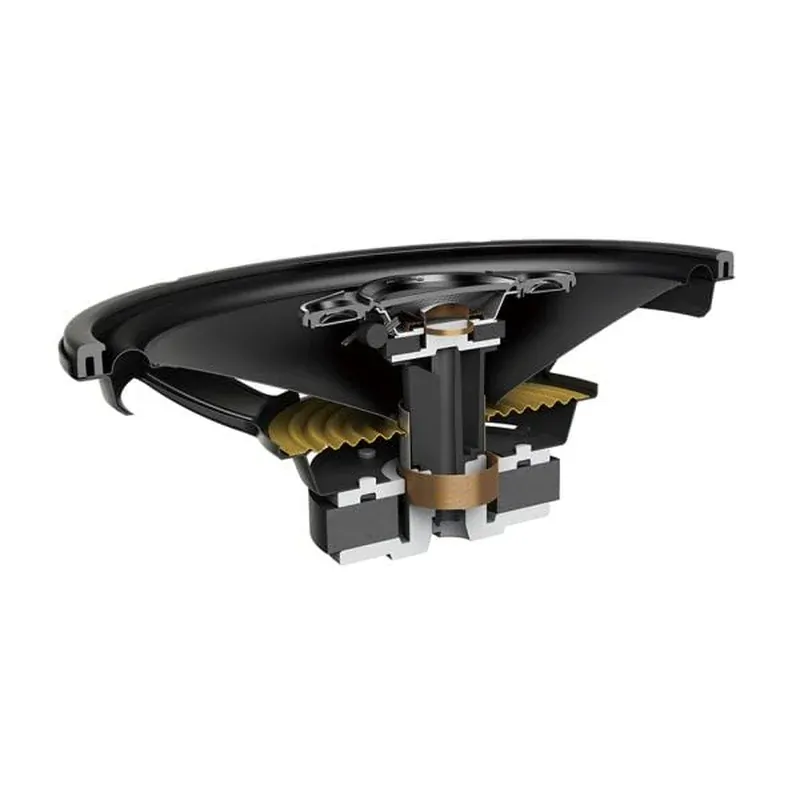

Pioneer’s next generation of TS-A series speakers offer Carbon & Mica reinforced IMPP cone. This combined with a new magnetic circuit and long symmetrical voice coil make both rich deep bass and low distortion possible.

Newly designed speaker adapters offer a wide range of installation options and help to ensure a well-controlled sound. A design change has been applied which also removes the lead wire connection from the speaker face, giving a new clean look and reduces the risk of shorts and signal noise.

IMPP Cone Construction

Carbon & Mica reinforced IMPP cone for deeper and richer bass response.

Pioneer’s Sound Concept “Open & Smooth”™

The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.

MAIN FEATURES

Size: 6 x 8" (145mm x 204mm) 4-Way
Max Music Power (Nominal): 350W MAX (80W Nom)
Frequency Response: 34Hz - 34kHz (-20dB)
Sensitivity: 88dB (±1.5dB)(1W/1m)
Impedance: 4Ω
Mounting Depth: 62mm
High Res Certified: No
Cut Out Dimensions: 133mm x 191mm
Surround Material Elastic: Polymer
Woofer Magnet Material: Y-30
Woofer Basket Material: Metal
Woofer Magnet Weight: 220g
Woofer Cone Material: IMPP Composite
Tweeter Type: PIEZOELECTRIC x 2
Tweeter Diaphragm Material: PET (t=75µm)

Features

  • 6 x 8” 4-way Speaker System
  • 350 Watts Max Power (80 Watts Nom)
  • New Carbon & Mica reinforced IMPP Cone Design
  • Pioneer “Open & Smooth”™ Sound Concept

More Information

More Information
Pair or Single Pair
Speaker Type Co-axial
Speaker Setup 4-Way
Woofer Diameter (mm) 160 x 203mm
Woofer Diameter (Inch) 6x8 Inch
Woofer Mounting Depth 62mm
Tweeter Diameter (mm) 11mm
Tweeter Diameter (Inch) 0.43 Inch
RMS Power 80W
Impedance 4 Ohm
Grilles Included Included
Sensitivity (dB) 88dB
Frequency Response 34Hz - 34kHz
SKU TS-A6880F
Brand PIONEER
