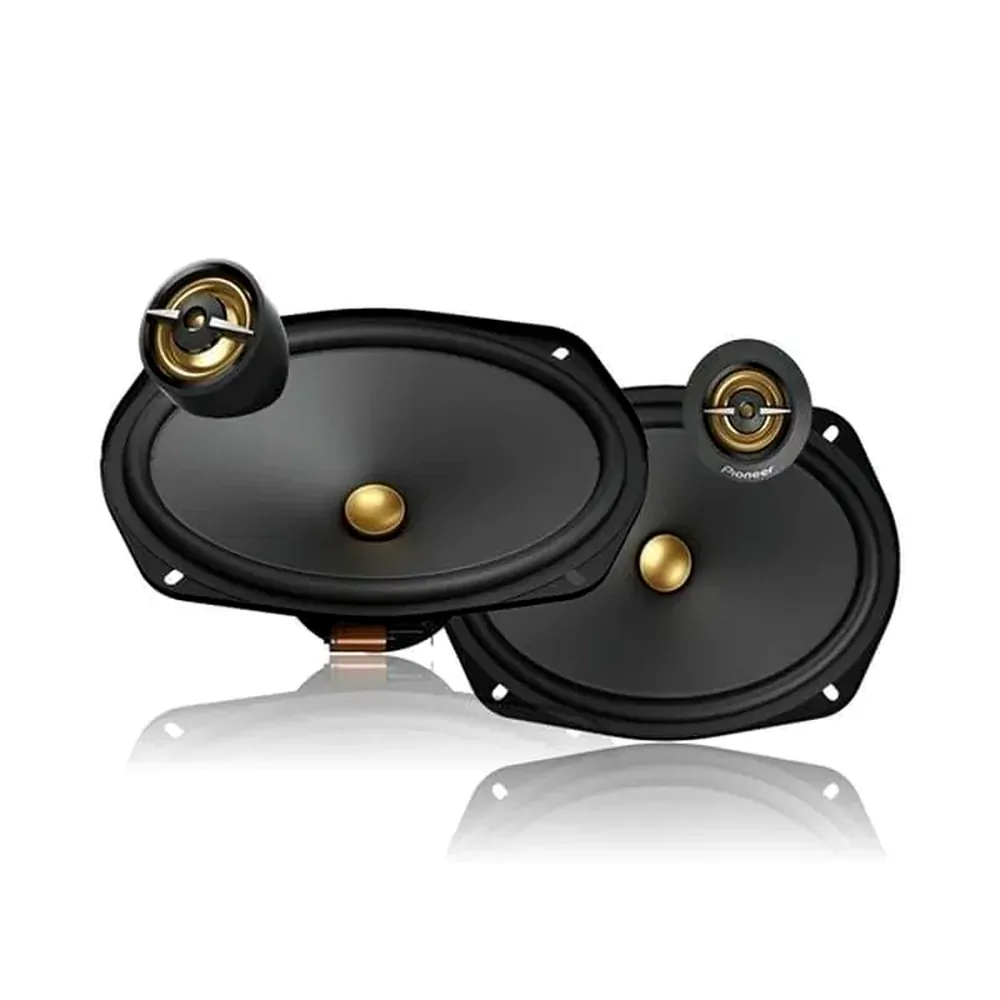

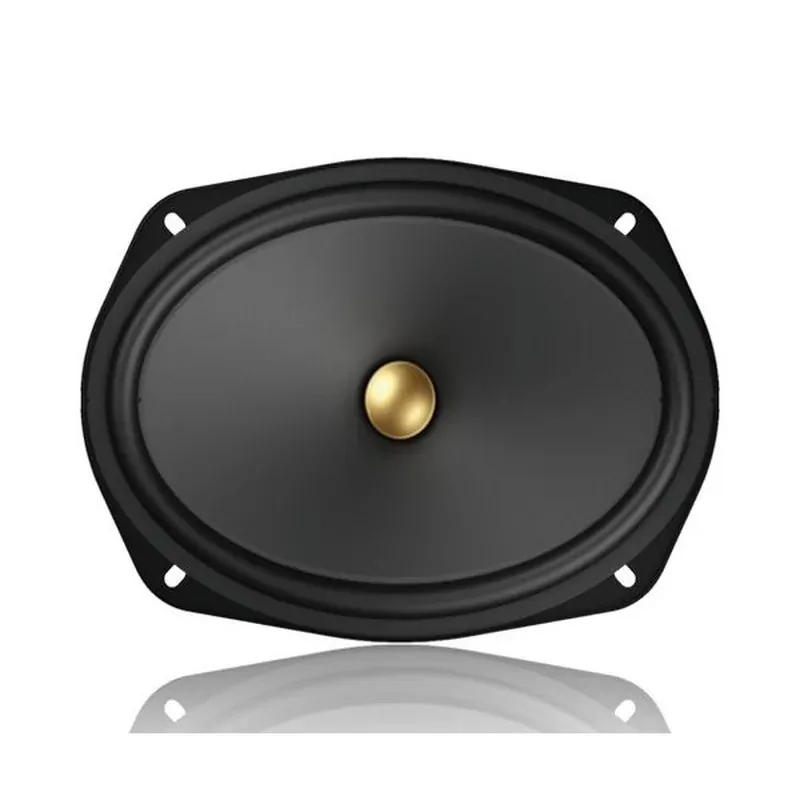

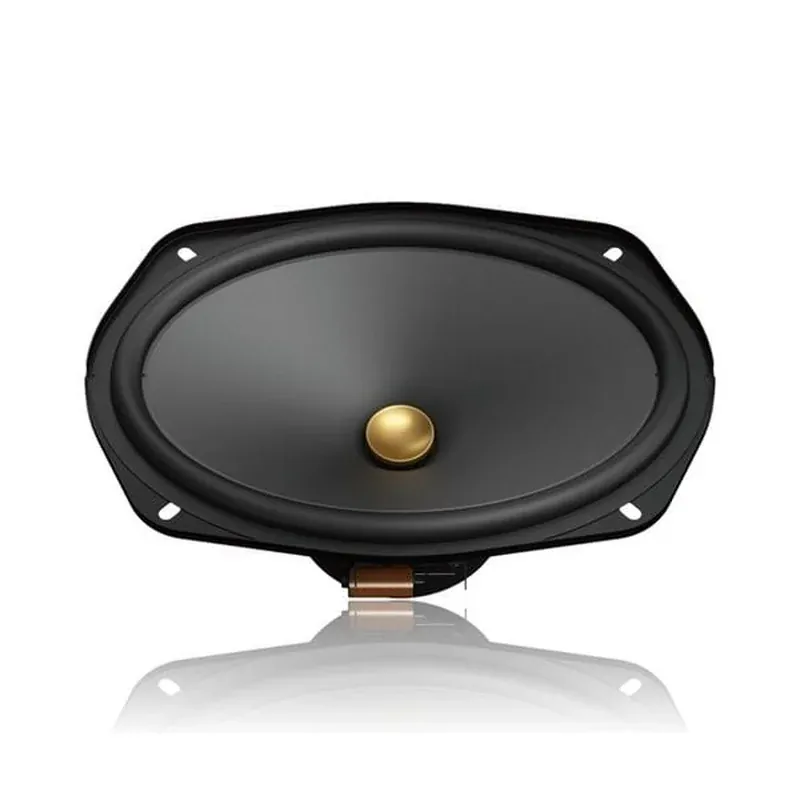

Pioneer TS-A6901C 6x9" 2-way Component Speakers

SKU:TS-A6901C

$230.00


Calculate Shipping

Pioneer’s latest generation of TS-A series speakers support the following features:

  • Carbon & Mica reinforced IMPP cone construction for fast and deep bass response.
  • A specially designed tweeter diaphragm to provide clear mid-range and highs with low distortion.

Designed to meet Pioneer’s “Open & Smooth” sound concept, these speakers are designed to perform at a wides range of audio frequencies, providing the listener with an “Open” (wide) sound staging and “Smooth” transition. With over 80 years of experience designing and manufacturing loudspeakers, we are confident you will enjoy the experience.

IMPP CONE CONSTRUCTION

Carbon & Mica reinforced IMPP cone for deeper and richer bass response.

PIONEER’S “OPEN & SMOOTH”™ SOUND CONCEP

The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.

EASY INSTALLATION

Included with the component system are 6×9″ multi-fit installation adaptors that expand flexibility and improve acoustic performance and also included are tweeter mounts for surface mounting, flush mounting and specially designed multi-fit adaptors for mounting in original equipment (OE) tweeter locations. With the integrated/in-line crossover network, you increase installation flexibility without the need of a large external crossover.

EV OPTIMIZED

The TS-A6901C speakers are the perfect addition for increased sound quality in your electric vehicle! High-efficiency with a sensitivity rating of 92dB, these speakers will not only provide optimal audio quality but are also designed to produce deep bass with minimal input.

Features

GENERAL

  • Size 6x9"
  • Design 6x9" 2-Way Component System
  • Tweeter Design 20mm
  • Tweeter Composition PEI
  • Woofer Composition Carbon and mica reinforced IMPP
  • Woofer Surround Elastic polymer
  • Woofer Magnet Composition Ferrite
  • Warranty 1 Year

INSTALLATION SPECIFICATION

  • Max. Music Power (Nominal) 450W MAX (100W Nom)
  • Frequency Response 29Hz - 58kHz
  • Sensitivity (1W/1 m) 92dB
  • Impedance 4Ω
  • Mounting Depth 72mm
  • Cut-Out Dimensions 153 x 222mm
  • Grills Included No

More Information

More Information
Pair or Single Pair
Speaker Type Split Component
Speaker Setup 2-Way
Woofer Diameter (mm) 160 x 228mm
Woofer Diameter (Inch) 6x9 Inch
Mounting Diameter 153 x 222mm
Woofer Mounting Depth 72mm
Tweeter Diameter (mm) 20mm
Tweeter Diameter (Inch) 0.8 Inch
RMS Power 100W
Impedance 4 Ohm
Grilles Included Included
Sensitivity (dB) 92dB
Frequency Response 29Hz - 58kHz
SKU TS-A6901C
Brand PIONEER
