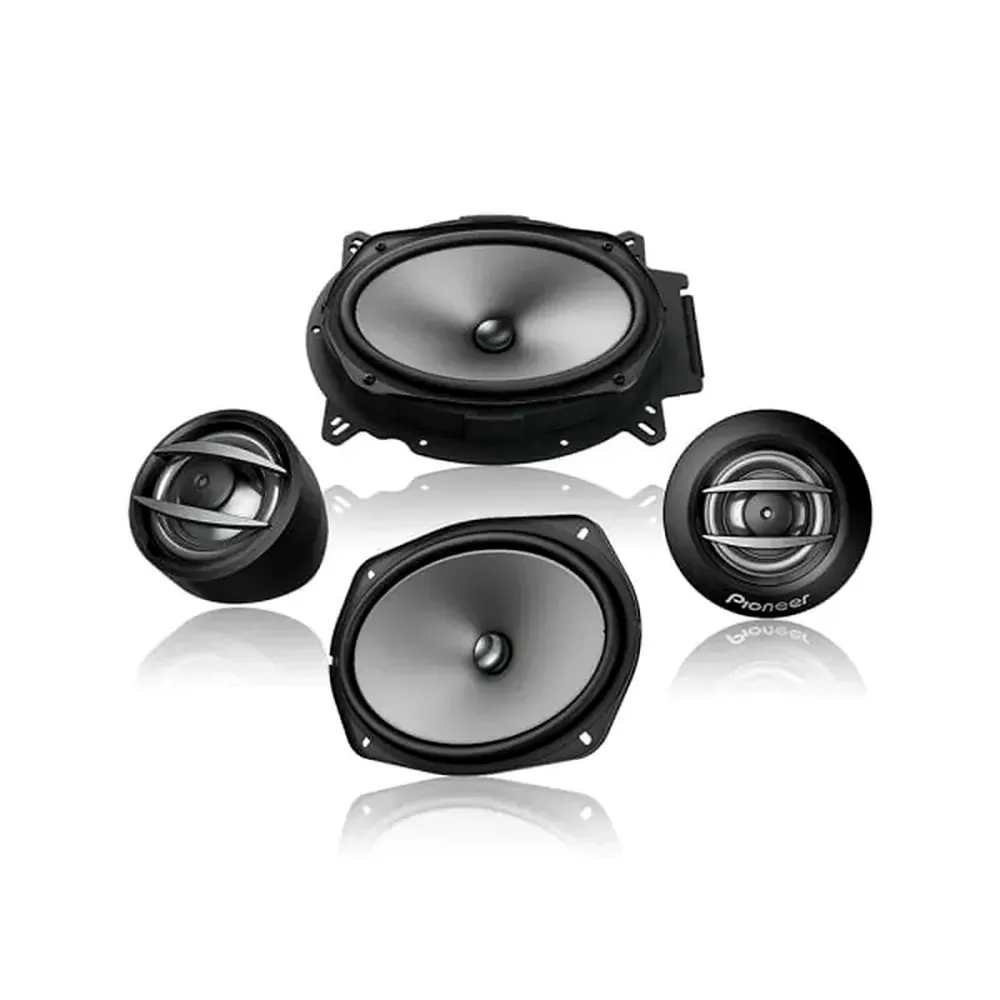

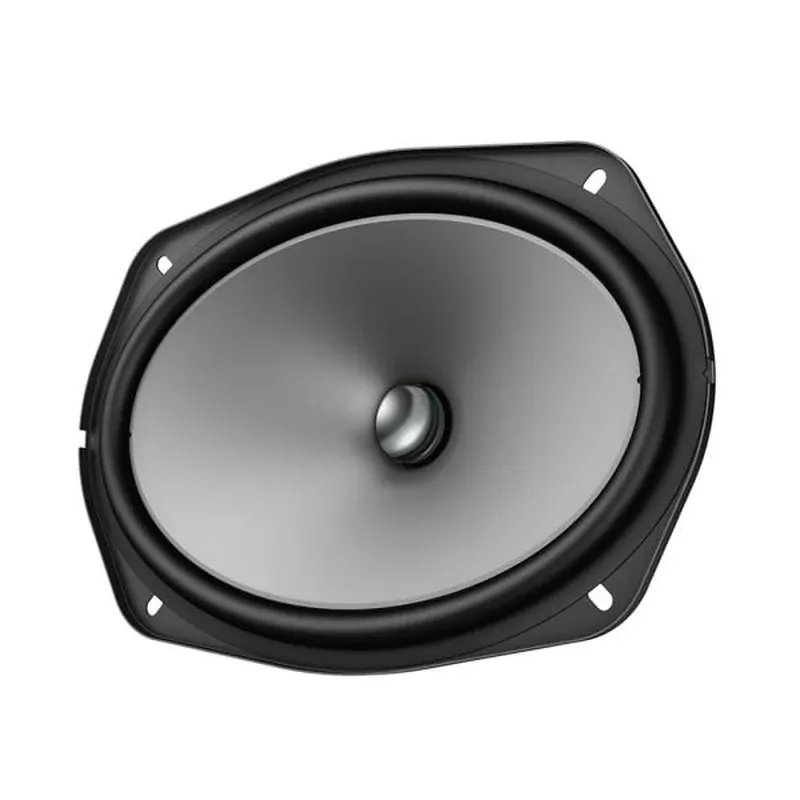

Pioneer TS-A692C 6x9" 2-way Component Speakers

Pioneer’s next generation of TS-A series speakers offer Carbon & Mica reinforced IMPP cone for richer, deeper bass response. The new tweeter contributes to clearer high frequencies sound reproduction, significantly outperforming OEM systems.

The long symmetrical voice coil and suspensions are well engineered for high linearity, more unpactful sound and richer bass with low distortion.

The TS-A692C comes with newly designed adapters that give you more installation options and provide high dampening to improve sound quality.

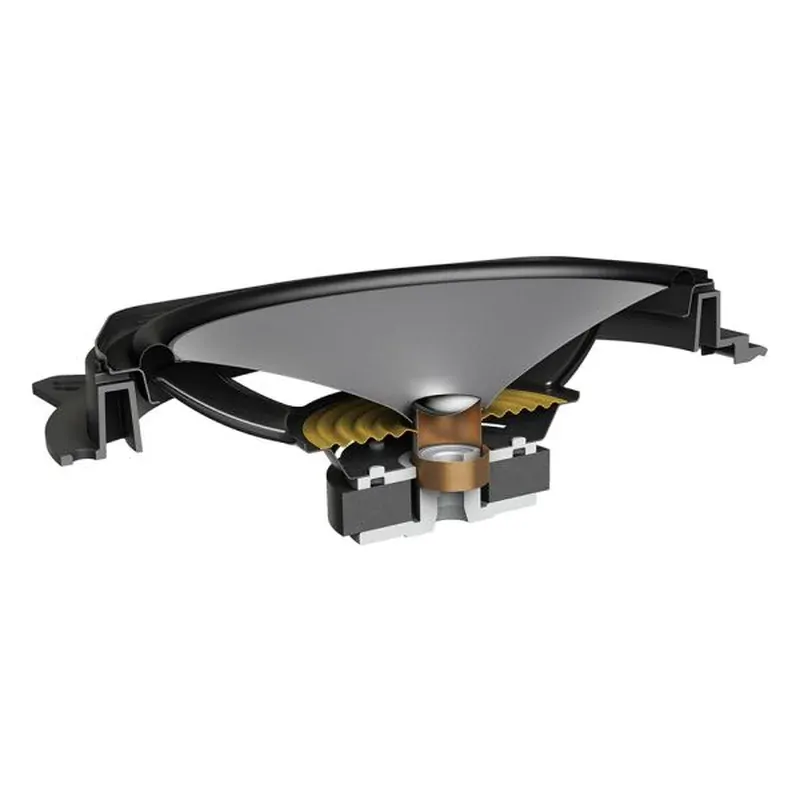

IMPP Cone Construction

Carbon & Mica reinforced IMPP cone for deeper and richer bass response.

Pioneer’s Sound Concept “Open & Smooth”™

The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.

MAIN FEATURES

Size: 6 x 9" (163mm x 237mm) 2-Way Component
Max Music Power (Nominal): 450W MAX (100W Nom)
Frequency Response: 33Hz - 49kHz (-20dB)
Sensitivity: 87dB (±1.5dB)(1W/1m)
Impedance: 4Ω
Mounting Depth: 72mm
Mounting Depth with Mount Adapter: 62mm
High Res Certified: No
Cut Out Dimensions: 153mm x 222mm
Surround Material: Elastic Polymer
Woofer Magnet Material: Y-35
Woofer Basket Material: Metal
Woofer Magnet Weight: 320g
Woofer Cone Material: IMPP Composite
Tweeter Type: Dome
Tweeter Diaphragm Material: Pl (t=50µm)
