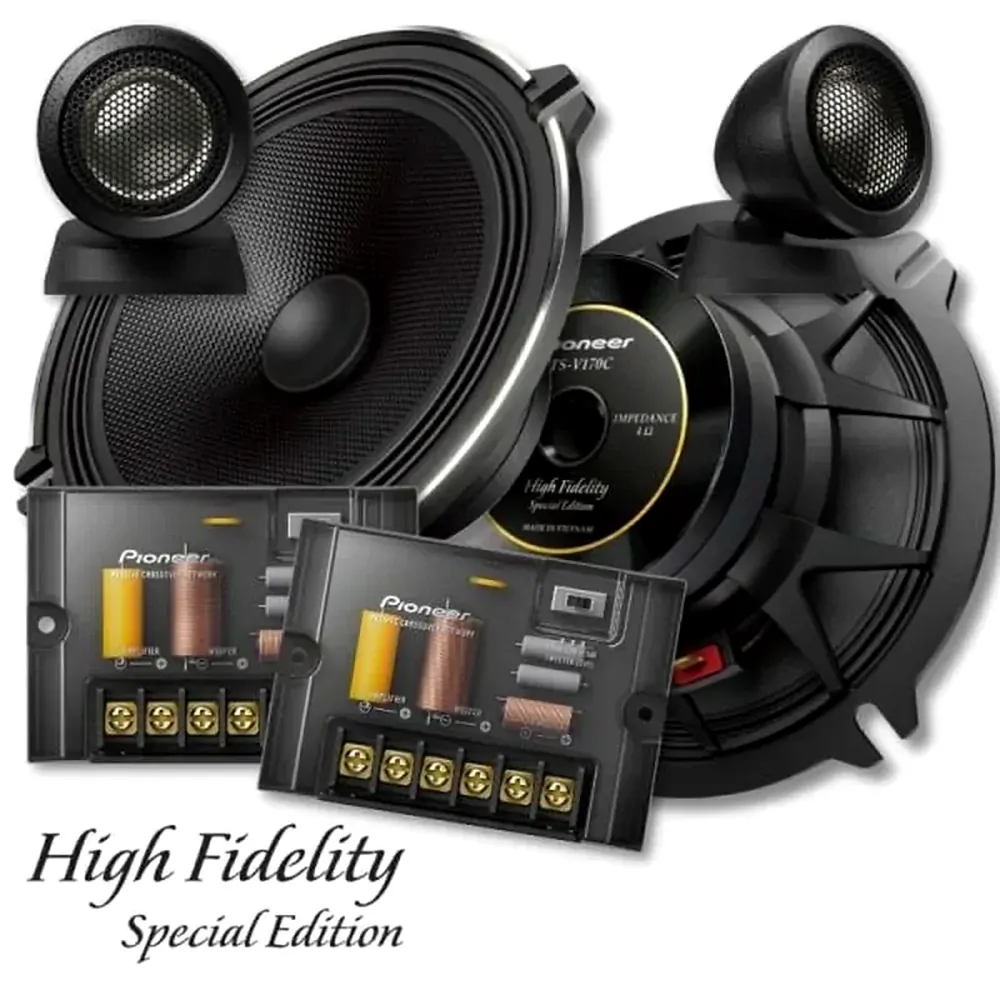

The TS-V170C (High Fidelity Special Edition) is the breakthrough result of combining Pioneer’s speaker engineering expertise and new design techniques to achieve high fidelity sound.
By incorporating Pioneer’s “Open & Smooth” sound concept, we can eliminate the attenuation and turbulence of the midrange in the car. With the combination of carefully selected high-quality parts and materials, we can achieve rich mid-range reproduction thus create a realistic experience for the listener.
Hi-Res Audio Certified
The TS-V170C Special Edition speakers can faithfully reproduce Hi-Res Audio recordings. This is about the closest you can get to experiencing studio-quality sound, thanks to the result of integrating our decades of knowledge, technology and craftsmanship in speakers with carefully curated materials and parts.
Premium Quality
The TS-V170C Special Edition speakers have been designed by our highly experienced engineering team in Japan.

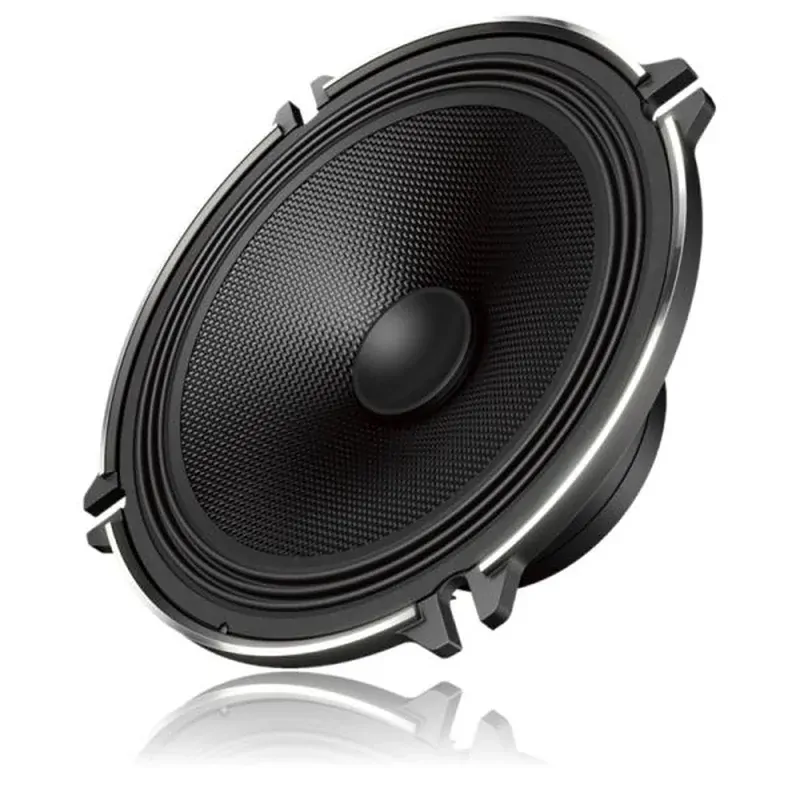

Dual-Layer Aramid Fibre Cone Construction
Designing speakers to meet Pioneer’s “Open & Smooth” sound concept requires premium materials. The TS-V170C Special Edition speakers are designed with a dual-layer Aramid fibre cone providing superior strength and linear motion.
Pioneer’s Sound Concept “Open & Smooth”™
The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.
Easy Installation
Universal multi-fit adaptor is included for flexible installation in various types of Japan cars without having to cut vehicle doors.
General: | |
Size | 17cm |
---|---|
Design | 17cm 2-Way Component |
Tweeter Design | 29mm HSDOM Diaphragm |
Tweeter Composition | Aluminium |
Woofer Composition | Dual Layer Aramid Fibre |
Woofer Surround | Meta-Aramid Fibre Corrugate Coating |
Woofer Magnet Composition | Strontium |
Warranty | 1 Year |
Installation Specification: | |
Max. Music Power (Nominal) | 280W MAX (60W Nom) |
Frequency Response | 33 Hz to 64,000 Hz (-20dB) |
Sensitivity (1W/1 m) | 90 dB |
Impedance | 4? |
Mounting Depth | 57mm |
Cut-Out Dimensions | 137mm |
Grills Included | No |
Features
- 280 Watts Max Power (60 Watts Nominal)
- Dual-Layer Aramid Fibre Cone
- Pioneer “Open & Smooth” Sound Concept
- Designed In Japan
More Information
Pair or Single | Pair |
---|---|
Speaker Type | Split Component |
Speaker Setup | 2-Way |
Woofer Diameter (mm) | 170mm |
Woofer Diameter (Inch) | 6.7 Inch |
Woofer Mounting Depth | 57mm |
Tweeter Diameter (mm) | 29mm |
Tweeter Diameter (Inch) | 1.14 Inch |
RMS Power | 60W |
Impedance | 4 Ohm |
Grilles Included | Included |
Sensitivity (dB) | 90dB |
Frequency Response | 33Hz - 64kHz |
SKU | TS-V170C |
Brand | PIONEER |
