STEDI Quad Pro LED Driving Lights LEDQUAD-PRO

SKU:LEDQUAD-PRO

$549.00


Calculate Shipping

COMPACT DESIGN. MEGA PERFORMANCE.

The compact-LED driving light space has been fearfully neglected, with offerings looking as underwhelming as their inability to sustain a compact performance. Enter the STEDI QUAD Pro.

A LEGENDARY BLOODLINE.

The QUAD Pro is the continuation of the high-calibre class of the PRO bloodline. Sharing the legendary performance of the Type-X Pro and ST3303 Pro, the QUAD Pro utilises the same reflector and LED technology, to deliver an explosive performance.

CUSTOMISABLE LIKE NO OTHER

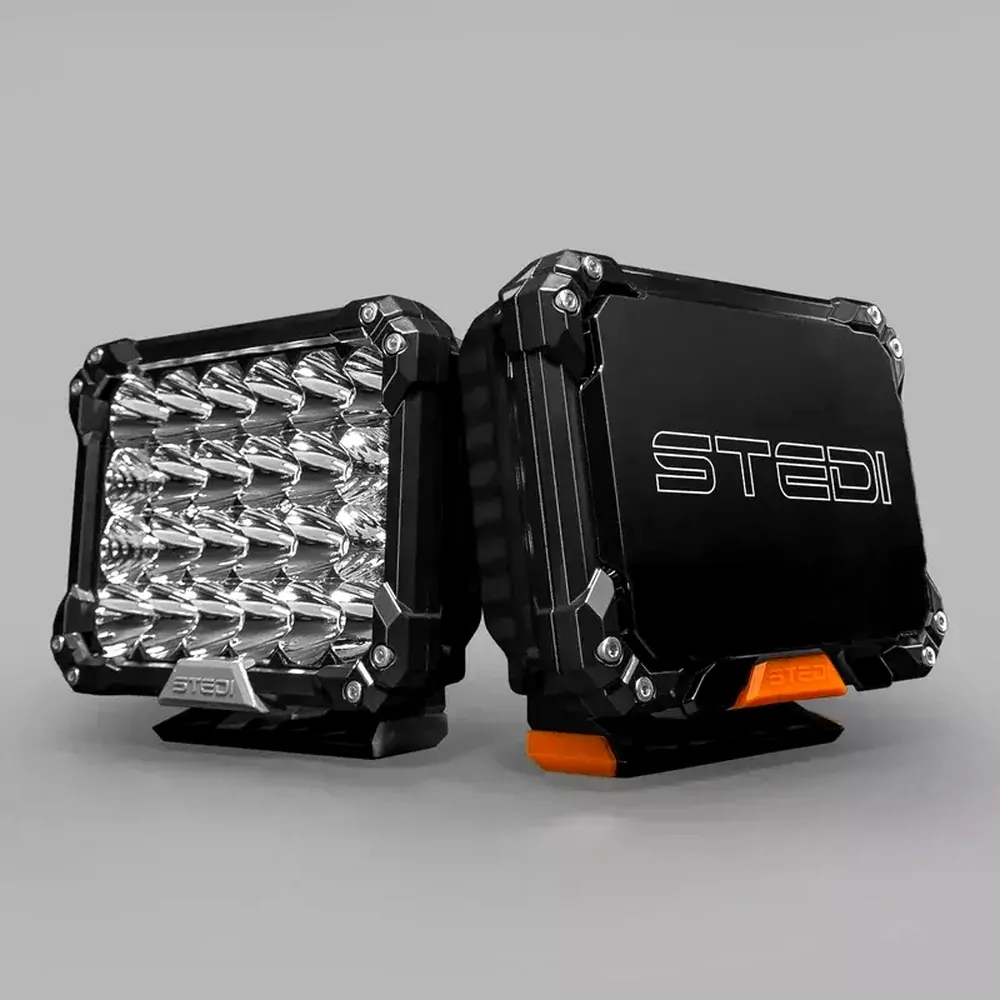

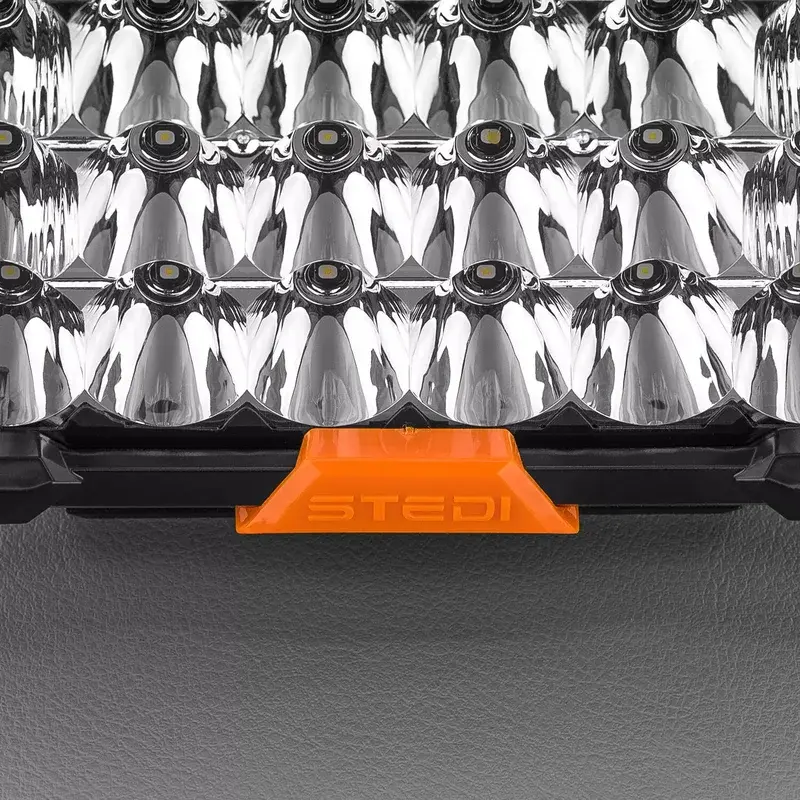

Included in the kit is a pair of STEDI blackout cover, in addition to the orange and grey colour customisation caps. The iconic STEDI Smiley covers are available to purchase separately, as are blue, green, red, and yellow colour caps.

RAZOR-SHARP LUMINANCE.

Stedi's Quads showcase a glistening 5700K colour temperature, providing the necessary luminance to cut-through any obstrusive dust and other air-born particles.

The nitty gritty.

QUAD Pro LED Driving Lights

The compact housing design offers endless possibilities in terms of mounting locations.  We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.

KEY FEATURES

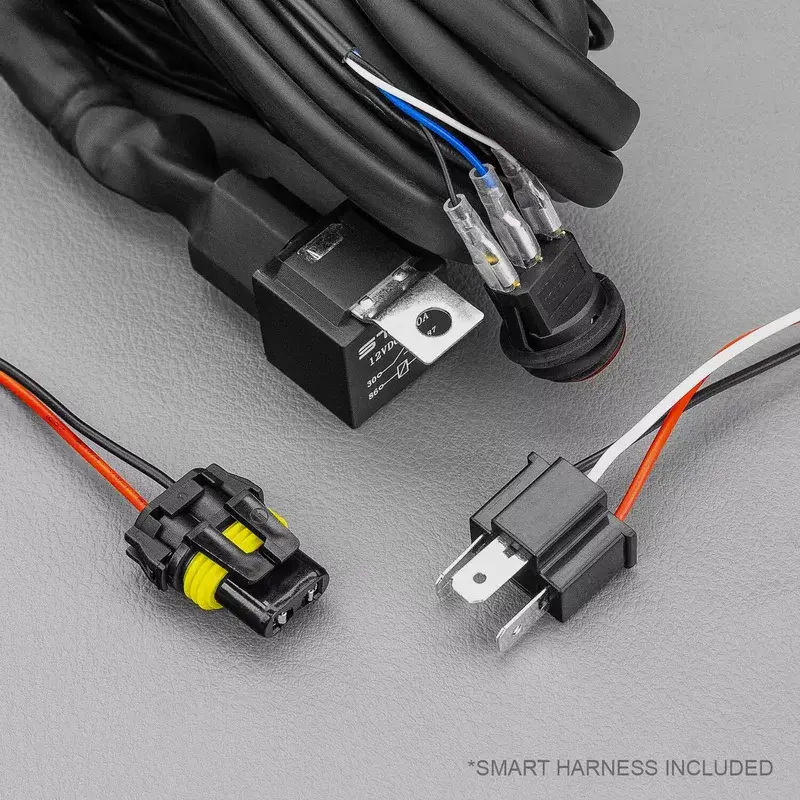

  • Includes Stedi's legendary Easy-Fit plug and play high beam wiring harness
  • IP68 Ingress protection means Stedi's QUADS are 100% immersible in water and dust-tight.
  • 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.
  • Environmentally sealed Deutsch DT connectors
  • RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.

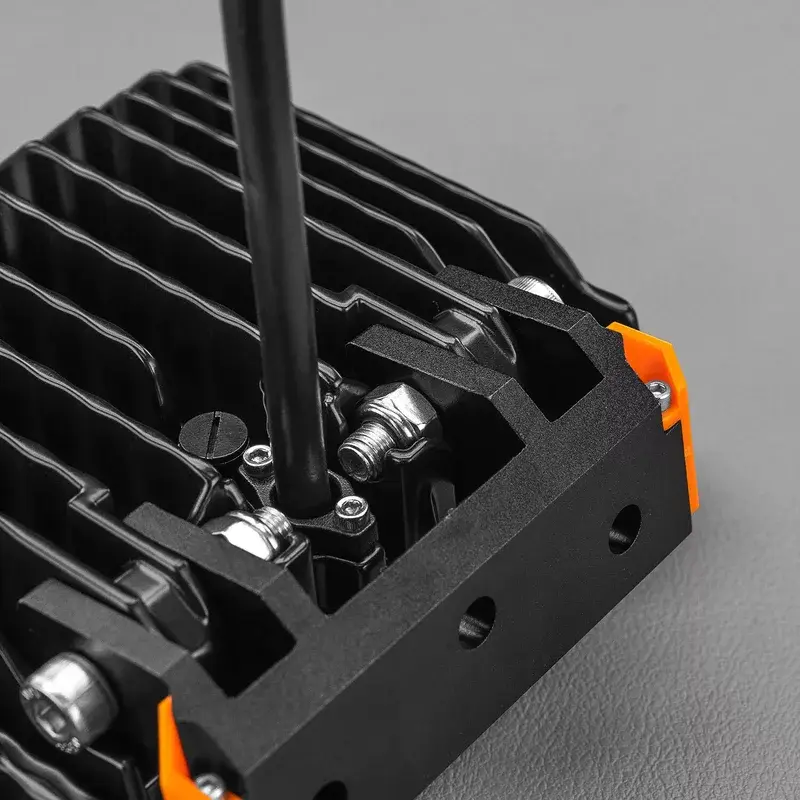

  • High-Pressure Die-Cast Bracket

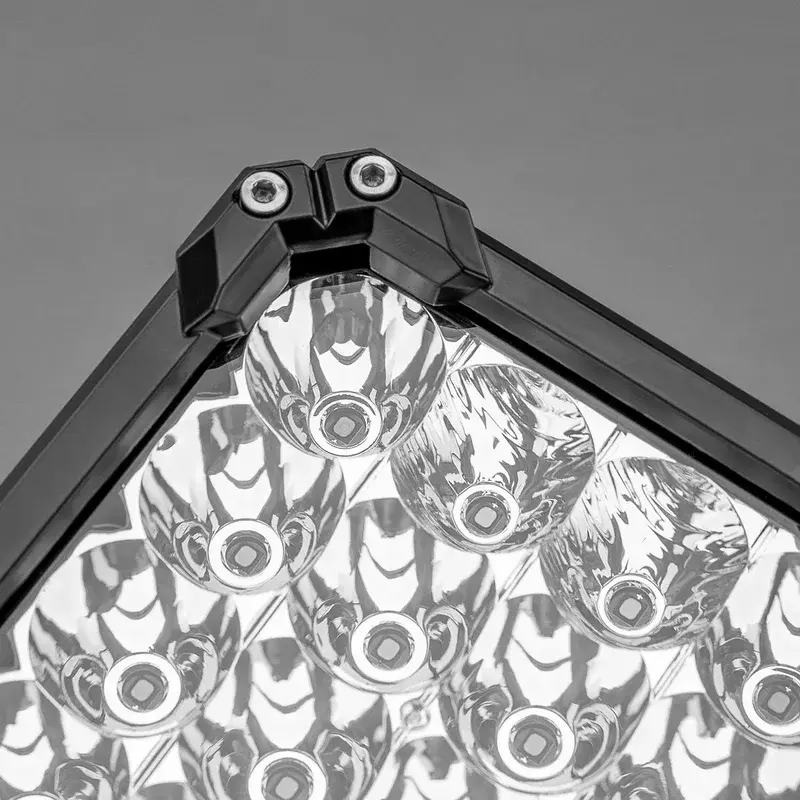

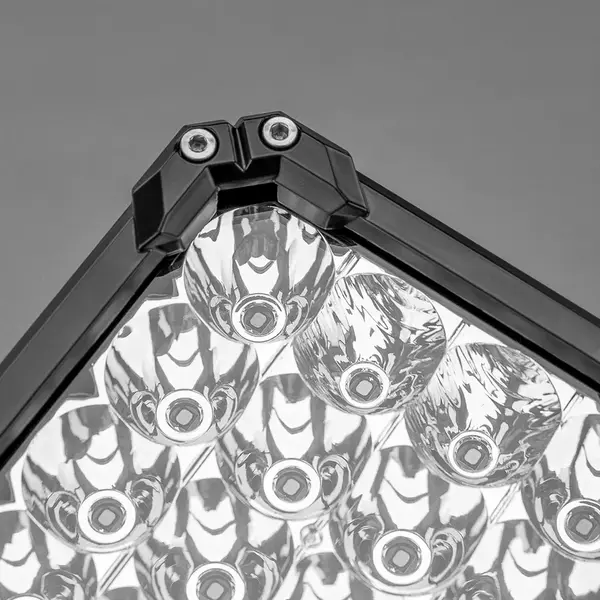

  • Spread and Spot beam reflectors built-in.

Features

  • LED: 24 x Oslon High-Flux LED
  • Lumens (Raw): 17,040 (Pair)
  • Lumens: 11,360 (Pair)
  • Current Draw: 7.4A @ 13.2V each
  • Power Draw: 97W each
  • Candela: 693,889cd
  • Beam Type: 4 x Spread 20 x Pencil Beam
  • Ingress Protection: IP68/Submersible up to 3m
  • Colour Temperature: 5700K
  • Voltage: 12/24V
  • Life Span: 50,000 Hours
  • Weight: 1.4kg (Including cover) each
  • Photometric Data: 6938lx @ 10m
    277lx @ 50m
    17lx @ 200m
    7.7lx @ 300m
    4lx @ 400m
    2.7lx @ 500m
    1lx @ 833m
SKU LEDQUAD-PRO
Brand STEDI
