STEDI Shock 6 Mining Spec LED Flood Light Yellow LEDMINE-60W-YELLOW

The nitty gritty.

PROTECTED AGAINST;

• Reverse polarity
• Shockproof, waterproof and UV shielded
• RFI/EMC interference | won't interfere with existing electronic systems.  Tested and Certified to the  CISPR25 Class 4 Standard.
• Voltage and current surge protection

FEATURES

• Dynamic Thermal management regulator | Designed to operated 24 hours a day 7 days per week.
• Die-Cast aluminium ADC12 heat-sink
• Silicon Power Cable
• Anodized Powder coat | Abrasion resistant
• Lexan Poly-carbonate Front Cover | Unbreakable

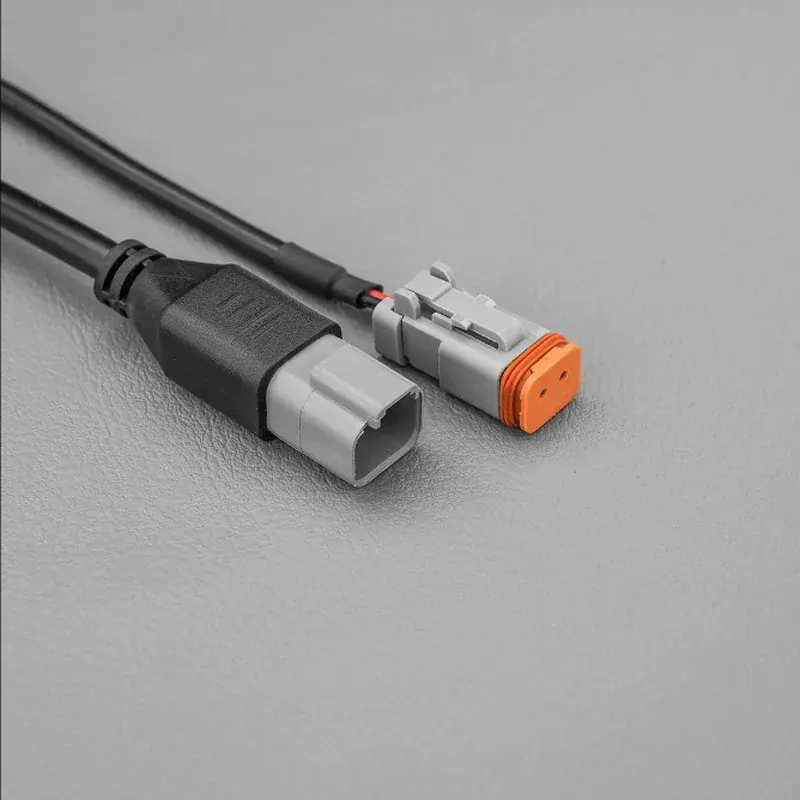

• Environmentally sealed Deutsch DT04-2 connectors

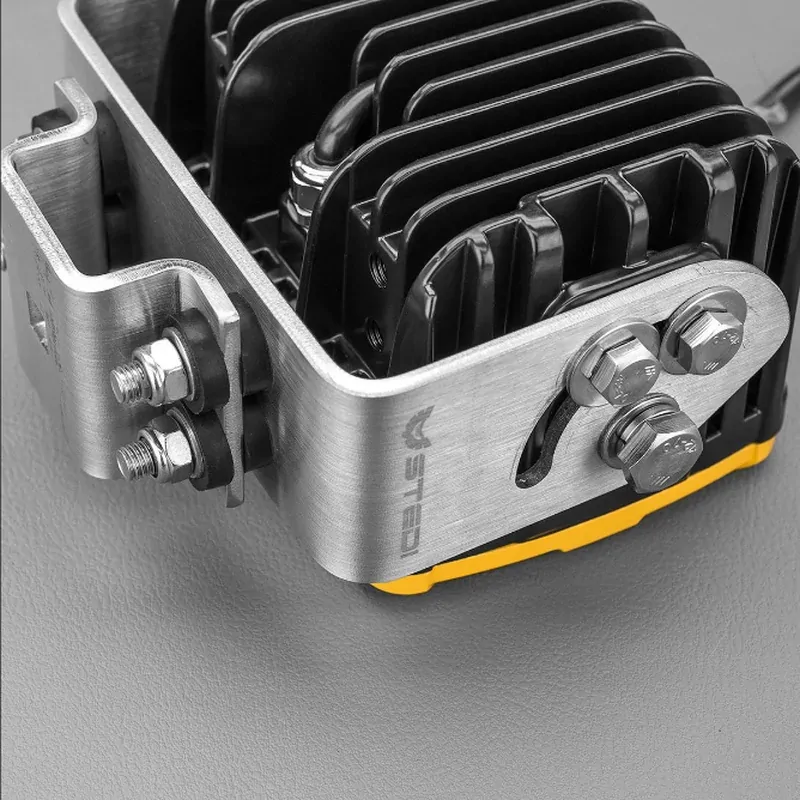

• Vibration and shock absorbing bracketing.

SHOCK AND VIBRATION TESTING

The STEDI Shock 6 has passed the following testing to standard with the criterion that "All light components must stay intact and in the original place. Light to operate normally after the test."

Testing Method 1:

Vibration testing according to MIL-STD - 810G 514.6 - Run test for 4 hours vertically and 2 hours laterally at a frequency of 5 - 500Hz Testing Method 2:

Housing impact test: Drop weight of mass  240g onto housing from a height of 1000mm

Lens impact test:  Drop weight of mass  250g onto the lens from a height of 510mm

ENDLESS CASE STUDIES

Reach out to the sales team to discover how we have saved Australia's most respected mining and resources companies hundreds of thousands of dollars on their lighting upgrade programs, while simultaneously implementing higher performance and more robust lighting solutions.

AT YOUR OEM OR ODM SERVICE If one of Stedi's existing product offerings is not suitable, we offer a bespoke luminaire design service with the following core competencies;

Optical EngineeringElectrical EngineeringTechnical Drawings

PRODUCTION CAPABILITIES

Printed Circuit BoardsInjection Molded PartsDie Cast PartsExtruded PartsRapid PrototypesWire HarnessesMass Production

CORE LIGHTING COMPETENCIES

Light Emitting Diodes (LED)Reflector OpticsLens Optics
